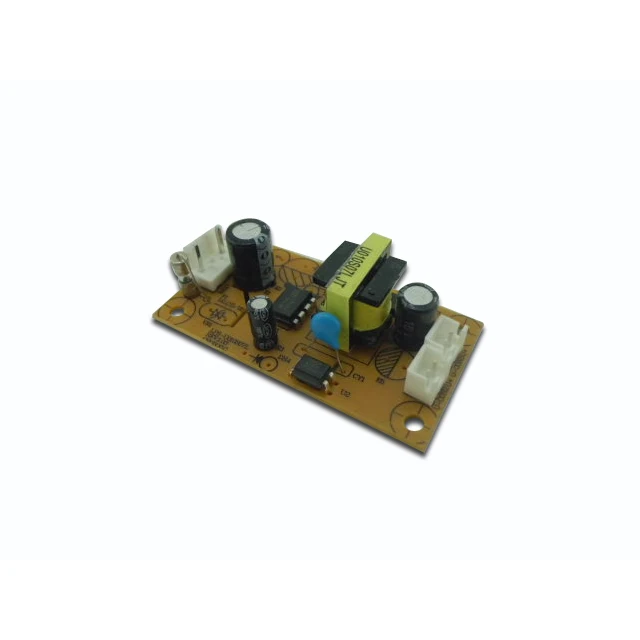

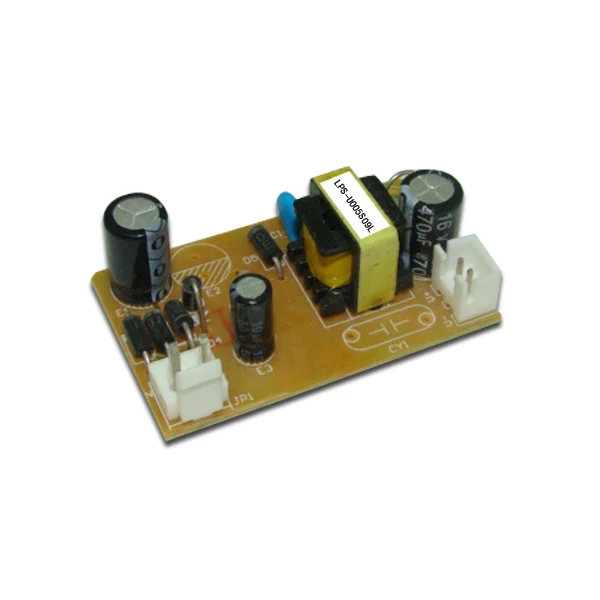

5W 5V 9V 12V Audio Amplifier DC Converter SMPS Switching Power Supply

Product Overview

Description

5W 5V 9V 12V Audio Amplifier DC Converter SMPS Switching Power Supply



• Universal AC input / Full range


• Low leakage current<0.5mA


• Protections: short circuit / over load / over current


• cooling by free air convection


• 100% full load burn-in test



Model		LPS-U005S5M	LPS-U005S12M	LPS-U005S15M	LPS-U005S24M	LPS-U005S48M
Output	DC voltage	5V	12V	15V	24V	48V
	voltage tolerance	±2%	±2%	±2%	±2%	±1%
	Rated current	1A	0.45A	0.35A	0.22A	0.11A
	current range	0~1A	0~0.45A	0~0.35A	0~0.22A	0~0.11A
	Rated power	5W	5.4W	5.25W	5.28W	5.28W
	Ripple & noise(max)	100mVp-p	120mVp-p	120mVp-p	200mVp-p	200mVp-p
	start, rise time	1000ms,30ms/230VAC 1000ms,30ms/115VAC(at full load)
	hold-up time	50ms/230VAC 15ms/115VAC(at full load)
Input	voltage range	100VAC~240VAC
	AC current	0.3A/115VAC 0.15A/230VAC
	Efficiency	70.0%	76.0%	75.0%	76.0%	76.0%
	Frequency	47Hz~63Hz
	Inrush current	20A/115VAC  40A/230VAC
	Leakage current	0.75mA /240Vac
Protection	Over voltage protection	N/A,rate output current(constant power)
	Over load protection	105% 150%, hiccup mode,Auto recovery
	Short circuit protection	Latched
	Over temperature protection	N/A
Environment	Working temperature& humidity	0 ~ +40℃ (Refer to "Derating Curve"),20% ~ 90% RH non-condensing
	Storage temperature& humidity	- 20 ~ +85℃ , 10 ~ 95% RH
	Vibration	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety/EMC standards	Withstand voltage	N/A
	Safety stand	N/A
	EMC stand	N/A
Others	Dimension	46*28*15mm (L*W*H)
