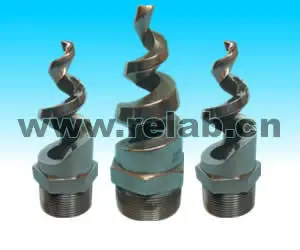

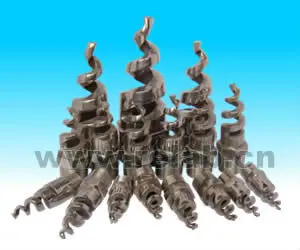

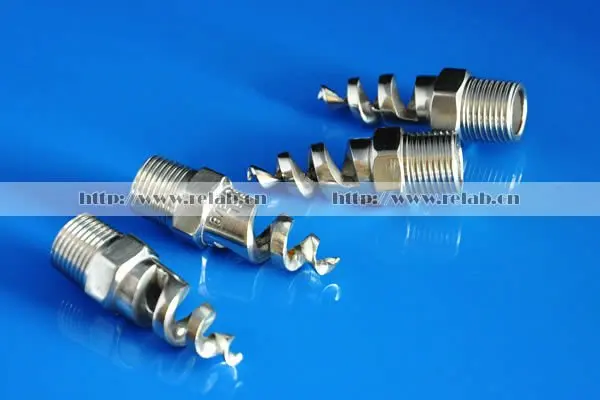

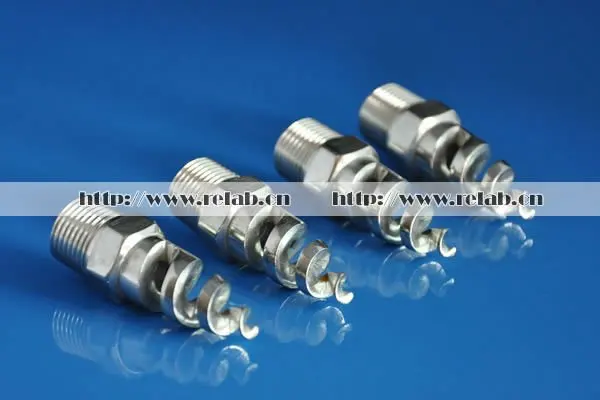

Stainless Steel Spiral Spray Nozzle

Product Overview

Description

Characteristics:



*  The compact nozzles permit maximum liquid throughput for a given pipe size,

    and the free passage design minimizes clogging.

 *  Spiral Nozzles work on the impact principle,

    by deflection of a water stream onto a spiral profiled surface which provides the desired spray angle.

    While the droplet spray distribution is not comparable to the one provided by a standard full cone nozzle,

    the fact that a whirling vane is not required makes them virtually clog-free in most cases.


*  The spray angle value is maintained even at low pressure and when spraying high viscosity liquids.





Design Features:



* Nozzle Materials: 316 stainless steel

* Nozzle Structure: one-piece construction no internal parts.

* Spray Patterns: full cone and hollow cone spray.

* Spray angles: from 60 to 170 degree

* Pressure Range: 0.7 to 25 bar (2.6 to 11960 L/min)

* Inlet connection Type: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3", 4"

* Thread Standard: available in type NPT or BSPT male thread.
