Boiler Parts
$6.50-7.00
underfloor floor heating
- Category: >>>
- Supplier: Chengdu Anlt Thermal Technology Co. Ltd.
Share on (724115386):
Product Overview
Description
Best Seller
Product Description

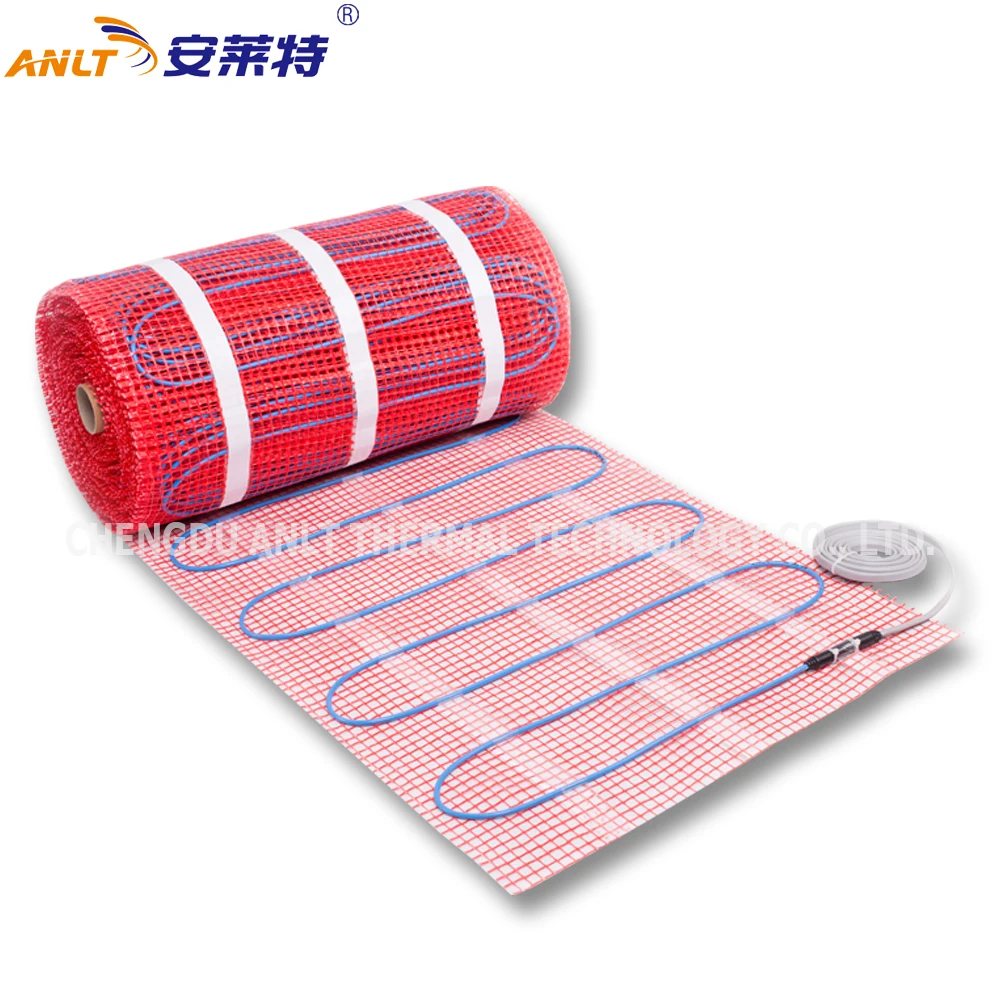

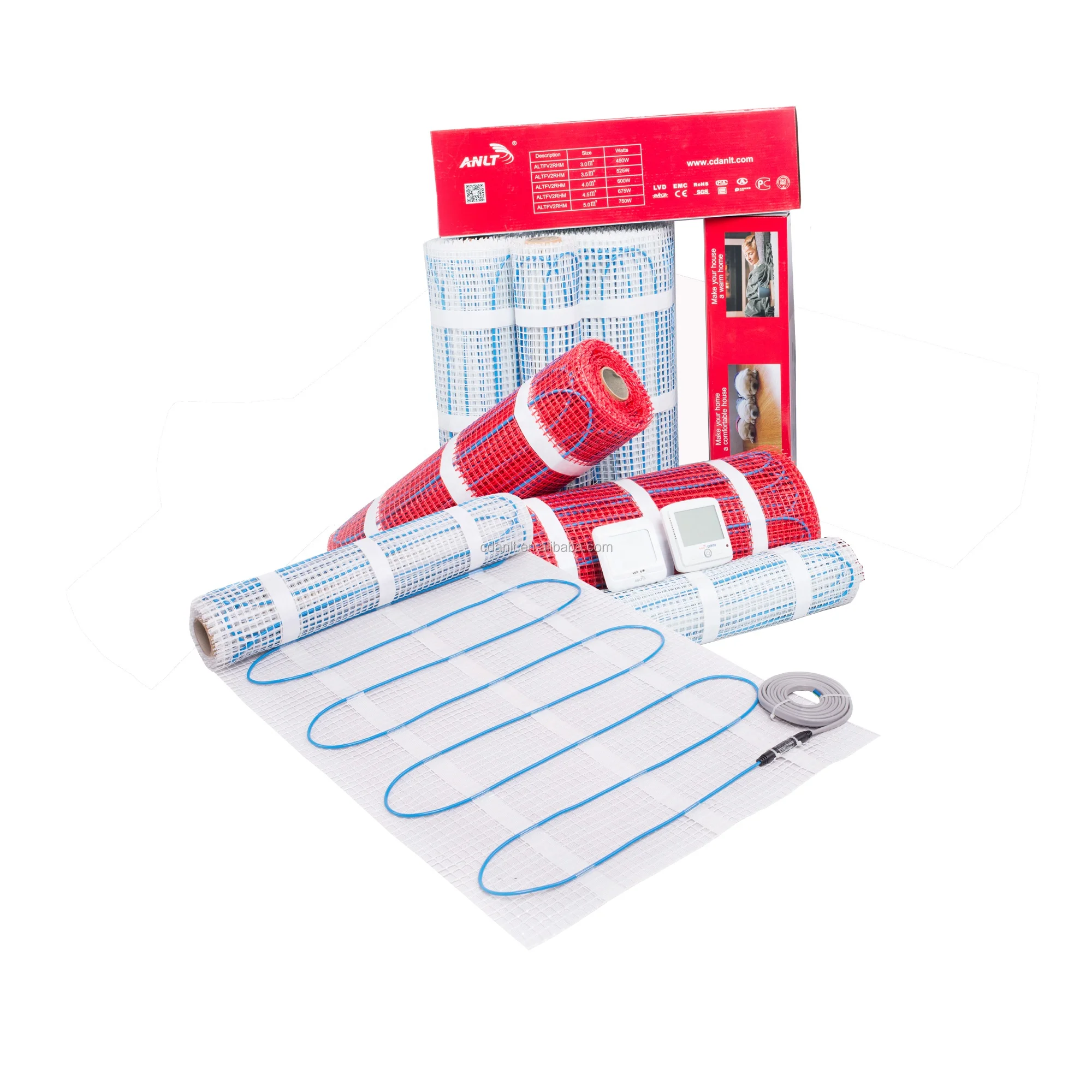

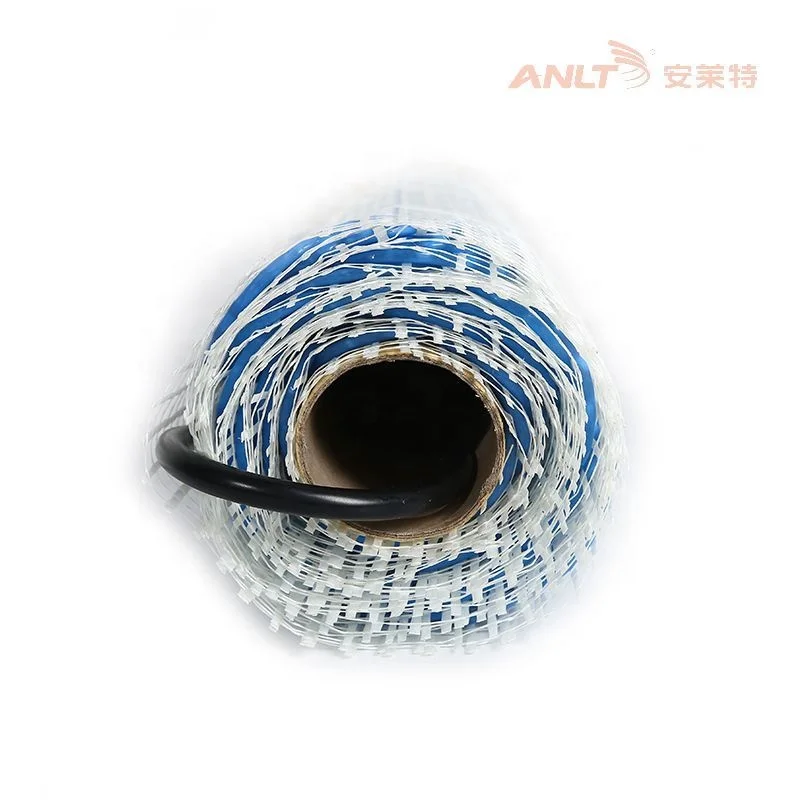

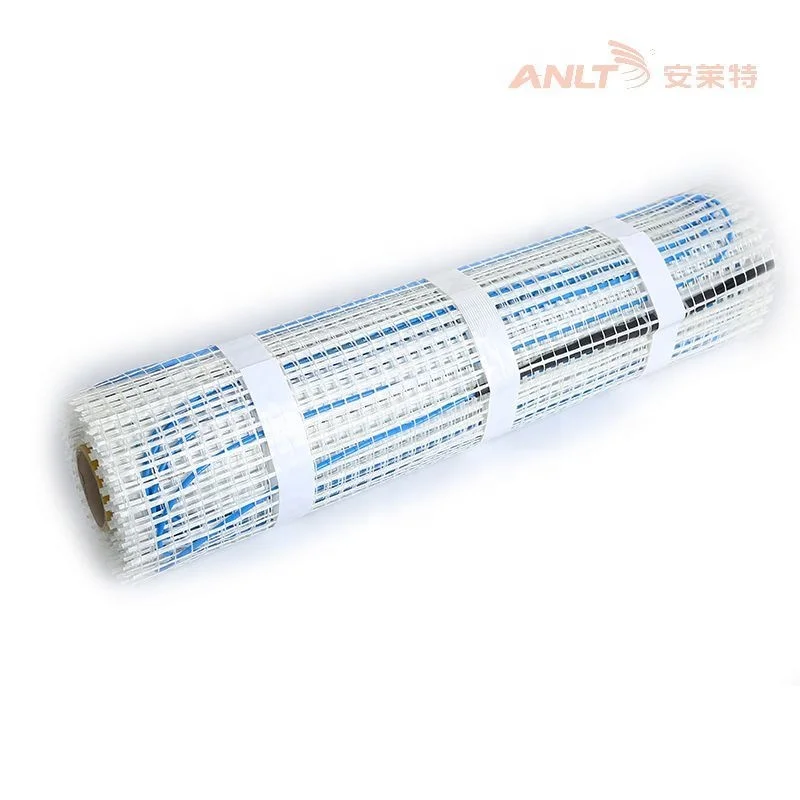

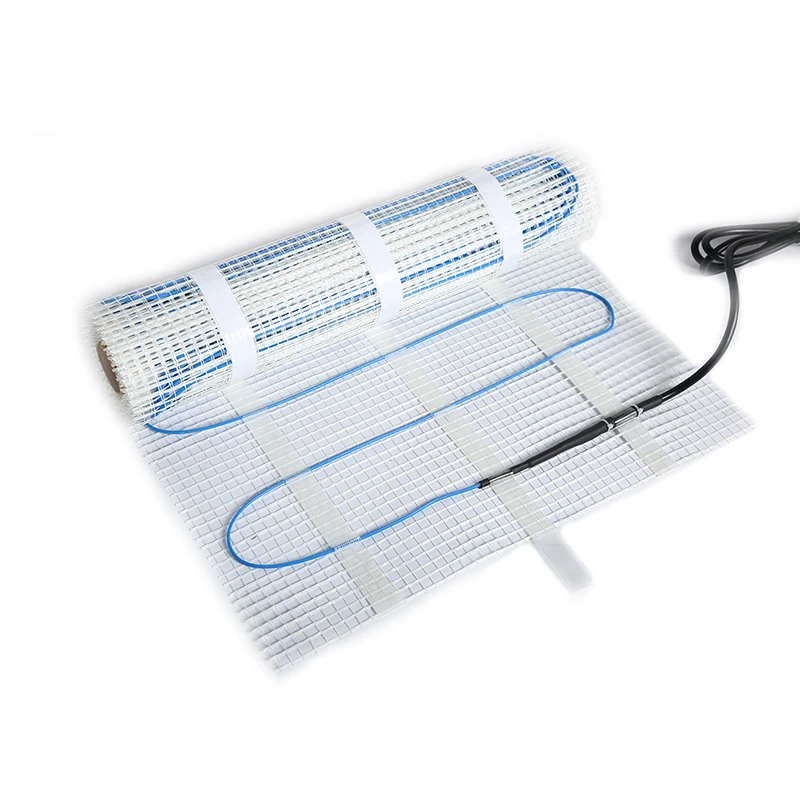

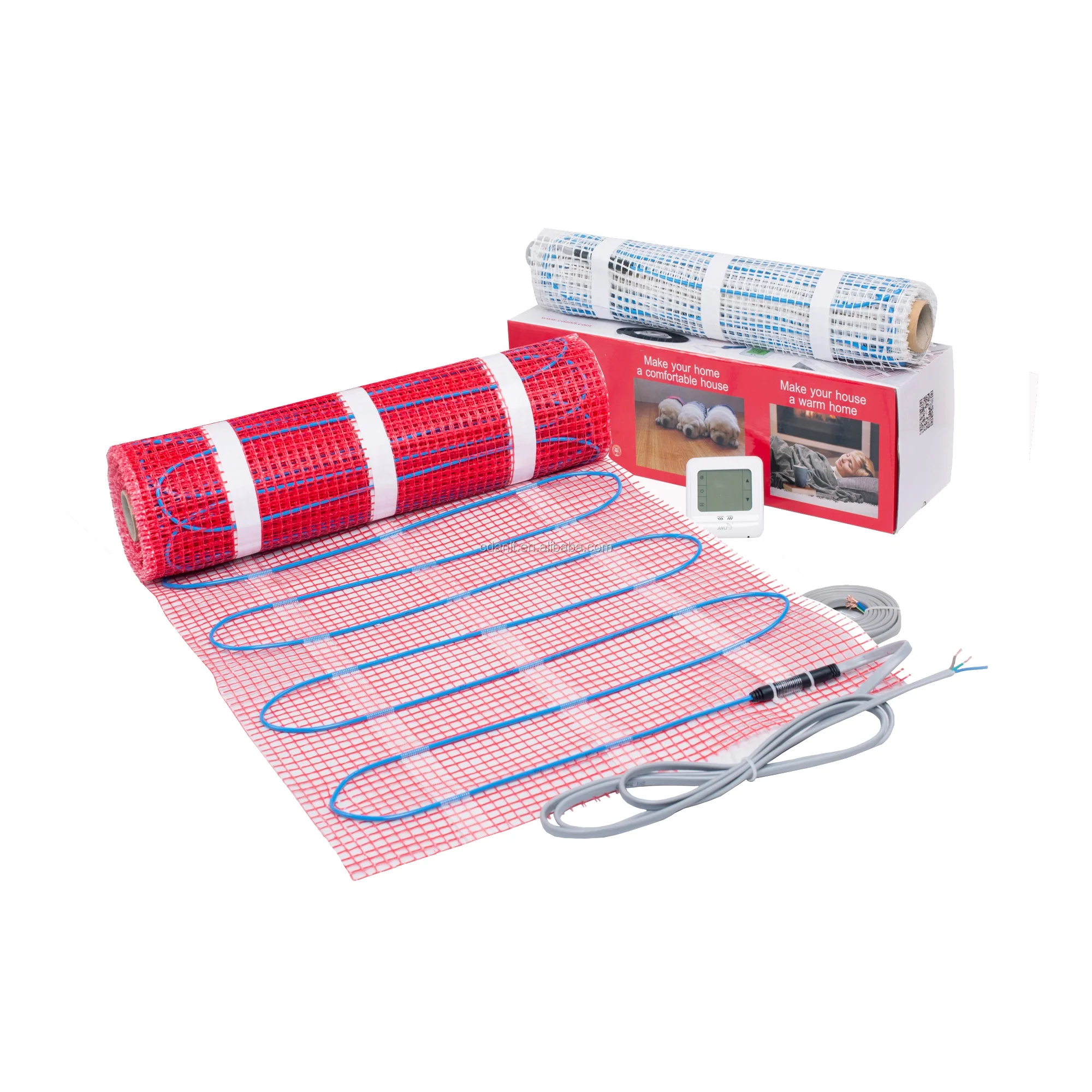

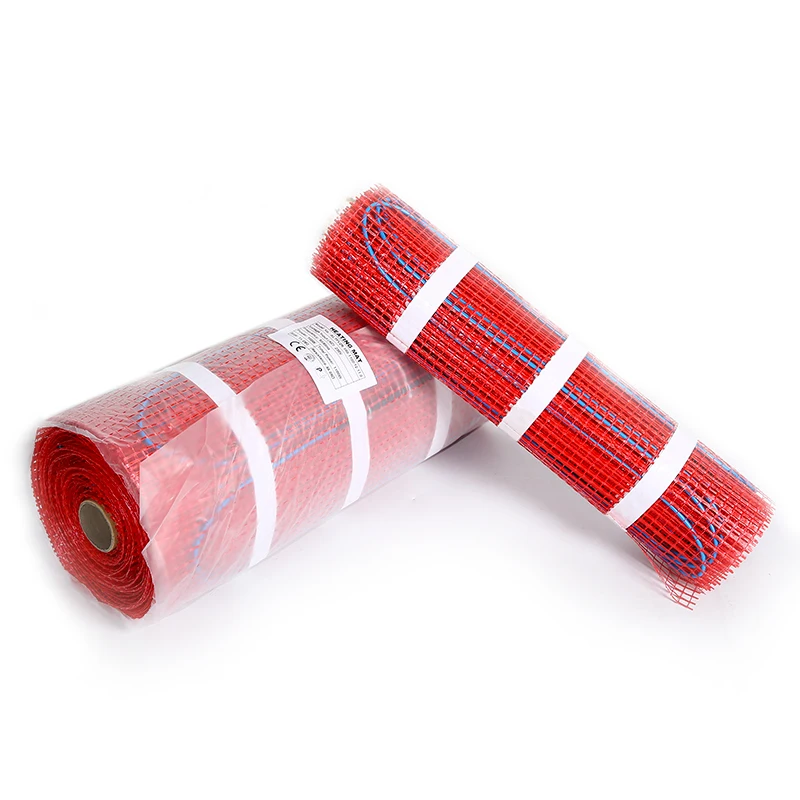

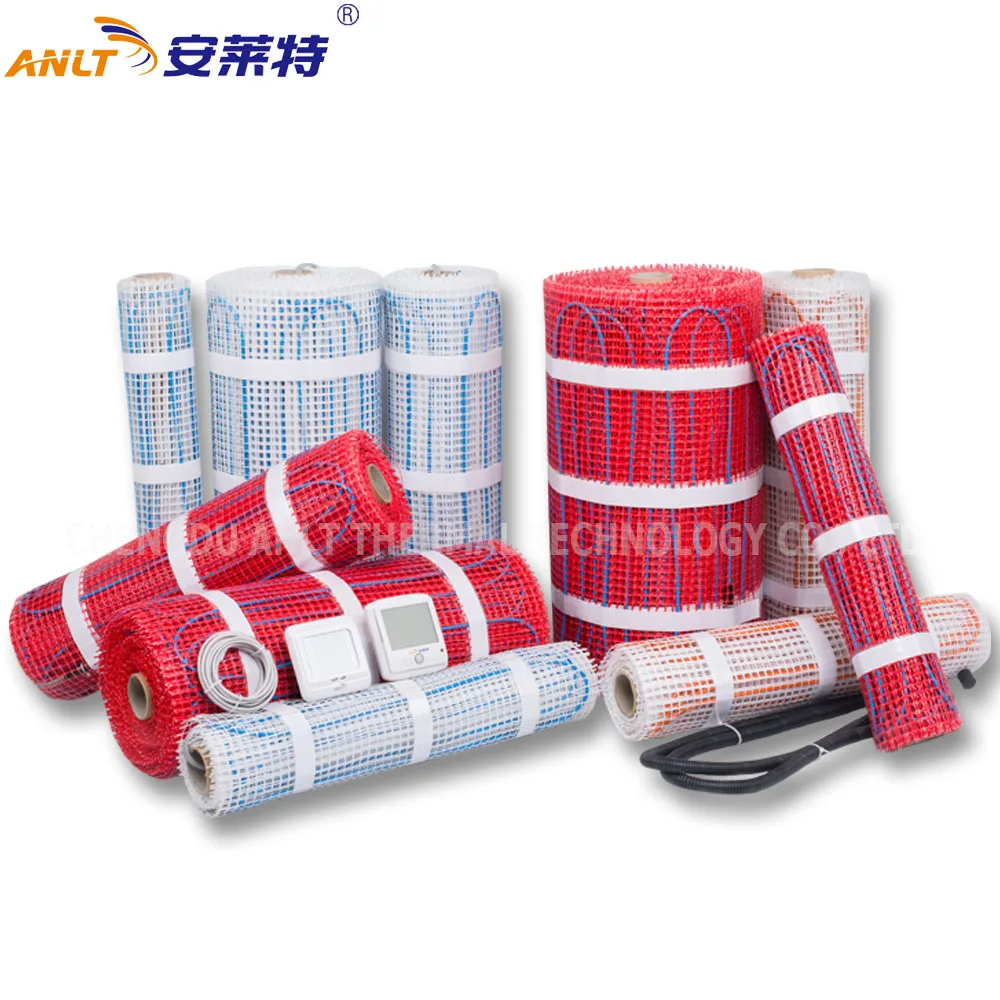

Product Name: | ANLT electric underfloor heating mat |
Cable Construction: | Twin conductor, one cold lead |
Conductor Material / Heating Element: | Copper-nickel alloy |
Shield: | Aluminum foil shielding + Copper mesh braids shielding(CWS) |
Jacket: | Flame retardant PVC |
Mesh: | Red or white glued fiber-glass mesh with white adhesive tape |
Heating Cable Color: | Red or blue. Can be customized with customization costs. |
Width: | 0.5m |
Heated Area: | 0.5㎡ to 15㎡ |
Cable Spacing: | 80mm-100mm |
Cable Diameter: | 3.5-4mm |
Power Unit: | 100W/㎡,150W/㎡, 200W/㎡ |
Linear Power Rating: | 12w/m |
Rated Voltage: | 100V-240V |
Lead Wire Length: | 1m, 1.5m, 2m or 2.5m |
Max. Ambient Temp: | 30℃ |
Min. Installation Temp: | 5℃ |
Delivery time: | Depend on order quantity, generally taking 15-25 days. |
Package: | ANLT standard color box or white box. |
Warranty | 15 Years |
Discover a new era of home comfort with our cutting-edge Electric Underfloor Heating Mats. Revolutionize your living space with key features that make our heating solutions stand out:
* Efficient Heating Technology:
1. Experience energy-efficient warmth with our advanced underfloor heating mats.
2. Precision-engineered heating cables ensure optimal temperature control in every corner.
* Silent and Discreet Heating:
1. Say goodbye to noisy heating systems; our underfloor heating operates silently in the
background.
2. Enjoy discreet warmth without the need for bulky radiators, maximizing your interior design
freedom.
* Customized Comfort:
background.
2. Enjoy discreet warmth without the need for bulky radiators, maximizing your interior design
freedom.
* Customized Comfort:
1. Tailor your heating experience with customizable zones using our underfloor heating systems.
2. Achieve personalized warmth in specific areas, providing comfort where you need it most.
* Quick and Easy Installation:
2. Achieve personalized warmth in specific areas, providing comfort where you need it most.
* Quick and Easy Installation:
1. Streamline your heating upgrade with hassle-free installation of our underfloor heating mats.
2. Save time and effort while enjoying the benefits of a modern and efficient heating solution.
* Even Heat Distribution:
2. Save time and effort while enjoying the benefits of a modern and efficient heating solution.
* Even Heat Distribution:
1. Bid farewell to cold spots and uneven temperatures; our heating mats ensure consistent warmth
throughout your space.
2. Experience unparalleled comfort with gentle, radiant heat from the floor up.
* Cost-Effective Solution:
throughout your space.
2. Experience unparalleled comfort with gentle, radiant heat from the floor up.
* Cost-Effective Solution:
1. Optimize energy usage and reduce heating costs with our electric underfloor heating.
2. Enjoy a cost-effective solution that doesn't compromise on comfort or efficiency.
* Low Maintenance and Durability:
2. Enjoy a cost-effective solution that doesn't compromise on comfort or efficiency.
* Low Maintenance and Durability:
1. Benefit from the durability of our underfloor heating mats, designed for long-lasting
performance.
2. Enjoy a low-maintenance heating solution that adds value to your home.
* Smart Heating Control:
performance.
2. Enjoy a low-maintenance heating solution that adds value to your home.
* Smart Heating Control:

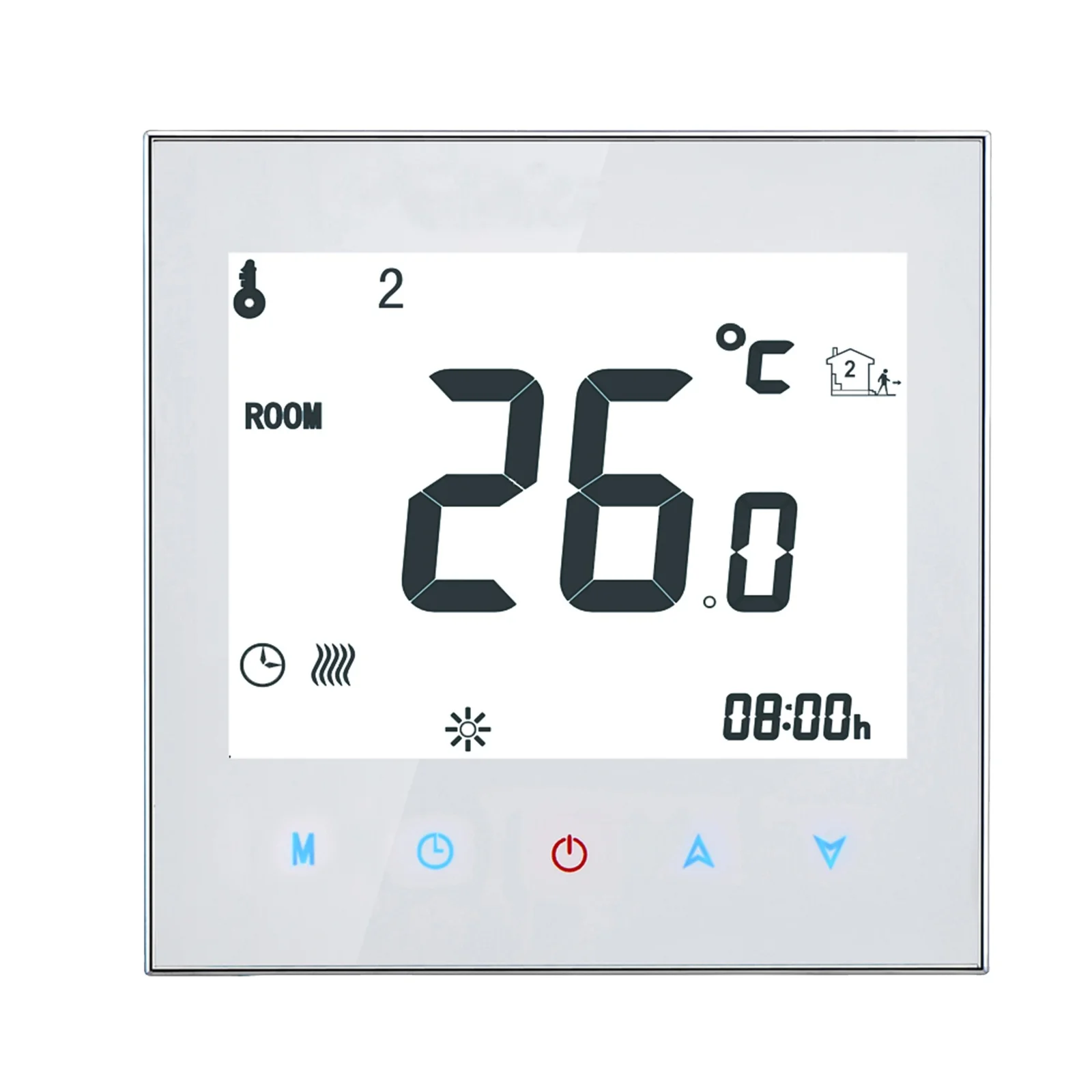

1. Embrace the future with smart heating controls for our electric underfloor heating systems.
2. Easily manage and schedule your heating preferences for a comfortable and convenient lifestyle.
Transform your living space into a cozy haven with the latest in electric underfloor heating technology. Elevate your home comfort and enjoy the efficiency, customization, and cost savings our heating solutions bring. Embrace the warmth, embrace the future.
2. Easily manage and schedule your heating preferences for a comfortable and convenient lifestyle.
Transform your living space into a cozy haven with the latest in electric underfloor heating technology. Elevate your home comfort and enjoy the efficiency, customization, and cost savings our heating solutions bring. Embrace the warmth, embrace the future.
Product Model | Total Power | Voltage | Power | Length | Width | Area |
(w/pc) | (V) | (w/m) | (m) | (m) | (m2) | |
ALTFV2R-150-75/12-0.5 | 75 | 220 | 12 | 1 | 0.5 | 0.5 |
ALTFV2R-150-150/12-1.0 | 150 | 220 | 12 | 2 | 0.5 | 1 |
ALTFV2R-150-225/12-1.5 | 225 | 220 | 12 | 3 | 0.5 | 1.5 |
ALTFV2R-150-300/12-2.0 | 300 | 220 | 12 | 4 | 0.5 | 2 |
ALTFV2R-150-375/12-2.5 | 375 | 220 | 12 | 5 | 0.5 | 2.5 |
ALTFV2R-150-450/12-3.0 | 450 | 220 | 12 | 6 | 0.5 | 3 |
ALTFV2R-150-525/12-3.5 | 525 | 220 | 12 | 7 | 0.5 | 3.5 |
ALTFV2R-150-600/12-4.0 | 600 | 220 | 12 | 8 | 0.5 | 4 |
ALTFV2R-150-675/12-4.5 | 675 | 220 | 12 | 9 | 0.5 | 4.5 |
ALTFV2R-150-750/12-5.0 | 750 | 220 | 12 | 10 | 0.5 | 5 |
ALTFV2R-150-900/12-6.0 | 900 | 220 | 12 | 12 | 0.5 | 6 |
ALTFV2R-150-1050/12-7.0 | 1050 | 220 | 12 | 14 | 0.5 | 7 |
ALTFV2R-150-1200/12-8.0 | 1200 | 220 | 12 | 16 | 0.5 | 8 |
ALTFV2R-150-1350/12-9.0 | 1350 | 220 | 12 | 18 | 0.5 | 9 |
ALTFV2R-150-1500/12-10.0 | 1500 | 220 | 12 | 20 | 0.5 | 10 |
ALTFV2R-150-1500/12-11.0 | 1650 | 220 | 12 | 22 | 0.5 | 11 |
ALTFV2R-150-1800/12-12.0 | 1800 | 220 | 12 | 24 | 0.5 | 12 |
ALTFV2R-150-2250/12-15.0 | 2250 | 220 | 12 | 30 | 0.5 | 15 |
Installation Instructions
Please DO NOT cut, damage or shorten the heating cable!!!!!! Only cut and turn the fiber-glass mesh.
Please DO NOT cross the sensor wire over the heating cable or cold lead wire!!!!!!
Please DO NOT make the heating cables cross or touch!!!!!!
All electrical connections MUST BE performed by a fully qualified and certified electrician!!!
Please DO NOT cross the sensor wire over the heating cable or cold lead wire!!!!!!
Please DO NOT make the heating cables cross or touch!!!!!!
All electrical connections MUST BE performed by a fully qualified and certified electrician!!!

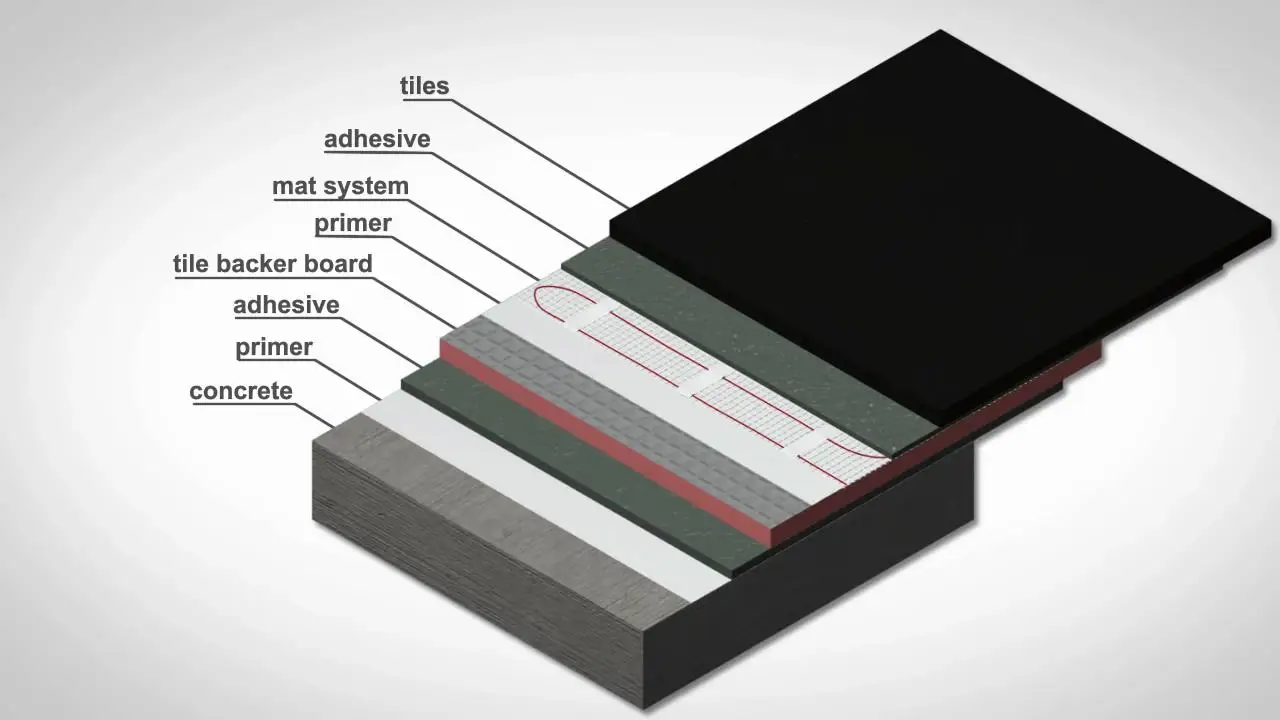

Floor material requirements for installing the ANLT Floor Radiant Heating system
Compatible with various flooring types, our mats are a discreet and efficient heating solution.
Certificate

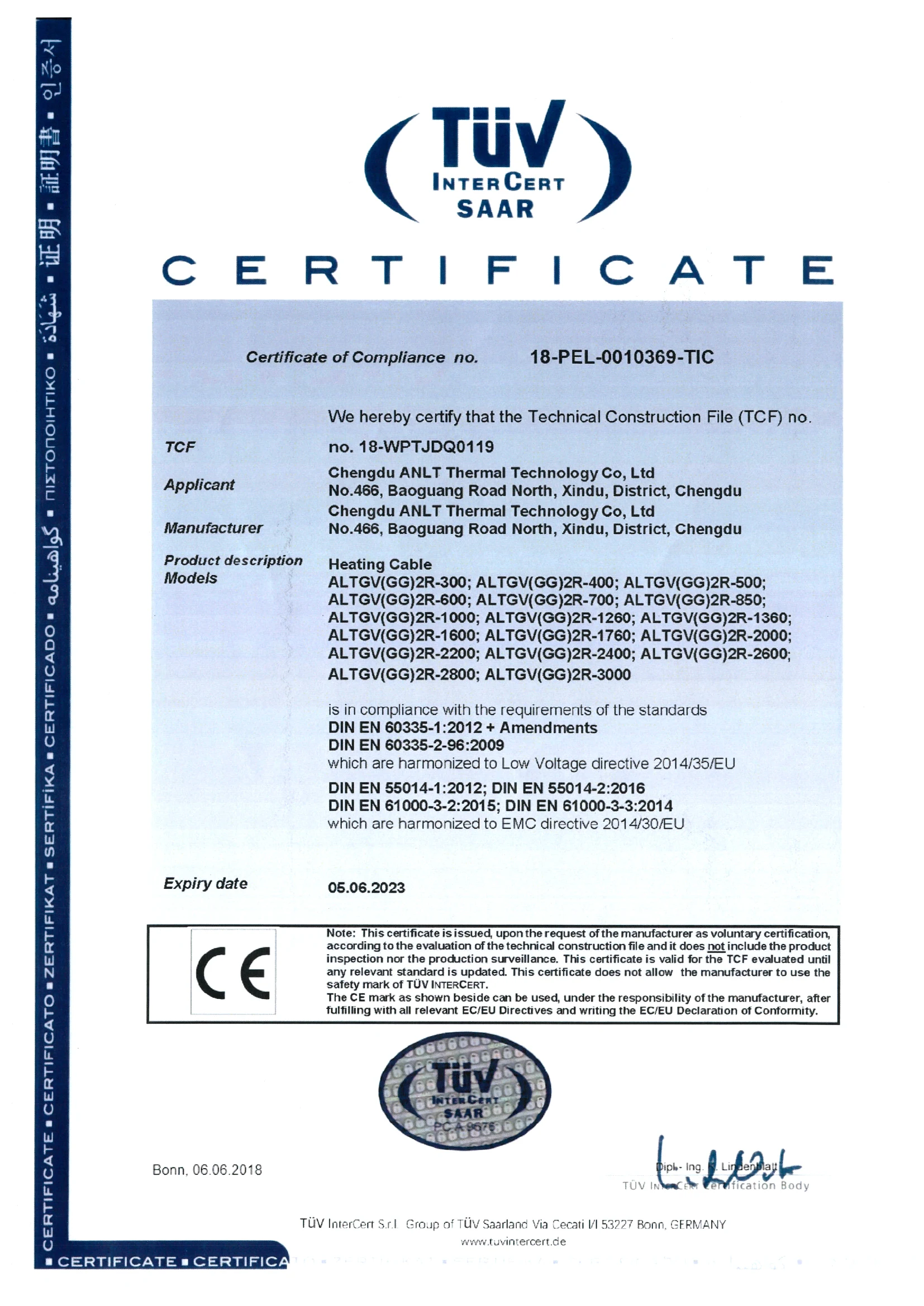

CE of heating Cable

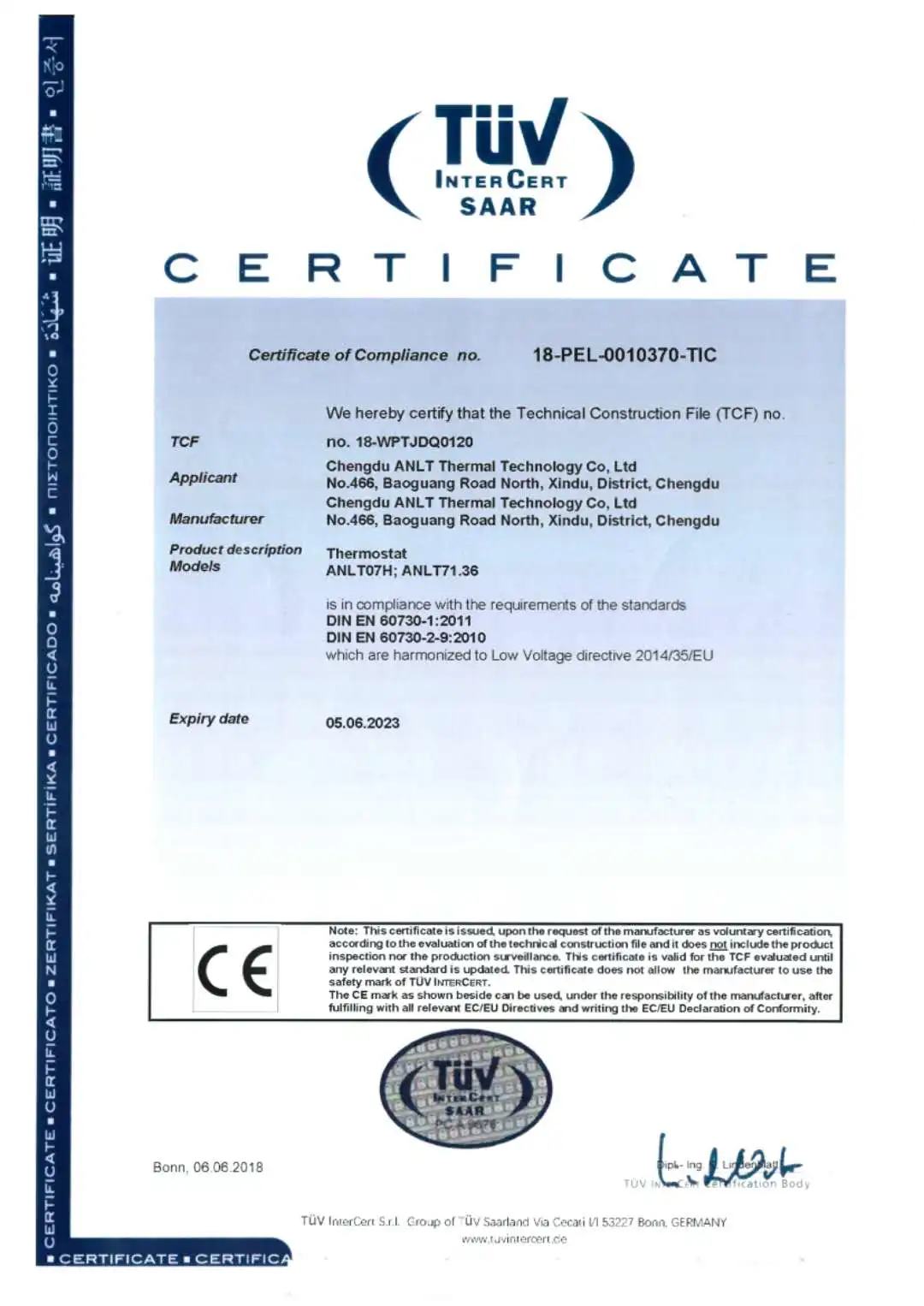

CE of thermostat

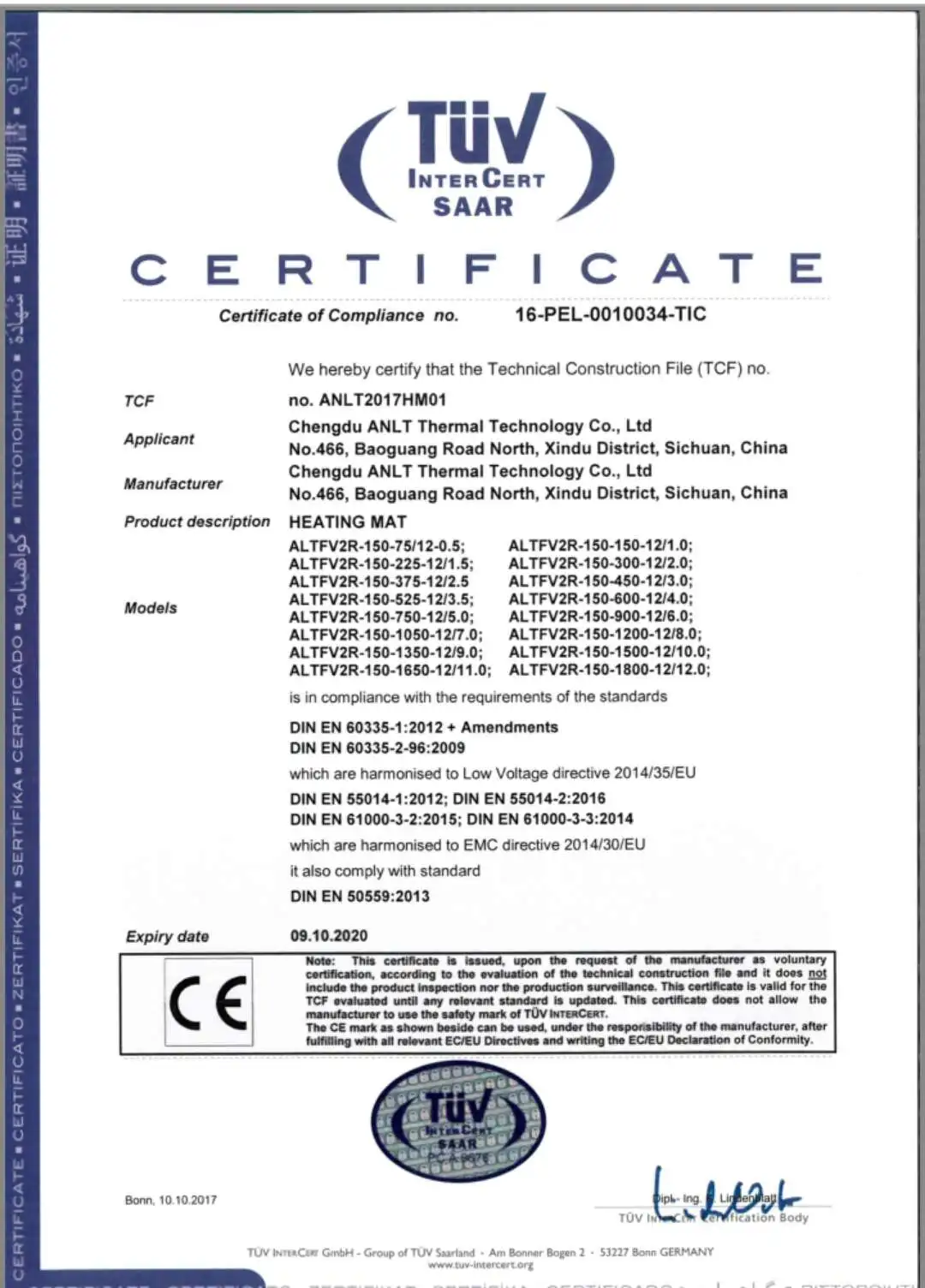

CE of heating mat
Exhibition
Company Profile
Experience:
Established in 2009, located in Chengdu, China which is known as "Land of Aboundance", ANLT has proven to be reliable and trustworthy partners to help all aspects of electric heating for heating, snow-melting, de-icing, de-frosting,etc.
* Years of combined experience in researching and developing electric heating products.
* A factory with over 150 skilled and qualified employees, including experienced R & D engineers, technical experts and sales representatives.
Applications:
We offer an extensive array of services with products being widely used in heating application such as radiant heating for
civil/commercial building, snow-melting, de-frosting and de-icing for roof, gutter, driveway, and drain pipes, warm preservation for pipes, greenhouse, animal husbandary system etc.
Established in 2009, located in Chengdu, China which is known as "Land of Aboundance", ANLT has proven to be reliable and trustworthy partners to help all aspects of electric heating for heating, snow-melting, de-icing, de-frosting,etc.
* Years of combined experience in researching and developing electric heating products.
* A factory with over 150 skilled and qualified employees, including experienced R & D engineers, technical experts and sales representatives.
Applications:
We offer an extensive array of services with products being widely used in heating application such as radiant heating for
civil/commercial building, snow-melting, de-frosting and de-icing for roof, gutter, driveway, and drain pipes, warm preservation for pipes, greenhouse, animal husbandary system etc.
Our main products:
Electric Underfloor Heating Mats
Electric Underfloor Heating Cables
Electric Foil Mat
Electric De-frost Pipe Heating Cable
Electric Heating Film
Thermostats
More photos and details about ANLT underfloor heating
Leading brand of electric underfloor heating system and solution in China.
Packing & Delivery
Why electric floor heating systems
What is an underfloor heating mat?
Underfloor heating mats offer cost-effective and energy-efficient heating solutions. With this system, there's no need for
wall-mounted heaters, providing greater flexibility in room design.
Are underfloor heating mats good?
* Electric underfloor heating mats can be a good choice for heating a variety of spaces, particularly if you value even heat
distribution, energy efficiency, and space-saving design.
* Electric underfloor heating system offers a convenient and energy-efficient solution for creating a cozy and warm atmosphere in your home.
Are underfloor heating mats expensive to run?
Running 1m² of standard underfloor heating at full power for six hours costs less than 10p. Despite lingering beliefs about the high operating costs of underfloor heating, the truth is that both the initial installation expense and the ongoing running expenses can provide excellent value for money.
How long do underfloor heating mats last?
Electric underfloor heating typically comes with a 25-year warranty, though its lifespan extends well beyond this period.
Is maintaining underfloor heating constantly more cost-effective?
Keeping underfloor heating active throughout the colder winter months, in particular, is recommended.
By keeping the underfloor heating system running continuously, it enhances efficiency and accelerates the warming process.
Essentially, your residence will reach a comfortable temperature more quickly.
While initially it may not be notably cheaper to have your underfloor heating operational for extended periods, it could yield
savings in the long run.
Underfloor heating mats offer cost-effective and energy-efficient heating solutions. With this system, there's no need for
wall-mounted heaters, providing greater flexibility in room design.
Are underfloor heating mats good?
* Electric underfloor heating mats can be a good choice for heating a variety of spaces, particularly if you value even heat
distribution, energy efficiency, and space-saving design.
* Electric underfloor heating system offers a convenient and energy-efficient solution for creating a cozy and warm atmosphere in your home.
Are underfloor heating mats expensive to run?
Running 1m² of standard underfloor heating at full power for six hours costs less than 10p. Despite lingering beliefs about the high operating costs of underfloor heating, the truth is that both the initial installation expense and the ongoing running expenses can provide excellent value for money.
How long do underfloor heating mats last?
Electric underfloor heating typically comes with a 25-year warranty, though its lifespan extends well beyond this period.
Is maintaining underfloor heating constantly more cost-effective?
Keeping underfloor heating active throughout the colder winter months, in particular, is recommended.
By keeping the underfloor heating system running continuously, it enhances efficiency and accelerates the warming process.
Essentially, your residence will reach a comfortable temperature more quickly.
While initially it may not be notably cheaper to have your underfloor heating operational for extended periods, it could yield
savings in the long run.
Who are we?
We are based in Sichuan, China, start from 2009,sell to Domestic Market(60.00%), Western Europe(20.00%), North America(5.00%), Eastern Europe(5.00%), Eastern Asia(5.00%), Northern Europe(5.00%). There are total about 51-100 people in our office.
We are based in Sichuan, China, start from 2009,sell to Domestic Market(60.00%), Western Europe(20.00%), North America(5.00%), Eastern Europe(5.00%), Eastern Asia(5.00%), Northern Europe(5.00%). There are total about 51-100 people in our office.
How can we guarantee quality?
Always a pre-production sample before mass production;
Always a pre-production sample before mass production;
Always final Inspection before shipment;
What can you buy from us?
Heating Cable,Heating Mat, Foil Mat, Heat trace Cable, Heating Film, Thermostat
Why should you buy from us not from other suppliers?
What can you buy from us?
Heating Cable,Heating Mat, Foil Mat, Heat trace Cable, Heating Film, Thermostat
Why should you buy from us not from other suppliers?
Our company located at sichuan,which is named "Land of Abundance" and we have a factory in chengdu .and we have a long time development expericence as long as 18 years.
What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
Feel free to reach out to us for more information on underfloor heating and the various benefits it can provide. We're here to assist you with any inquiries you may have.
