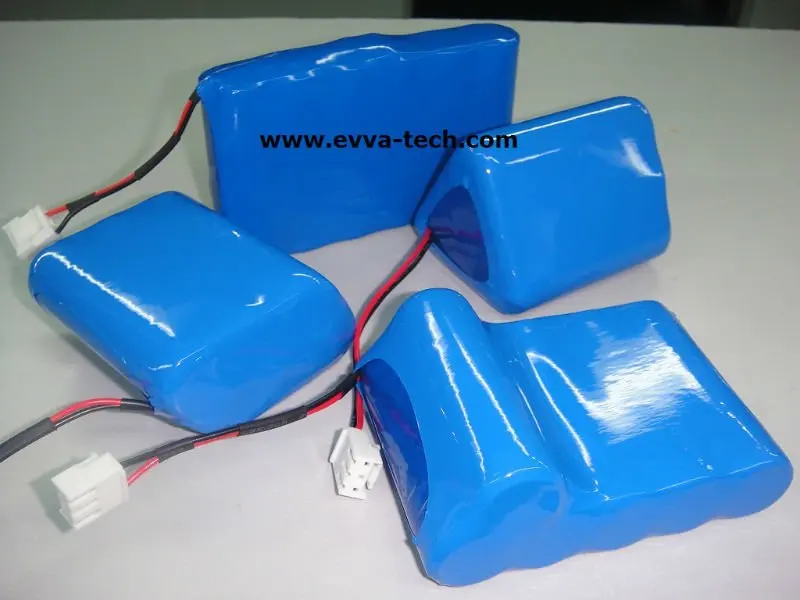

18650 Rechargeable lithium ion 6 cells battery pack 10.8V 3S2P battery pack

Product Overview

Description

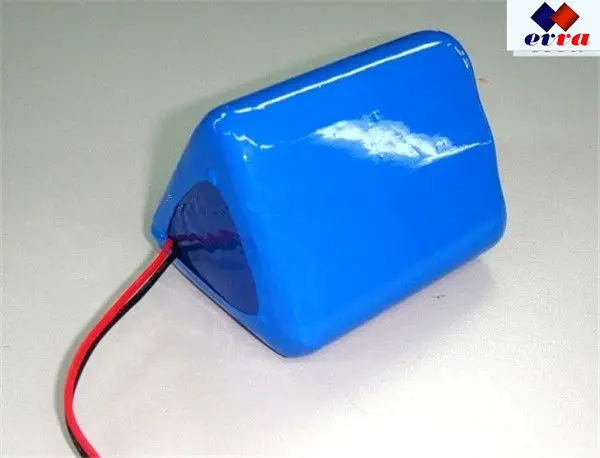

Rechargeable Pyramid li-ion battery pack 11.1V 3S2P 4.4Ah-6.8Ah



1. Norminal voltage:11.1V or 10.8V


2. Norminal capacity: 4400mAh, 5200mAh, 5600mAh, 5800mAh,6000mAh, 6200mAh and 6800mAh


3. OEM order is available


4. Battery pack can include protection circuitry with following protections

• Over charge


• Over discharge


• Over discharge current


• Short circuit


• Over temperature


• Low temperature

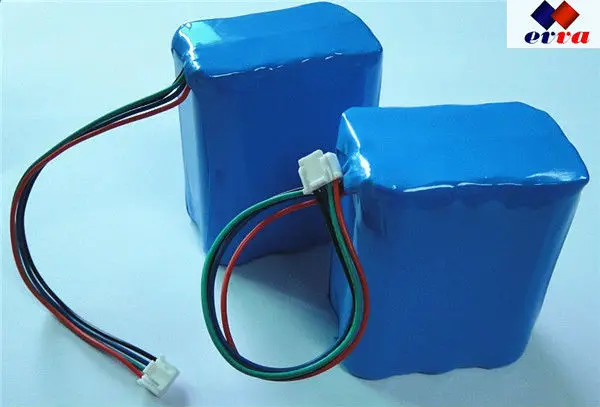

    5.  Battery pack can support System Management Bus (SMBus) protocol.



There can be distinct SMBus for each section. The following data shall be available through SMBus.



• State of charge


• Battery temperature


• Cell voltages


• Current drawn from the cells


• Failure messages


• Charging status


• Discharging status









Detailes:



Kinds of Pyramid battery packs 3S2P

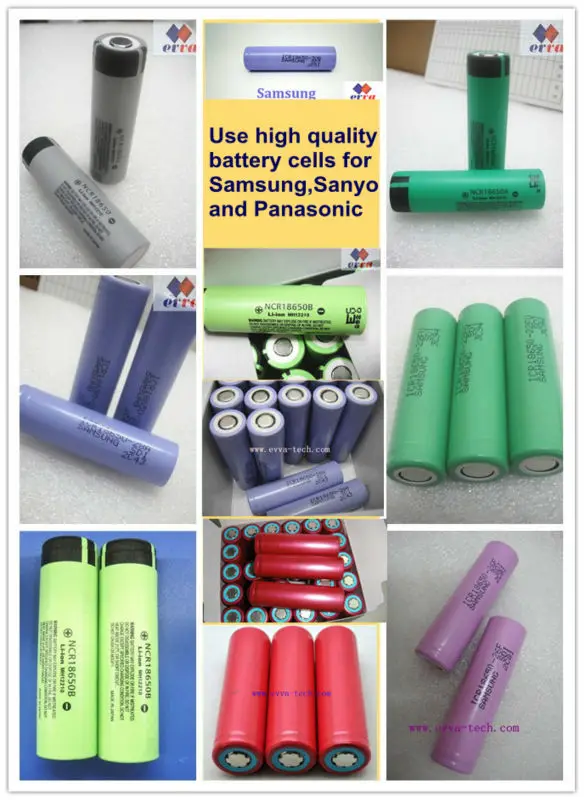

1. 11.1V 4400mAh battery pack with 6  Samsung battery cells


2. 11.1V 4500mAh  battery pack with 6 Sanyo battery cells

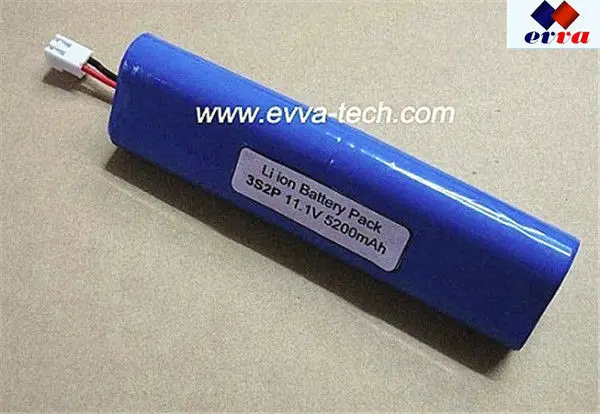

3. 11.1V  5200mAh battery pack with 6 Samsung, LG or Sanyo battery cells


4. 11.1V  5600mAh battery pack with 6 Samsung or Sanyo battery cells


5. 11.1V  5800mAh battery pack with 6 Samsung battery cells


6. 10.8V  5800mAh  battery pack with 6 Panasonic battery cells


7. 11.1V  6000mAh battery pack with 6 Samsung battery cells


8. 10.8V  6200mAh battery pack with 6 Panasonic battery cells


9. 10.8V  6800mAh battery pack with 6 Panasonic battery cells
