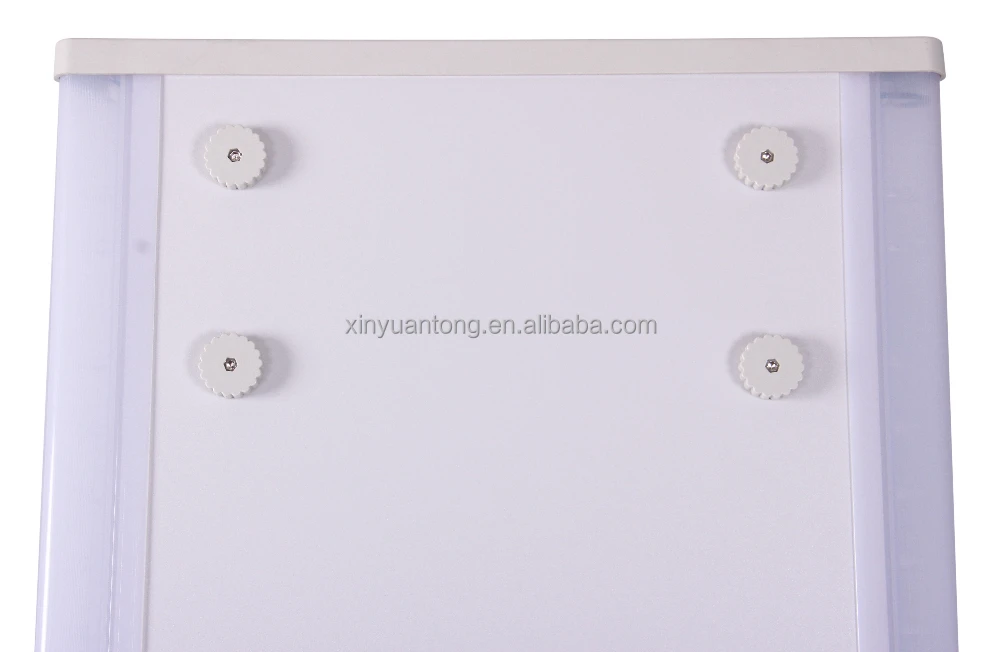

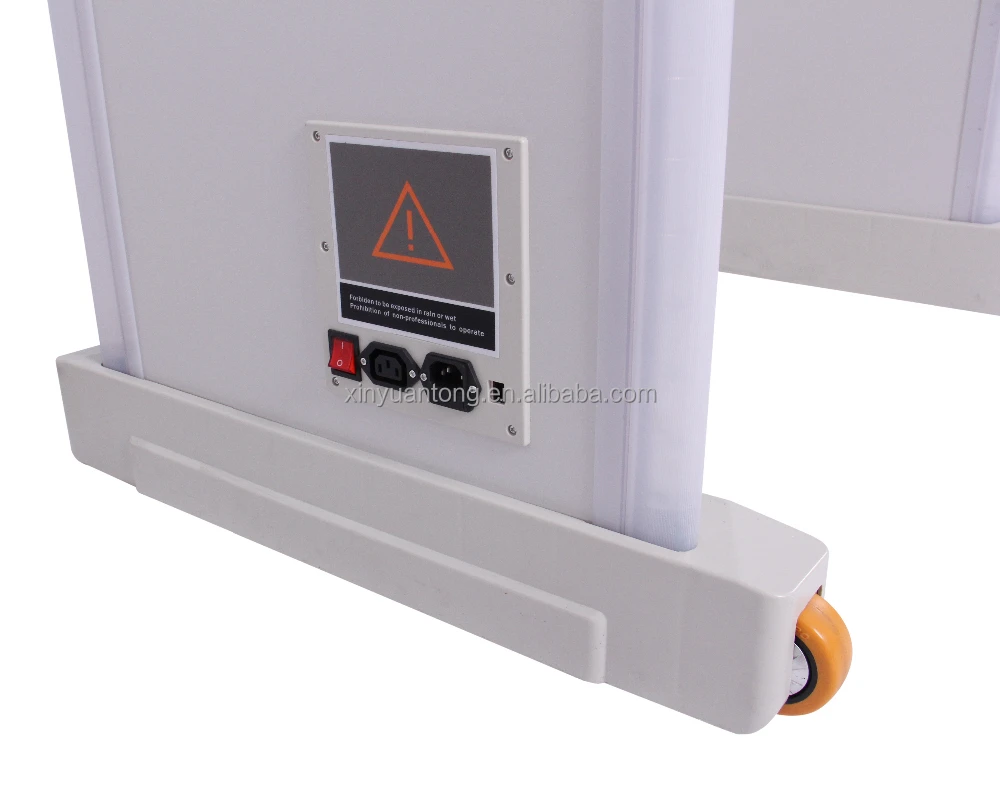

GuardSpirit brand Walk through Metal Detector with Wheels

Product Overview

Description

Guard Spirit Walk-through Metal Detector with battery backup security door





MODEL:XYT2101B











Parameters



Power Supply:AC85V-264V,DC 12V 3.5A



Working temperature:-20°C--+50°C



Working Frequency :4KHZ—8KHZ



Waterproof can be used outside



Standard External size: 2219mm(H)X898mm(W)X706mm(D)



Standard Internal size: 2046mm(H)X750mm(W)X537mm(D)



Features

• Automatically System Testing


• self-diagnostics when power on for the door panels, LED alarm sound


• Zoning Management:

The detection zone can be adjusted into 8, 16, 24 Zones.

• Alarm Count: Passenger Count:


• It can record 20000 alarm counts and can query the alarm time.


• Detecting Speed: The maximum speed is 100 P/min, can downward adjust the detecting speed.


• LCD backlight: 0-99S to display continuously, adjustable

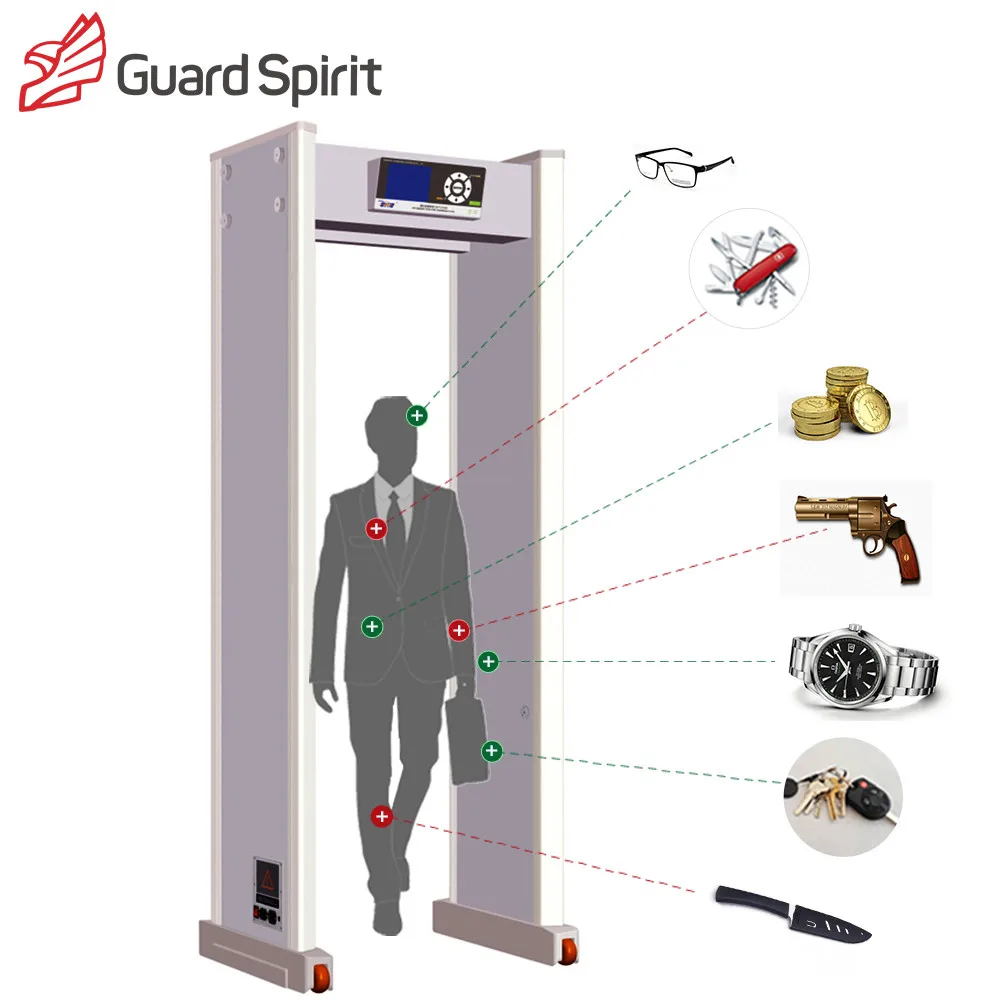

  Recognition the size of the metal objects by different sound volume


• Vibration Protection: Preventing vibration interference lead to false alarms


• Alarm Sound: 1-25S alarm time, 0-255 adjustable alarm volume.
  LED Alarm: Four side with LED, light time 0-25S adjustable.
  Sensitivity: Total value and zone value 0-255 degree adjustable


• Can record and auto-save 9999 times, and can save passenger record to 65535 times at most.


• Harmless to human body Control unit case and door panels can be freely combined to assemble, very easy to install & disassemble.


• Working Application option for different sensitivity and detecting speed need, please select in the system.


• Battery Backup not less than 4 hours.


• Network support (Option)

 System Management

• Fixed ID for the record.

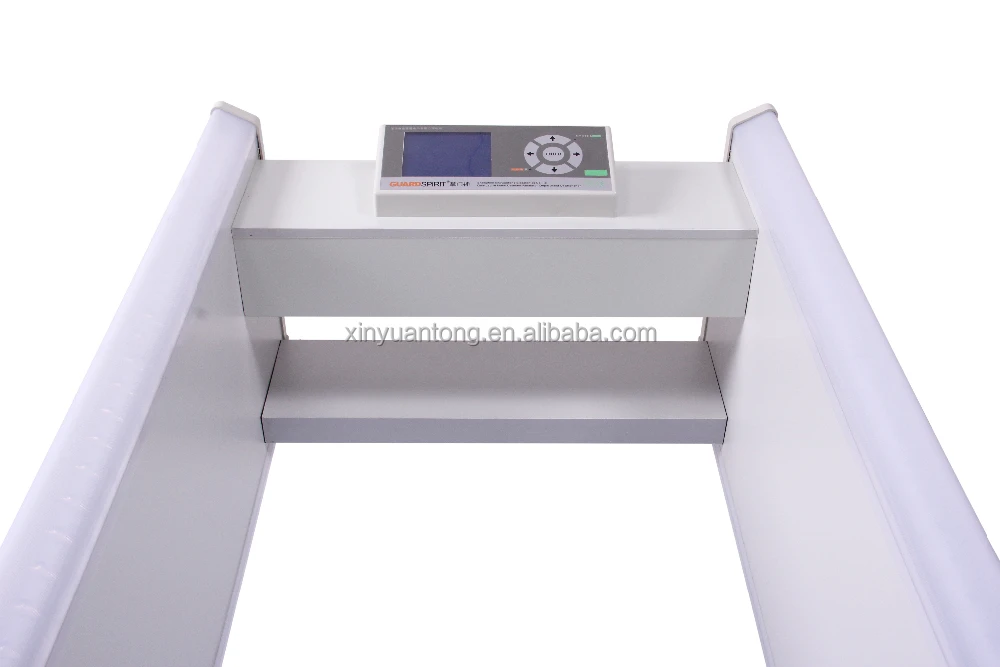

• English display.


• Calendar: Display year, month, day, hour and minute.


• Manage Encryption: To prevent the misuse causes the system unusual.


• Restore Factory Settings, recover initial data.





The XYT2101B-1 is designed for Airport, railway/subway stations, Banks, Embassies, Entertainment environments, Gymnasiums, buildings, Exhibition Centers for luxurious appearance.









Project & Exhibition



2012 18^TH African union summit meeting









2010 Shanghai World Expo





 CERTIFICATIONS:
