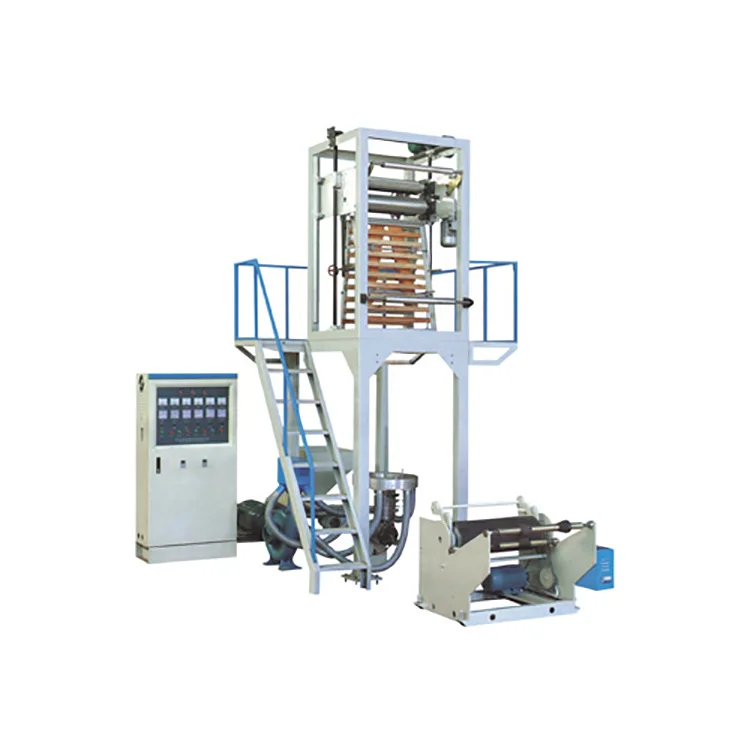

Manufacture shopping bag hd/ldpe film blowing extrusion machine

Product Overview

Description

Manufacture shopping bag hd/ldpe film blowing extrusion machine

The machines uses LDPE or HDPE as materials, after being heated, extruded, blown, drawn and winded, the materials become plastic tube.
After being sealed and cut, the tube can be made into food packaging bag, shopping bag and liner for PP woven sack.
It also can be used as agriculture film, field film and shed film after one or two side cutting.

Model No.	SJ-FM55/800
Diameter of Screw (mm)	55
L/D Ratio of Screw	28:1
Rotational Speed of Screw (r/min)	5-100
Power of Main Motor (kw)	15
Heating Power (kw)	13
Max. Output (kg/h)	50
Max. Film Width (mm)	800
Thickness of Single Film(mm)	0.008-0.15
Installing Dimensions(L×W×H) (mm)	4200×2000×4900
Approx. Weight (kg)	2000



Option Equipment:

1. Air compressor

2. Air inflatable shaft

3. Auto. Loader

4. Drying mixer

5. Corona Treater

6. Rotary Die

7. Double winder double cutter
