electric motor, linear actuator for tv lift system

Product Overview

Description

Application:







Sanxing FD3 Linear Actuator is also the Track Linear Actuator, the Track Linear Actuators don’t extend past their total length, these models are ideal for compact applications and projects. Track Actuators are particularly useful for applications where traditional actuators may be affected by the surrounding environment. You might find track actuators useful in other applications such as:



•Furniture and home application

•High-precision appreciation

•Construction machinery







Description:





Sanxing FD3 linear actuator motors are designed so that no additional space is required other then its total length. Unlike other actuators, the stoke does not extend out of the unit, instead it moves along the track of the unit. This feature allows you to have the same hole-to-hole dimension and fits perfectly in an area where additional space is not an option. Each track linear actuator comes with 2 wires (positive and negative), internal limit switches (non-adjustable) and mounting hole on the motor end. Forces available are 1000N at 30-34mm/s ( no load ) and 5000N at 4-5mm/s ( no load ). FD3 linear actuator for tv lift system is widely used.





Specifications:





Model	FD3
Input voltage	12V/24V/110VDC
Load capacity	Max 5000N (push) /  3000N (pull)
Speed	4~36mm/s
Stroke ( S )	30mm ~ 1000mm
Duty cycle	10%
Limit switches	Built-in, Factory Preset
Operation temperature	-20°C~ +40°C
Noise decibel	≤48Db
Protection class	IP20
Minimum installation distance  ( A )	155mm





Drawing:

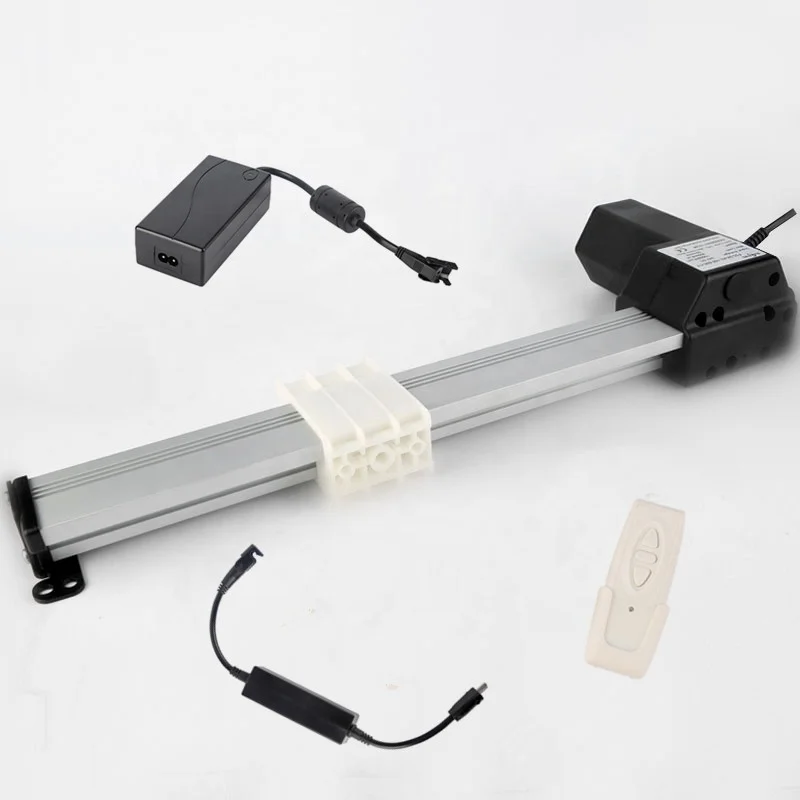

Product show:

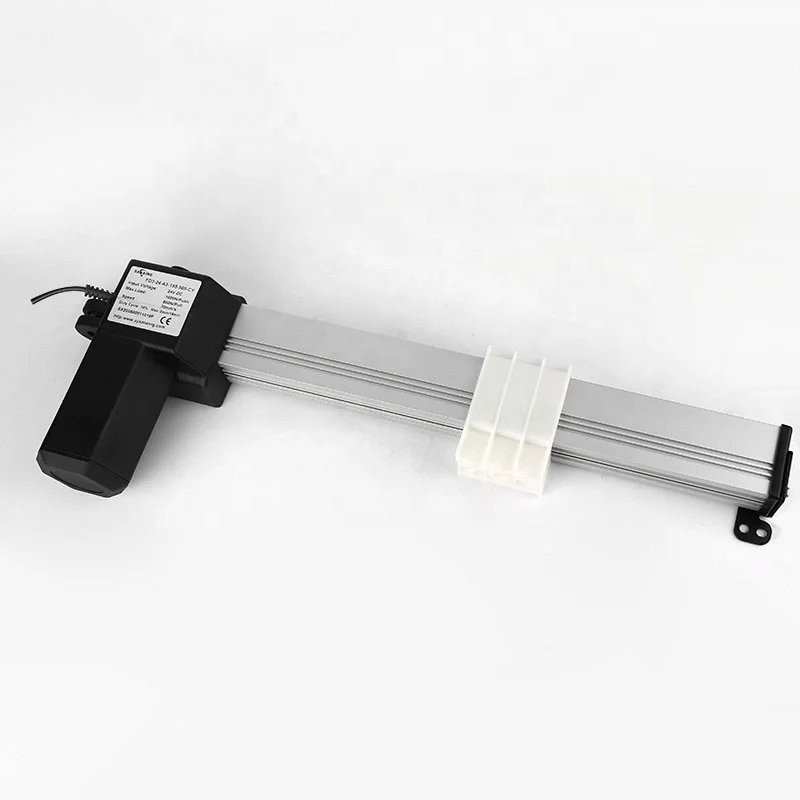

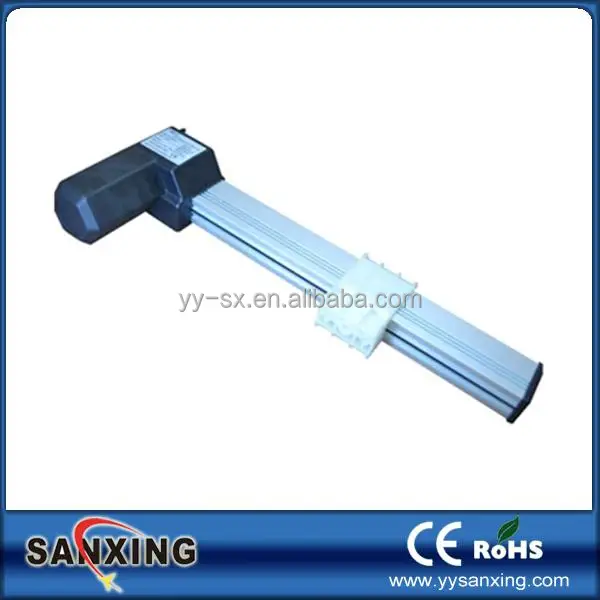

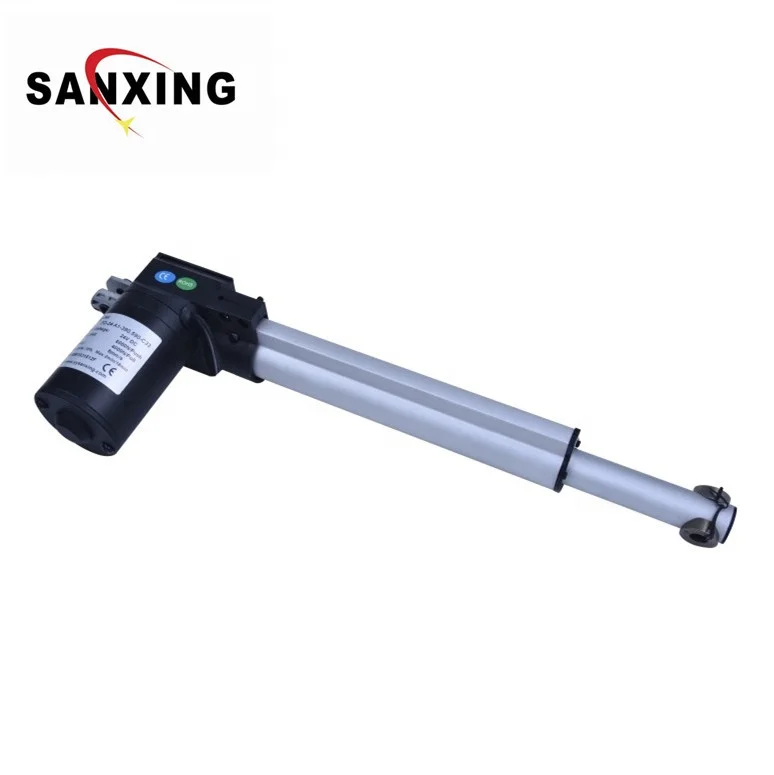

FD3 Linear Actuator

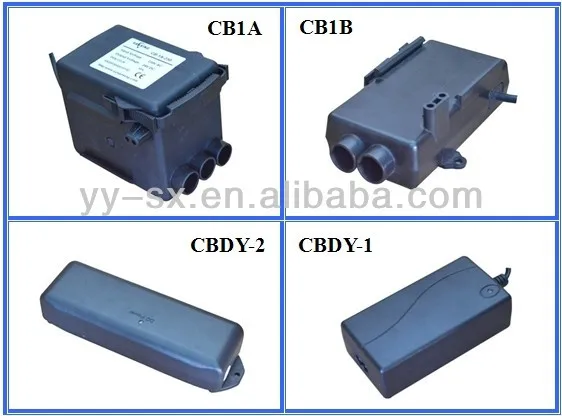

Transformer / Control Box / Power Supply

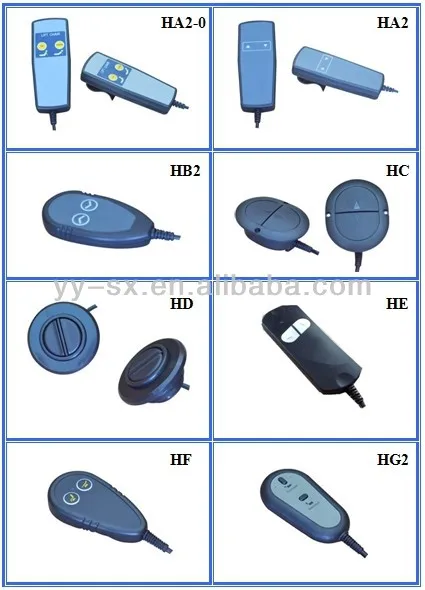

Handset / Control Switch ( Wired )

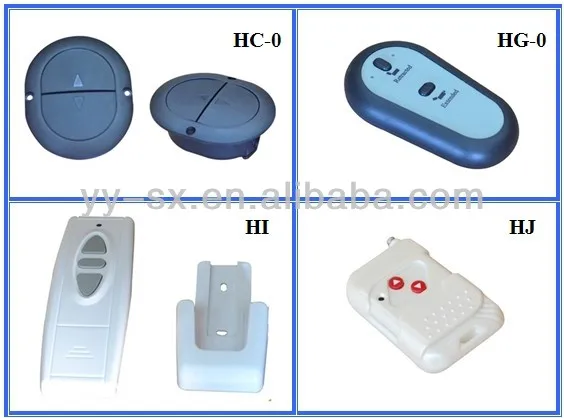

Handset / Control Switch ( Wireless )

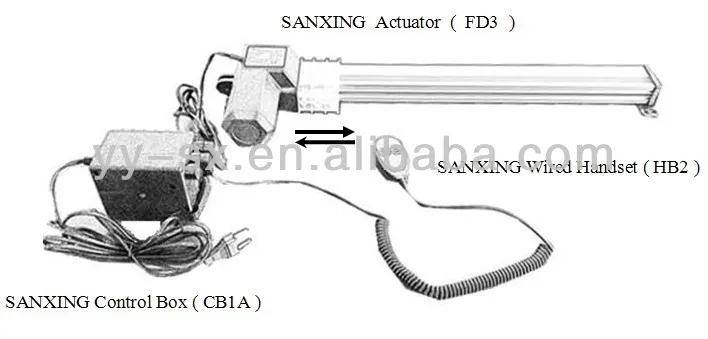

Connection Diagram ( For example: FD3 Actuator + CB1A Control box + HB2 handset ):





About Us













Yuyao Sanxing Mechanical & Electrical Technology Co., Ltd. locates in No. 108, Zhenxing West Road, Yuyao, Zhejiang, China. Our company was established in 2008 and a joint venture with Taiwanese. Our factory covers 1,400 meter square. We specialize in the research, development and manufacturing of Linear Actuator, Control Box and Handset. Products are widely used in electric sofas, massage chairs, dental chairs, electric medical beds, traction beds, television movement counters, furniture and other movements need linear motion implementing agencies of the occasion. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.



In addition, we have obtained CE and ROHS certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Spain, France, Turkey, Poland, Canada and USA. We also welcome OEM and ODM orders.



We design the styles according to the customers’ target price, and we have established our quality control system to meet our customers’ request. The products we make are very cost-effective and quality guarantee.





















Product Certificates :

























Packing:







* Normal cartons, generally 4 sets a carton.



























After Sale:







The warranty period is 1 year after selling the products.
