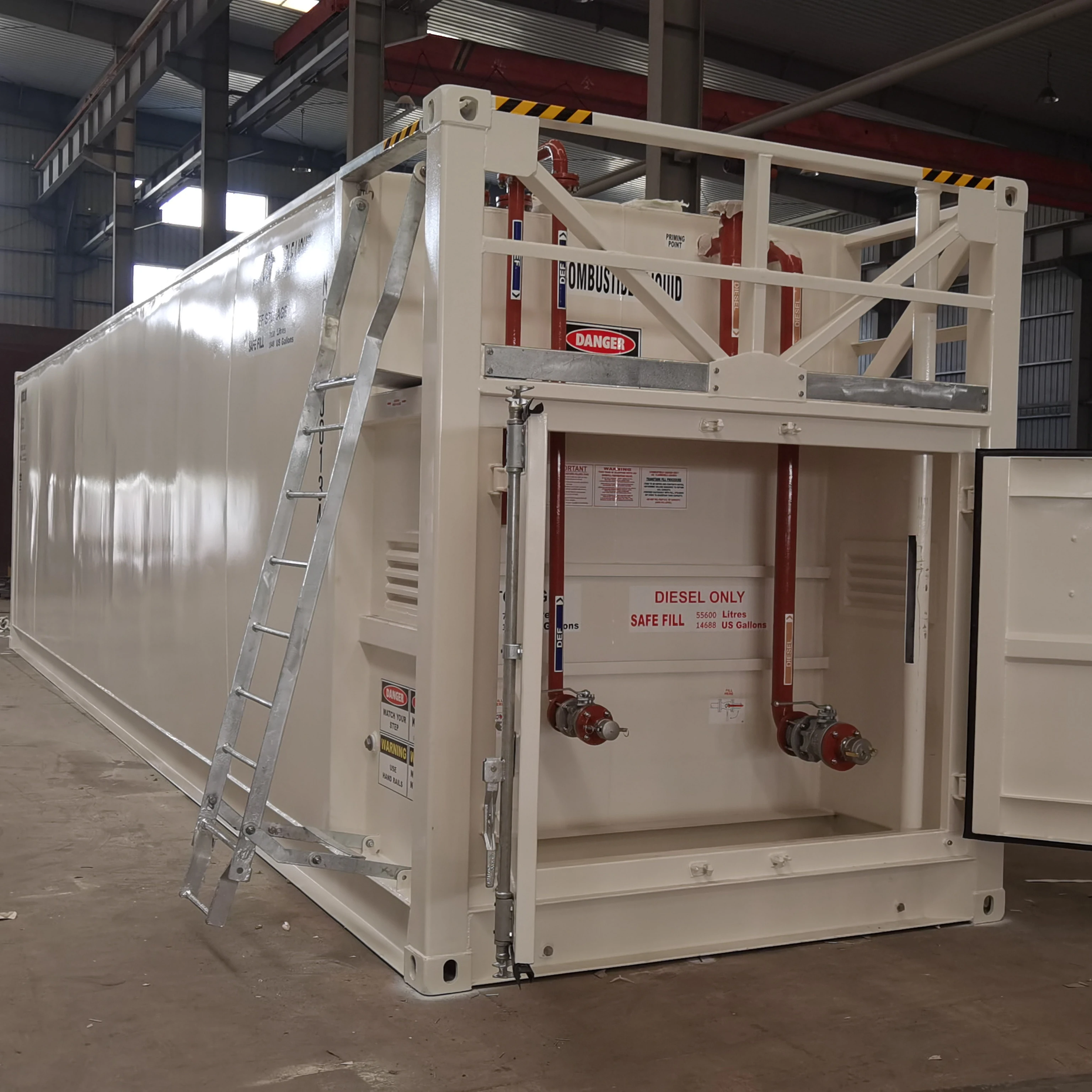

Dual compartment bunded tank for storing Diesel and Diesel Exhaust Fluid (ADBLUE)

Product Overview

Description

We provides customers with a cost effective method of storing and dispensing both Diesel and AdBlue, AUS32 or other DEF products from the one unit for depot and home base refuelling. A major benefit is the reduced footprint taken by storing both fluids in a single tank, as opposed to having a separate AdBlue, AUS32 or other DEF tank taking up additional space in your depot or yard.





PRODUCT RANGE

Tank Model	Diesel Safe Fill Litres	Adblue, DEF Safe Fill Litres	Length mm	Width mm	Height mm	Weight kg	Container Footprint
ITBL 26	21,500L	4,300L	6,058	2,438	2,896	8,500	20FT HC

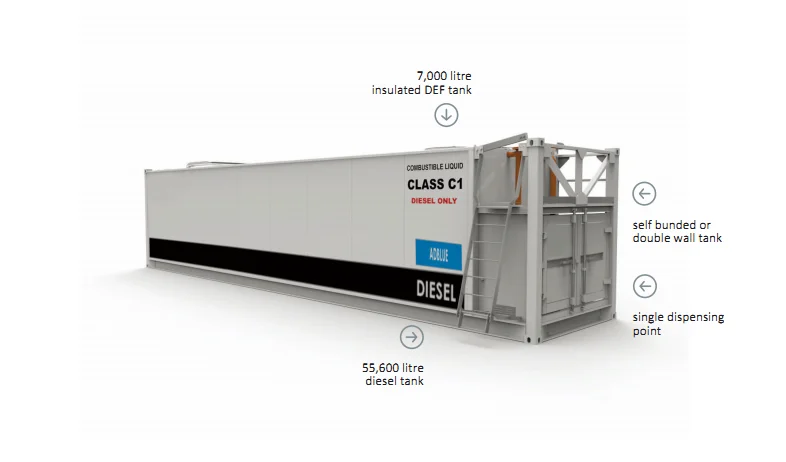

ITBL 60	55,600L	7,000L	12,192	2,438	2,896	14,500	40FT HC
ITBL 104	94,500L	10,000L	14,630	2,438	3,635	21,100	48FT HC



ADBLUE COMPARTMENT

full 304 stainless steel primary tank, carbon steel secondary tank

all wetted parts are 304 stainless steel

the capacity of the Adblue compartment can be customised to suit your specific operational requirement

dedicated 304 stainless fill and suction lines.



DIESEL COMPARTMENT

carbon steel primary and secondary tanks

dedicated fill and suction lines

the capacity of the Diesel compartment can be customised to suit your specific operational

requirements
