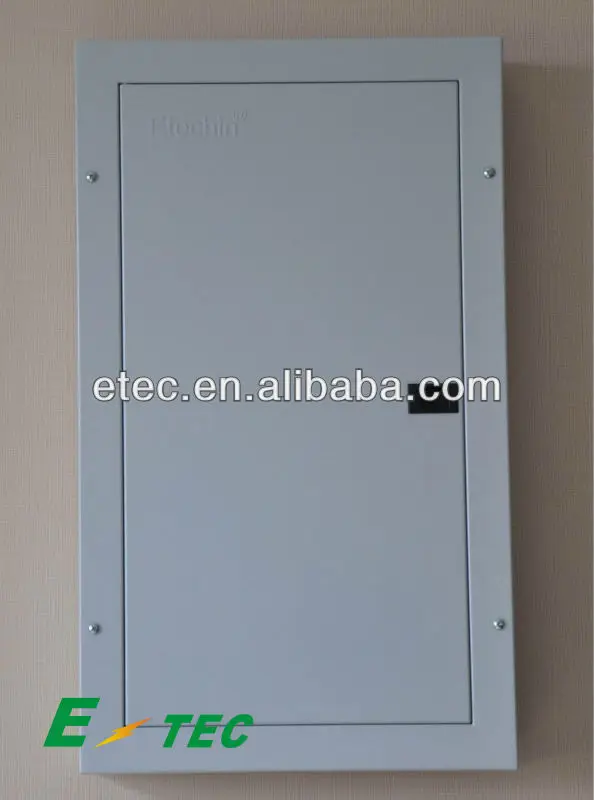

Three phase power distribution board

Product Overview

Description

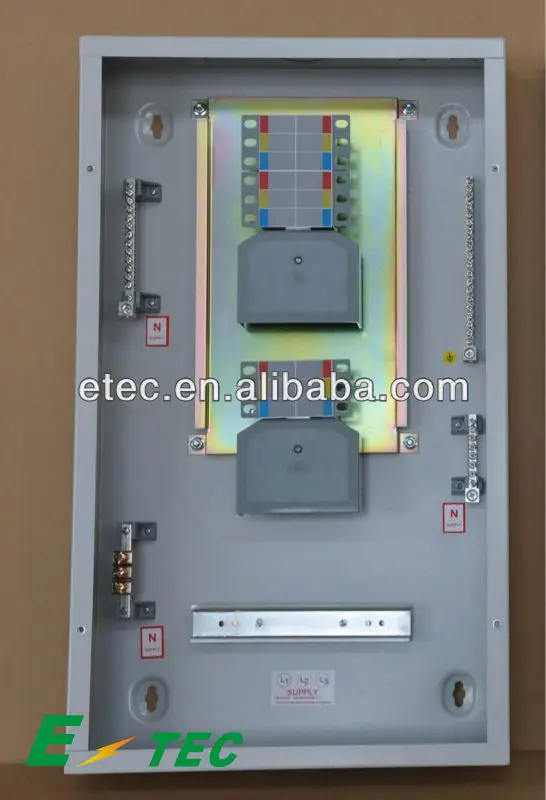

ETD01T -Three phase Distribution Board

Application:

 ET series distribution board range has been developed to meet of different secifiers, electrical contractors and distributors, resulting in a high quality, value-for-money board that is versatile and easy to install, confirming to the latested international standards.

Specification:

Service voltage:	AC 415 / 240 / 120V
Rated insulation voltage:	600V
Frequency:	50 / 60Hz
Ambient temperature:	50°C
Covers the range from :	12W,18W, 24W, 30W, 36W, 42W, 48W, 54W, 60W, 66W, 72W with  main breaker
Incoming:	MCB, ELCB, ISOLATOR, MCCB

Dimension:

2+2W	596*390*110mm
4+2W	650*390*110mm
4+4W	704*390*110mm
6+2W	704*390*110mm
6+4W	758*390*110mm
6+6W	812*390*110mm
8+2W	758*390*110mm
8+4W	812*390*110mm
8+6W	866*390*110mm
10+2W	812*390*110mm
10+4W	866*390*110mm
10+6W	920*390*110mm
12+4W	920*390*110mm
12+6W	974*390*110mm

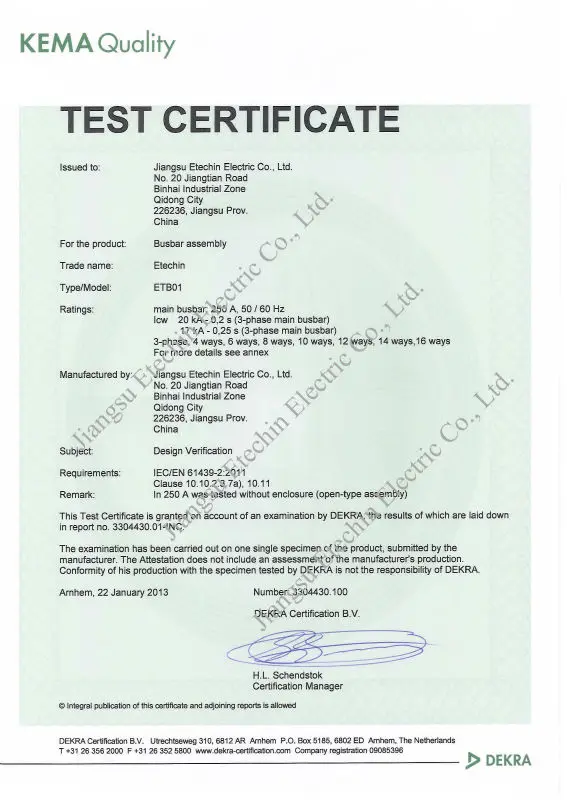

Certificate:

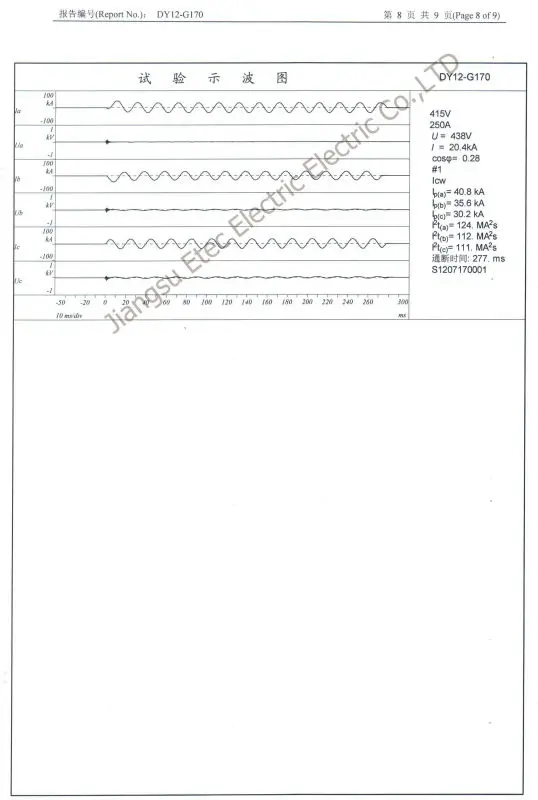

ET series win good popular with KEMA certificate. main current 250A pan assembly passed breaking capacity of 20KA within 0.2S.

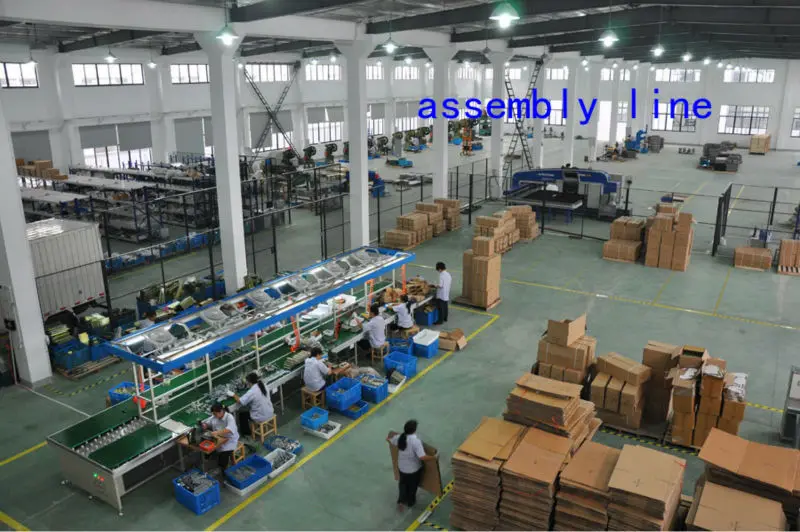

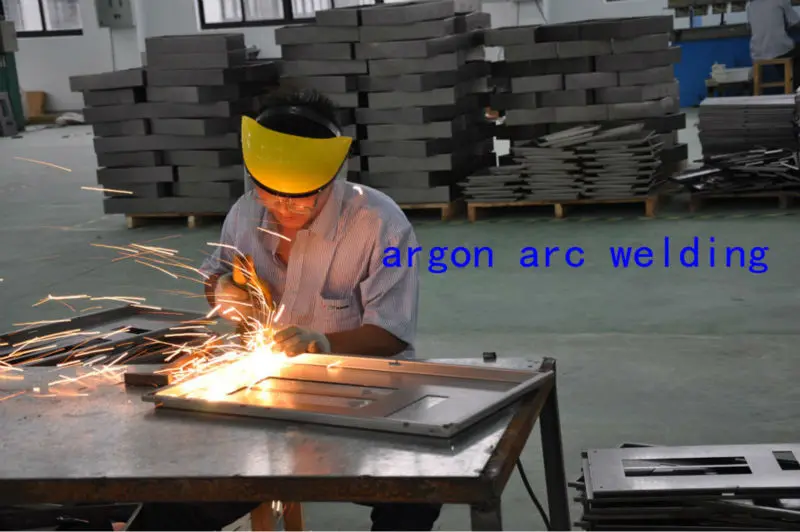

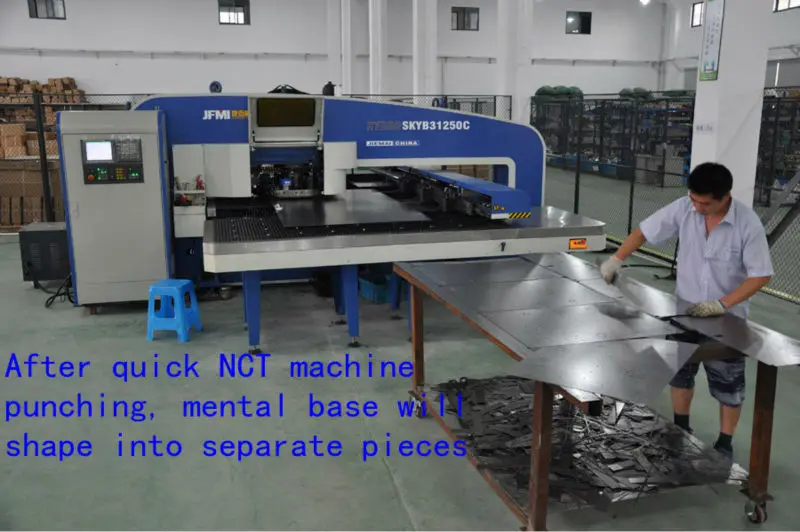

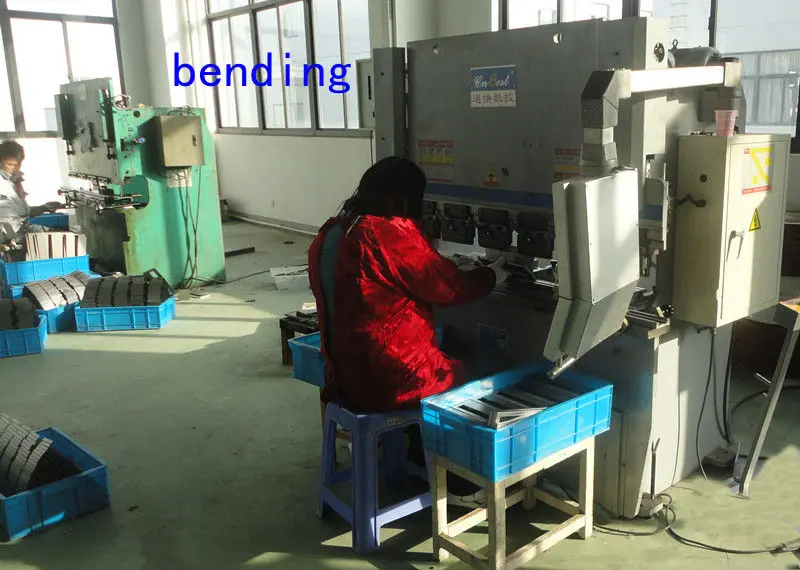

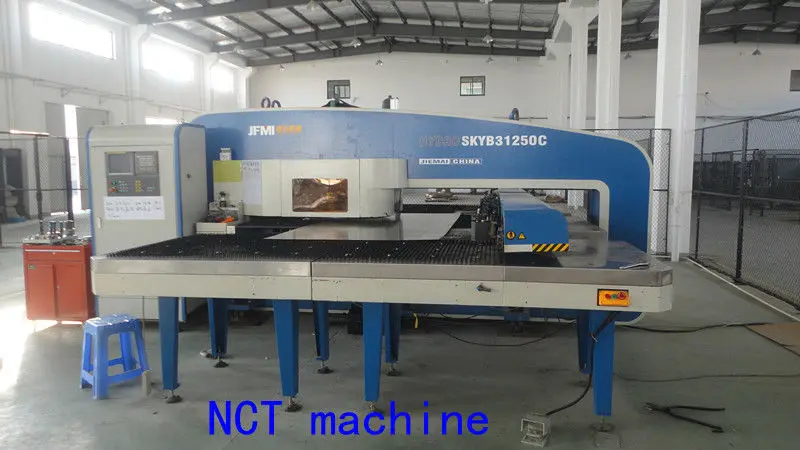

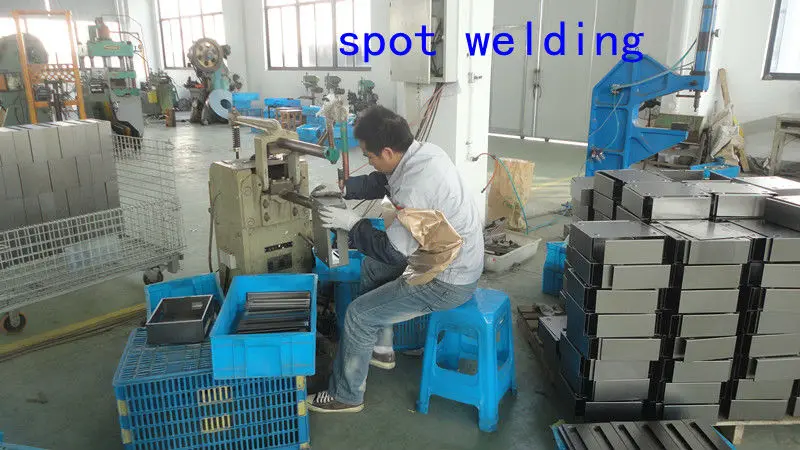

Production Process:

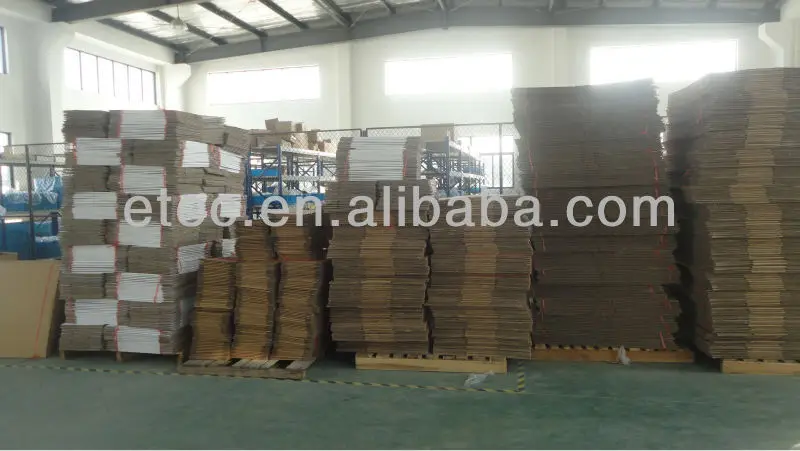

Packing:

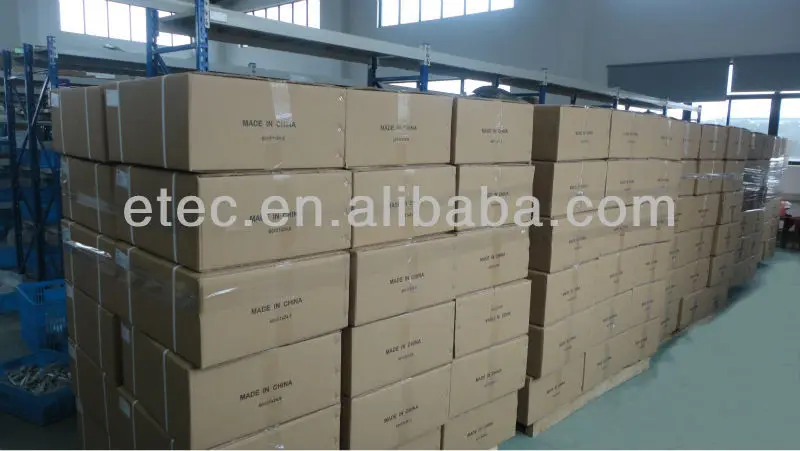

Carton packing suitable for shipment. One piece one packing, outer packing accroding to customer's needs.
