Mitsubishi Tension Controller LD 30FTA
- Category: >>>
- Supplier: Shantou Rongtai Packaging Equipment Co. Ltd.
Share on (726671243):
Product Overview
Description
Product Description

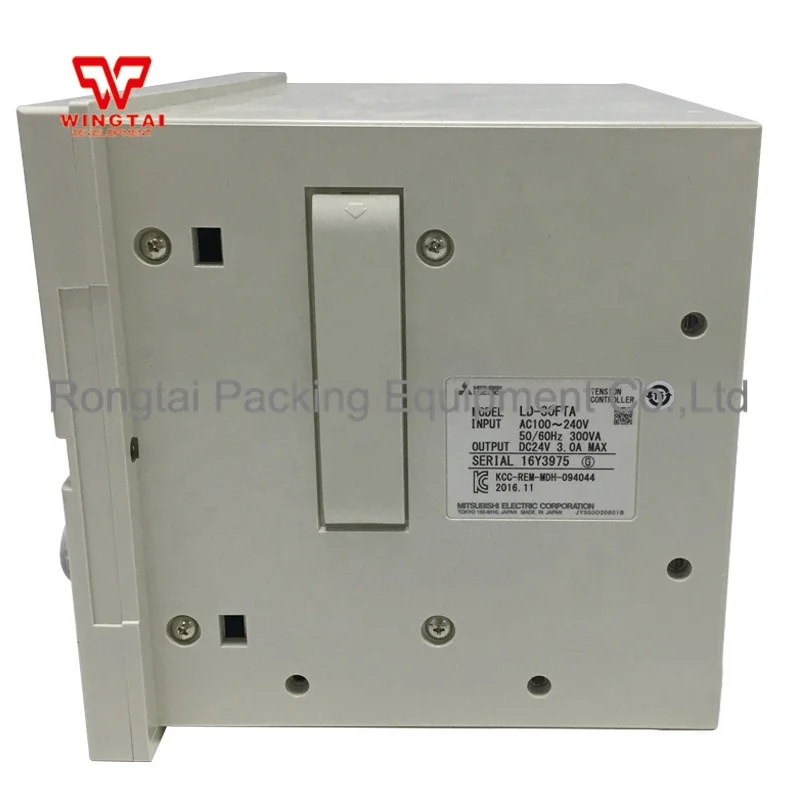

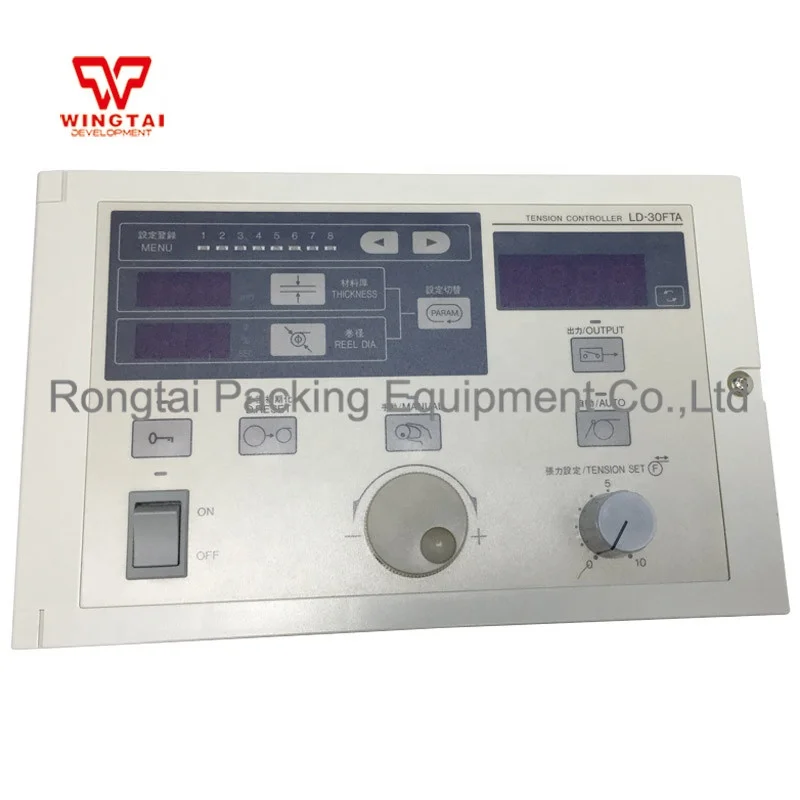

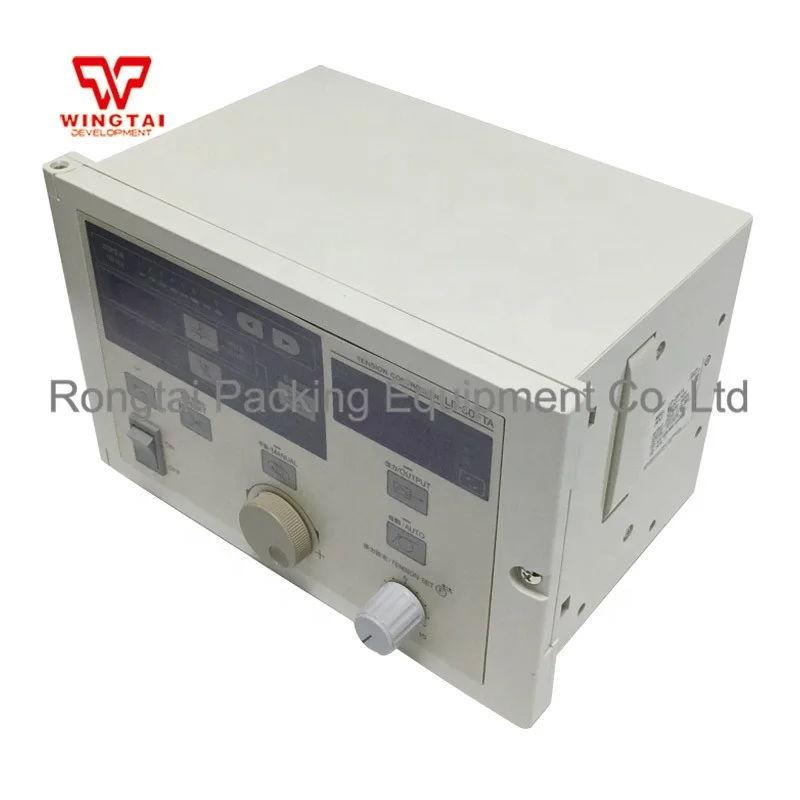

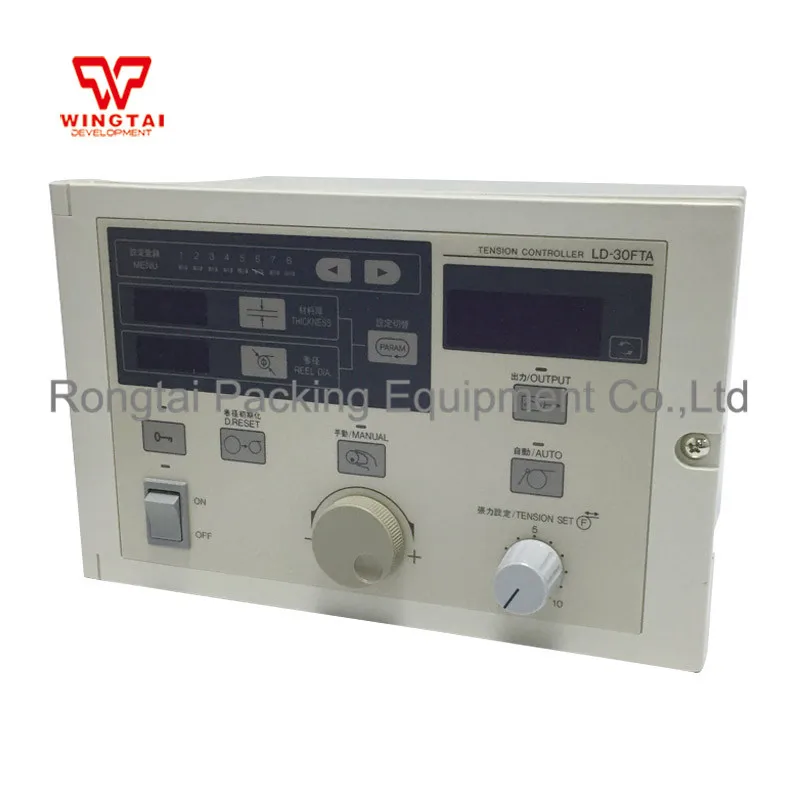

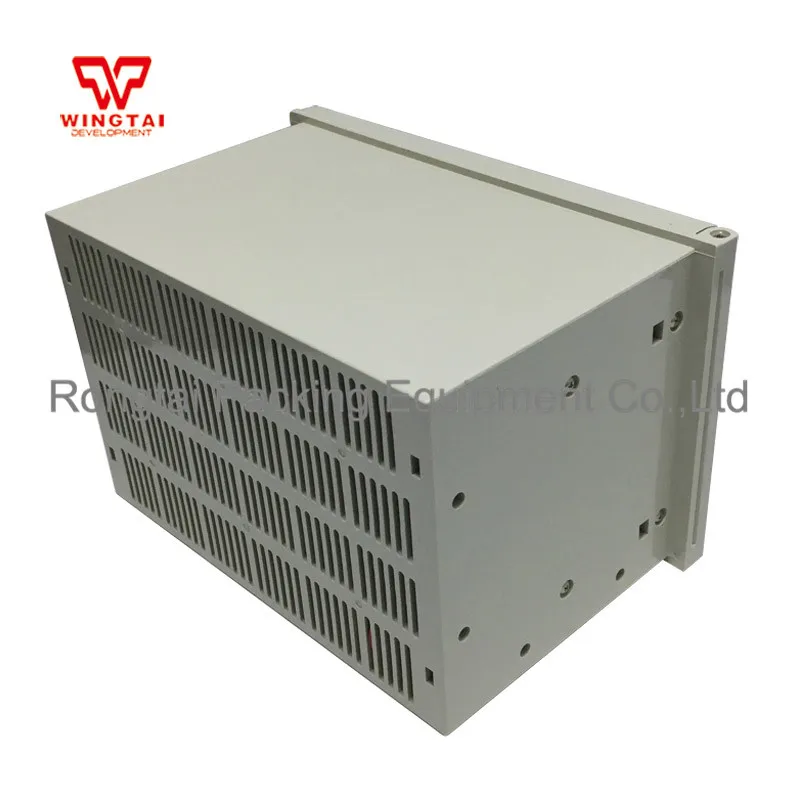

Mitsubishi LD-30FTA
Feature:
Easily adjust and operate (control the tension )
1.Only need to set the tension and material thickness ,initial diameter can be controlled automatically
2.Compatibled the wide power between AC100V~240V
3.Can set the material thickness and initial diameter in the wide-range
4.Have the power-off protection function, even switch off the power can memory the current roll diameter
5.Support AC servo and many other kinds of executive machine
Easily adjust and operate (control the tension )
1.Only need to set the tension and material thickness ,initial diameter can be controlled automatically
2.Compatibled the wide power between AC100V~240V
3.Can set the material thickness and initial diameter in the wide-range
4.Have the power-off protection function, even switch off the power can memory the current roll diameter
5.Support AC servo and many other kinds of executive machine
1.Also for rolling taper control
2.Has the deceleration inertia compensation function
3.Clutch, brake torque nonlinear correction function
4.Mechanical loss correction function
2.Has the deceleration inertia compensation function
3.Clutch, brake torque nonlinear correction function
4.Mechanical loss correction function
1.Can use Japanese, English and expression character display function
2.setting value through the dial operation mode
3.Built-in DIP switch to realize high functional mode and simple mode of switching function
4.Through the menu for eight set value memory function
5.Memory eight fixed running constant (material thickness, initial diameter, taper rate, etc.)
6. Equipped with lock key, can prevent maloperation and invalid function display
2.setting value through the dial operation mode
3.Built-in DIP switch to realize high functional mode and simple mode of switching function
4.Through the menu for eight set value memory function
5.Memory eight fixed running constant (material thickness, initial diameter, taper rate, etc.)
6. Equipped with lock key, can prevent maloperation and invalid function display
Detailed Images
Technical Parameters
Power supply | AC85~264V 50/60HZ | |||||
Rated output | DC24V 3A DC0~5V | |||||
Input signal | DC12V Proximity switch (open) | |||||
Roll diameter setting range | 1~2000mm | |||||
Material setting range | 0.1~9999um | |||||
Display | 7 segment LED (control output current coil diameter, etc) | |||||
Control mode | Taper tension Acceleration, deceleration inertia supplement | |||||
Working environment | Surrounding temperature: 0~+55°C Surrounding humidity 35~85% Concussion : 10~55HZ 0.5mm(Max0.5G) Do not allow corrosiv,Flammable gas,Conductive dust and too much dust. | |||||
Weight | About 3.5kg | |||||
Installation | The ground, wall or screen installation | |||||
Optional Accessories | If use ultrasonic induction or touch feeling, must configuration simulation tablet | |||||
