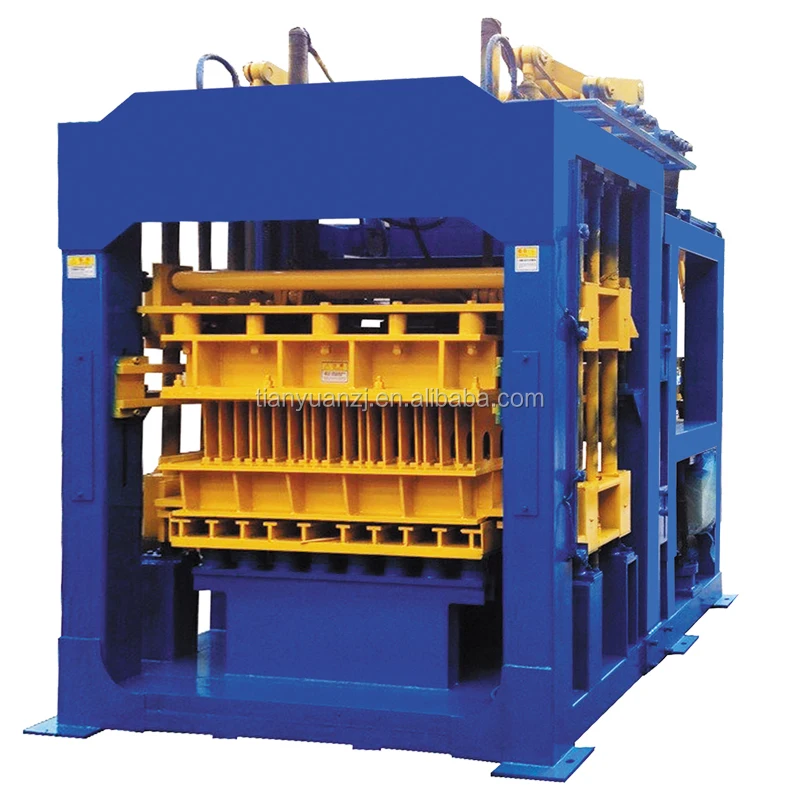

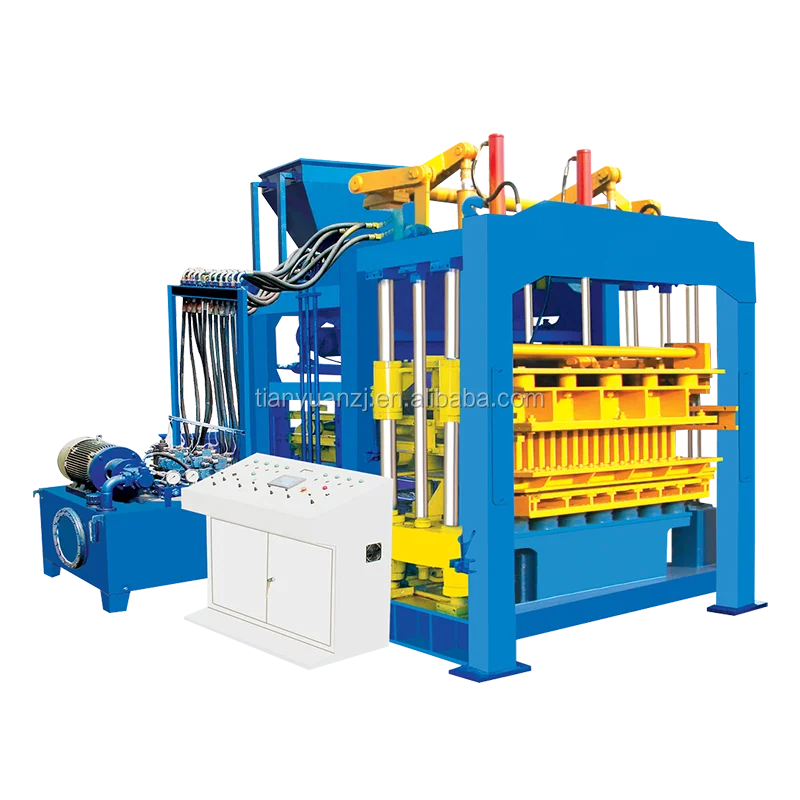

full automatic concrete brick forming machines price for sale in miami
- Category: >>>
- Supplier: Yinan Huarun Tianyuan Machinery Co. Ltd.
Share on (726840390):
Product Overview
Description
Product Description

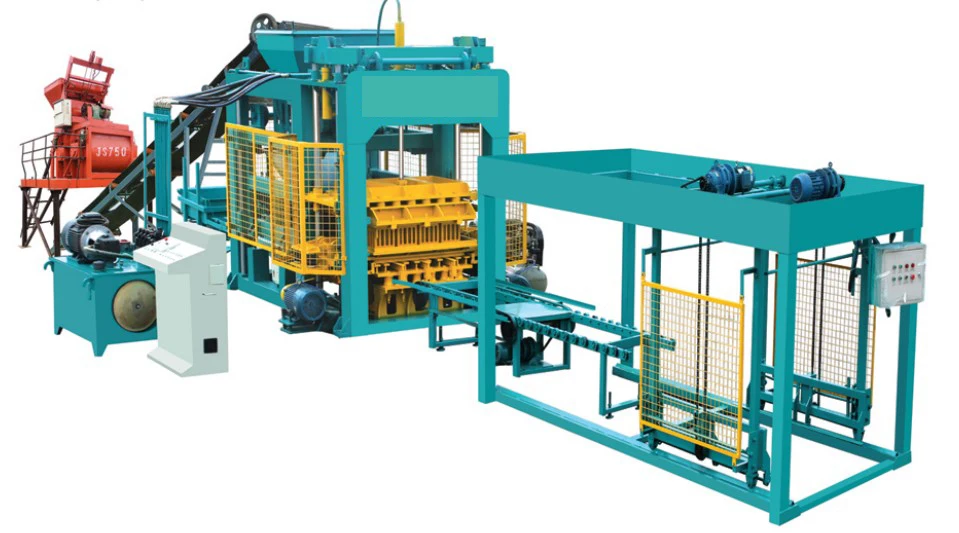

Simple Production Line Introduction
QT10-15 has pressure systemwith two hydro-cylinders.The lifting speed fast and the pressure function is well.It could be fully automatic or semi automatic production line as per clients needs. Full line including PLD800 Batching machine,JS750 Mixer, QT10-15 block machine, Stack machine, and Molds and so on.
Specifications of QT10-15 main machine | ||||||
Dimension of host machine | 4800*2200 *2800mm | |||||
Pallet size | 1100x900x20~30mm | |||||
Total power | 53.2kw | |||||
Weight of the host machine | 10ton | |||||
Vibration force | 100KN | |||||
Molding cycle | 15~20S | |||||
Rated pressure | 15~30Mpa | |||||
Material Consumption | 300~340ton/day | |||||
Electric Consumption | 155kw.h/day | |||||
Water Consumption | 15ton/day | |||||
Worker | 4-8workers | |||||
Main Parts for QT10-15 & Capacity .
Size(L*W*H) | QTY/Mould(pcs) | QTY/Hour(pcs) | QTY/8Hour(pcs) |
400×250×200mm | 8 | 1440 | 11520 |
400×200×200mm | 10 | 1800 | 14400 |
400×150×200mm | 12 | 2160 | 17280 |

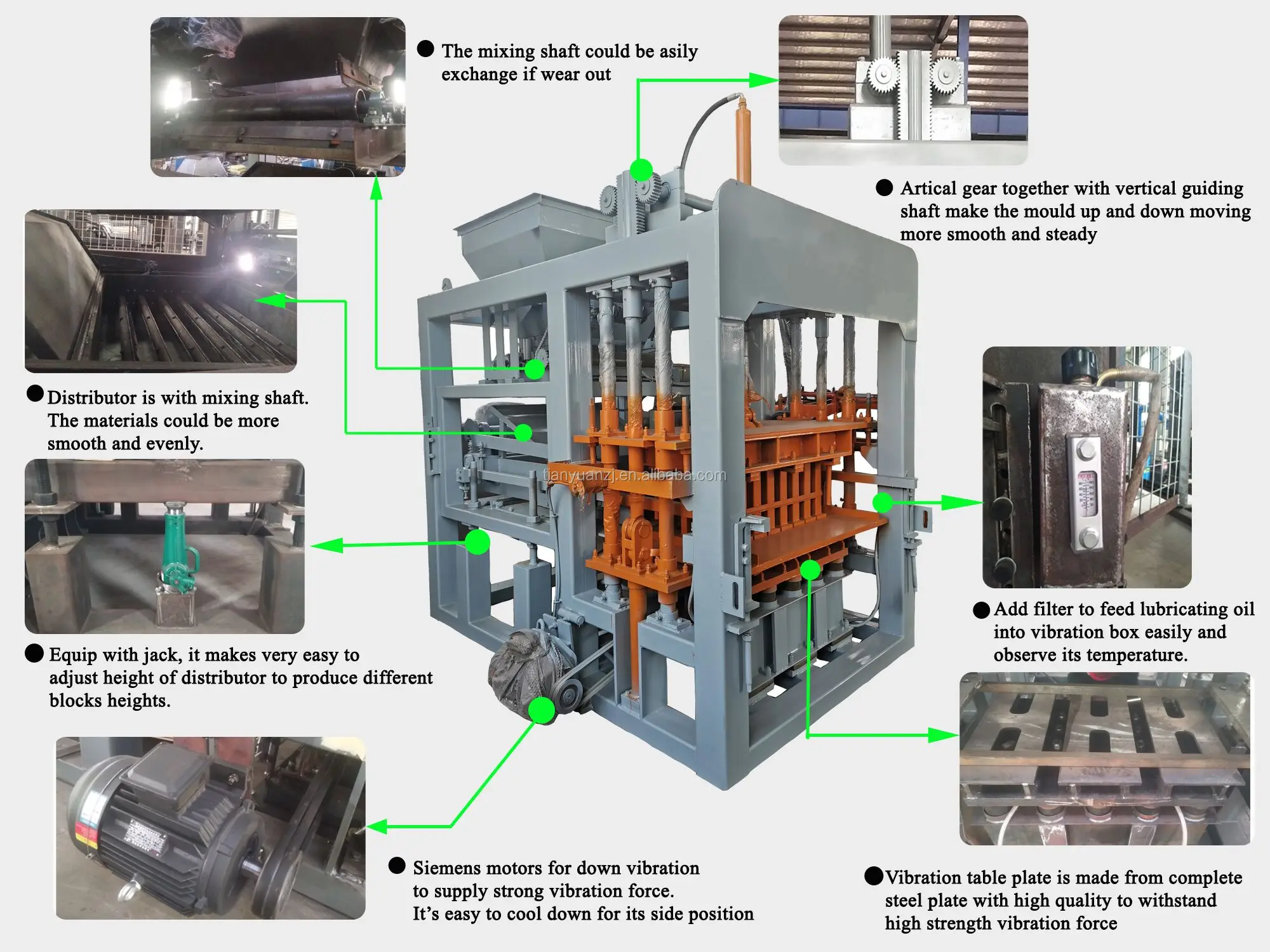

Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Finished Products
Detailed Images

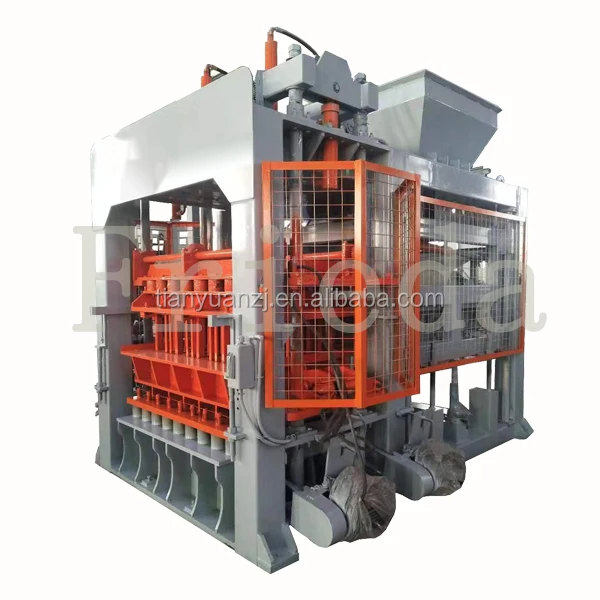

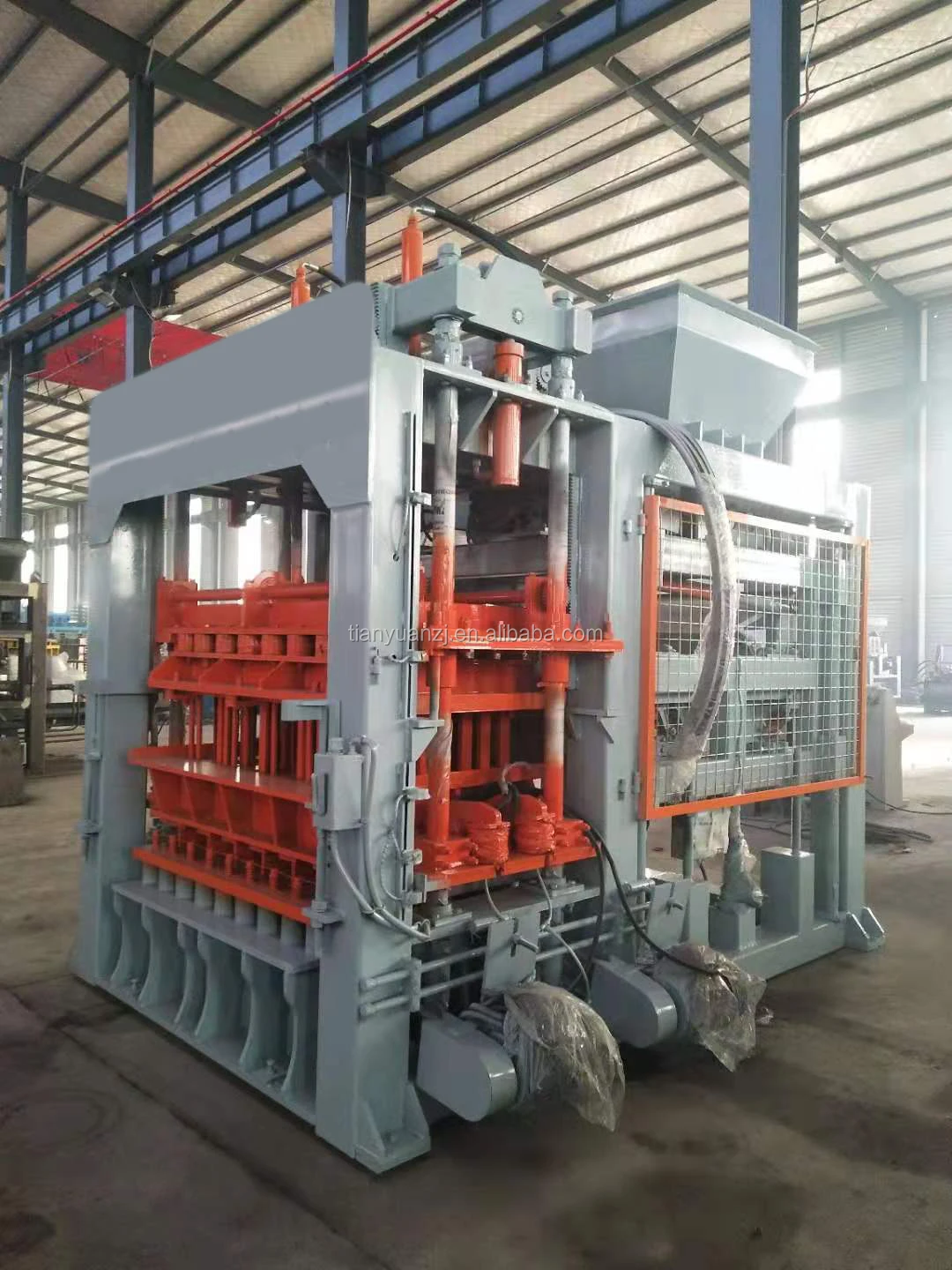

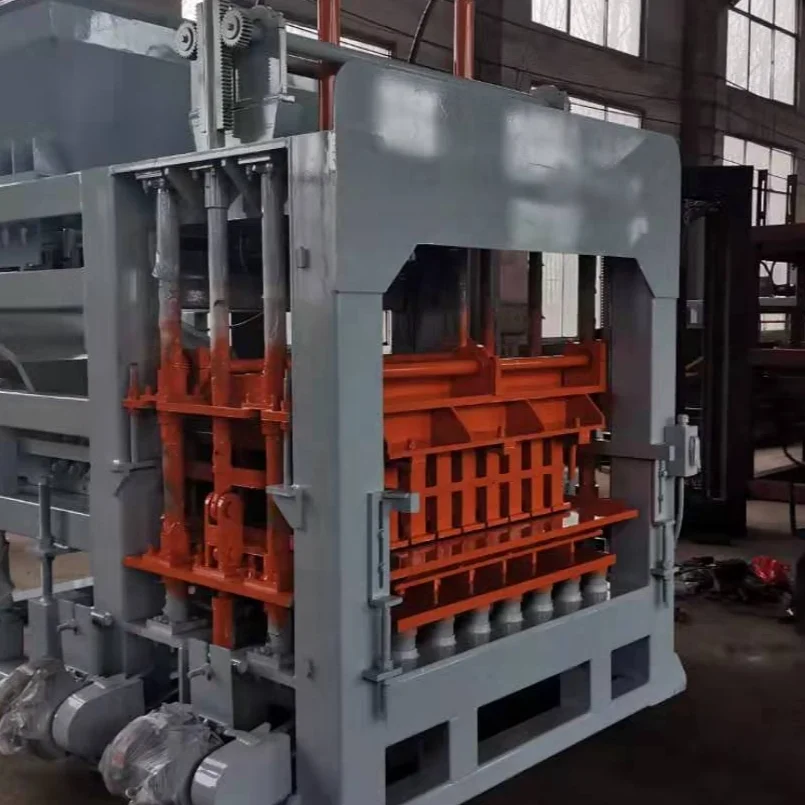

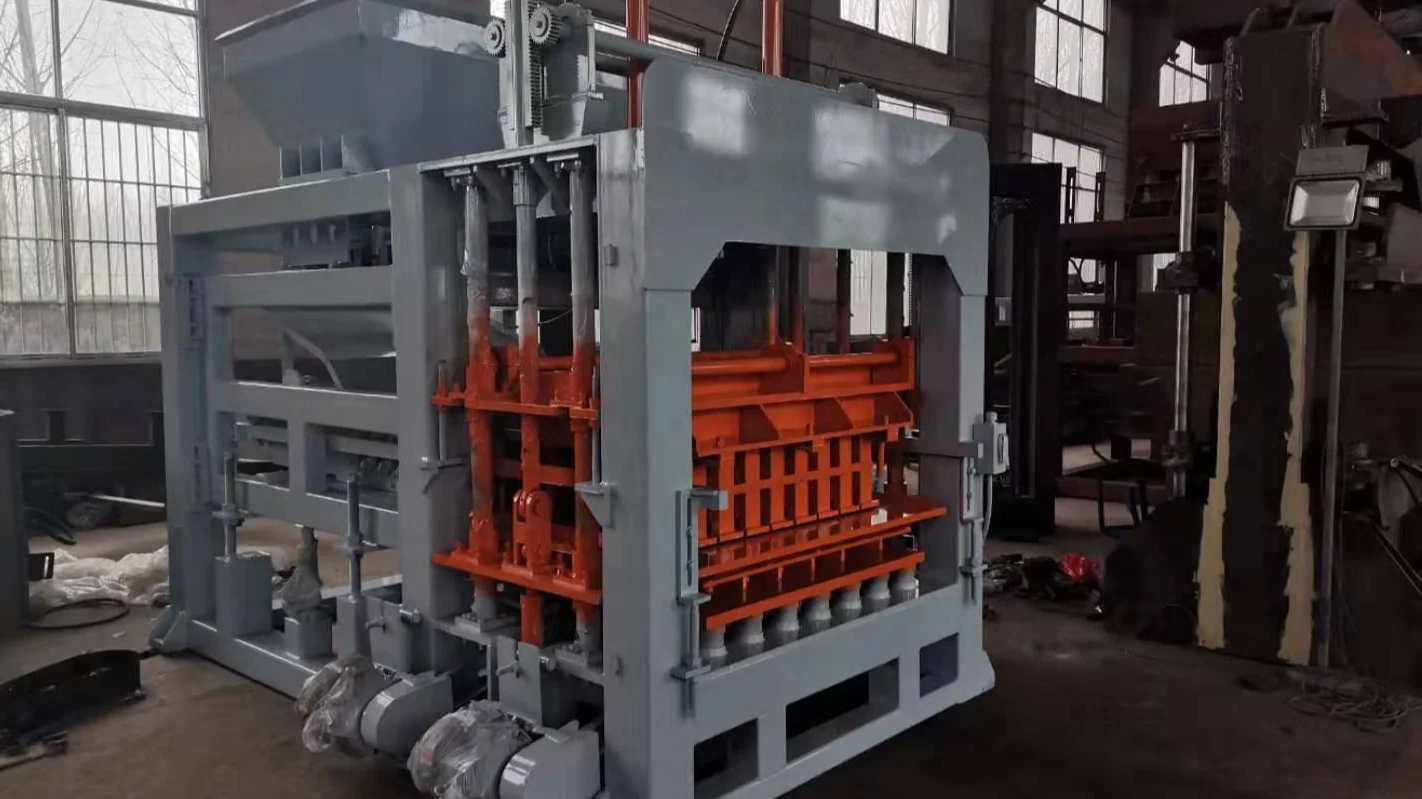

Main Press Machine
Name: QT10-15 brick machine
Brand: Tianyuan brand
Original: China
It is the newest design automatic block machine .Its pressure system with two hydro-cylinders.The lifting speed fast and the pressure function is well.
Machine parts

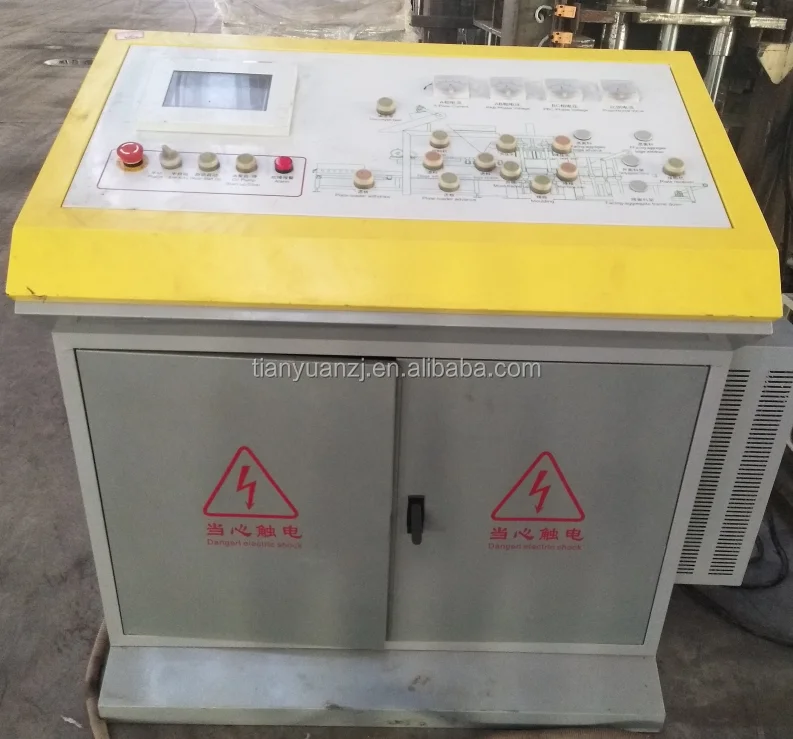

Name: PLC control
Brand: DELTA
Original: China
Ensure the machine runs extremely smoothly, long serving life. Faults-displaying and the troubles-shooting on the cabinet.
Machine Parts
Name: Brick Mold
Brand: Tianyuan Brand
Original: China
All the molds can make as your design, and one machine can make different kinds blocks/bricks only by changing moulds.
Machine parts
Name: Stack machine
Brand: Tianyuan brand
Original: China
1.Use frequency conversion technology enables the stacker to move up and down very smoothly , greatly protect the wet blocks.
2.Motor connected with speed reducer,to make power,and drive the gear moving, thereby lead the system to move.
Machine parts

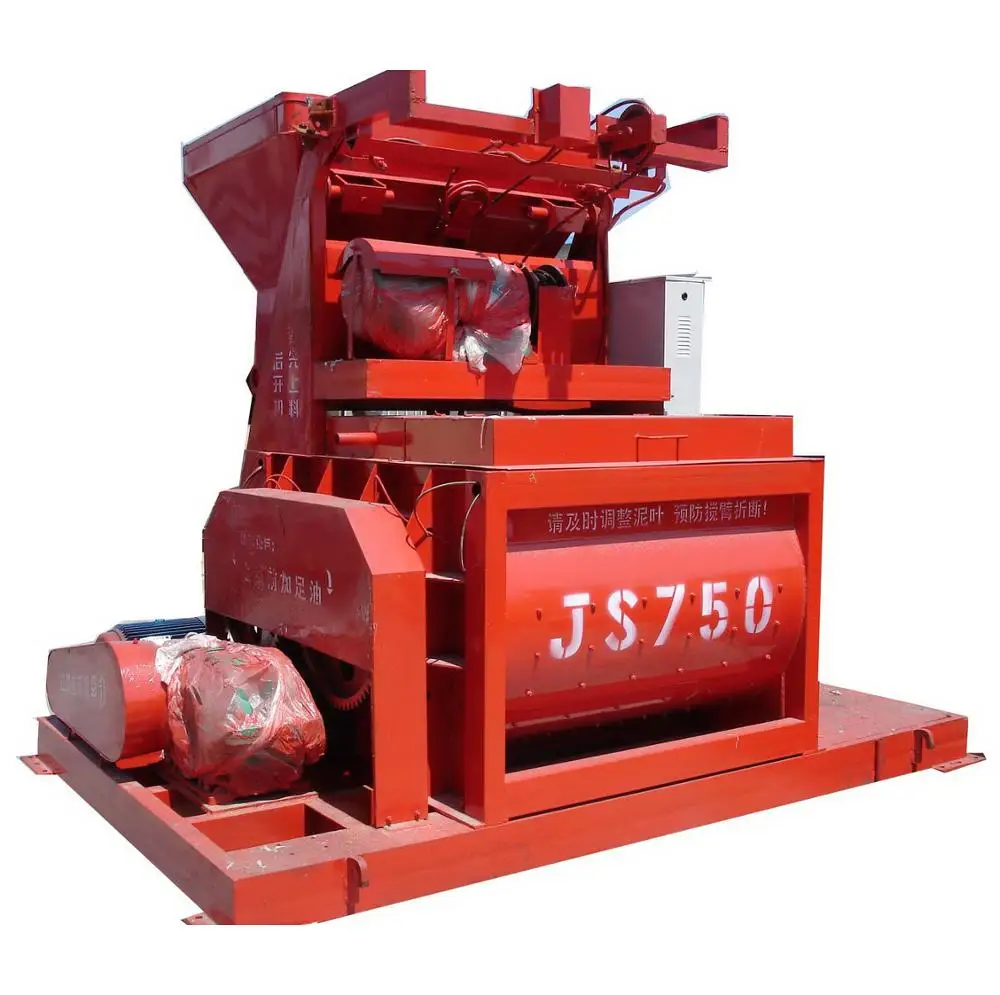

Name: JS750 concrete mixer
Brand: Tianyuan brand
Original: China
1.Automatic feeding material /Automatic self clocking/Automatic adding water
2.Double mixture axes, the speed of mix ,will be approved to a large degree, and the Large particles can easily be stirred .
Machine parts.
Name: PLD800 Batching Machine
Brand: Tianyuan Brand
Original: China
1.Weighting accuracy is guaranteed by the high-precision weighing sensor, and the warp ratio is within ±1%.
2.The electronic weighing, microcomputer control, digital display, wired remote control operation
Certifications
Our Service
Factory Office Building
√ Famous trademark of China
√Passed CE Mark
√ National enterprise abiding by contract and keeping good faith
√ National key high-tech enterprise
Oversea User
√ Top ten influential brand of China brick and tile industry
√ First place in production and sales of block machine and tile making machine in China
√ ISO quality system certificate enterprise
√ Supporting institution of Shandong machinery research institue
Service.
@:Free designing ,technical support and project;
@Engineer available for overseas installation and adjustment;
@All necessary documents and drawings and videos for free;
@Warranty one year after delivery.
@ 24hours Online service for all life time
Packing & Delivery
RFQ
1. Delivery period and payment terms?
15-25 days after advanced payment, 30% advanced by T/T, balance
paid before loading
2. Packing method ?
No packing, or in plastic clothes, or in plywood box.
3. What’s motor and electric brand we choose for our machines ?
Siemens or Schneider brand, or Chinese famous brand.
4. What kind of steel my machine and molds use ?
Q235B for machine, Mn steel for molds, more durable.
5. Will you send engineer to install for user ?
Yes, we have oversea service team, they supply service as per needs.
6. Are there any spare parts together with the machine ?
Yes, we will send spare parts together with machine, the user could use it for more than two years.
7. Do you supply free technical service during later production ?
Yes, we have online service 7x24hours.
Whatsapp: 0086 1500659 3716
15-25 days after advanced payment, 30% advanced by T/T, balance
paid before loading
2. Packing method ?
No packing, or in plastic clothes, or in plywood box.
3. What’s motor and electric brand we choose for our machines ?
Siemens or Schneider brand, or Chinese famous brand.
4. What kind of steel my machine and molds use ?
Q235B for machine, Mn steel for molds, more durable.
5. Will you send engineer to install for user ?
Yes, we have oversea service team, they supply service as per needs.
6. Are there any spare parts together with the machine ?
Yes, we will send spare parts together with machine, the user could use it for more than two years.
7. Do you supply free technical service during later production ?
Yes, we have online service 7x24hours.
Whatsapp: 0086 1500659 3716
