Item | 5KW | 10KW | ||

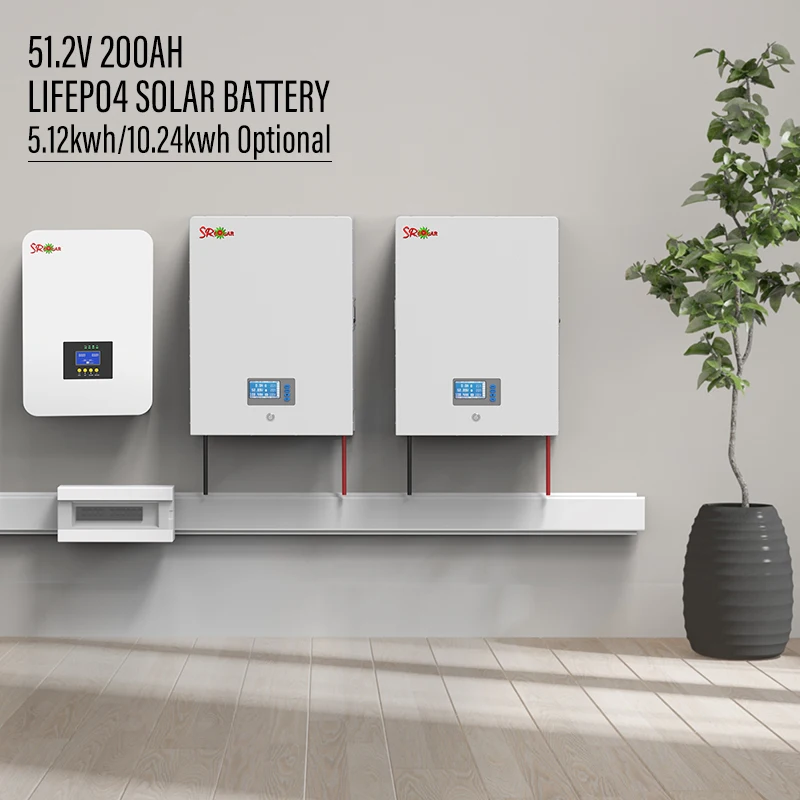

Lithium Battery | ||||
Nominal Voltage | 51.2V | 51.2V | ||
Nominal Capacity | 100Ah | 200Ah | ||
Energy | 5120Wh | 10240Wh | ||
Battery Cell | 3.2V 100Ah Lifepo4 | 3.2V 200Ah Lifepo4 | ||
Max Charge Current | 100A (Continuous 50A) | 100A (Continuous 50A) | ||
Max Discharge Current | Continuous 100A | Continuous 100A | ||
Operating temperature | -20° - +60° | -20° - +60° | ||
BMS | 16S LFP 100A | 16S LFP 100A | ||
Cycle Life | 6000+ Cycles | 6000+ Cycles | ||
Protection level | IP65 | IP65 | ||
Housing Material | Stainless steel metal case | Stainless steel metal case | ||

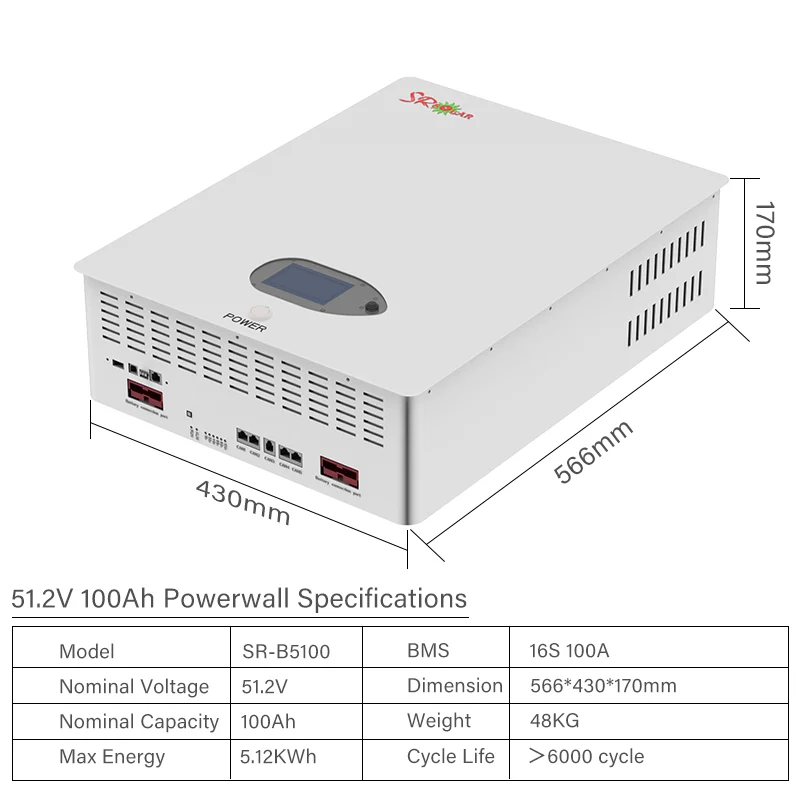

Dimensions | 430*170*566mm | 524*297*620mm | ||
Weights | 45KG | 85KG | ||

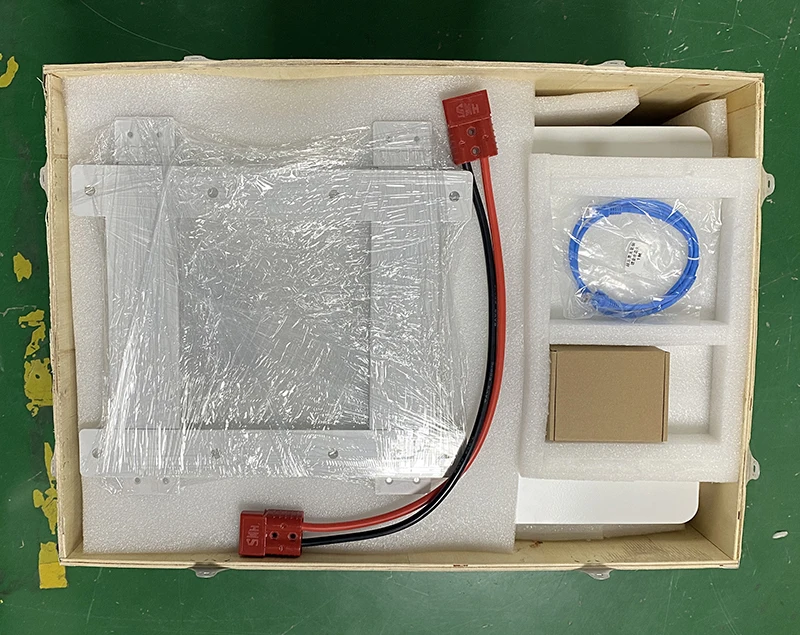

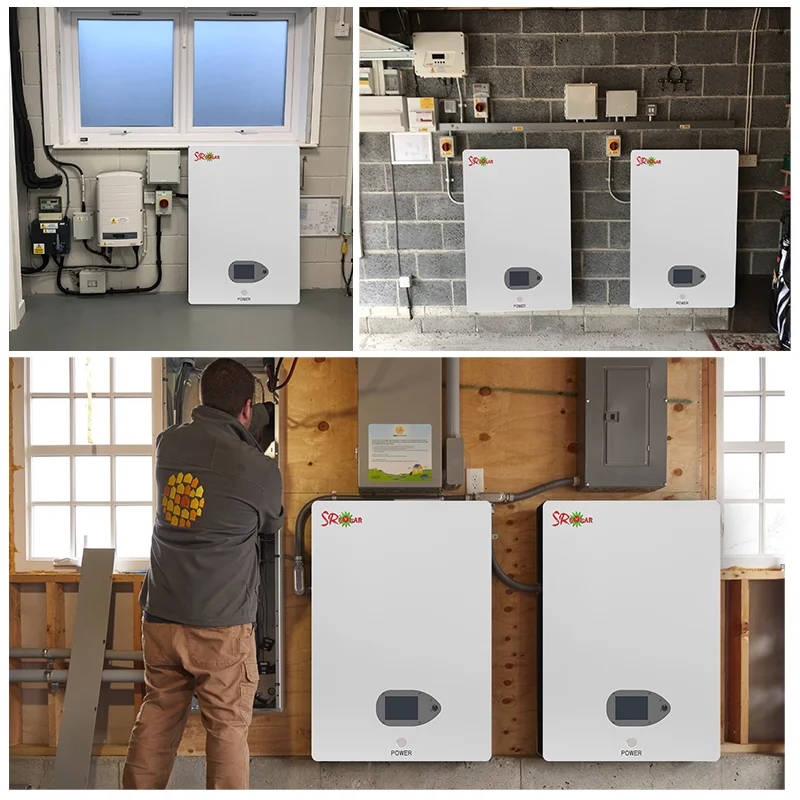

Installation Methods | (M6 screws) Bolt Wall Mount | (M6 screws) Bolt Wall Mount | ||
Maximum parallel connections | 16Pcs | 16Pcs | ||
Solar Inverter | ||||
Inverter Type | Hybrid Solar Inverter | |||
Max Output Power | 5KW | |||
AC Output Voltage | 210V-230V AC 50Hz | |||
Solar Charge Input Voltage | 120V-450V DC | |||
Output Current | 100A | |||
Emergency switching of utility power | 10ms | |||

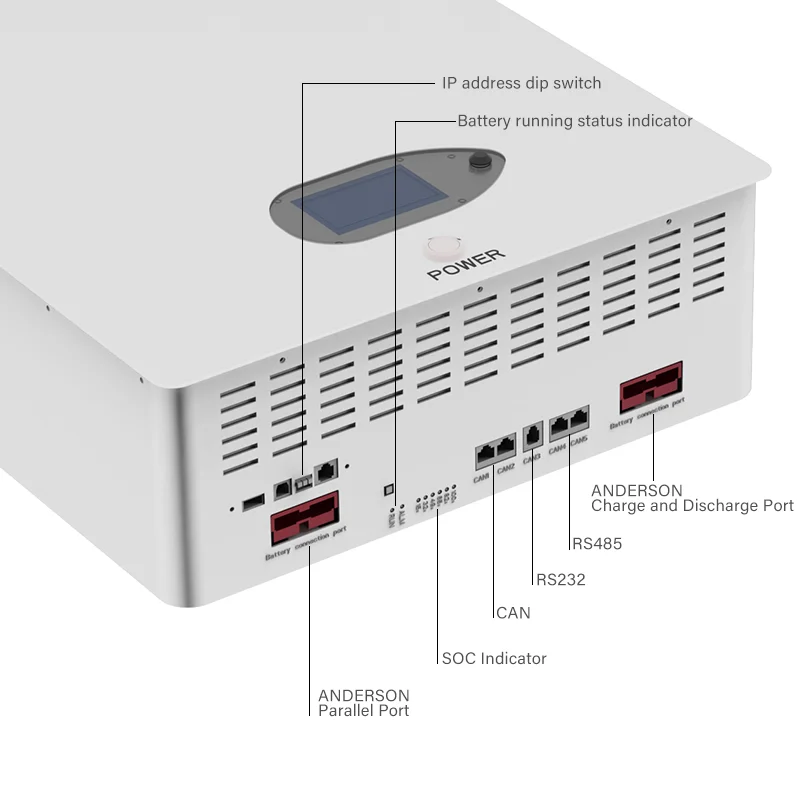

Communication Protocols | RS485/RS232/CAN | |||
Communication Module | 4G WIFI | |||

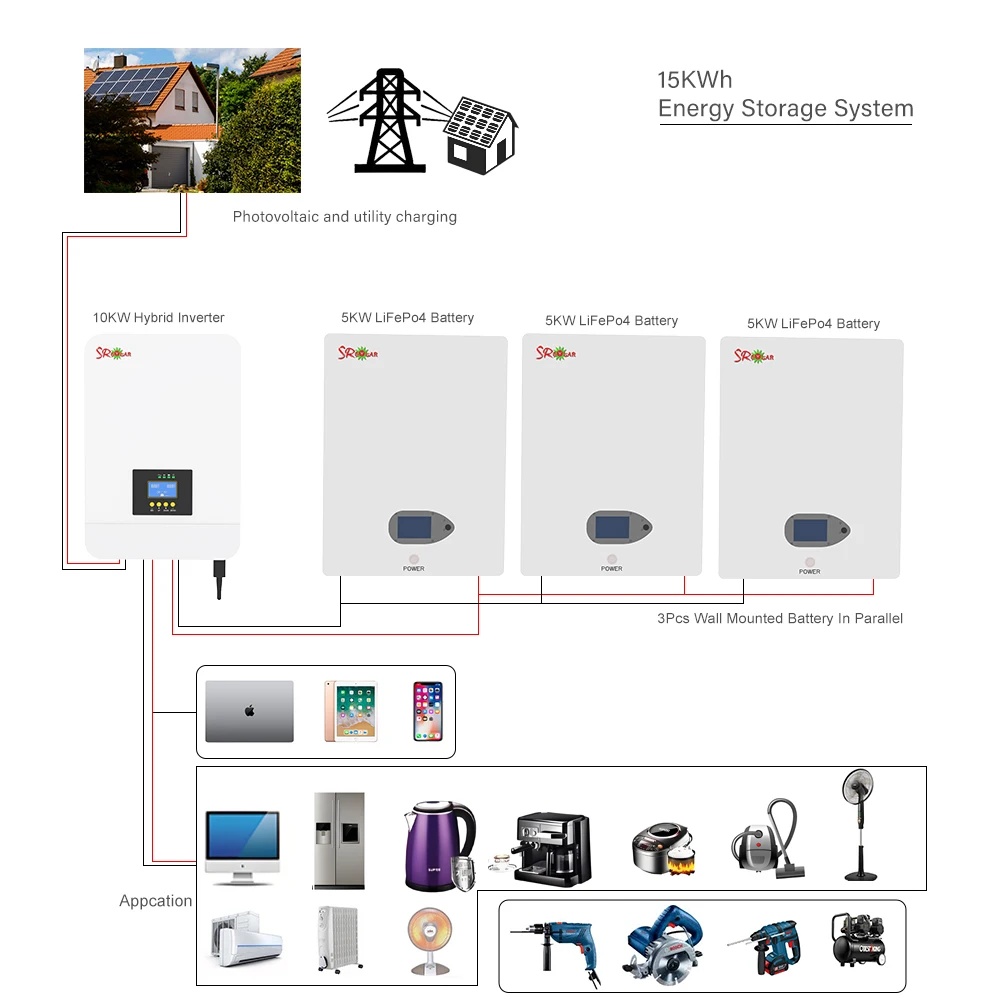

Power in parallel | 3Pcs (15KW) | |||
Weights | 28KG | |||
Dimension | 493*340*120mm | |||
