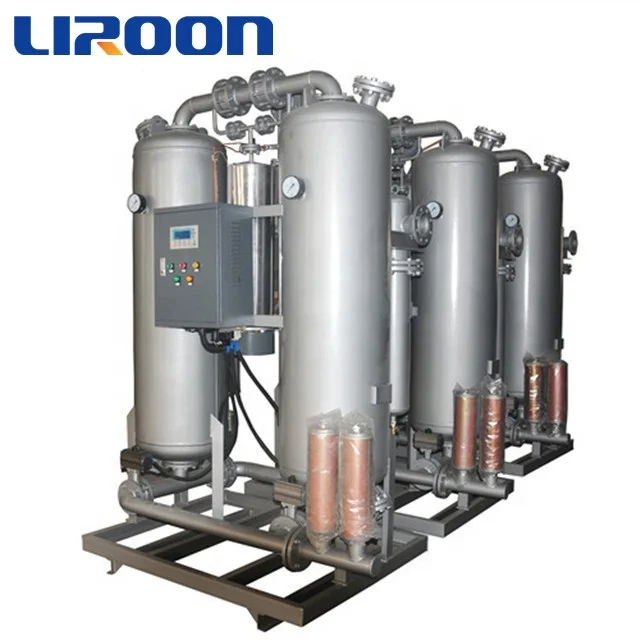

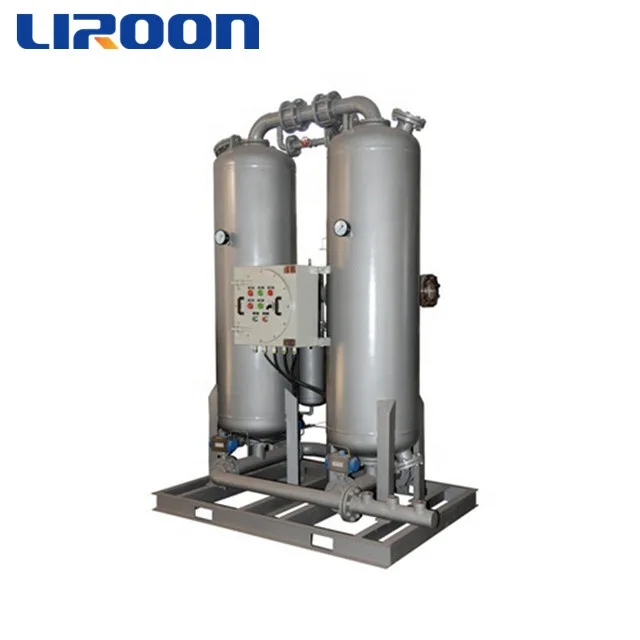

50 bar High Pressure Heatless desiccant air dryer
- Category: >>>
- Supplier: Hangzhou Linuo Machinery Co. Ltd.
Share on (727982457):
Product Overview
Description
Heatless Regenerative air Dryer
Brief introduction:
Heatless desiccant air dryer adopts the way of using adsorbent media to adsorb the moisture and the contaminant from compressed air, the adsorbent media can be generated or purged from the moisture it collected and use again and again.

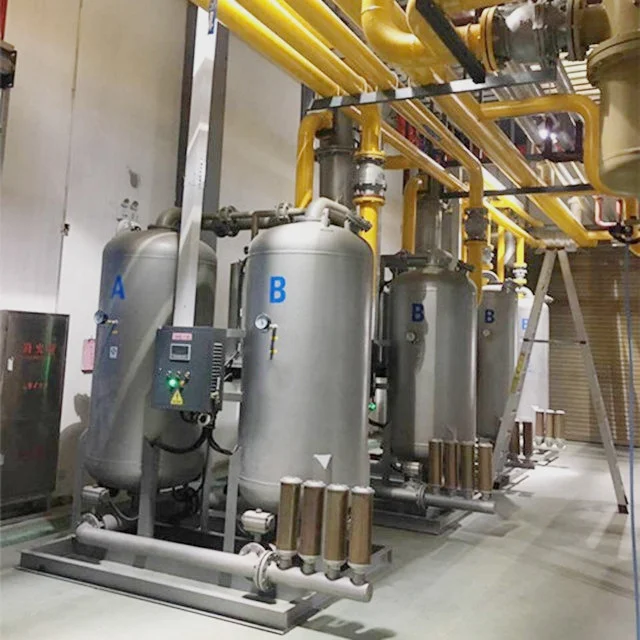

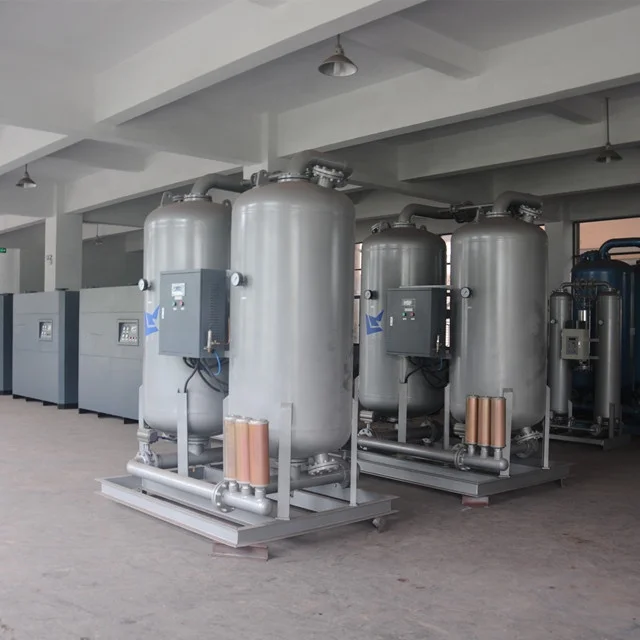

It adopts the outstanding design of two towers which simultaneous allows one is drying and the other is regenerating, with the 10 minutes working period by SIMENS control valve, this kind of air dryer is specially fit for the critical compressed air applications or for those in extremely cold ambient conditions where the moisture remaining in the air would freeze inside the compressed air system piping.
Advantage:
1. The excellent design of the two tower
It can ensure activated aluminium oxide contact time enough to dry the saturated wet air entering in dryer to the needed dew point, 30% extra desiccative can compensate the desiccative consumption and ensure the life time, then guarantee the best performance
2. Adopts the large scale diffuser
To ensure the air stream well proportioned to get through the desiccative level
3. Reliable controlling system
3.1 Within 10 minutes period dry the compressed air to very low dew point of -40°C or within 4 minutes period dry to -70°C,and can be conditioned at site
3.2 Micro CPU control way , and the PLC control is optional
4. System Pressure drop is lower than 0.02MPa
5. Easily operation & easily maintenance
Power on-off switch, the period mode setting, power on light, regenerative on light
Technical specification:
Rated Inlet Temperature: ≤38°C
Maximum inlet temperature: ≤49°C
inlet oil content: ≤0.1ppm
Outlet Pressure Dew Point: -40°C (70 °C below zero is optional)
Adsorbent: Activated alumina or molecular sieve
Rated Working Pressure:2.0~5.0MPa(1.0MPa or above is optional)
Pressure loss: 0.02MPa
Control Model: CPU (standard configuration), PLC is optional
Working Mode: Automatic switching between tower A and tower B, continuous working
Regeneration Way: Heatless regenerative
Regeneration Way: Heatless regenerative
Regeneration Air Consumption: 14%
Cycle Period: 4~10min, adjustable
Cycle Period: 4~10min, adjustable
Power Supply: 220V/50HZ
Parameters above are for your reference. Large scale please contact us for specific information.
