Meitrack T333L 3G/4G Taxi GPS Tracking device for vehicles

Share on (728174387):


Price:$79.00 - $86.00

Quantity:


Product Overview

Description








PRODUCT OVERVIEW

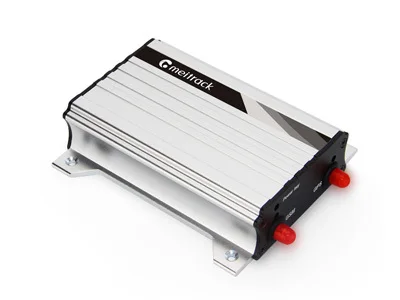

T1-400-300 Meitrack T333L
3G/4G GPS Tracker for Vehicle

The T333L is the latest vehicle tracker supporting the 3G (WCDMA)/4G (LTE) network. In addition to real-time tracking, the T333L has two-way calling and remote listen-in functions. The T333L provides excellent and stable performance in vehicle tracking and fleet management.





It has the following features:


---- Cost-effective
---- Multifunctional
---- Two-way Communication/remote listen-in
---- Driving Behavior Analysis












FEATRURES




T333L














SPECIFICATIONS




































































Dimension


105 mm x 65 mm x 26 mm


Weight


190g


Power supply


DC 11–36 V/1.5 A


Backup battery


400 mAh/3.7 V


Power consumption


Standby mode: 5mA
Normal mode: 65mA



Working hour


47 hours in power-saving mode
4.7 hours in normal mode


Operating temperature


-20°C to 55°C (normal-temperature battery)
-5°C to 75°C (high-temperature battery)


Operating humidity


5% to 95%


LED indicator


Green indicator showing the GSM signal
Blue indicator showing the GPS signal


Button/Switch


1 SOS button (for sending SMSs or dialing)
1 power button


Sensor


3-axis accelerometer (used to wake the device up by vibration and detect towing alerts)


Memory


8 MB buffer


Positioning accuracy


2.5m


Frequency
band




T333-ER:

LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8

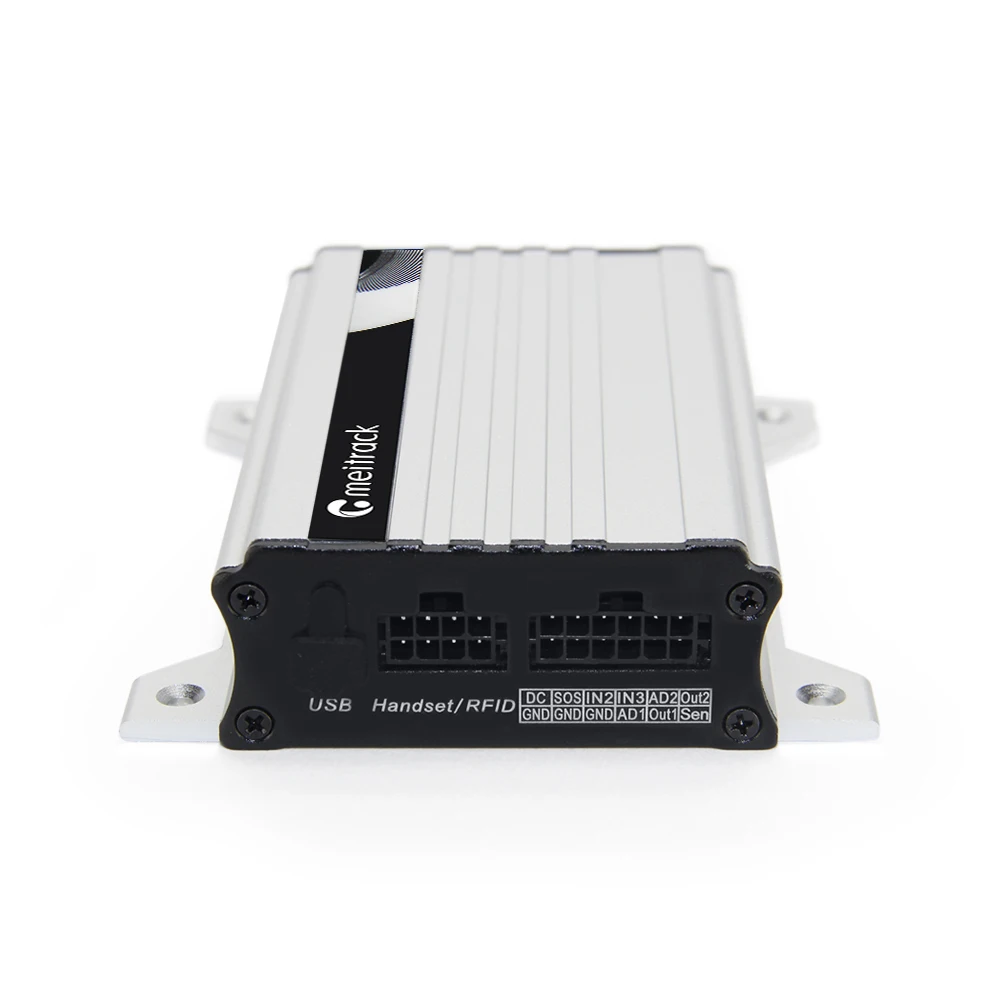

I/O port


3 digital inputs (2 negative inputs and 1 positive input)
2 analog detection inputs
2 outputs
1 RS232 port
1 USB port
1-Wire® iButton
1-Wire® temperature sensor











ACCESSORIES

























































ACCESSORIES


T333L with a built-in battery


External GPS antenna


External 4G antenna


I/O cable + SOS button


CD download card


Optional
Accessories



A53 fuel level sensor


Ultrasonic fuel level sensor


Speaker and microphone


USB cable


iButton


Camera


LED display


Tire pressure sensor


RFID reader


A52 digital temperature sensor + A61 sensor box













CERTIFICATES




t333-certificate











MEITRACK GPS TRACKING PLATFORM MS03









photobank

Meitrack MS03




Advanced GPS Tracking Software






MS03 is the newest GPS tracking innovation from Meitrack Group. Extensive programming combined with an esthetically designed user interface (UI), giving the MS03 platform a much more user friendly experience. The platform consists of an extendable database, which ultimately can meet various functional requirements and needs.


Contact us to get a free demo now!













Case Study











TAXI GPS TRACKING FOR THAILAND GOVERNMENT

T333L



Meitrack introduces the taxi GPS tracking solution to the Thailand government in order to enhance the safety of drivers and
passengers while improving the taxi service. Taxies are equipped with the T333 tracker, magnetic card reader, taximeter, and
camera. These taxies can only be driven by authorized drivers. In case of emergency, the government monitoring center can pinpoint
the location quickly and efficiently, and take immediate action.






















COMPANY OVERVIEW




Since 2002.
20,000m2 state of the art manufacturing facility based in Shenzhen, China.
Placed in-house R&D centers in Taiwan, Shenzhen and the United States.
Providing OEM&ODM service.
Providing software development service.
Global network covering Europe, USA, CIS, Middle East, and Asia Pacific Region.











Manufaturing











Standardized Production Management




GPS signal generators MP9000 & MP9100 Agilent
GSM/GPRS integrated tester 8960 Reflow soldering,
SMT machine, solder paste printer, AOI tester...





Strict Quality Control


IATF16949:2016 Quality Management System


ISO9001:2015 Quality Management System
Certs: CE, FCC, RoHS,PAHs, etc.





























DISTRIBUTION WANTED

distributors wanted
