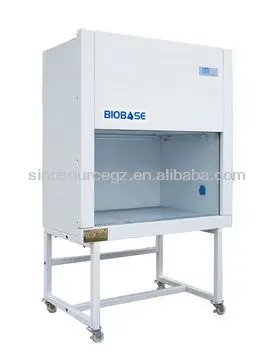

Vertical Laminar Air flow Cabinet ( one operator)BBS DDC

Product Overview

Description

Features:

The laminar flow clean bench is a work bench or similar enclosure which has its own filtered air supply. It provides product protection by ensuring that the work in the bench is exposed only to HEPA-filtered air. Laminar flow clean benches are widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.

BIOBASE can offer both horizontal and vertical flow models for you.

Advantage:

1.Used HEPA Filters.Performance:99.995% @ 0.3um.
2.LCD Display.
3.Air speed adjustable.



External Size(W*D*H):1040*615*1770mm;
Internal Size(W*D*H):940*540*545mm;
Work Surface Height: 750m
Airflow Velocity: Average of 0.3~0.5m/s;
HEPA Filter: 99.999% efficiency at 0.3um;
Noise: <60dB;
Fluorescent Lamp: 21W*1;
UV Lamp: 18W*1;
Consumption: 350W

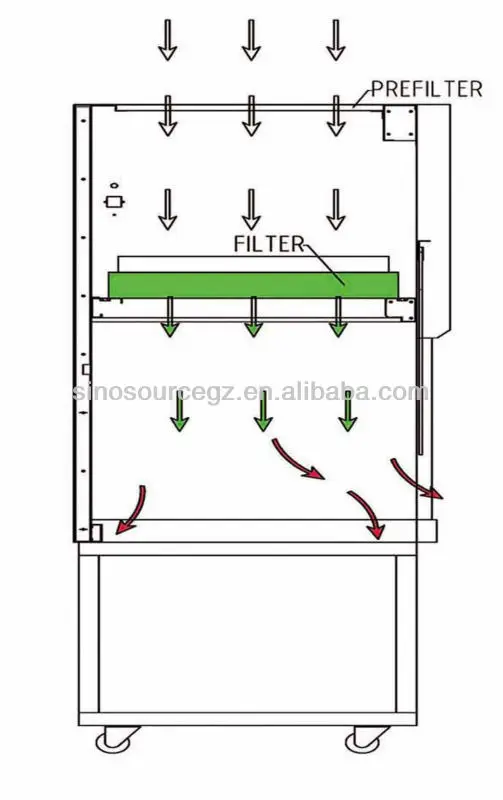

Air Pattern and Protected Area:

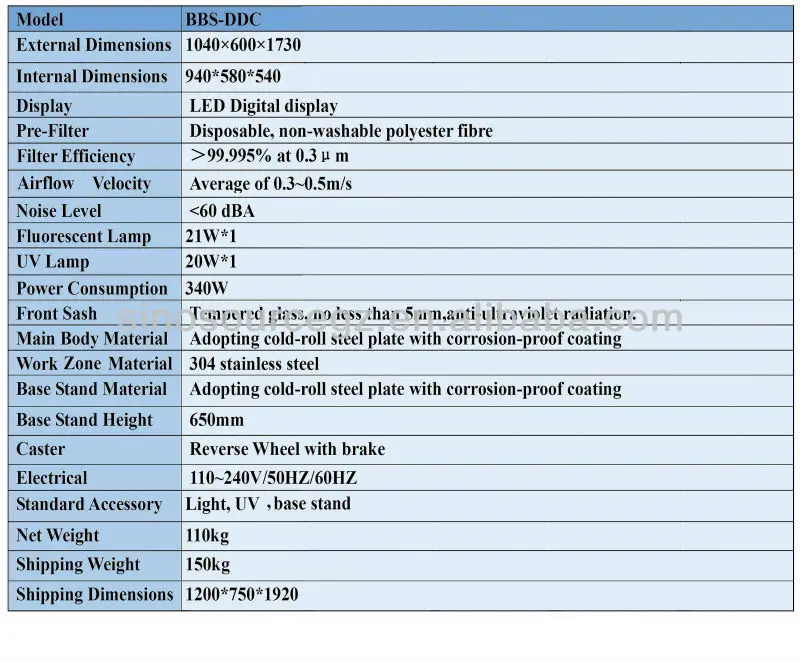

Parameter of BBS-DDC:
