LKBT PVD Vacuum Jewellery Titanium Ring Nitride Gold Color Coating/Plating Machine Equipment

Product Overview

Description

 Also you can add my other online chatting ways:

QQ:1358544345     wechat:pili888

TEL (whats App): +86-15098573886

mail:bitevacuum(at)aliyun.com





PVD Jewellery Titaium Rings Nitride Vacuum Coating Machine

Advantages:

• PVD coatings are sometimes harder and more corrosion resistant than coatings applied by the electroplating process.

 Most coatings have high temperature and good impact strength, excellent abrasion resistance and are so durable

 that protective topcoats are almost never necessary.

• Ability to utilize virtually any type of inorganic and some organic coating materials on an equally diverse group of

 substrates and surfaces using a wide variety of finishes.

• More environmentally friendly than traditional coating processes such as electroplating and painting.

• More than one technique can be used to deposit a given film.



Our products have acquired the TUV certification



	Parameters	Model No.	Quantity
The structure of the vacuum chamber	Vertical front door , Double or cooling tank cooling
dimension of vacuum chamber	900×1000		1
pumping speed	1×105Pa~3×10-3Pa≤15min
limit vacuum	≤8×10-4Pa
system form a complete set	Maintaining the pump	2X-15	1
	Mechanical pump	2X-70	1
	Diffusion pump	KT-500	1
	roots-type pump	ZJP-300
workpiece system	Rotation of the planet forms(8 roating shaft, since the amount)		8
heating methods	Edge installation of stainless steel heating tube		4
ion bombardment	20KW inverter bias	PLS-20KW	1
Arc target	40-200A adjustable	TIG-250	3
magnetron target amount	one plane target or Cylindrical target		2
Magnetron power	30KW IF power	MF-30KW	1
working methods	PLC semi-auto control or PC+PLC auto control
working gas	Ar N2 O2
total power	40KW
compress air	0.4~0.8MPa
water-cooling system	hydraulic pressure/water temperature:≤25°C/≥0.25MPa(user provide for himself)













We can also finish to coat:

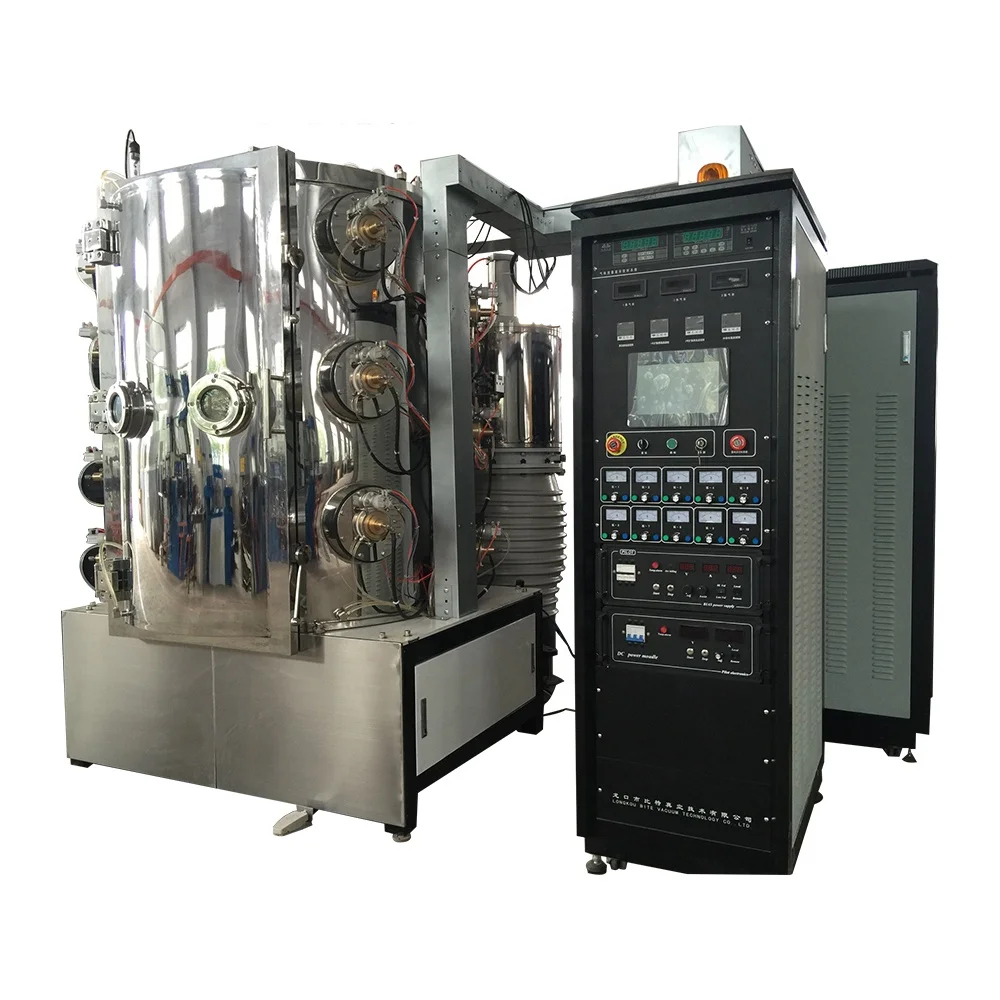

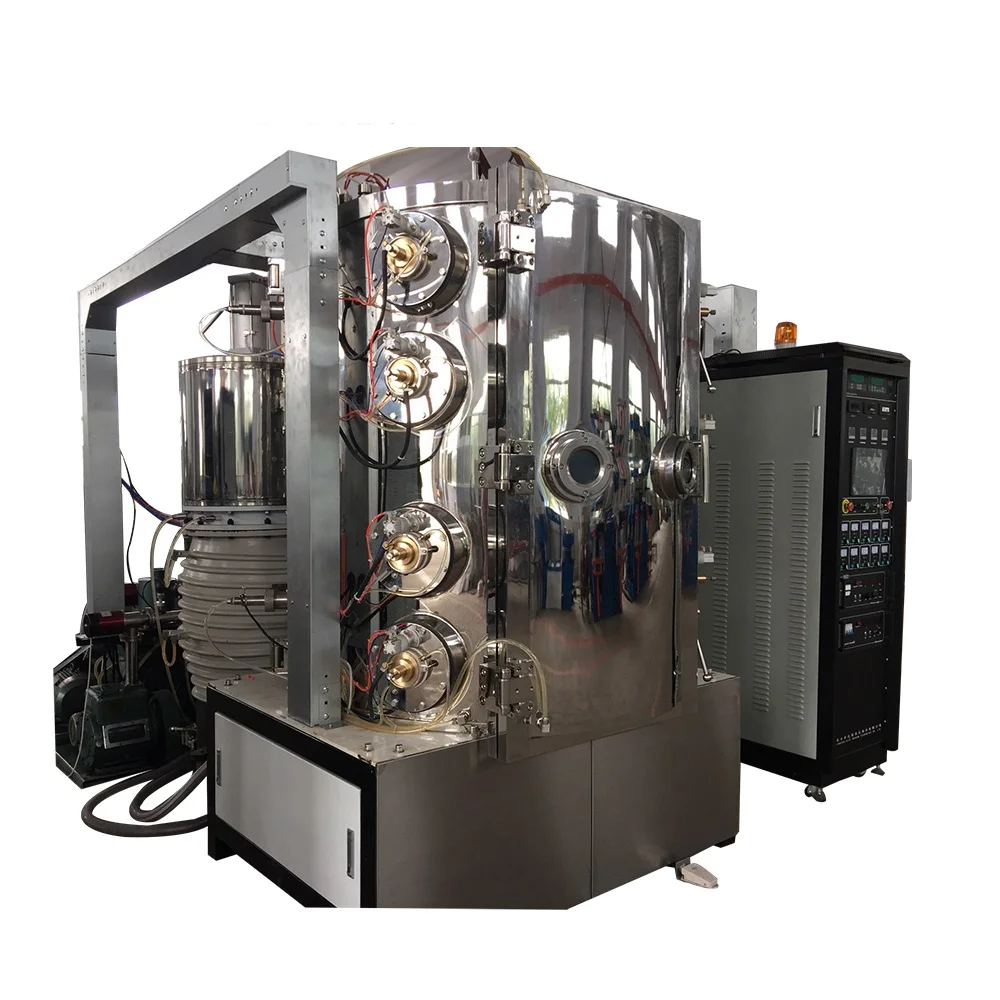

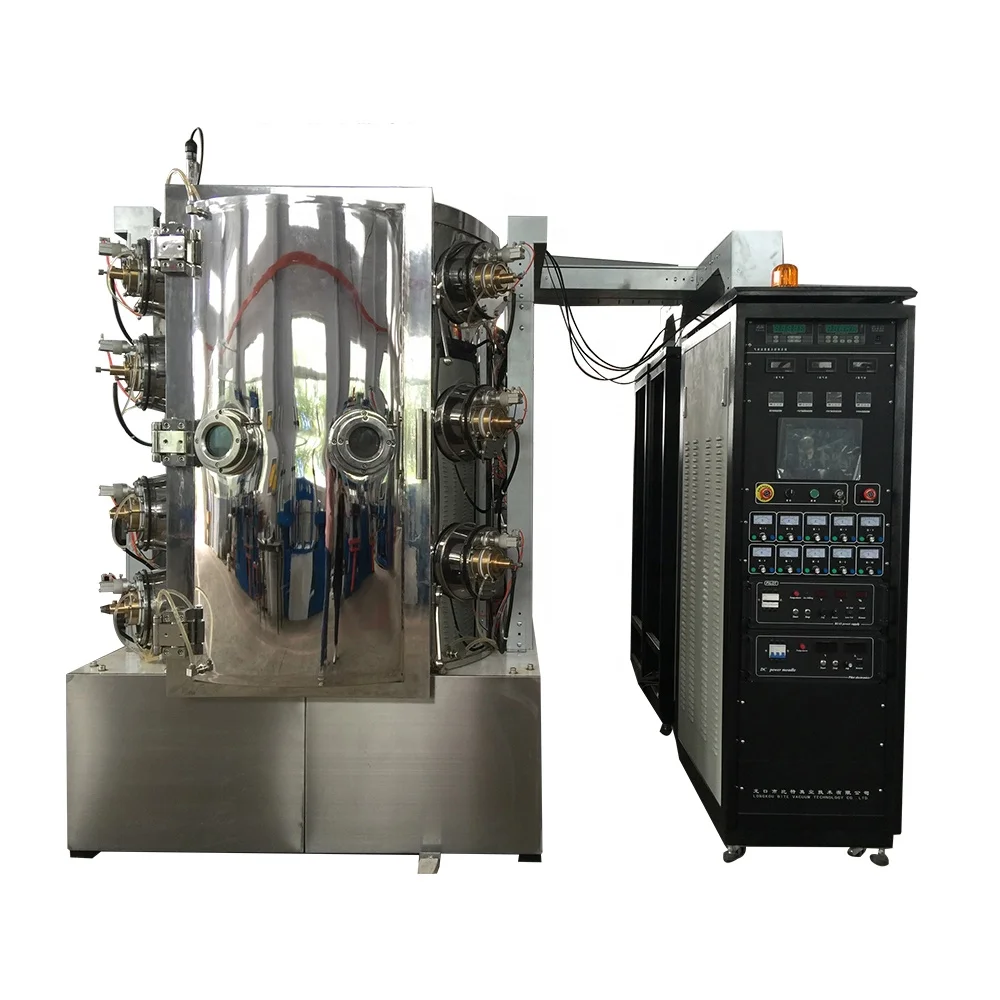

Simple introduction of pvd vacuum ion plating equipment



pvd vacuum Ion plating equipment by touch screen and PLC control, multi arc magnetron coating technology with computer, equipped with automatic shifting vacuum gauge, flow controller, bias power supply, automatic temperature control inverter arc power, side mounted type heating pipe, computer PID. In addition, widely used in plating titanium nitride, titanium carbide, zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, gold and silver, is a multifunctional equipment decoration industry much needed. Ion film plating using the equipment, good wear resistance, high ionization rate, fast deposition speed, stable performance, color diversity.

At present, can be plated film color is golden yellow, Coffee color, bronze, gray, black, blue, rose and seven color and so on, to have the film adhesion, the density, from the characteristics, complexity and color consistency and good and, due to the use of the process of coating is a physical method of up-to-date, no "three wastes" emissions, has shown strong vitality and market competitiveness.
