JS Japan MISUMI standard Roller track for transporting carton or pallet or rack

Product Overview

Description

Name:

JS Japan MISUMI standard Roller track for transporting carton or pallet or rack

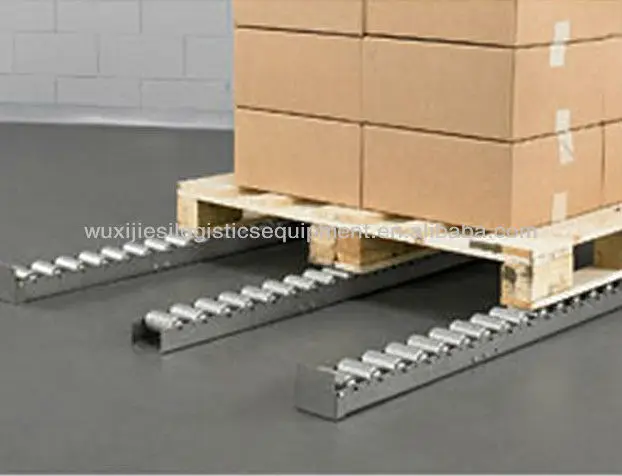

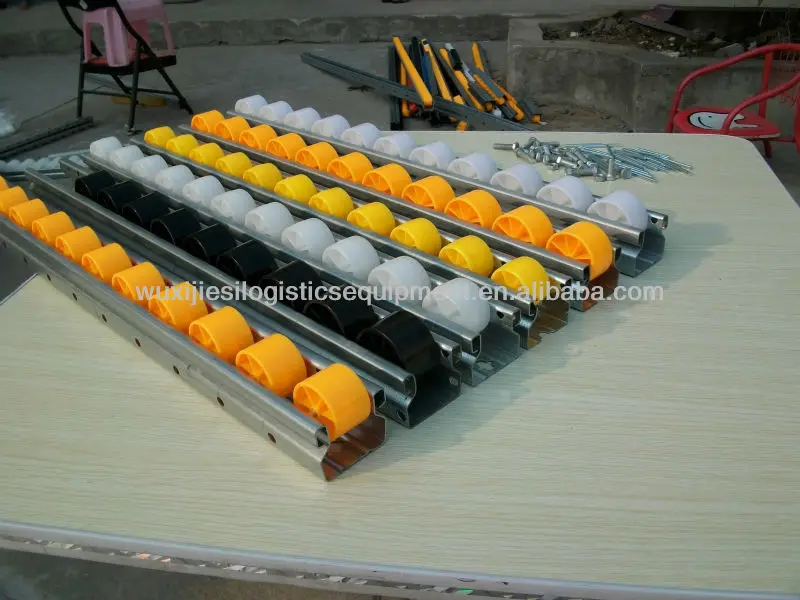

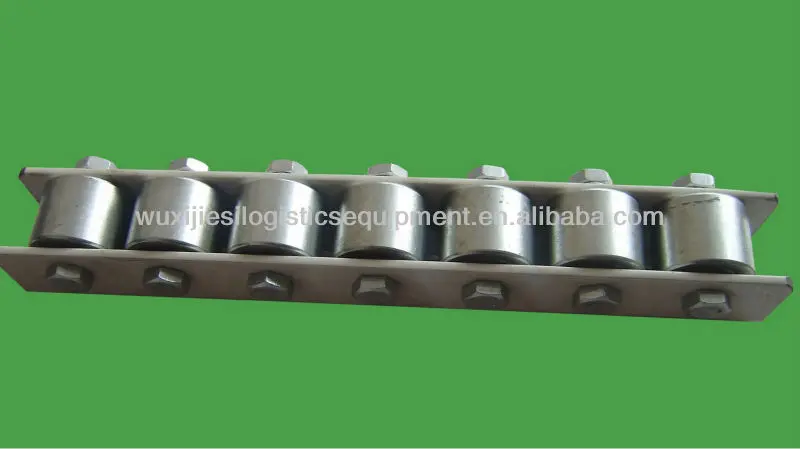

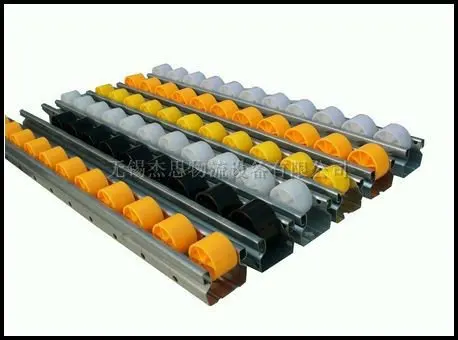

Roller track is a compact and robust gravity flowstore system which has been specially designed to withstand heavy and continuous use in any hard working environment where component feeding to working areas is standard practice.

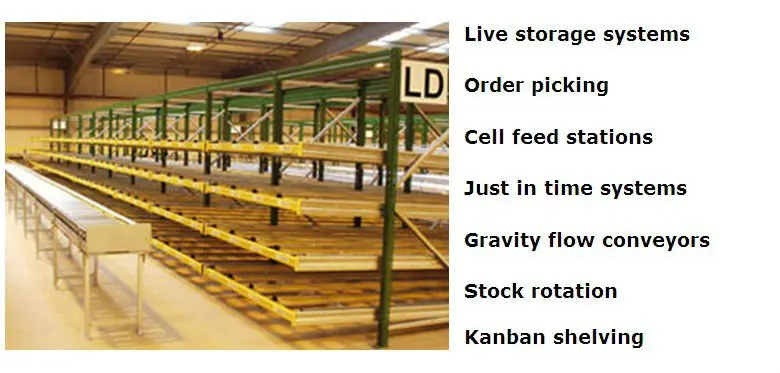

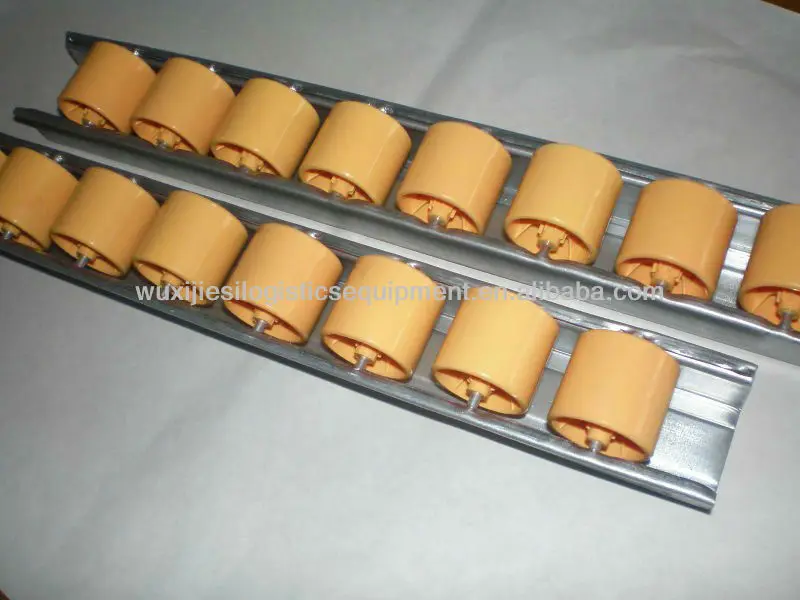

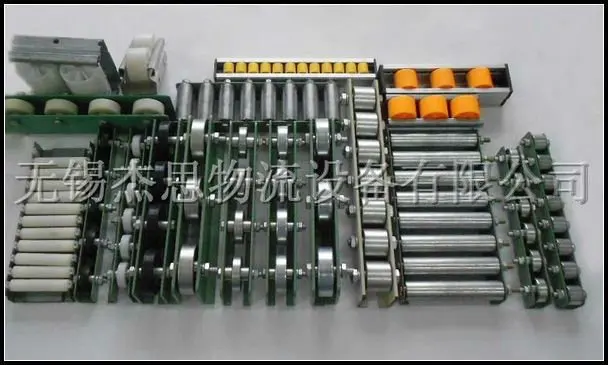

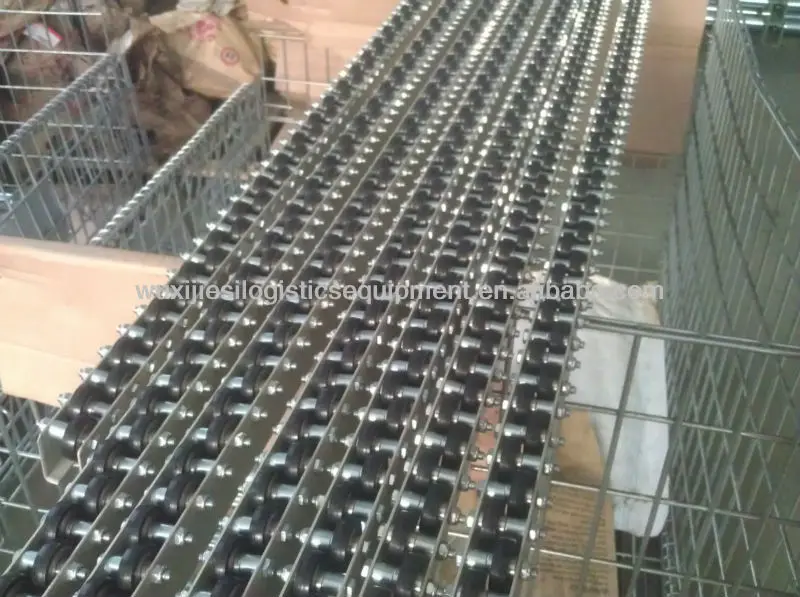

Live storage systems incorporating roller track form cell feeding stations to deliver your components to the working point by gravity flow. Ensuring a (J.I.T) just in time delivery situation.

Carton flow live storage racks can be designed, supplied and installed to your own specification.

Application:

>>Spe.

(U:mm)

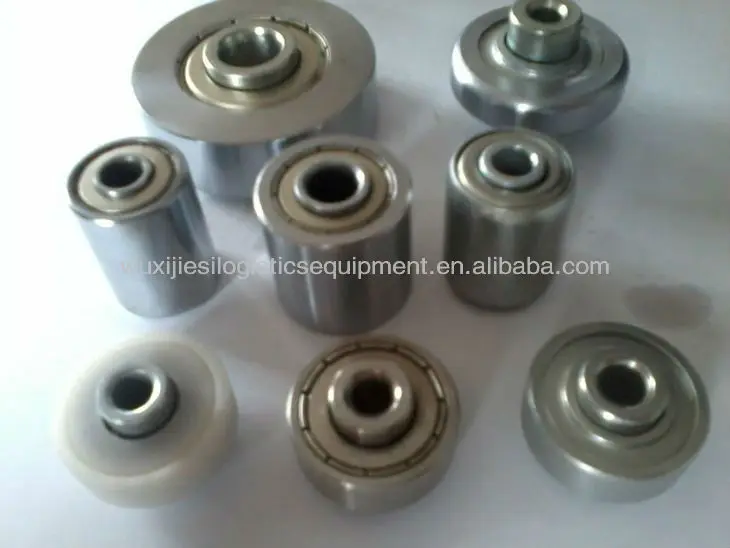

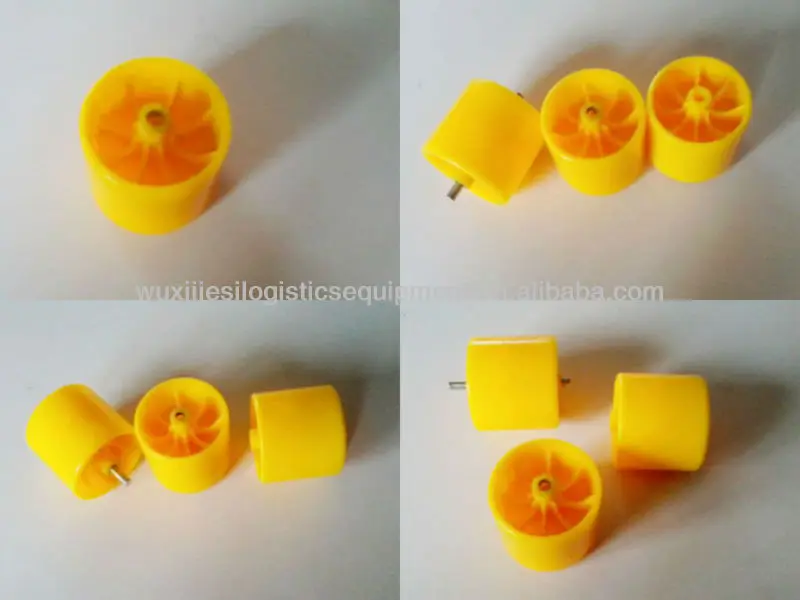

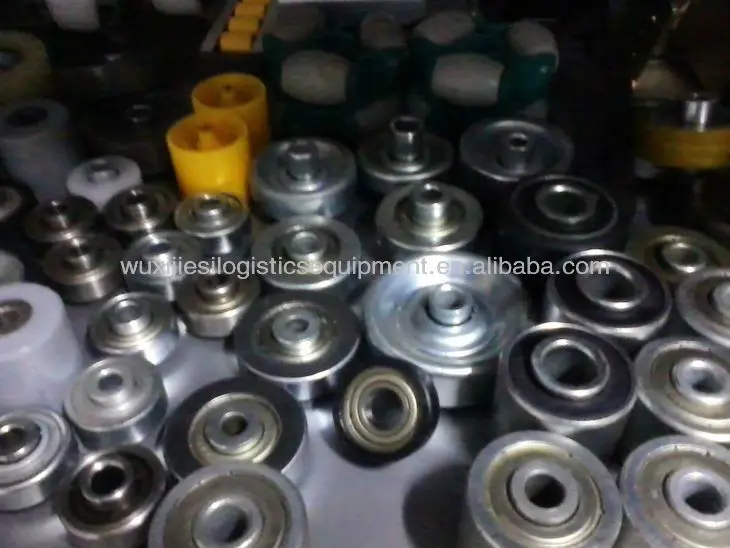

SPE.	Name	frame material	frame size(W*H*T)	skate diameter	shaft pitch	load
JS-1A	metal plate skate rail	galvanized plate	(29~41)*H26*T0.8/1.0,total H 38	ABS skate	33/35/45	6kg/skate
				ø28*25		45kg/m
JS-2A-1	Reinforced metal plate skate rail	galvanized plate	W40*H33*T0.8/1.0,total H 45	PE/ABS skate	35	10kg/skate
				ø32/ø35*22.5	28 skates/m	120kg/m
JS-2A-2	Reinforced metal plate skate rail	galvanized plate	W40*H33*T0.8/1.0, total H 47	PE/ABS skate	45	12kg/skate
				ø32.5/ø38*22	22skates/m	120kg/m
JS-2B	Reinforced metal plate skate rail	galvanized plate	W60*H33*T0.8/1.0,total H 44	PE/ABS skate	36	30kg/skate
				ø30*42	28skates/m	300kg/m
JS-2C	Reinforced metal plate skate rail	galvanized plate	W85*H33*T1.2,total H 50	PE skate	50	60kg/skate
				ø45*55	20skates/m	1000kg/m
JS-3A	Al alloy skate rail	Al alloy	W42*H35*T1.3,	ABS skate	30/45	10kg/skate
			total H 38.5	ø28*25	22skates/m	100kg/m
JS-3B	Al alloy skate rail	Al alloy	W42*H35*T1.3	ABS skate	30/45/60	10kg/skate
			total H 42.5	ø28*25	33/22/16 skates/m	80kg/m
JS-3C	Al alloy skate rail	Al alloy	W44*H38,	ABS skate	45	20kg/skate
			total H 50	ø38*24.5	22 skates/m	100kg/m
JS-4A	Al alloy skate rail for bar	Al alloy	W44*H33,	ABS/PE	45	20kg/skate
			total H 45	ø38*24.5	22skates/m	100kg/m
JS-4B	Al alloy skate rail for bar	galvanized plate	W44*H32*T1.0	ABS skate	45	20kg/skate
			total H 45	ø38*24.5	22skates/m	100kg/m
JS-5A	Mini Al alloy skate rail	Al alloy	W30*H22	ABS skate	15/30/45	4kg/skate
			total H 24	ø13*14	66/33/22 skates/m	40kg/m



Drawing:





>>parts for JS-5A Al alloy frame skate rail





















If you are interested in this product,please do not hesitate to contact us,

Sales manager Robert will give you detail information promptly.
