food packing machine for small business corn flour /powder packing machine

Product Overview

Description

I.The scope of packaging:

It’s suitable to use in powder ,flour .coffee powder ,milk powder ,pearl powder  etc .



 II. The major performance and structural feature:

III .HS-420D packing Machine:

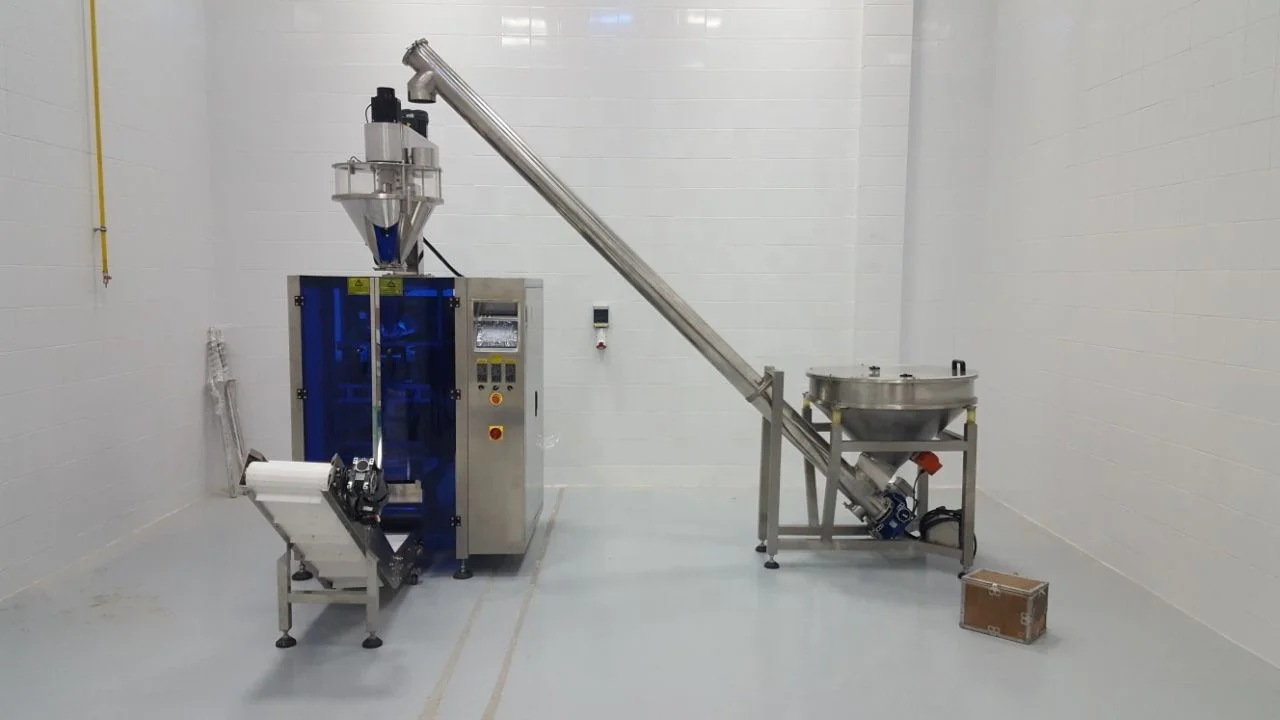

1. The unit included four parts

a) HS-420 large vertical packing machine

b) auger filler device

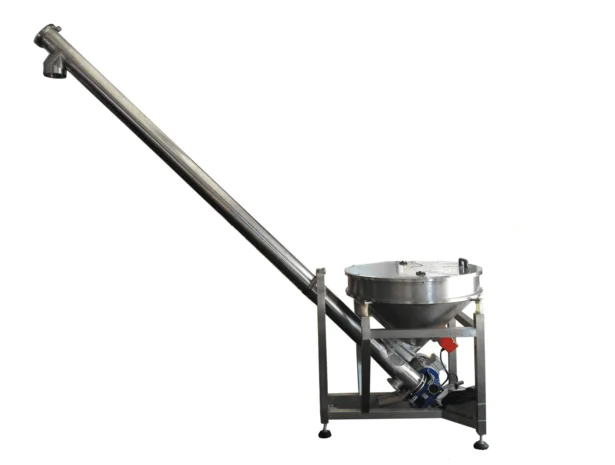

c) screw conveyer

d) finished product conveyer



2. The scope of packaging:

It's suitable to use in packing the high accuracy and easy fragile material , such as : coffee powder ,flour ,corn flour . etc .



3. The major performance and structural feature:

PLC computer control system.PLC from Janpan or Germany.

Big touch From Tai wan . Easy to operate and control the machine.

High precise positioning with servo film transporting systerm .Servo motor from Germany Seimens to ensure stable.

Warn protection function.



The machine will automatically complete all packaging processes from measuring, feeding, filling, Printing ,finished bag .



The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.



Punching hole bag & connect 5-12bags and so on .



4,The main components of packing machine:

Number	Name	Brand	Country
1	Touch sensitive screen	WEINVIEW	TAIWAN
2	PLC	MITSUBISHI	JAPAN
3	Servo motor	SIEMENS	GERMAN
4	Horizontal cylinder	SMC	JAPAN
5	Vertical cylinder	SMC	JAPAN
6	Two units system	JINQI	TAIWAN
7	Solid state relay	OMRON	JAPAN
8	Intermediate state relay	OMRON	JAPAN
9	Photoelectric eye	AUTONICS	KOREA
10	Power	MW	TAIWAN
11	Thermometer control	YA TAI	SHANGHAI
12	Cutting cylinder	SMC	JAPAN
13	Printer code	TIAN YI	FU JIAN





5.Technical parameter:

Items	Content
Packing speed	10-70 bags/min
Bag size	(L)50-300mm (W)60-250mm
Bag making mode	Pillow-type bag, gusset bag ,standing bag, punching device
Range of measuring	1500ml
The max width of packing film	420mm
Air consumption	0.6Mpa300L/min
Main power/voltage	2.2KW/220V 50/60Hz
Dimension	(L)1400×(W)970×(H)1700mm
The weight of switchboard	450kg

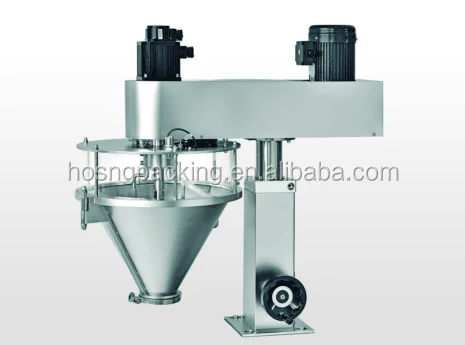

 IV .The feature of the spiral dosing equipment:

1.simple construct, reliable working function , easy maintenance

2 .The machine adopts the screw pole putting material, adopting servo code and the microcomputer technology control is the main. Technology feature. Code. Simultaneous control, sensitive action. Low noise, outstanding, reliable measure, speed quickly. High precision. Another it can display the measure counter.



V. The major performance and structural feature:

* Simple structure, stable operation, simple and convenient maintenance;

*The machine of HS 520 combine with auger filler and screw conveyer , servo coding and micro-computer control technology, can easy from filling ,feeding , weighting ,printing ,sealing and packing .
