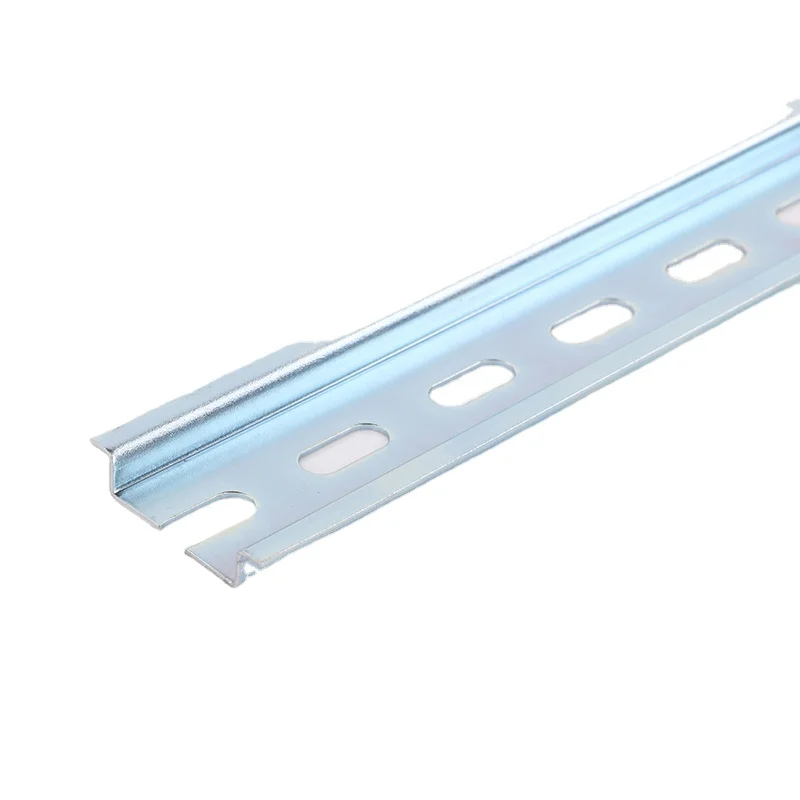

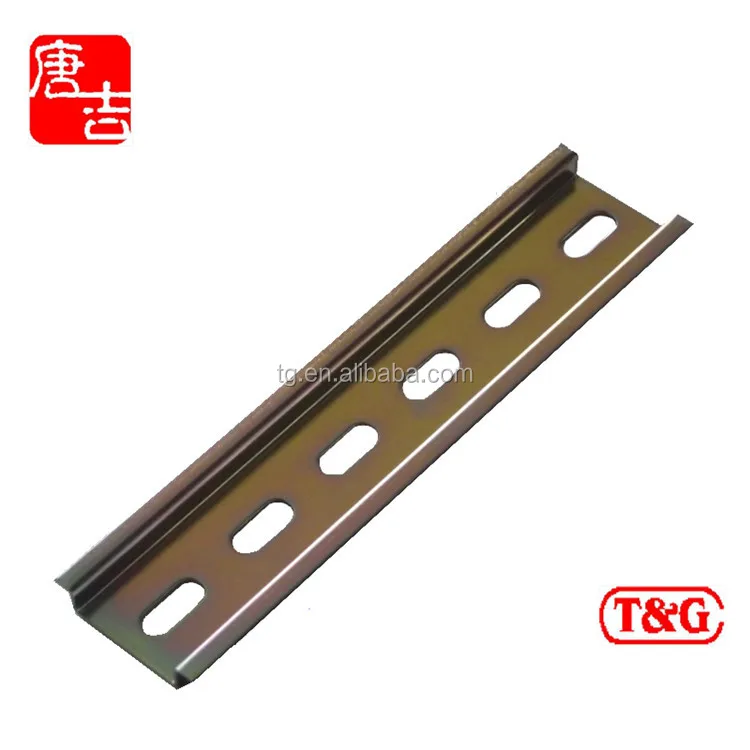

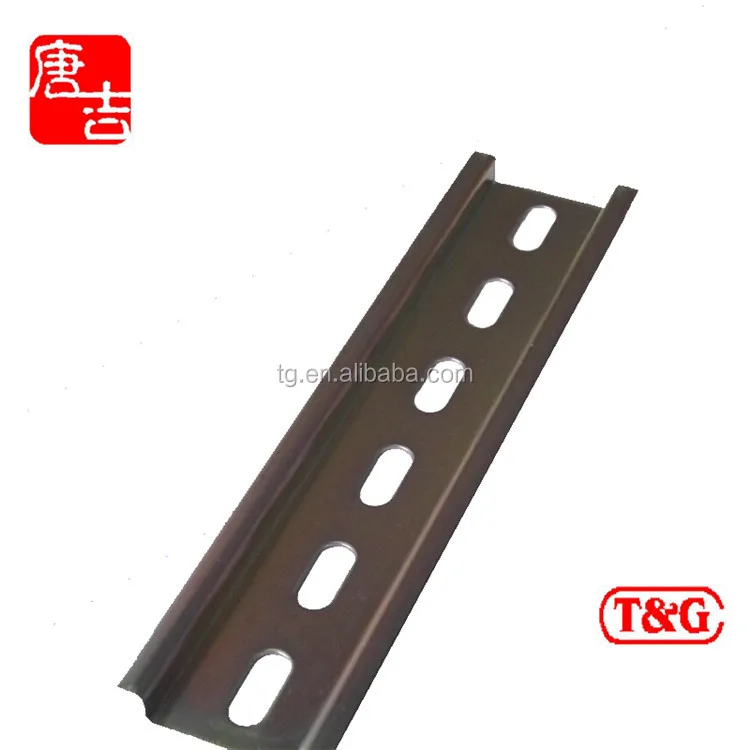

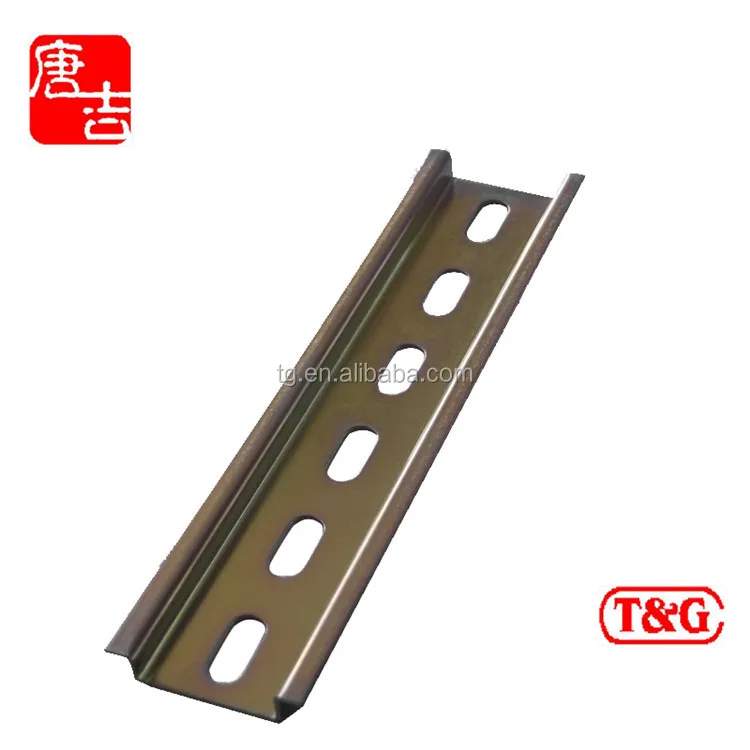

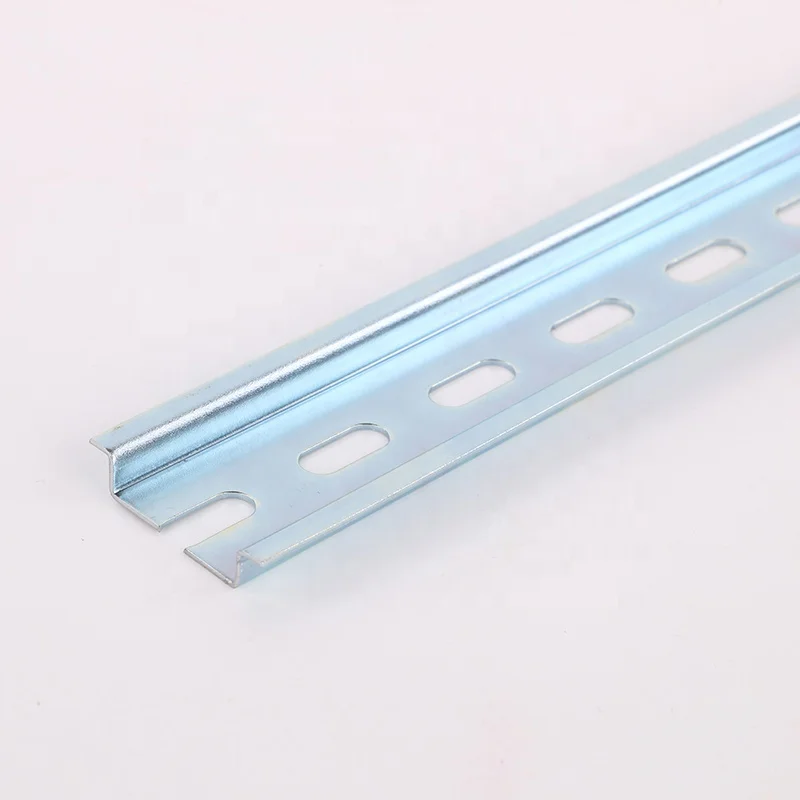

Good Quality Rohs Compliant Steel carrier plain Din Rail

Product Overview

Description

  din rail steel

din rail steel :A  din rail steel is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated and chromated bright surface finish. The term derives from the original specifications published by Deutsches Institut für Normung (DIN) in Germany







1.Specification

Brand: T&G

Item:  din rail steel

Model No.: T&G D357.5E10+

DIN Type: 35 mm standard din rail

Cross Section Dimension: 35mm x 7.5mm x 1.0mm (Width x Height x Thickness)

Slot Dimension: 6.2mm x 15mm on 25mm center (other slot dimension available upon request)

Weight: 0.315 kg per meter

Material: Cold rolled steel with a zinc chromate plating

RoHS Compliance:yes

Standards: EN50022, EN50035, EN60715, IEC715, IEC715, JISC2812, JB6525



2.

Detailed information of  din rail steel

Din Type	EN60715
Material	Cold Rolled Steel
	a zinc-plated and chromated bright surface finish
Salt Spray Test	Over 72 hours
Application	used for mounting circuit breakers and industrial control equipment inside  equipment racks
Model	T&G D357.5E10+
MOQ	A.Small Orders is accepted
	B.By Sea: The MOQ.is 1000M will be fine
Payment Term	A.L/C,T/T (Bank Transfer,Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	D.ESCROW
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
Delivery Term	FOB NINGBO/SHANGHAI,CIF C&F and others
Supply Ability	2000000M per year
Packaging Details	A.Common Packing:100pcs /carton+ export carton
	B.Customized Packing:Over 30000M, Customized package accepted
Origin Country	Hangzhou,China
Certification	RoHS Compliant



3.Data Sheet of din rail steel

T&G D357.5E10+ Din Rail
Width	35mm
Height	7.5mm
Thickness	1.0mm
Hole Dimension	6.2mmx15mm on 25mm center(hole can be customized)
Drawing:



4.Raw Material quality certificate







5.RoHS Certificate





6.Main Market



Cooperative Partner



7.Package of the  din rail steel



8.Loading the Container

9. Application



FAQ

T&G din rail steel is easily fit the DIN Rail cutter manufactured by normal manufacturers.

T&G  din rail steel use steel products produced by domestic ultra-large steel works.

All din rail steel are gone through strict inspection before shipment.
