Product Overview
Description

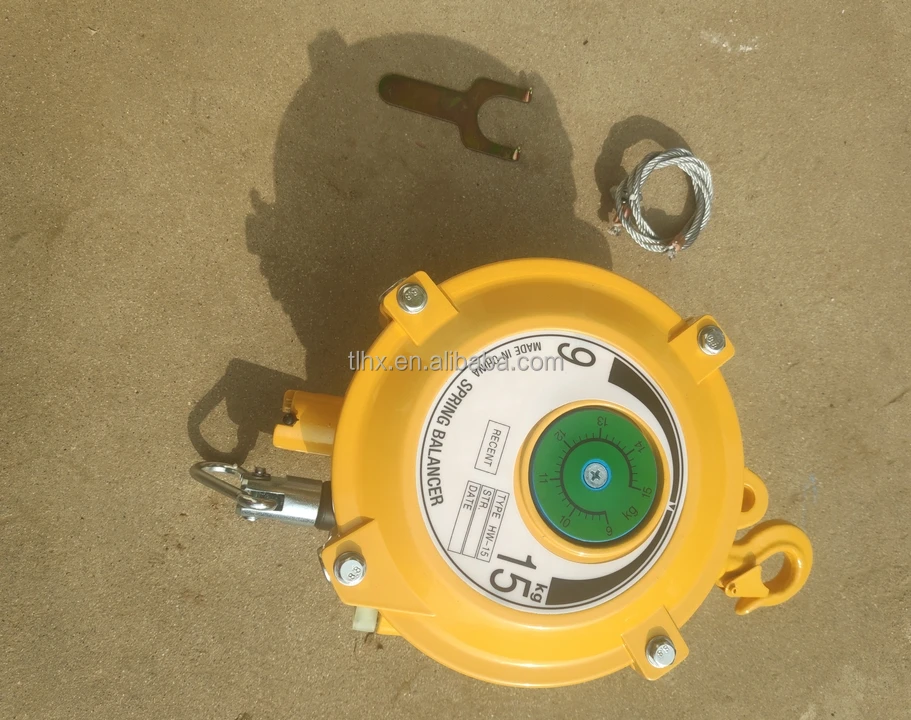

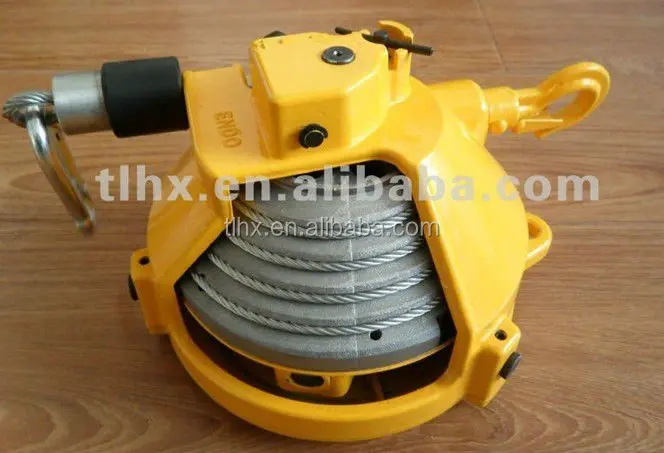

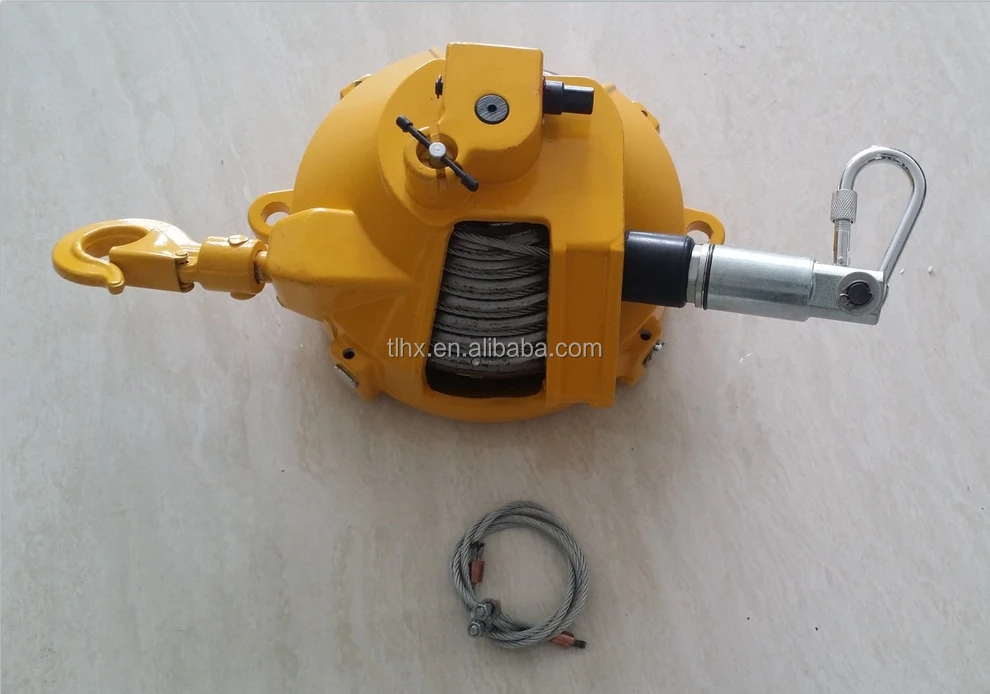

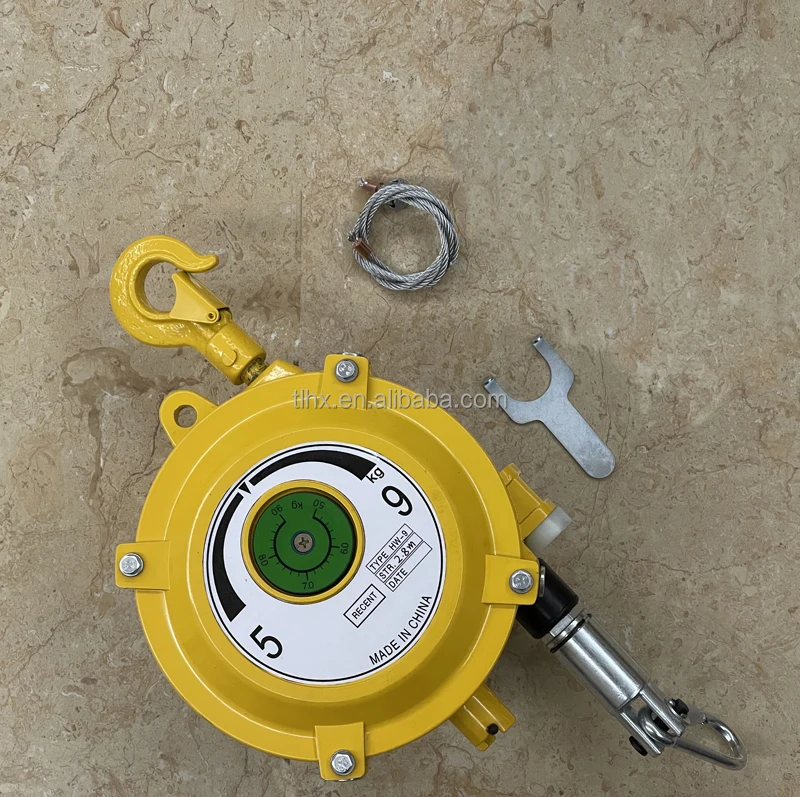

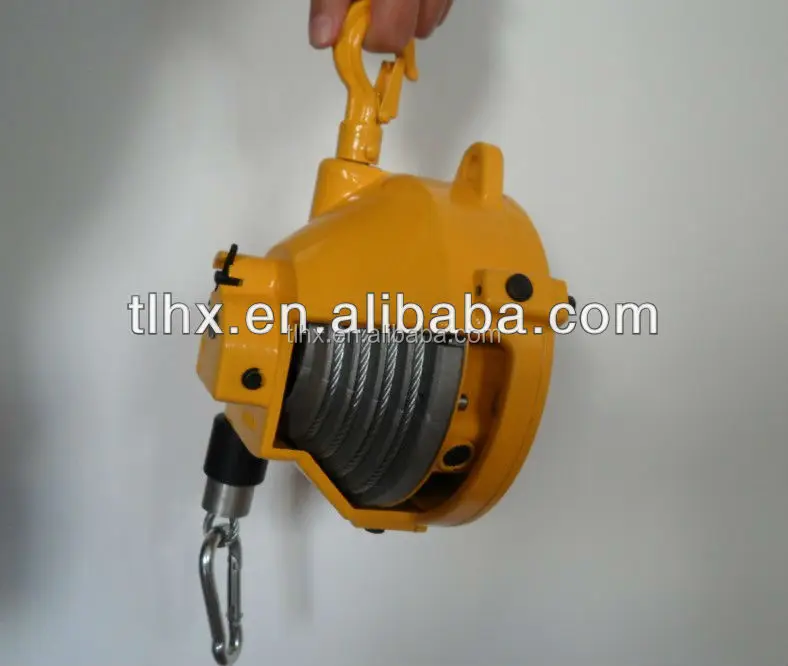

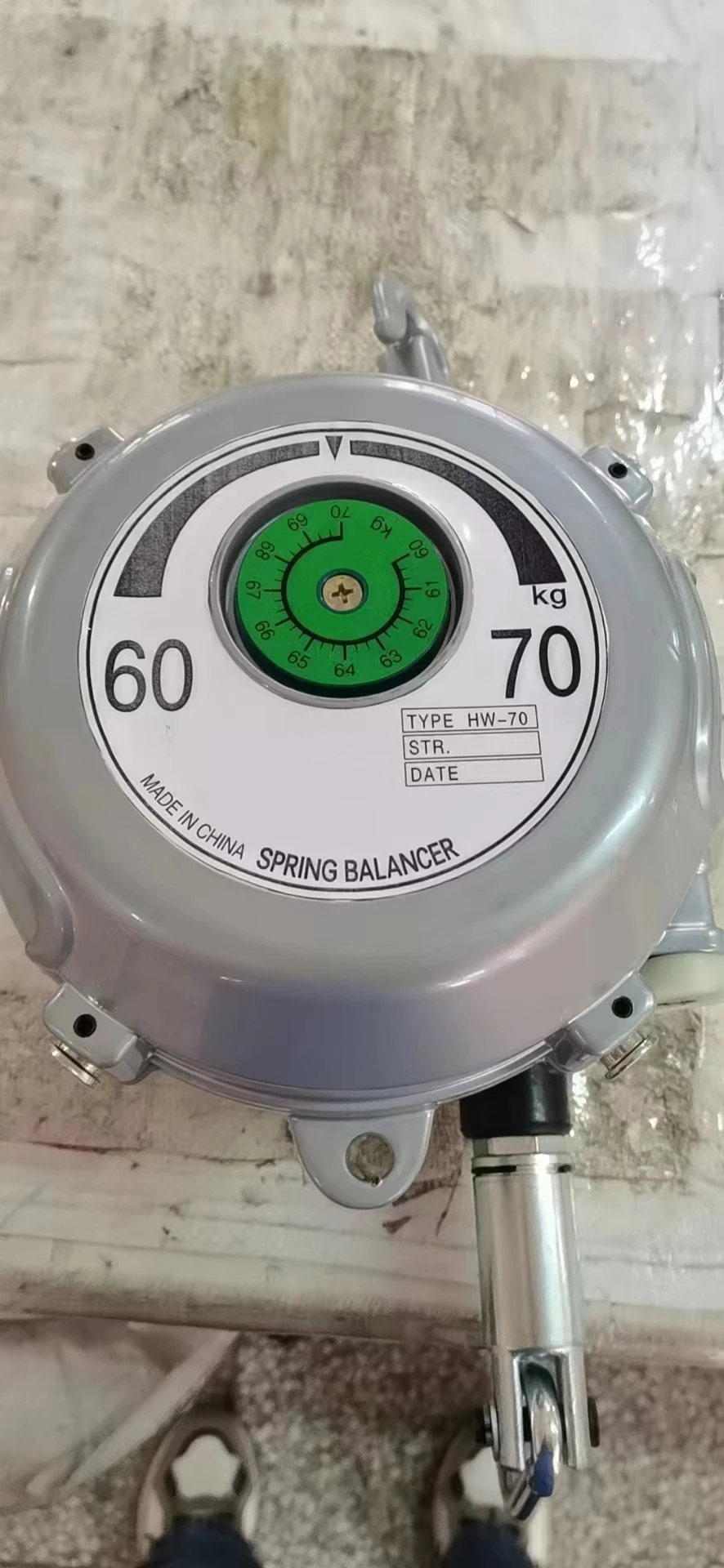

Spring Balancer tool balancer for welding line
1. load capacity:5-9KG 9-15KG
2. cabe travel:1.8M

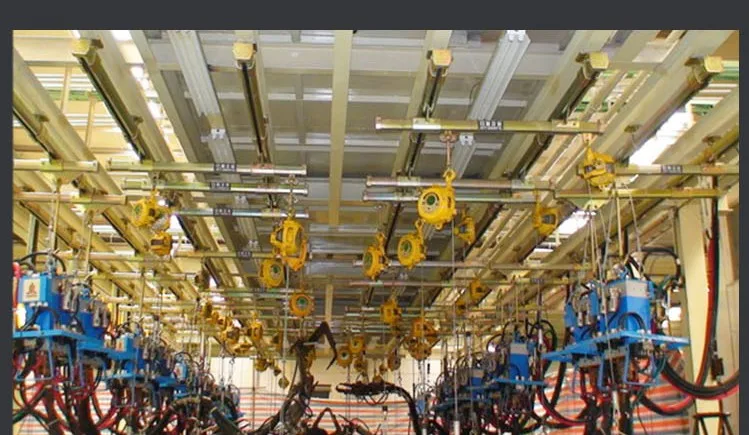

Spring Balancer is a kind of accessorial tool special for suspending electrical machine, which can balance with weight of tools, and achieve modern and civilized production. It has been widely used for welding product lines of vehicle body, rivet lines, and assembly line of engine, motorcycles and home appliances where the tools must be hung. It'll be the ideal choice to reduce the labour intensity and increase the productivity.
capacity range:1,3,5,9,15,22,30,40,50,60,70,80,100,120,140,160,180,200kgs
Model | Min.Capacity | Max.Capacity | Working length | N.W. |
1-3kg | 1kg | 3kg | 1.5m | 1.7kg |
3-5kg | 3kg | 5kg | 1.5m | 1.8kg |
5-9kg | 5kg | 9kg | 1.5m; 1.8m,2.3m,2.8m | 4.0kg/8.5 |
9-15kg | 9kg | 15kg | 1.5m; 1.8m,,2.3m,2.8m | 4.5kg |

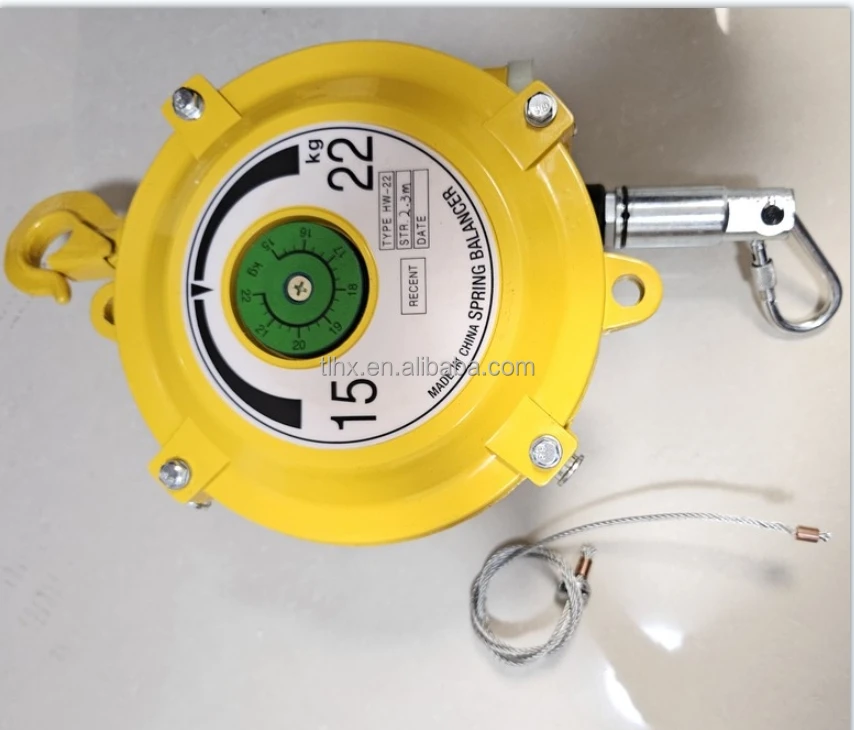

15-22kg | 15kg | 22kg | 1.5m;2.3m,2.8m | 7.4kg |
22-30kg | 22kg | 30kg | 1.5m;2.3m | 7.8kg |
30-40kg | 30kg | 40kg | 1.5m | 10kg |
40-50kg | 40kg | 50kg | 1.5m | 10.5kg |
50-60kg | 50kg | 60kg | 1.5m | 11.5kg |
60-70kg | 60kg | 70kg | 1.5m,3.0m | 12kg |
70-80kg | 70kg | 80kg | 1.5m,3.0m | 12.5kg |
80-100kg | 80kg | 100kg | 1.5m,2.8m,3.0m | 19kg |
100-120kg | 100kg | 120kg | 1.5m,2.8m,3.0m | 19.5kg |
120-140kg | 120kg | 140kg | 1.5m | 20kg |
140-160kg | 140kg | 160kg | 1.5m | 22kg |
160-180kg | 160kg | 180kg | 1.5m | 24kg |
180-200kg | 180kg | 200kg | 1.5m | 36kg |
![KQ]1P5{{(340]LXOHTBK[%V](http://sc03.alicdn.com/kf/HTB1Dwj3HXXXXXabaXXXq6xXFXXXw/201126835/HTB1Dwj3HXXXXXabaXXXq6xXFXXXw.jpg)
For more types of spring balancer,please click the following pictures:
