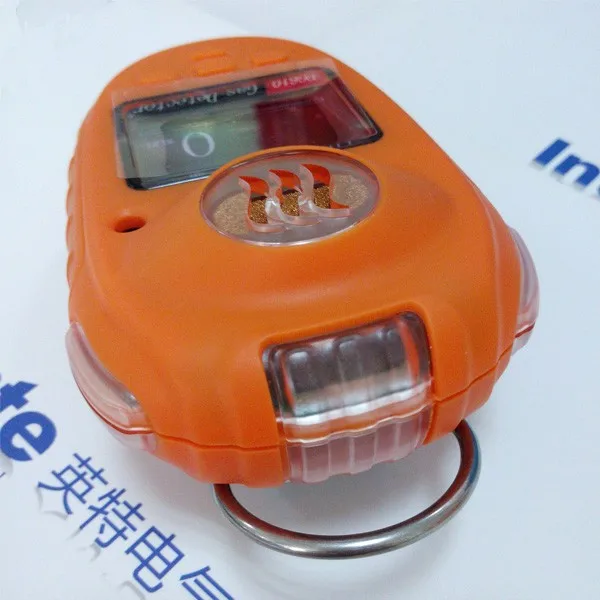

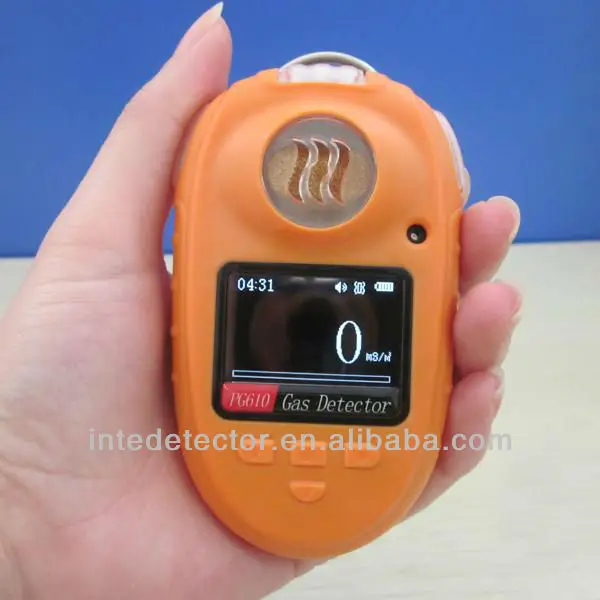

High resolution PG610 LEL combustible gas detector 3 5 year sensor life portable gas detector
- Category: >>>
- Supplier: Henan Inte Electrical Equipment Co. Ltd.
Share on (731578642):
Product Overview
Description
Product Overview:
PG610-EX combustible gas detector: it's portable and single gas detector, can detect combustible gas and is widely used in municipal emergency rescue, oil chemical industry, metallurgy, coking, environmental protection and other industries.
Note: PG610-EX use catalytic combustion sensor.
PG610-EX gas detector shell is nonskid, waterproof, dustproof and explosion-proof.
Main features:
l Big OLED display, Highlighted, High-definition
l Automatically save the detecting data for 5000 articles
l Data progress bar display mode, can learn about the state of concentration
l Low power consumption , save energy, save electricity
l Real-time clock display function
l The key operation needs to input password to prevent wrong operation.
l Automatic calibration function, reduce the measuring error.
l Recover key data, avoid the loss of data
l Battery power real-time display, under-voltage hint, low pressure automatic shutdown
l Standard MINI-USB charging interface; charger is compatible with computer and cell phone's
l Charging protection function; when battery is full, charger will shut down automatically.
l Computer connection function; to realize data download, parameter setting (optional)
l Alarm type: audible and visual alarm, vibrating alarm
l STEL and TWA alarm
l Power on self-test function
l Adjust high and low alarm level
l Replaceable modularized sensor
Technical parameters:
Detecting Gas | combustible gas |
Measuring Range | 0-100%LEL |
Sampling Method | diffused or pump suction (external electric sampling pump) |
Deviation | ≤± 3% F.S |
Respond Time | T90 < 30 s |
Working Temperature | Combustible gas: - 40 °C ~ + 70 °C |
Working Humidity | < 95% R.H. no condensation |
Sensor service life | 3-5 YEAR |
Display Mode | OLED screen shows density, time, battery power, Alarm state, percentage progress bar |
Data Storage | 5000 records |
Upload Data | connected to computer via data line(optional) |
Alarm Type | Light: wide-angle light emitting diode Sound: 90 Db humming; when concentration increased, frequency increases Vibration: oscillator speed of 1300 r/min |
Working Voltage | DC3.6 V lithium ion battery, 1000 mAh |
Charging Time | 4 h ~ 6 h |
Working Time | combustible gas more than 8 h (continuous); Toxic gas more than 72 h (continuous) |
Protection Class | IP66 |
Weight | 140 g |
Appearance Size | 98 mm × 60 mm × 24 mm |

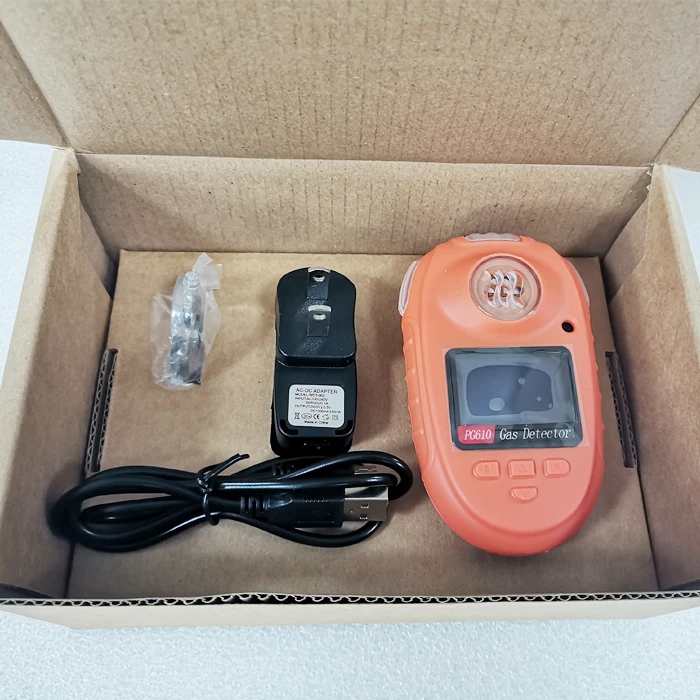

Standard configuration: instrument box, gas detector, specifications, certificate of approval, warranty card, charger, gas hood

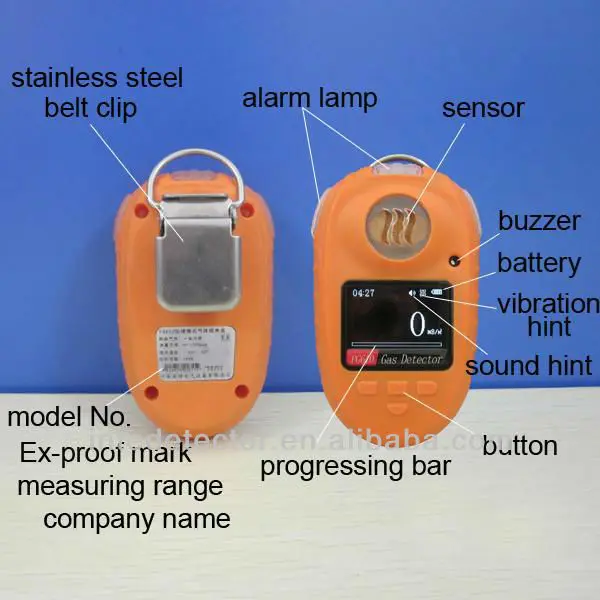

PG610 Diagram
Product Information Chart
Product Model | Detected Gas | Measuring range | Resolution | Respond Time | Sensor service life |
PG610-CO | CO | 0-1000ppm | 1ppm | ≤20 s | 2-3 year |
PG610-O2 | O2 | 0-30%VOL | 0.1%vol | ≤20 s | 2-3 year |
PG610-O3 | O3 | 0-10ppm | 0.1ppm | ≤30s | 2-3 year |
PG610-H2S | H2S | 0-100ppm | 1ppm | ≤30 s | 2-3 year |
PG610-H2 | H2 | 0-1000ppm | 1ppm | ≤30 s | 2-3 year |
PG610-CL2 | CL2 | 0-20ppm | 0.1ppm | ≤30 s | 2-3 year |
PG610-NH3 | NH3 | 0-200ppm | 1ppm | ≤30 s | 2-3 year |
PG610-SO2 | SO2 | 0-20ppm | 0.1ppm | ≤30 s | 2-3 year |
PG610-NO | NO | 0-250ppm | 1ppm | ≤30 s | 2-3 year |
PG610-NO2 | NO2 | 0-20ppm | 0.1ppm | ≤30 s | 2-3 year |
PG610-CH2O | CH2O | 0-50ppm | 0.01ppm | ≤30 s | 2-3 year |
PG610-HCL | HCL | 0-20ppm | 0.1ppm | ≤30 s | 2-3 year |
PG610-HCN | HCN | 0-20ppm | 0.1ppm | ≤30 s | 2-3 year |
PG610-ETO | ETO | 0-100ppm | 1ppm | ≤30 s | 2-3 year |
PG610-CLO2 | CLO2 | 0-10ppm | 0.1ppm | ≤30 s | 2-3 year |
PG610-CO2 | CO2 | 0-5.00%vol | 0.01%vol | ≤30 s | ≥5 year |
PG610-EX | Combustible gas | 0-100%LEL | 1%LEL | ≤30 s | 3-5 year |
As for unlisted detected gas and measuring range, please contact with our company | |||||
