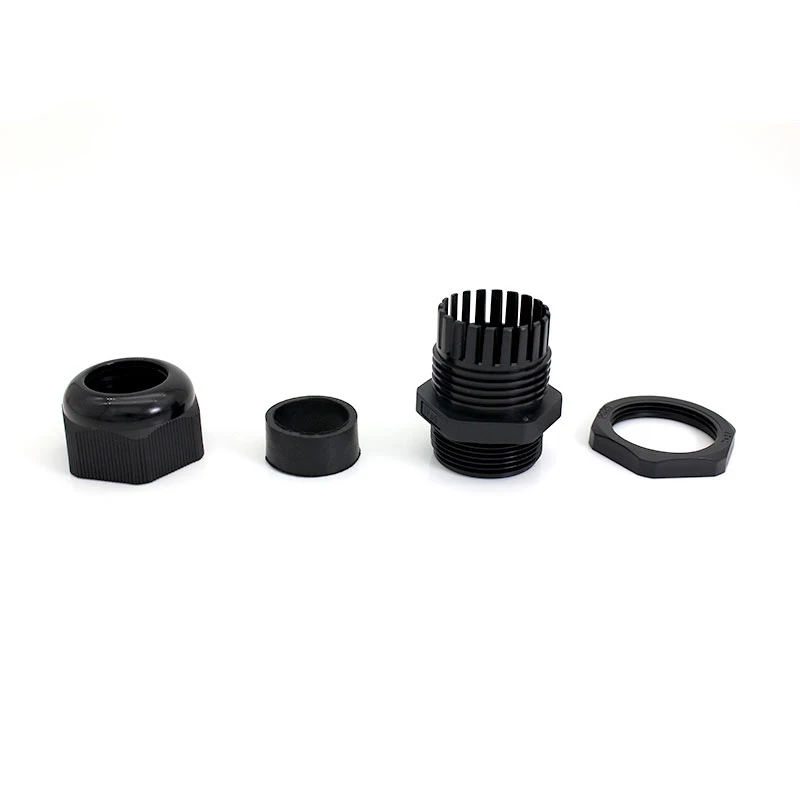

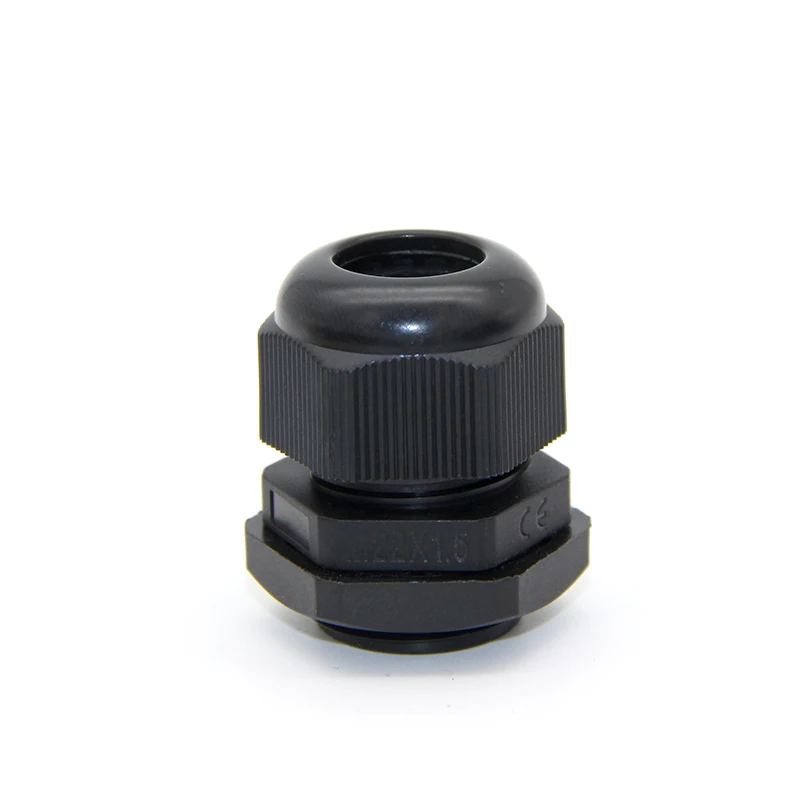

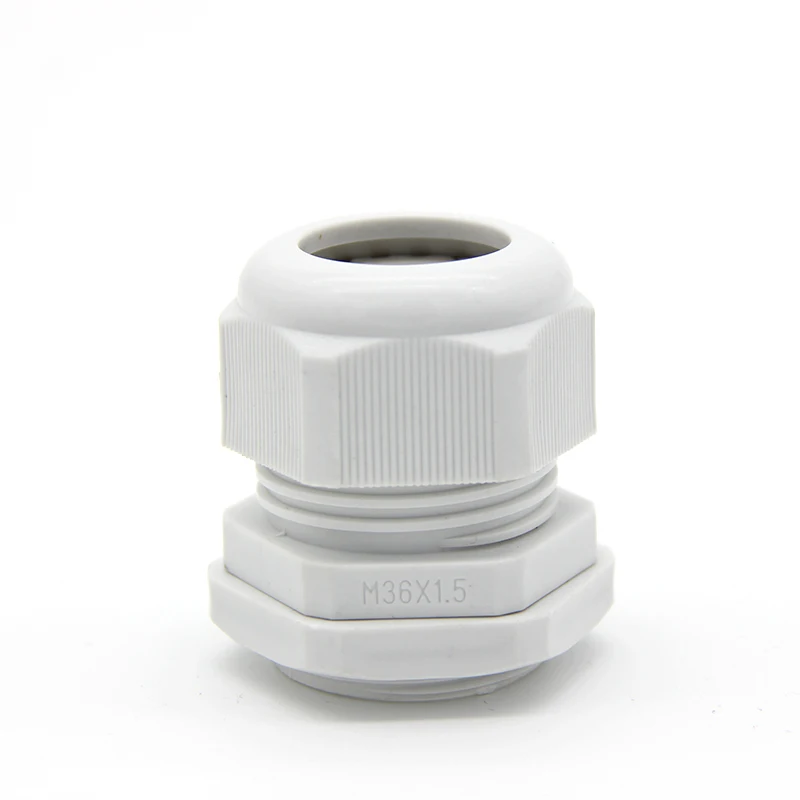

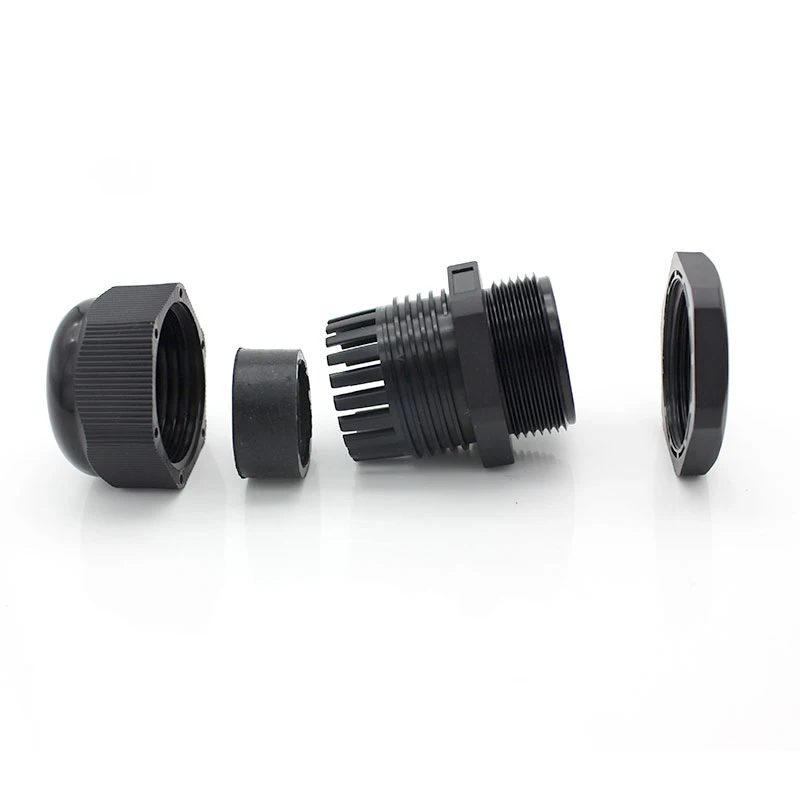

Electrical M8*1.5 nylon(plastic insert ) cable gland waterproof IP68 for junction box

Product Overview

Description

Thread:Metric,PG(PF),and NPT thread.
Materiais:UL approved Mylon PA66(Flammability UL94V-2)for A.C.E.F parts;
EPDM rubber for B.D parts;
Protection degree:IP68-10 Bar
Working temperature:-40℃ to 100 ℃ in static state,orinstaneous heat resistance upto 120℃;-20℃ to 80 ℃ in dynamicstate,or instantaneous heat resistance up to 100 ℃.
Fuatures:The claws and seals of excellent design,sealing nut hace a 'click'
sound and re-open ,can hold cable firmly and havea wider cable range.Resistant to salt water,weak acid,alcohol,oil,grease and common solvency.

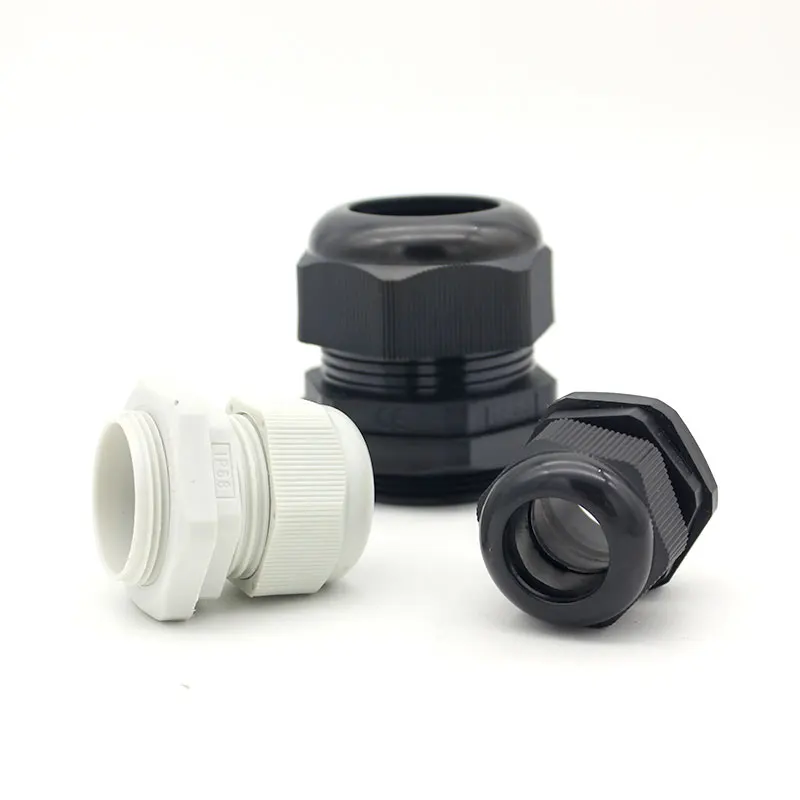

Colours:Black(PAL9005),gray(PAL7035),other color available upon request.



AG item	Cable Range(mm)	Tread O.D(mm)	Tread Length(mm)	Spannen Size(mm)
Cable Gland M12*1.5	3-6.5	12	8	16
M16*1.5	4-8	16	8	19
M18*1.5	5-10	18	8	20
M20*1.5	6-12	20	10	24
M24*1.5	12-16	24	10	27
M27*1.5	13-18	27	10	33
M32*1.5	16-21	32	11	35
.....	.....	.....	.....	.....
M70*1.5	42-50	70
cable gland PG7	3-6.5	12.5	8	16
PG9	4-8	15.2	8	19
PG11	5-10	18.6	8	22
PG13.5	6-12	20.4	10	24
PG16	10-14	22.5	10	27
PG21	13-18	28.3	10	33
.....	.....	.....	.....	.....
PG63	42-50	71	28	77
