Waste Tyre Rubber Coarse Crusher

Product Overview

Description

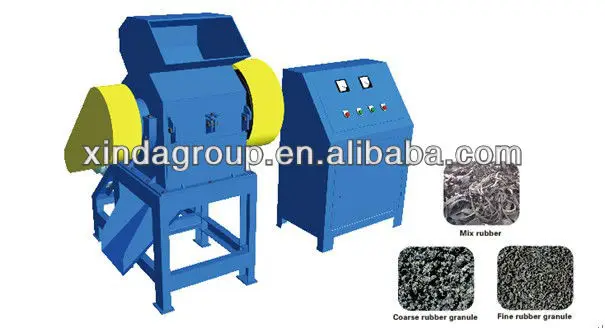

                                                                        Waste Tyre Rubber Coarse Crusher



I. Purpose

We developed CSJ Miller to solve the front-in process of different kinds of material. The machine is suitable for the coarse comminution of all kinds of rubber, plastics, chemical and pharmaceutical materials.

II. Structure and principle

(1) The machine, adopting excellent hard alloy steel or wearable steel as its blade, is durable and suitable for the coarse comminution of different types of hard material.

(2) With the rotary blade and fixed blade, the materials are cut into granules falling on the sieve. By adjusting the sieve, we can control the size of granules.

(3) The machine is equipped with cooling water system, so as to control the comminution temperature and guarantee the granule quality.



III. Technical Data



Mode	400A	500A
Production capacity	60-800kg	100-1000kg
Running speed of main bearing	600rpm	600rpm
Feeding size	<200mm	<250mm
Output size	2-20mesh	2-20mesh
Motor power	15kw	22kw
Weight	900kg	1100kg
Outside size	1.1×1×1.6m	1.4×1.2×1.6m
