Product Overview

Description

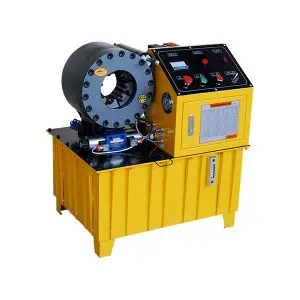

Portable hydraulic hose crimping tools





HYT-51 hydraulic hose crimping machine is the special machine,you can crimp all types of connectors on the hoses stably and accurately under hydraulic force 450 ton.

Our model HYT-51 Hose Crimping has the characteristic such as, better connecting quality, more quick swagging speed, higher efficiency, easier to manipulate, more enduring, more convenient to maintain and etc. Hose connectors of different diameters all can be swagged only one time. The connector swagged looks smooth and fine, and has large tensile strength and compressive strength. In a word, the crimper is an ideal machine for hose connector assembly factory and for hydraulic maintenance.

Parameters of hydraulic hose crimping tools





• Hose size: 6~51mm or 1/4" to 2" (up to 4-wire)


• Max opening (mm):90mm


• Master die D/L (mm) is 99/80mm


• Rated pressure: 31.5mpa


• The largest crimping pressure: 449T


• Rular precision: 0.02mm


• Oil pump out-let quantity: 2.5ml/rad/2.2kw (220 VOLTS)


• Dimension: 650 X 450 X 740 mm


• Weight: 260kg


• 400 assemblies in 8 hour in auto mode


• Oil tank: 60~65L


• Dies: 10 sets


• Machine is in ready stock


• This machine main feature is its production capacity that will make this machine leader in his class


• Piston, Cylinder, All Dies & Parent Jaws are Wire cut after Hardening and Grinding.







Specifications of crimping range( Portable hydraulic hose crimping tools )

Crimping Dimension Table
Mould’s Number/Scale	0	1	2	3	4	5	6
14	14	15	16
17	17	18	19
20	20	21	22	23
24	24	25	26	27
28	28	29	30	31	32
33	33	37	35	36	37
38	38	39	40	41	42	43
44	44	45	46	47	48	49
50	50	51	52	53	54	55
56	56	57	58	59	60	61
62	62	63	64	65	66	67
68	68	69	70	71	72	73
74	74	75	76	77	78	79
80	80	81	82	83	84	85	86
90	90	91	92	93	94	94	96

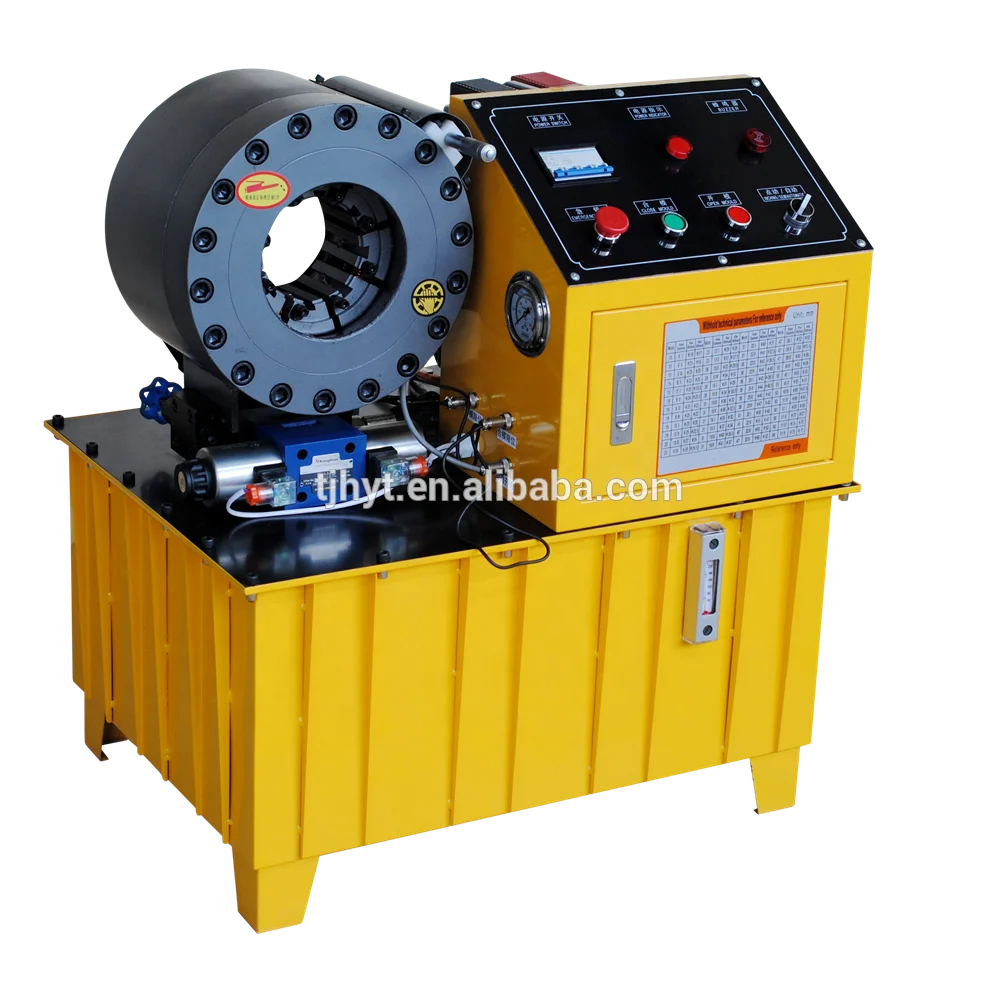

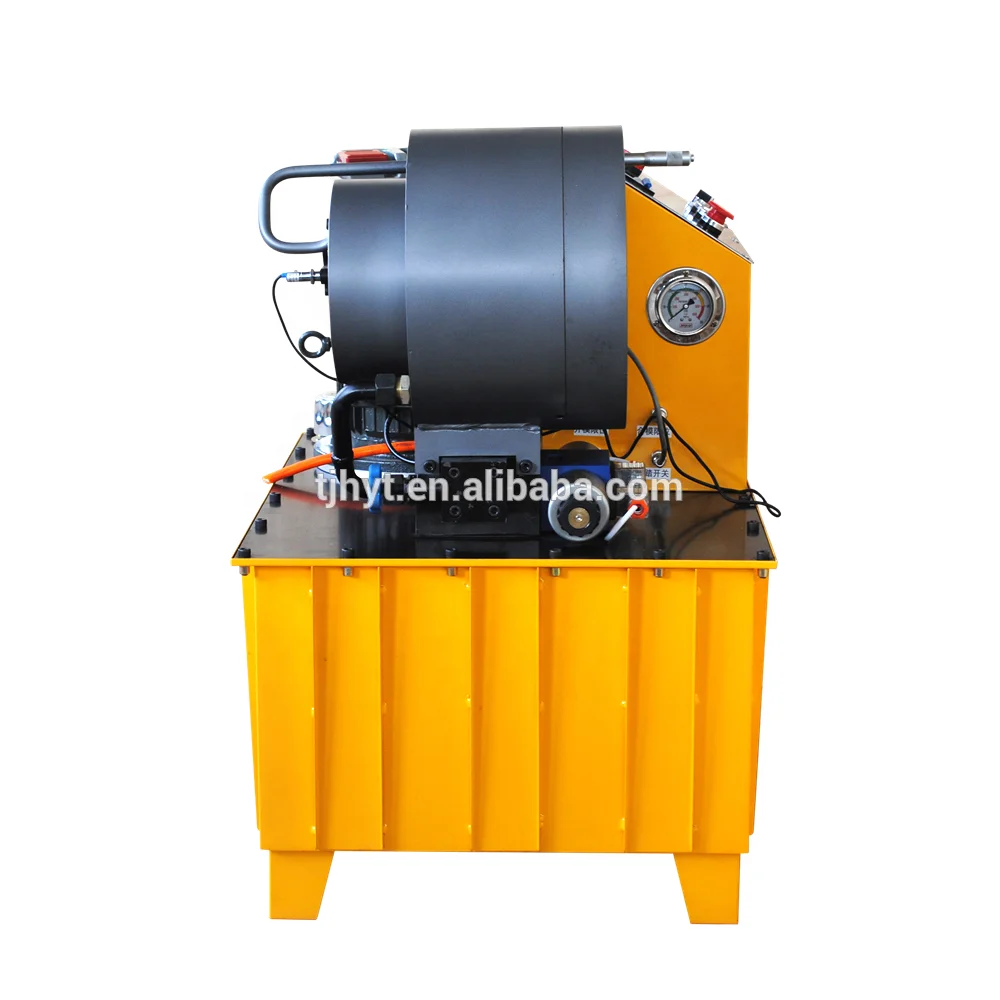

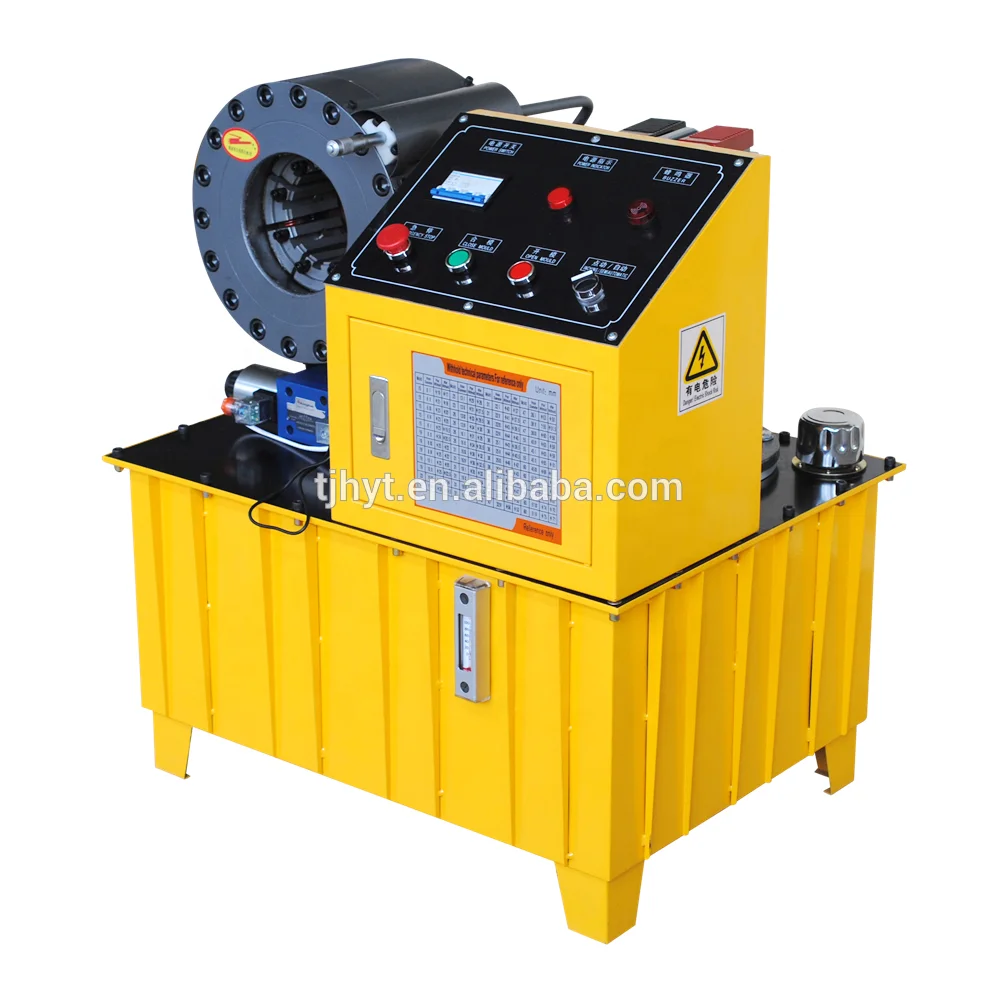

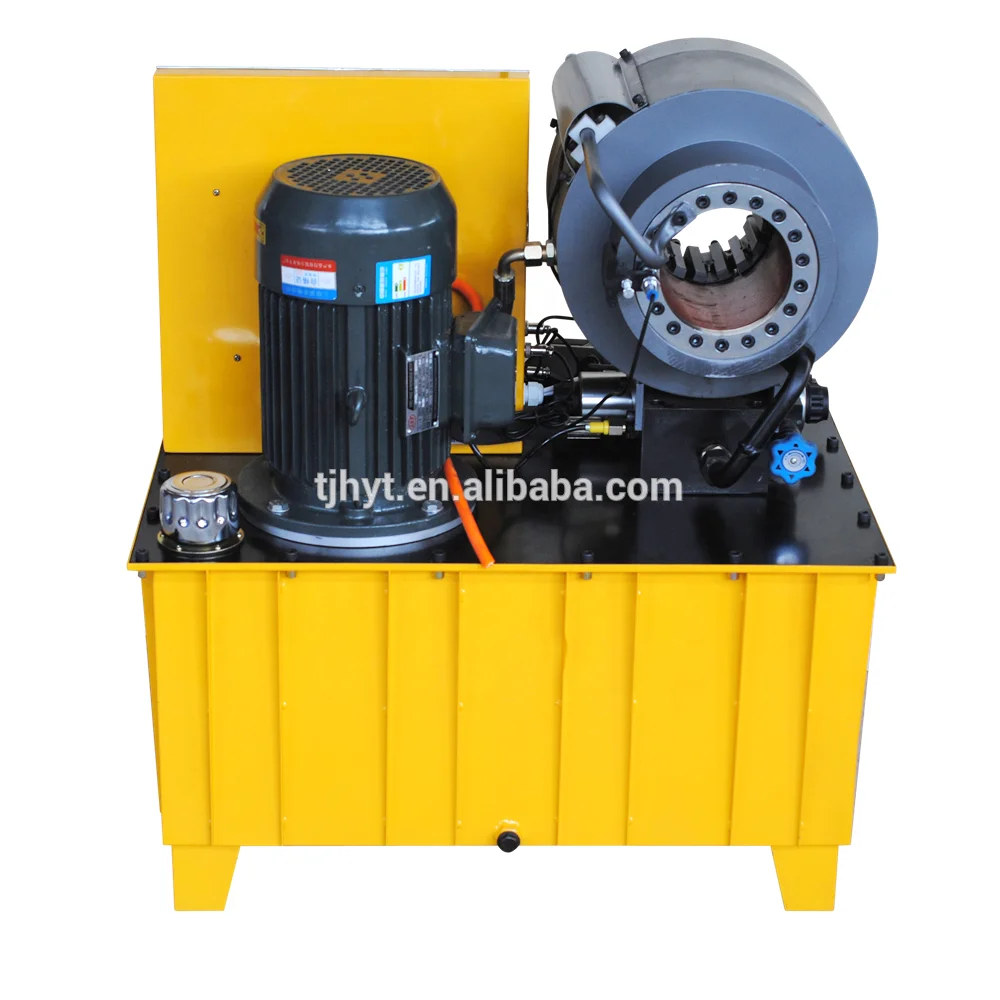

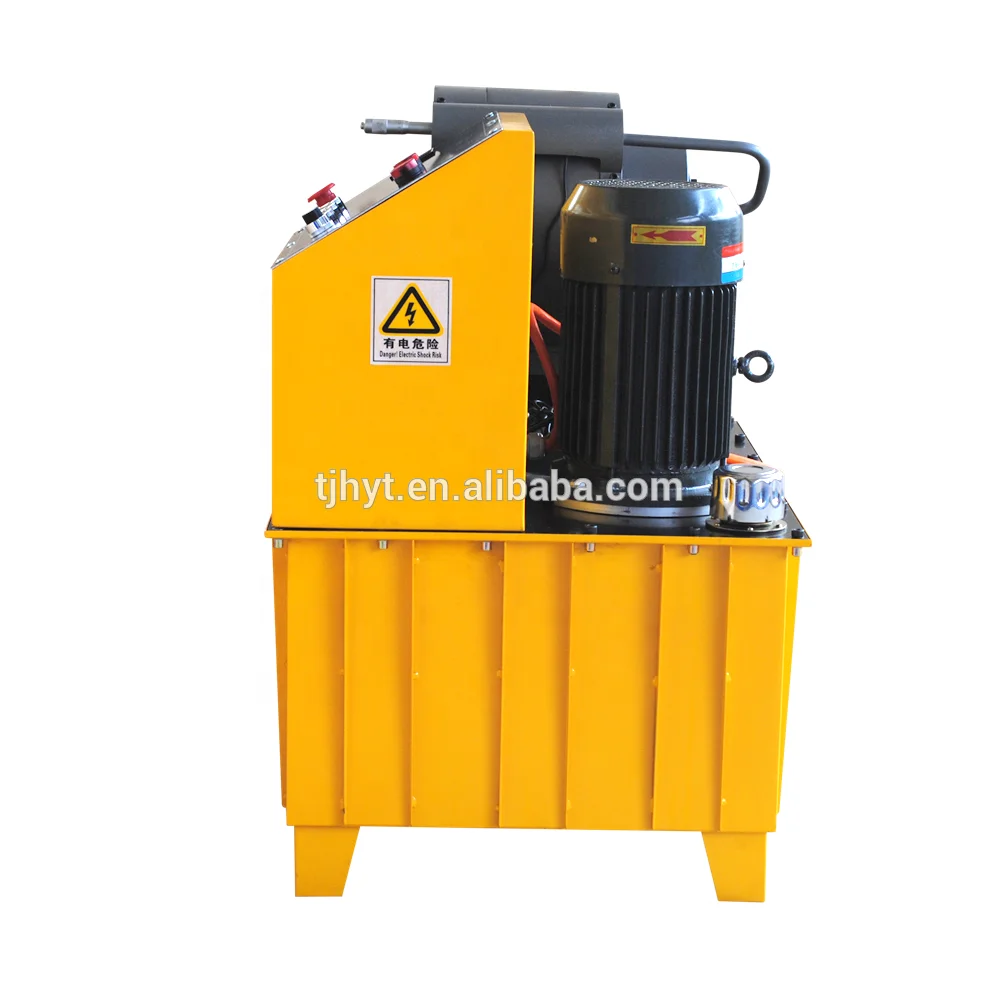

hydraulic hose crimping tools













Dies of our hydraulic hose crimping tools











Packing of our hydraulic hose crimping tools which can against mositure, dampness, etc.







Parts of Finished product by our hydraulic hose crimping tools ( Hose assembly)

















CE certificate of our HYT51 hydraulic hose crimping tools







                                     Kindly Reminder

1 Complete workshop hydraulic hose crimping machine with full set of dies and manual change die holder.



2 Die sets insured for life long time. we will replace die sets for you for life long time



3  If the order can exceed 30 sets hydraulic hose crimping machine annually,will offer home service.



 4 Customers can be assured of our e-mail and phone support , and longer-term service plans.





5 We will bear ourselves to ship hydraulic hose fitting crimping machine to destination port and Customers are responsible for Customs Clearance if the quantity exceed 3 sets



6  European Customers can feel assured the CE certificate, Our HYT51 hydraulic hose crimping machine has been through EUROPEAN CUSTOMS



7 OEM or Customer-Made serice are avaliable. U can send your drawings and the detaield requirements of hydraulic hose crimping machine to us.Professional reply and promt attention will be assured.



8 Every order can be promised fast delivery. Normally within 7 workdays.



9 We accept L/C at sight, T/T and Escrow, Western  Union,Money Gram Payment Terms.



10 Hose cutting machine , hose skiving machine , hydraulic hose and hose fittings are our main products, We will save much time for u.
