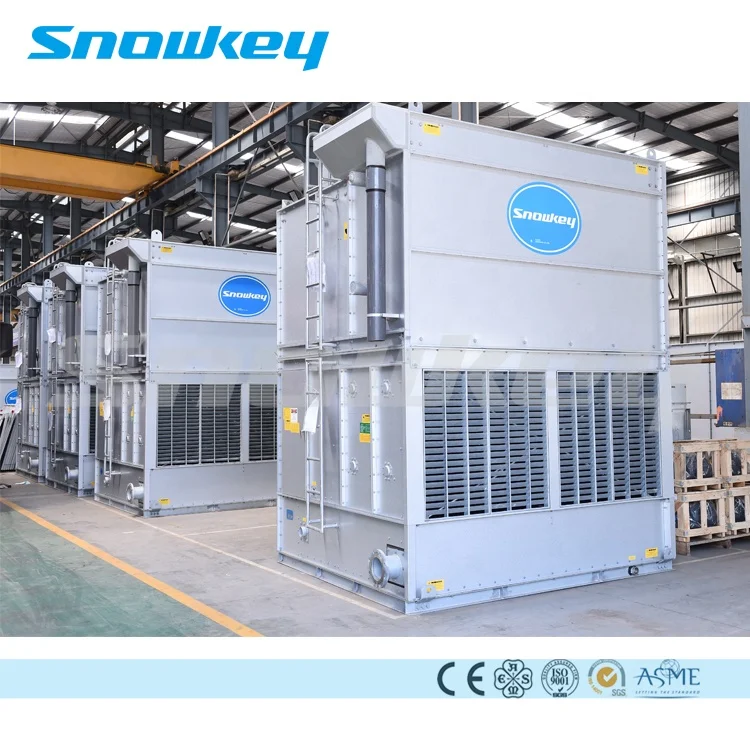

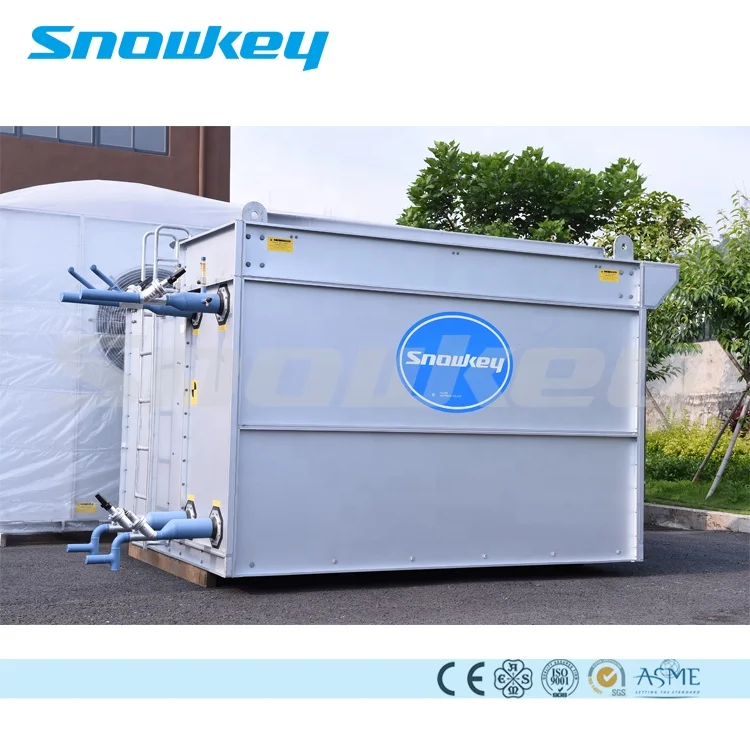

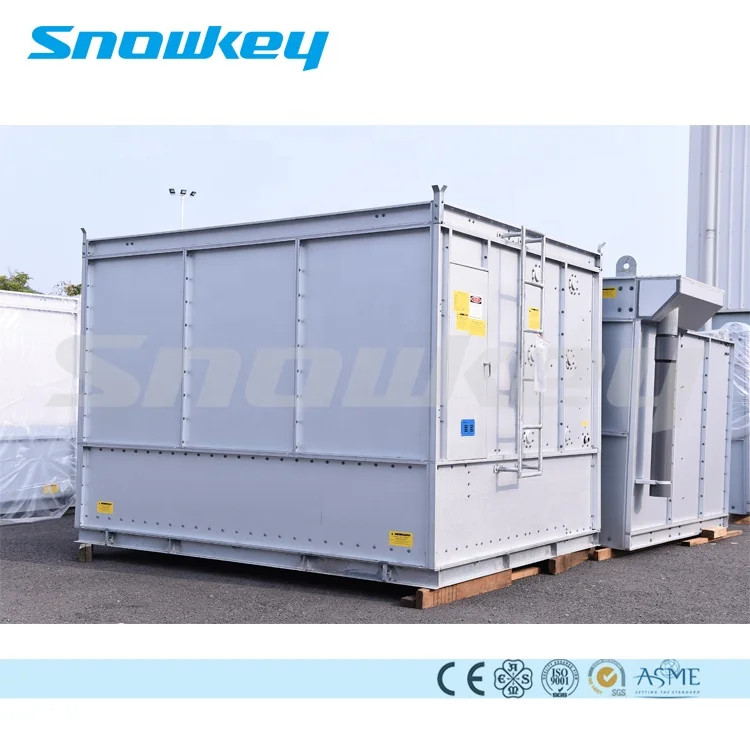

Snowkey Evaporative Condenser Price

Product Overview

Description

Snowkey High Quality Evaporative Condenser features:



1.Superior Maintenance Features

The SEC adopts unique and particle design. The design of spacious room inside eliminates the shortcoming of not easy to examine and repair due to crowded room of the evaporative condenser inside. The SEC design builds upon decades of operation experience, incorporating components that are proven to be durable and simple to maintain.

Directly Examinable and repairable

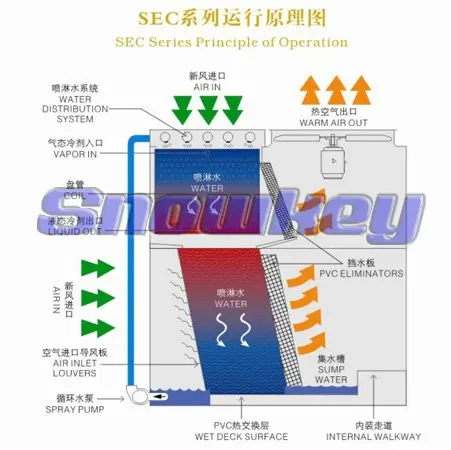

2.Water Spray System

The parallel air and water flows of the SEC allow the spray area to be uncovered (drift eliminators are inside), permitting quick and easy inspection of the sprays and coils and coils outside the unit while the SEC is in operation.

3.Wide-Spaced, Non-clog Air Inlet Louvers

The spacious and high quality air inlet grid design avoids the possibility of forming scale and ice on the surface.

4.Hinged Access Doors For Easy Entry

Big access doors at one end wall provides easy access to the unit inside.

5.Easy Access to Fan Drive System and Condensing Coil

A spacious plenum provides easy access to the motor drive system and the condensing coil through easily removable PVC of fans.



6.Sloped Basin Floor Facilitates Cleaning

The floor of the water basin is sloped toward the depressed section and the wet deck is elevated to facilitate flushing dirt and debris from this critical area..

7.Low Investment

SEC Evaporative Condenser = Shell & Tube Type Condenser + Cooling Tower + Water Pump + Water Sump + Piping

The SLC Evaporative Condenser with water pump, water sump and PVC heat-exchange fill (has the similar with cooling tower), creates compact structure, less floor space, low unit weights, and convenient installation----that means substantial reduction in installation cost. Moreover, the SEC Evaporative Condenser is delivered to site in the modular assemblies of the upper and lower pares, requiring only bolting the upper and lower casings, and electrical and piping service for use that results in far less on-site installation work and therefore installation cost greatly reduced. In short, the budget of capital expenditure can be curtailed by selecting SEC Evaporative Condenser, compared with other types of condenser.

Excellent Operation effect and Lower Operating Cost

Because of its high efficiency, water and electrical savings, and fewer parts to be maintained, the SEC Evaporative Condenser in your application leads to lower operating cost than other types of condensers.
