EN 74 Drop Forged Scaffolding Fittings
- Category: Ladder & Scaffolding Parts >>>
- Supplier: Tianjin Xinyue Industrial And Trade Co. Ltd.
Share on (732752787):
Product Overview
Description

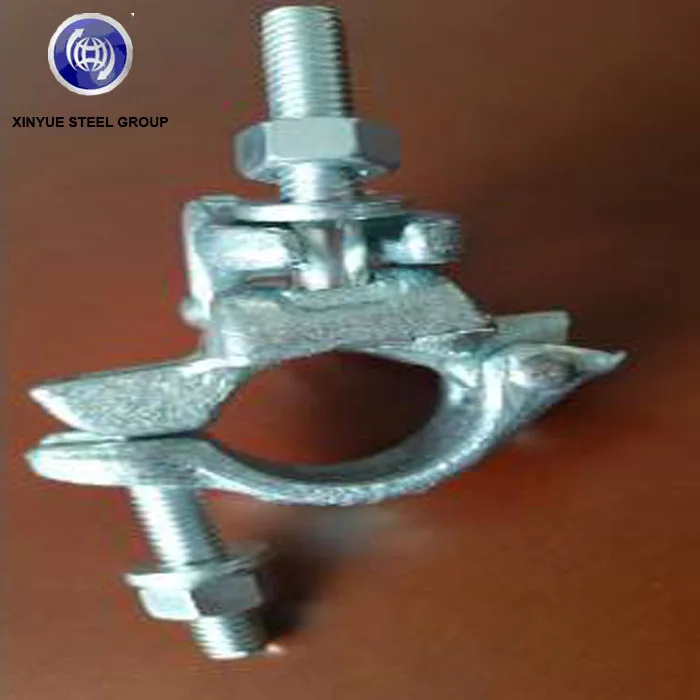

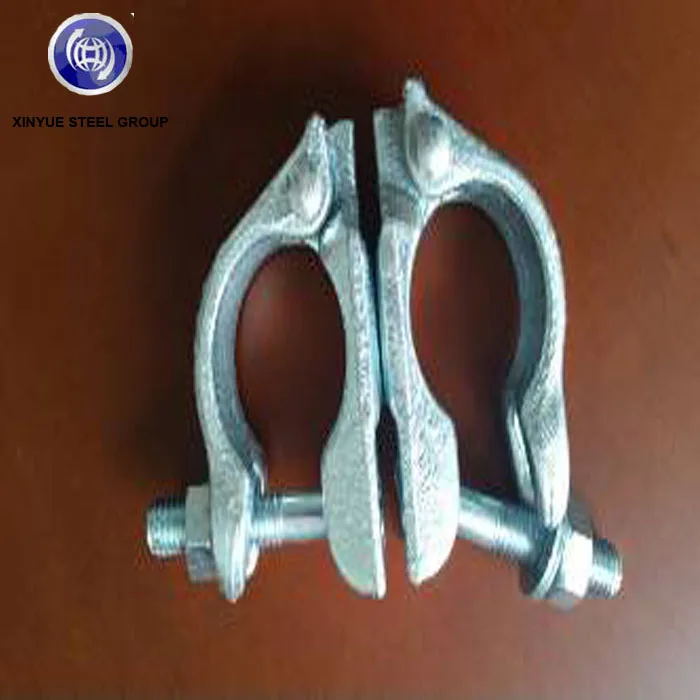

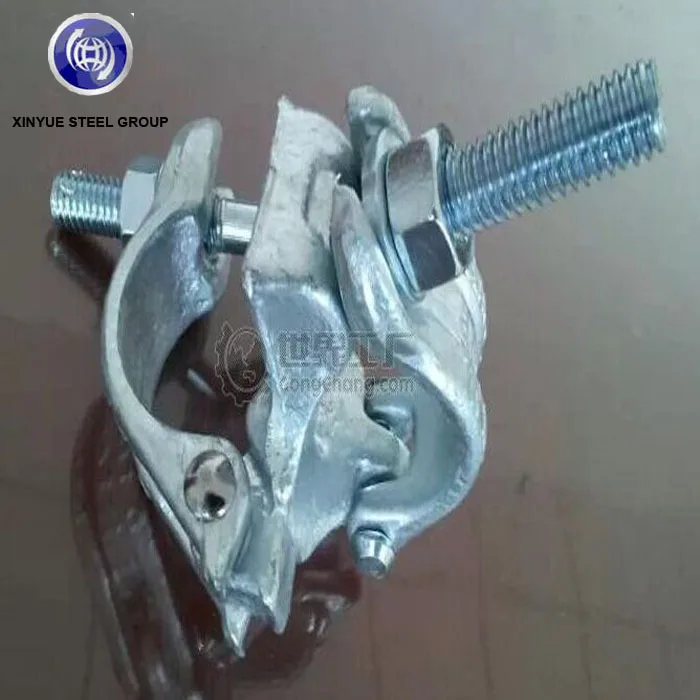

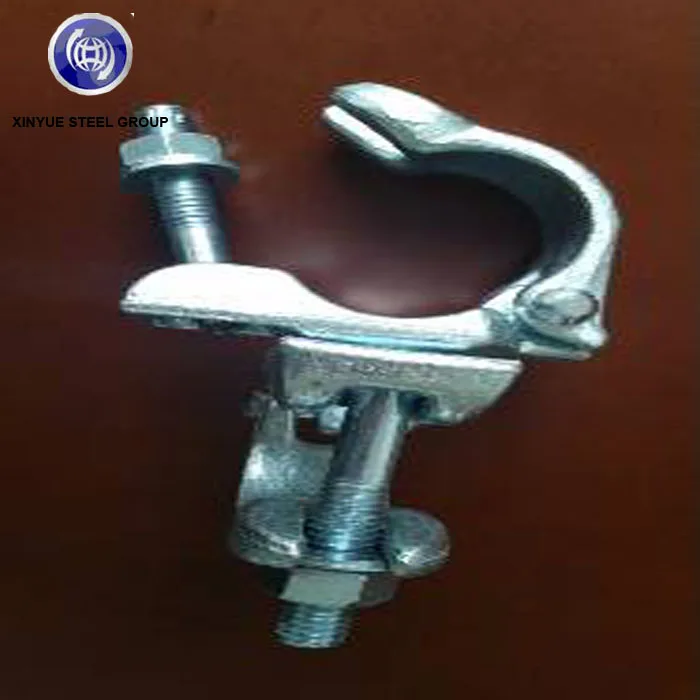

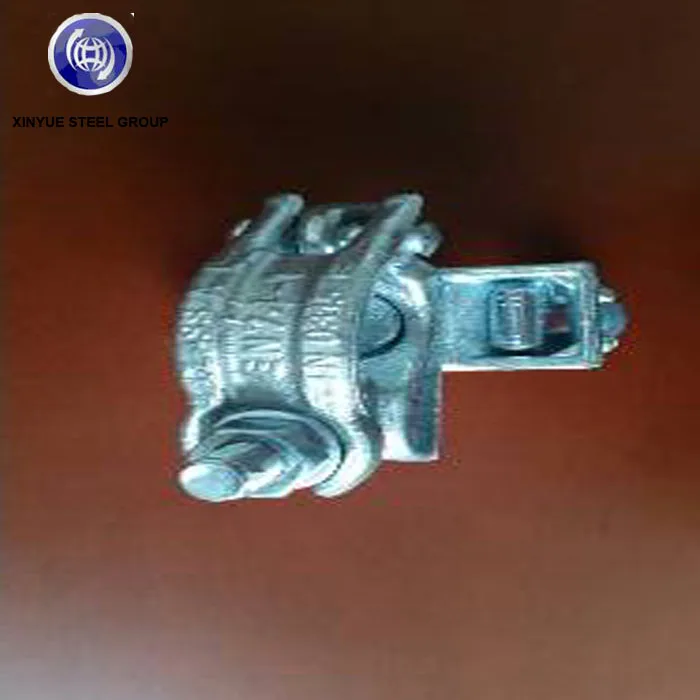

EN 74 Drop Forged Scaffolding Fittings
Tianjin Xinyue Industrial and Trade Co., Ltd is a leading Forged Scaffolding coupler manufacture in China, we could supply you high quality scaffolding tubes & forged scaffolding couplers.
Quick Details
EN 74 Drop Forged Scaffolding Fittings
Production Technology: Forged
Standard: BS 1139, EN 74, AS 1576
Dimensions: 48.3mm X 48.3mm
Specifications
EN 74 Drop Forged Scaffolding Fittings
Usage: Used for connection of 2 tubes (48.3) at right angle
| Products: | Coupler | ||||
| Name: | British Type Double Coupler ,British Type Swivel Coupler | ||||
| German Type Double Coupler,German Type Swivel Coupler | |||||
| Putlog Coupler,Girde Coupler, pressed Sleeve Coupler,pressed Inner Joint Pin | |||||
| Technology: | Drop Forged | ||||
| Standard: | BS1139.EN74 | ||||
| Material: | Q235B | ||||
| Size: | 48.3mm*48.3mm.60*mm60mm | ||||
| Surface: | Electric Galvanized,Hot Dip Galvanized | ||||
Model Number: XY - A001
Production Technology: Forged
Material: Forged Steel
Dimensions: 48.3mm X 48.3 mm
Weight:1.05 – 1.48 KG
Type: British, American, Germany
Finish: Electric Galvanized, Hot Dip Galvanized, Gold Color Galvanized, Self-Colored
Standard: EN 74, BS 1139
Minimum Slip Load: 12.5 KN
Distortion Load: 17.0 KN
Standard Packing: 25 Pieces/Bag, 1000 Pieces/Pallet
Special Service: OEM Services, Processing with Provided Samples or Pictures
