DC 24v 48v to AC 120v 220v Wind turbine grid tie inverter 300w

Product Overview

Description

300W on Grid Tie Power Inverter DC 22V~60V to AC 90V~130V/190-260V with Dump Load Controller for DC output Wind Turbine











Model:  TEG-300W-WDL


For AC Output Wind Turbine

Build In Dump Load Controller

Build In High Wind Protection



Preface

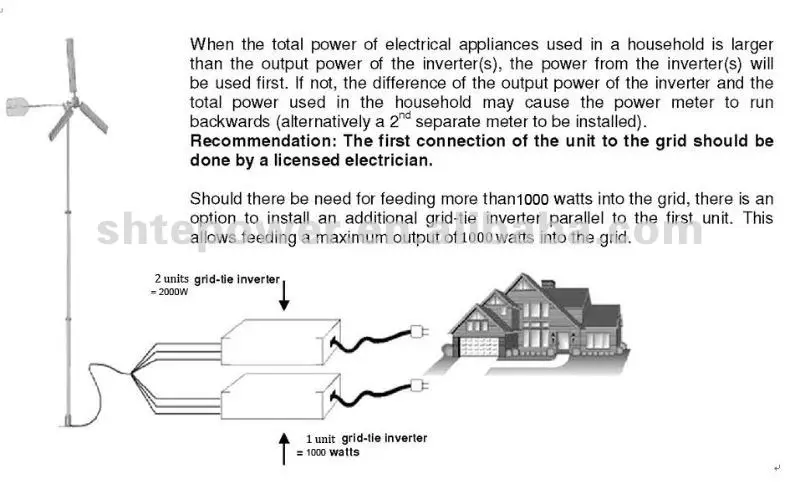

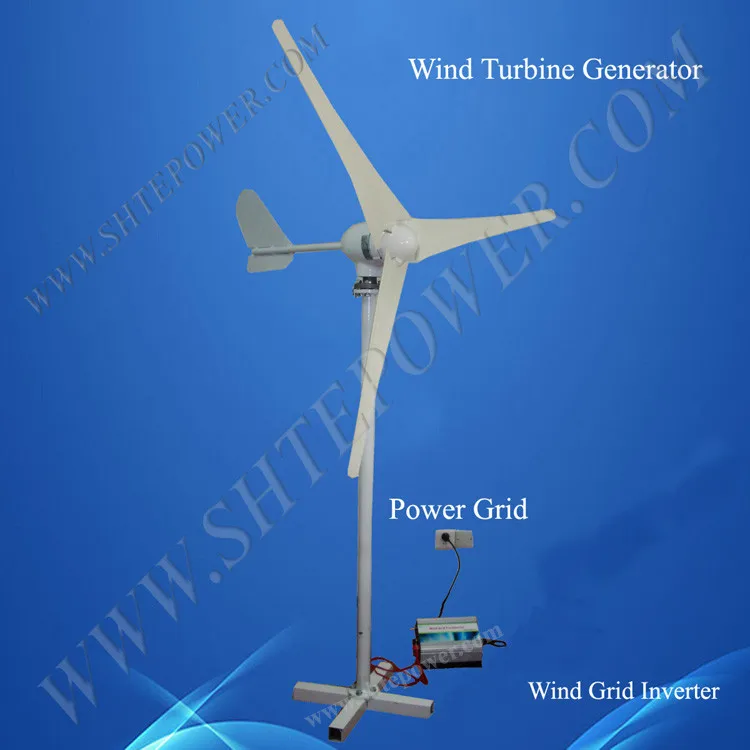

The grid-tie inverter can transfer wind energy from wind generators directly into the home grid using no extra equipment. It can be connected to any outlet (conventional network) in the home. The grid-tie inverter controls the phase and the frequency and voltage of the power generated by the wind generator. It produces a pure sine-wave and matches that of the grid.



This model grid-tie has designed for wind turbines that put out DC voltage. It can maintain the rotating speed of the wind turbine and keep the voltage from the wind turbine always at the range of the rated range of the grid tie inverter. It also has a high voltage protection function, when the wind is too big, and the dump load controlling system can’t keep the output voltage from the wind turbine, the controller will disconnect itself from the wind turbine, so it is very safe to be used



Layout

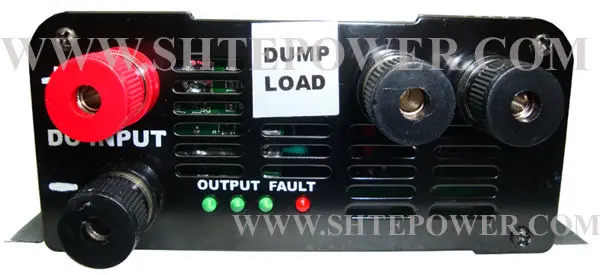

There are 4 terminals on the left side of the inverter, 2 terminals will be connected to the DC output from the wind turbine, and 2 black terminals will be connected to dump load resistors.







There are 4 LED indicators, 3 green indicators and 1 red indicator, 3 green LED indicators will start to cycle from left to right when the grid and AC input supply is detected. This indicates the inverter is operating under normal condition. The rate of the cycling is according to how much power is being output from the wind turbine. The more big output power is, the more fast the rate is. If there is no AC grid detected, the red LED will be on, the inverter will not put out power, this is called "Island Protection”.





Electrical Specifications:



Model		TEG-300W-WDL
Normal AC Output Power		270W
Maximum AC Output Power		300W

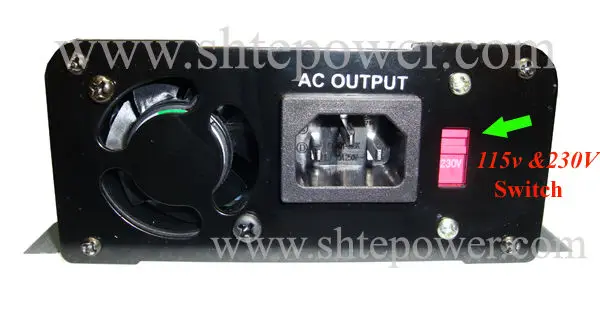

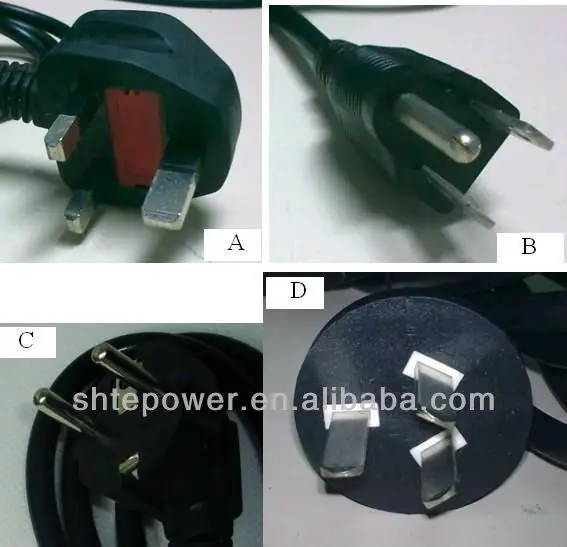

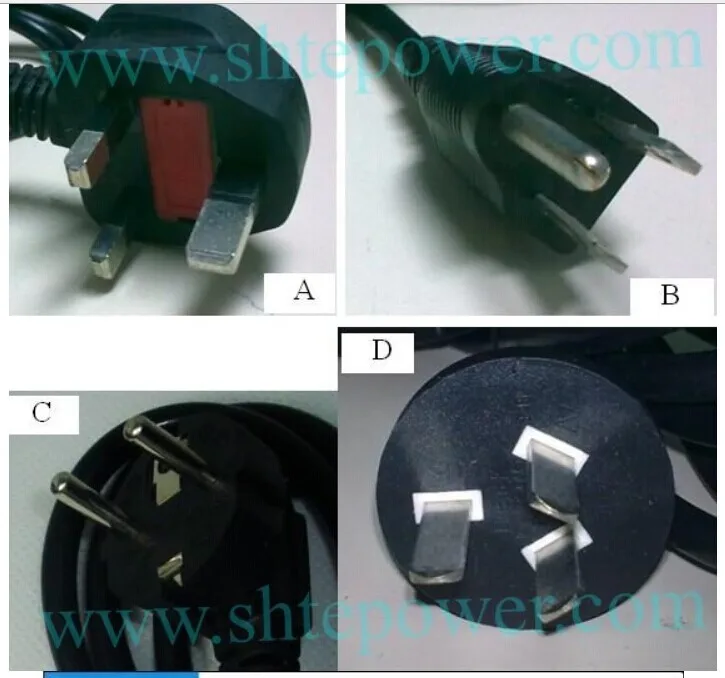

AC  Output Voltage Range	230v model	190-260v
	115V model	90-130v
AC Output Frequency Range		46Hz ~ 65Hz
Total Harmonic Distortion(THD)		<5%
Power Factor		0.99
DC Input Voltage Range		22V ~ 60V (the test point is at the output of the rectifier)
Peak Inverter Efficiency		92%
Standby Power consumption		<1W
Output Current Waveform		Pure Sine-wave
MPPT Function		Yes
Over Current Protection		Yes
Over Temperature Protection		Yes
Reverse Polarity Protection		Yes
Island Protection		Yes
Stackable		Yes



Mechanical Specifications:



N.W	1.8Kg
G.W	2Kg
Dimension	295mm*195mm*100mm



 -10 ~ 45 degrees C
