Industrial synchronous belt( AT5 AT10 AT20)

Product Overview

Description

Industrial synchronous belt drive is a new transmission mode that use meshing between teeth of belt to have impetus to work.

They can be used in textile industry, light industry, chemical industry, industry electrical appliances, machinery for transferring power.



Material:

             Chroprene Rubber(CR), Glass Fiber, Fabric or others (as customer's requirement)

Type:

There are two kinds of industrial synchronous belt: one-sided tooth industrial rubber synchronous belt and double-sided tooth industrial  rubber synchronous belt.

There are two kinds of single-sided tooth industrial  rubber synchronous belt: T tooth  industrial  rubber synchronous belt  and Arc tooth industrial  rubber synchronous belt.

There are two kinds of double sided tooth timing belt  DA and DB.



The Dimension and Profile:

T tooth  industrial  rubber synchronous belt









Type	Pitch Pb(mm)	Tooth height ht(mm)	Belt thickness hs(mm)	Angle β°
MXL	2.032	0.51	1.14	40
XXL	3.175	0.76	1.52	50
XL	5.080	1.27	2.30	50
L	9.525	1.91	3.60	40
H	12.70	2.29	4.30	40
XH	22.225	6.35	11.20	40
XXH	31.750	9.53	15.70	40
T2.5	2.5	0.7	1.30	40
T5	5	1.20	2.20	40
T10	10	2.50	4.50	40
T20	20	5.00	8.00	40
AT5	5	1.20	2.70	50
AT10	10	2.50	5.00	50
AT20	20	5.00	8.00	50



Arc tooth  industrial  rubber synchronous belt





                                                                                                                                              H   ARC  TOOTH







                           S   ARC  TOOTH                                                     R   ARC TOOTH







Type	Pitch Pb(mm)	Tooth height ht(mm)	Belt thickness hs(mm)	Angle β°
HTD	2M	2	0.75	1.36
	3M	3	1.17	2.4
	5M	5	2.06	3.8
	8M	8	3.36	6.00
	14M	14	6.02	10.00
	20M	20	8.4	13.20
STPD/STS	S2M	2	0.76	1.36
	S3M	3	1.14	2.20
	S4.5M	4.5	1.71	2.81
	S5M	5	1.91	3.4
	S8M	8	3.05	5.3
	S14M	14	5.3	10.2
RPP/HPPD	2M	2	0.76	1.36
	3M	3	1.15	1.9
	5M	5	1.95	3.5
	8M	8	3.2	5.5
	14M	14	6.00	10

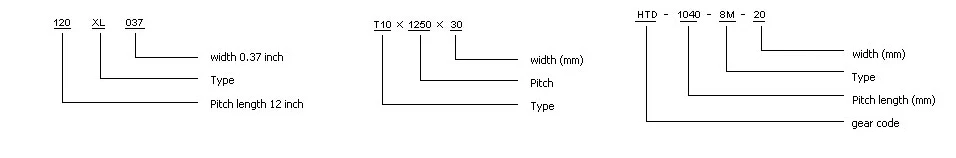

The representation of  above types







Type	Pitch Length (mm)	Sleeve Width(mm)	Teeth No.
AT10×500	500	450	50
AT10×560	560	450	56
AT10×580	580	450	58
AT10×660	660	450	66
AT10x700	700	450	70
AT10×730	730	450	73
AT10x780	780	450	78
AT10×840	840	450	84
AT10×890	890	450	89
AT10×920	920	450	92
AT10×960	960	200	96
AT10×1010	1010	200	101
AT10×1150	1150	450	115
AT10×1210	1210	200	121
AT10×1240	1240	450	124
AT10×1250	1250	450	125
AT10×1280	1280	200	128
AT10×1320	1320	450	132
ATX1360	1360	450	136
AT10×1500	1500	450	150
AT10x1530	1530	450	153
AT10x1610	1610	450	161
AT10x1630	1630	450	163
AT10×1800	1800	250	180
AT10x1860	1860	450	186
AT10×1940	1940	450	194
AT10×2000	2000	250	200
AT10×2250	2250	450	225
AT10×2400	2400	450	240
AT10×2590	2590	450	259
AT10×2880	2880	450	288
AT10×3080	3080	450	308
AT10×3150	3150	250	315
AT10×3340	3340	450	334
AT10×4030	4030	370	403



Type	Pitch Length (mm)	Sleeve Width(mm)	Teeth No.
AT20×1000	1000	430	50
AT20×1080	1080	430	54
AT20×1100	1100	430	55
AT20×1700	1700	250	85
AT20×1900	1900	250	95
AT20×2360	2360	250	118
AT20×6840	6840	310	342





1) We can print the designated trade mark on the products according to the effective accrediting of the client.
2)"The timing belt project innovation center" of our company can specially design and manufacture rubber timing belt with all kinds of special specifications.
3) To meet the demands of the customer, we will offer door-do-door services to measure and analyze, in order to do good skill consultation for equipment matching and to design the timing belt and Pulley.



We can also produce other belts according to the customer's detail type, width, tooth and quantity.
