TGM 130 Soybean grinder / Soybean Grinding Machine /
- Category: Bean Product Processing Machinery >>>
- Supplier: Shanghai Tiangang Machine Manufacture Co. Ltd.
Share on (733214390):
Product Overview
Description
TGM-130B Soy grinder

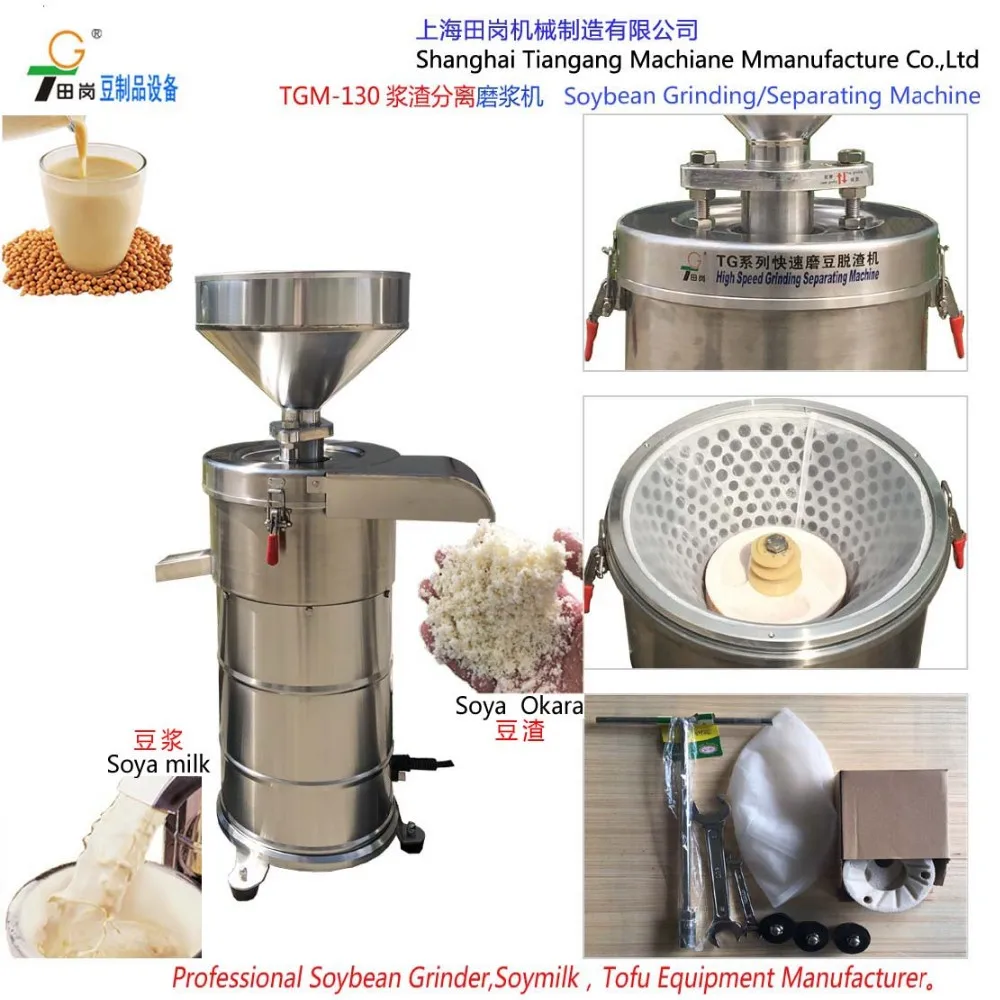

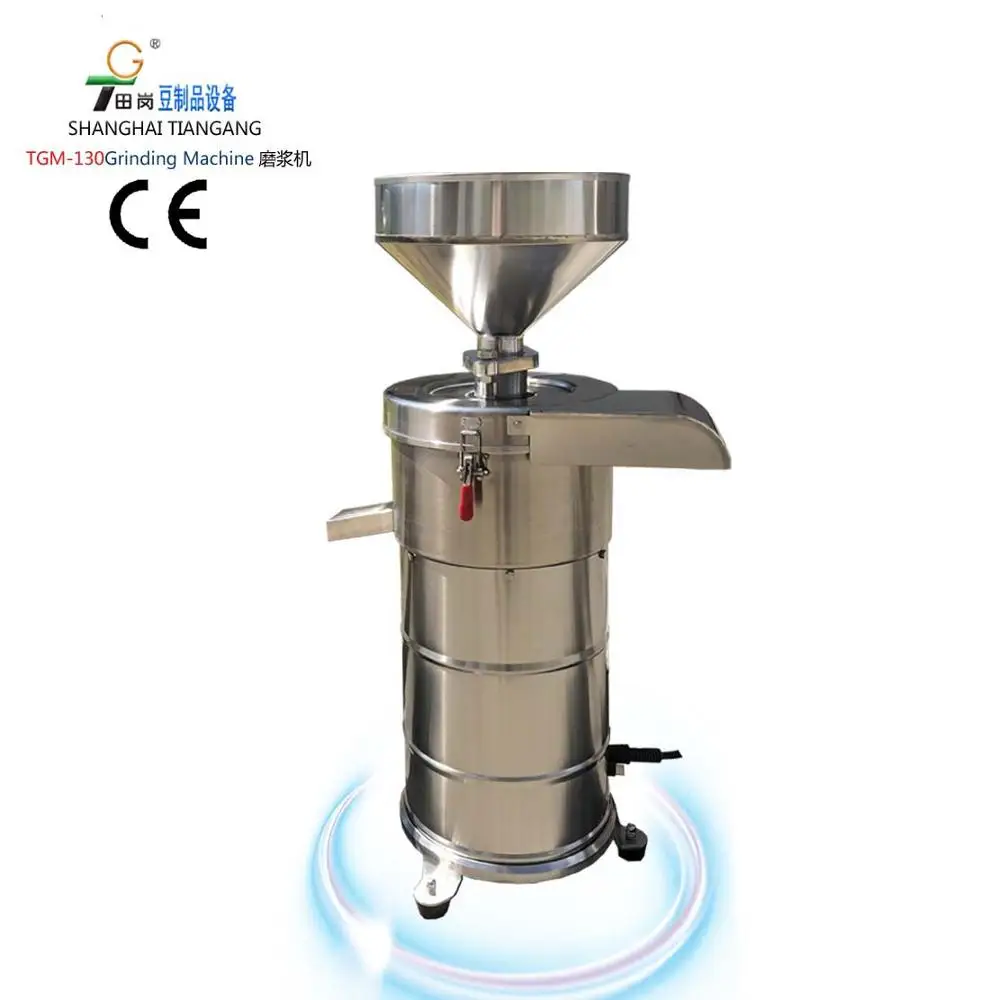

TGM-130 Soybean grinder / Soybean Grinding Machine / Beans grinding Machine
TGM-130 soybean grinding and separating machine
Application: Soybeans grinder machine. Suitable for make soy milk, tofu etc. Application to the unit canteens, restaurants and small food processing plants.
Features: Made of Stainless Steel Bean grinding, with thickly flavored bean paste emerging all at once, Okara removal accomplished in a single operation, and flaky Okara discharged at the same time.
Capacity:35-65kgs/hr
Diameter of grinding stone :125mm
Material of grinding stone:white corundum.
Voltage:220v/50Hz;Power:1500w;Speed:2880 R.P.M ;Filter:100 mesh ,
Weight:45kgs;Gross Weight:53kgs

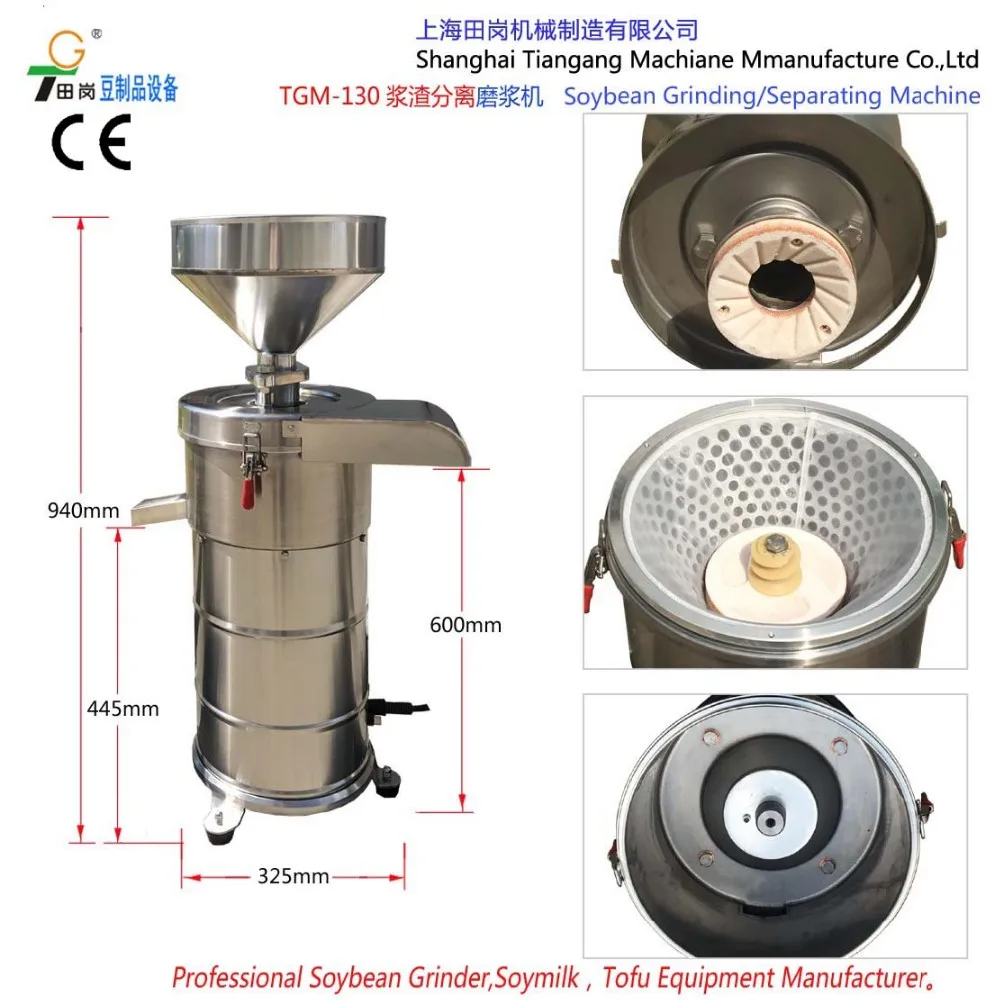

Size: 360*480*880mm;Packing size:380*420*1020mm

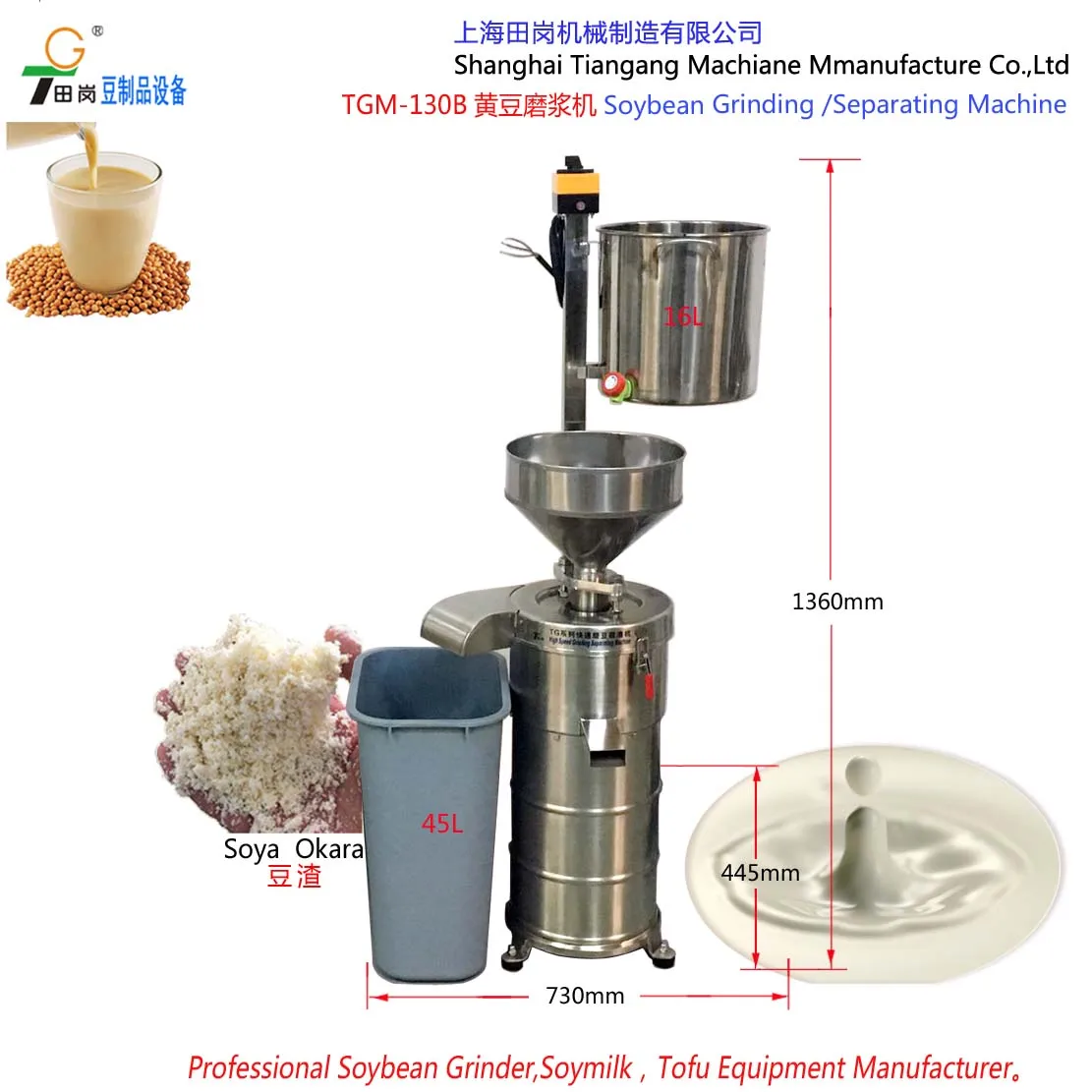

TGM-130B size:410*450*1450mm, Plastic buckets:400*300*500
Related Products
Shanghai Tiangang Machinery is a professional soybean processing machinery manufacturer.
Main products:
Soybean Grinding Machine, Colloid mill, Soya milk machine, Tofu machine.
Technical Data | Voltage | Motor Power | Input (Soybean) | Diameter of the grinding stone | Weight | Size |
TGM-100 | 220V 50Hz | 750w | 15-30Kg/Hr | 95mm | 22Kg | 960*500*1350mm |
TGM-130 | 220V 50Hz | 1500w | 40-65Kg/Hr | 125mm | 45Kg | 650*1200*1550mm |
TGM-200 | 380V 50Hz | 5kw | 80-175Kg/Hr | 200mm | 95Kg | 650*1690*1550mm |
M-18 | 220V 50Hz | 1.5HP | 20-45Kg/Hr | 100mm | 36Kg | 650*2050*1550mm |
F-16 | 220V 50Hz | 2HP | 50-135Kg/Hr | 120mm | 56Kg | 650*2050*1550mm |
Production Flow
The soybean produces can analyze:
To 1 kg of dry soybeans is out
Soymilk 7-15(Liters);Boxed Tofu 17(Box)×(300g/)
Traditional soft Tofu 3-5(kg);Traditional Mold Tofu 2-4(kg).
Hard Tofu(Tokan)1-2(kg);Boxed Soy Pudding 87(Box)×(150g/).
1kg of soybean, after soaking 2kg, add 8kg of water to grind, = soy milk 8kg + 2kg soy Okara. Can be made into tofu 3-5kg
The above information is for reference only.
