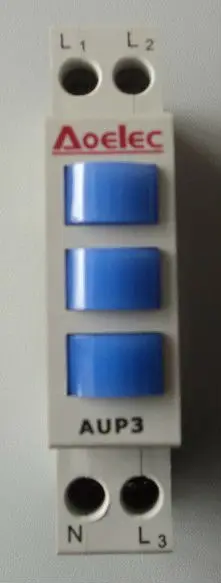

AUP3 CE certificate three phase led voltage MCB indicator

Product Overview

Description

Function and Feature:

Applicable to circuit with rated voltage 230V~and frequency 50/60Hz for visual indication and warning

Three phase LED lamp in one module.

Obviously indication phase with three different colors.



Technical Data:

Rated Voltage(Un):24/48/110/230VAC

                                   24/48/110/230VDC

Rated frequency:50/60Hz

Number of poles:1P

Light source:LED diode

Rated insulation voltage(Ui):500V

Light Source capacity:0.8W

Colors:red/green/blue/yellow/transparent

Terminals:pillar type

Cable termination:25mm²

Torque of screw:2.5Nm

IP degree:IP20

Standards:IEC/EN 60947-5-1

Catalog NO.                                                                                                              CTN Size:46.5X24X17.5CM

Model	Description	QTY/Box	QTY/CTN
AUP3-24	24VAC	12	120
AUP3-48	48VAC	12	120
AUP3-110	110VAC	12	120
AUP3-230	230VAC	12	120





Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
