KEMTRON KTL28 Series Composite Screen

Product Overview

Description

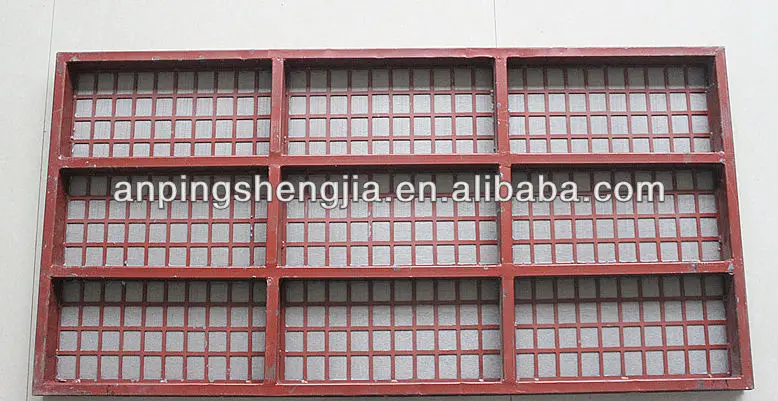

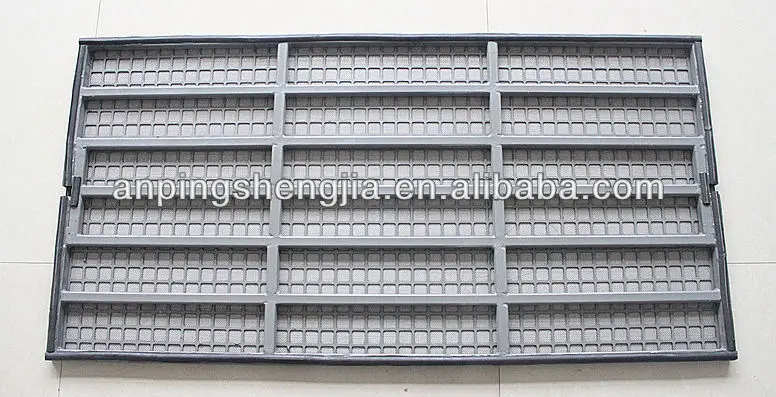

Steel frame screens



Productive process:

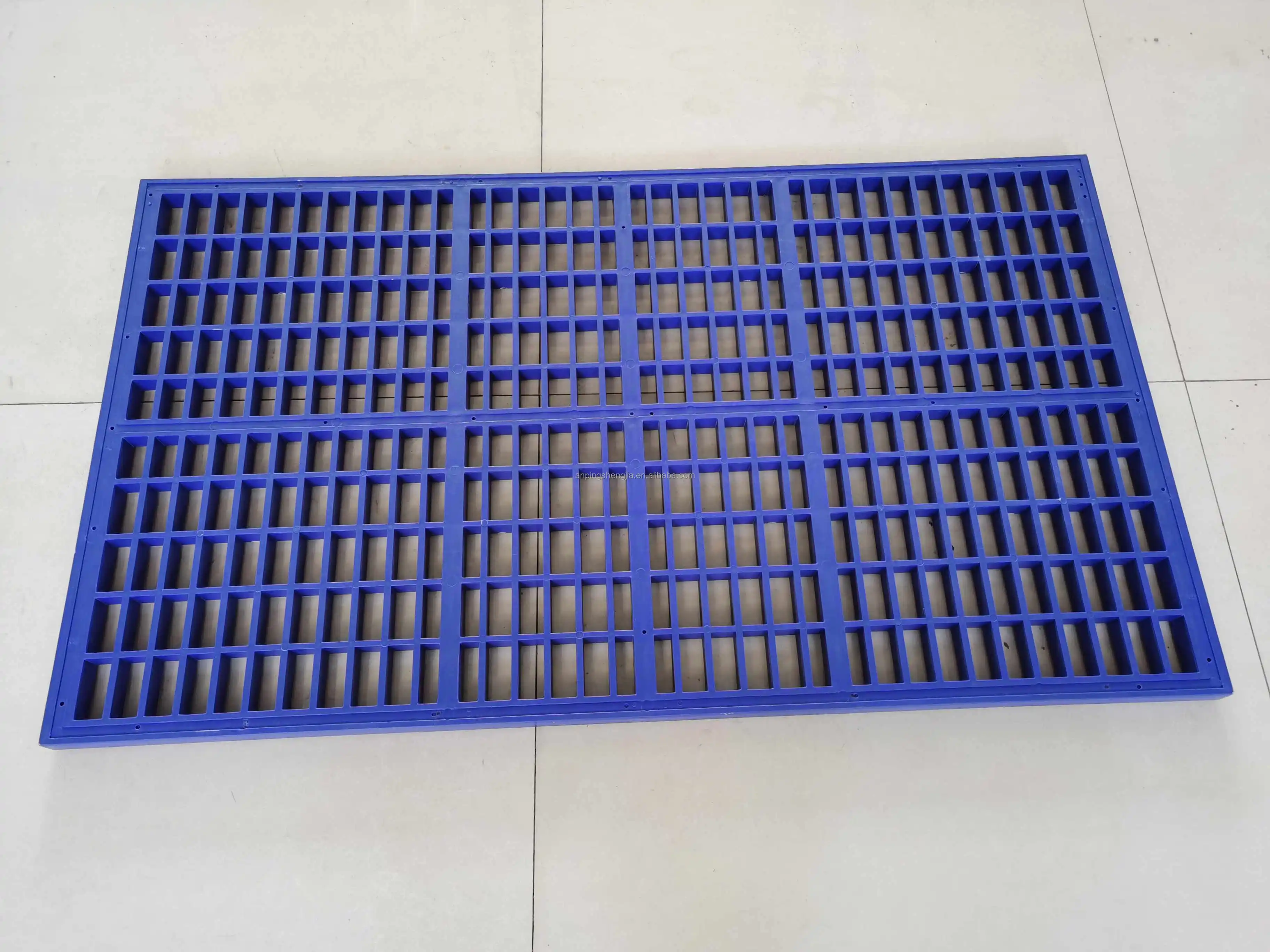

The screen frames adopt that high-strength square steel tube welded to multi-ribbed construction.

These screens are constructed with two or three stainless steel layers bonded to a steel support plank. Accessary rubber plugs may be used to repair rips or tears. By doing this, we can cut down time and reduce the production costs.



Mesh sizes: Ranging from 20 to 250.

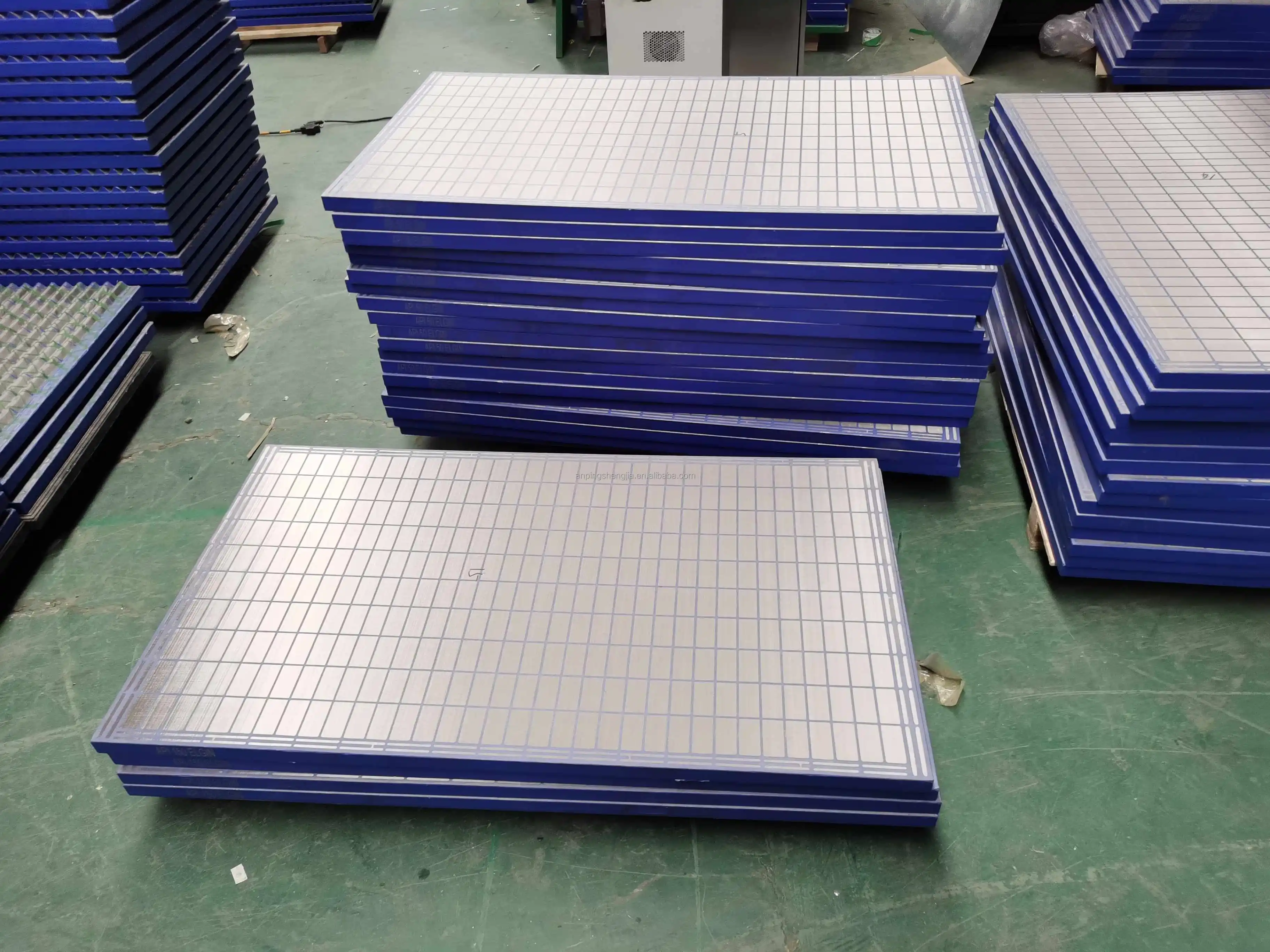

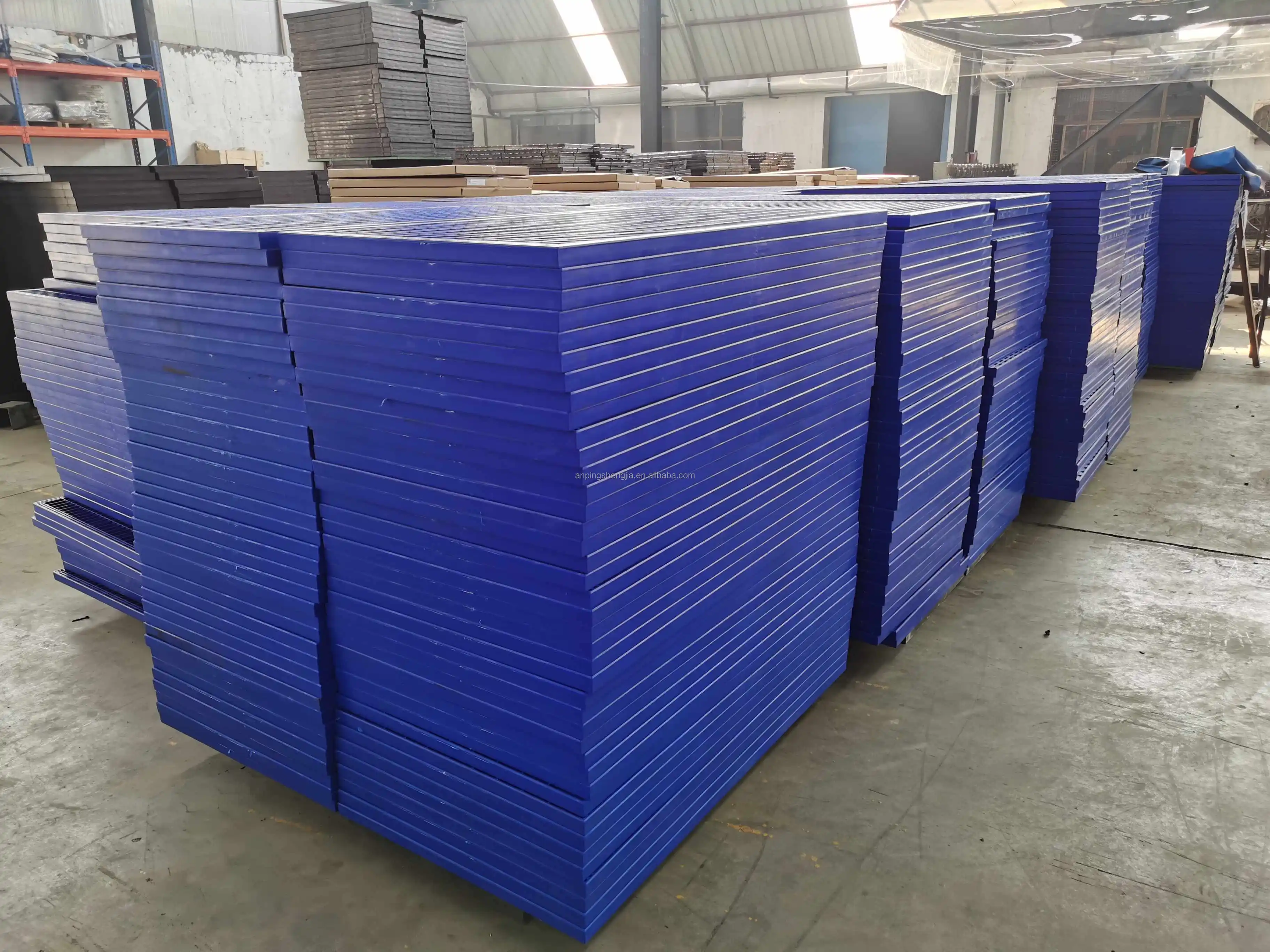

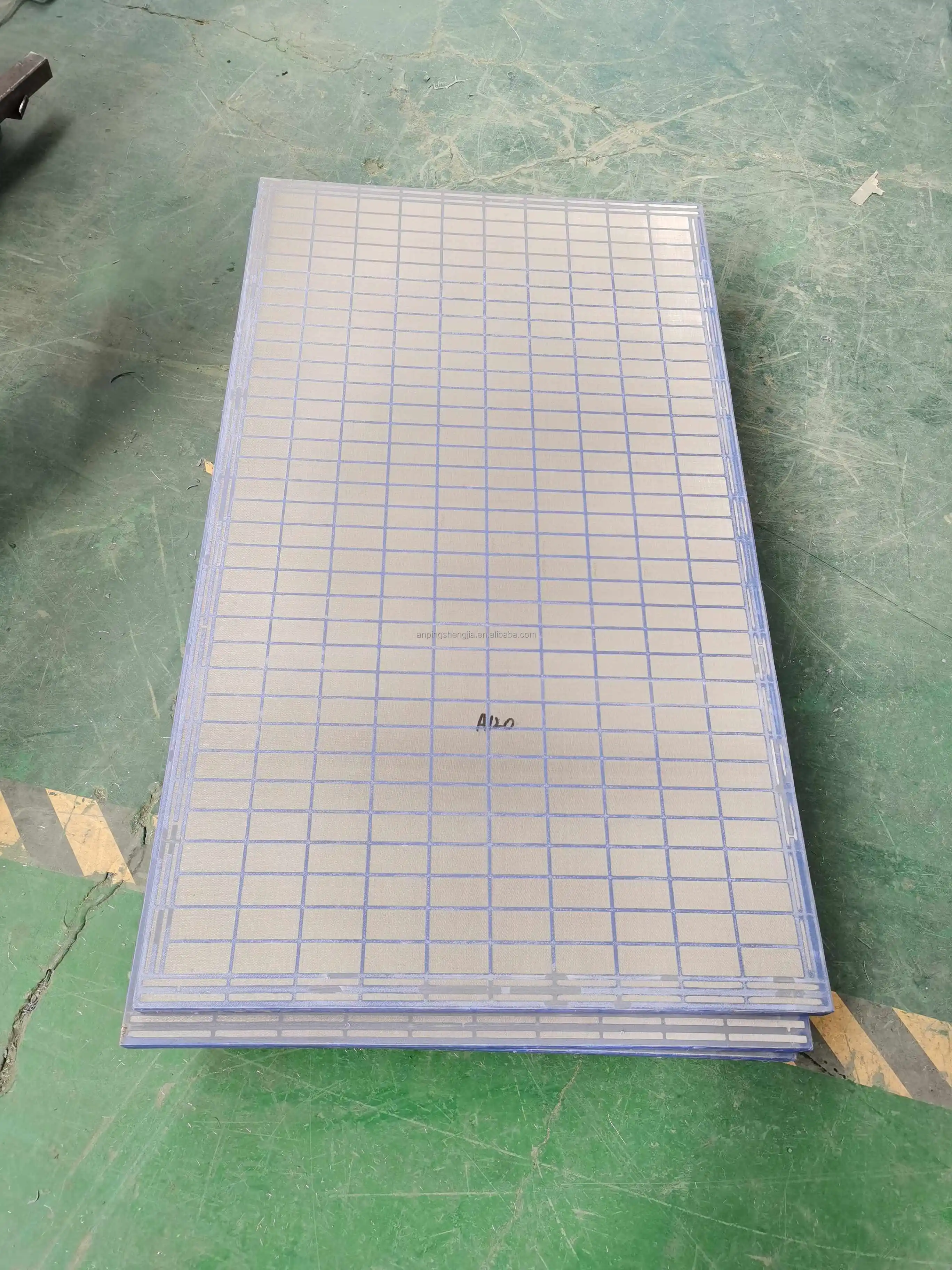

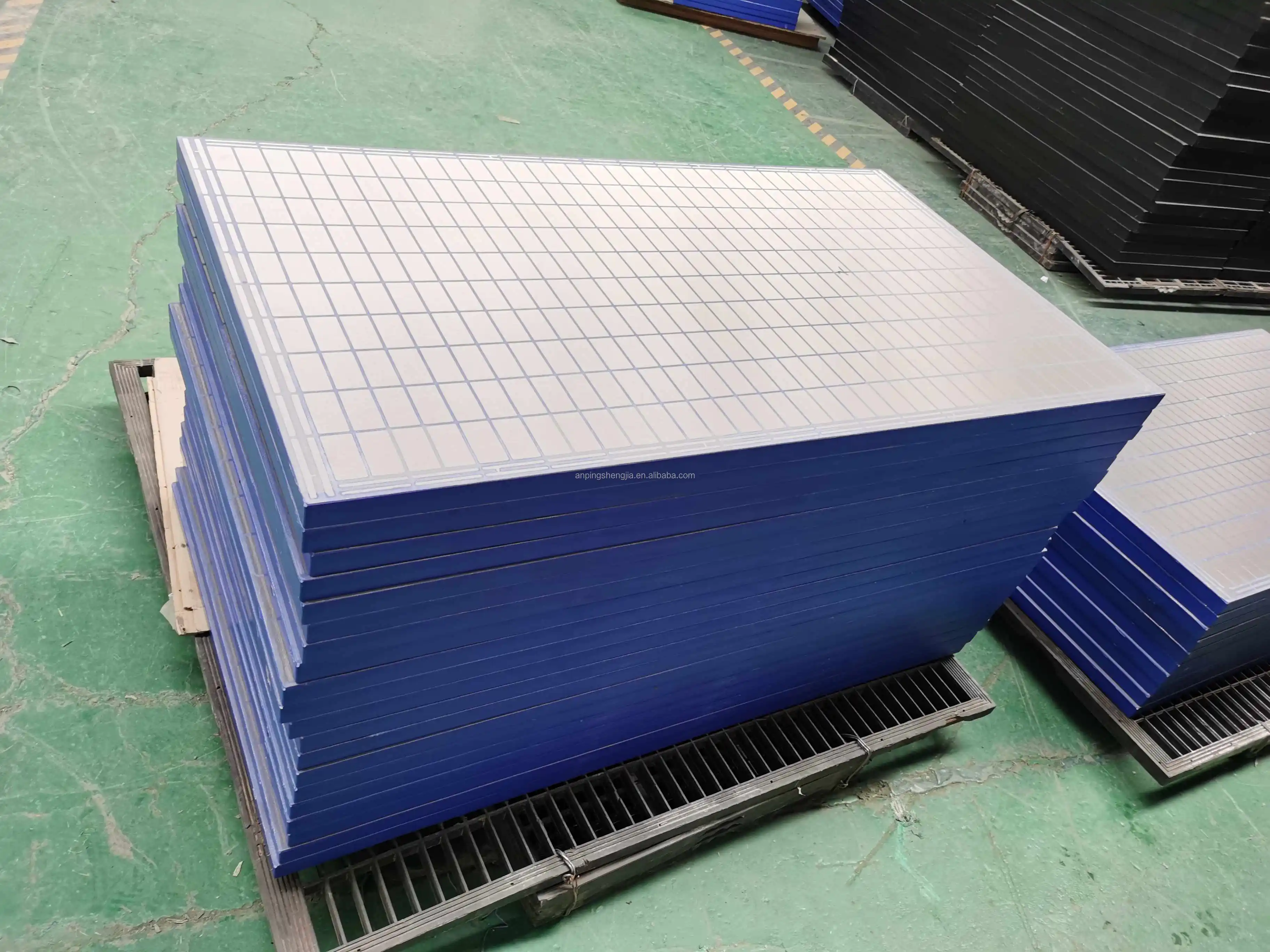

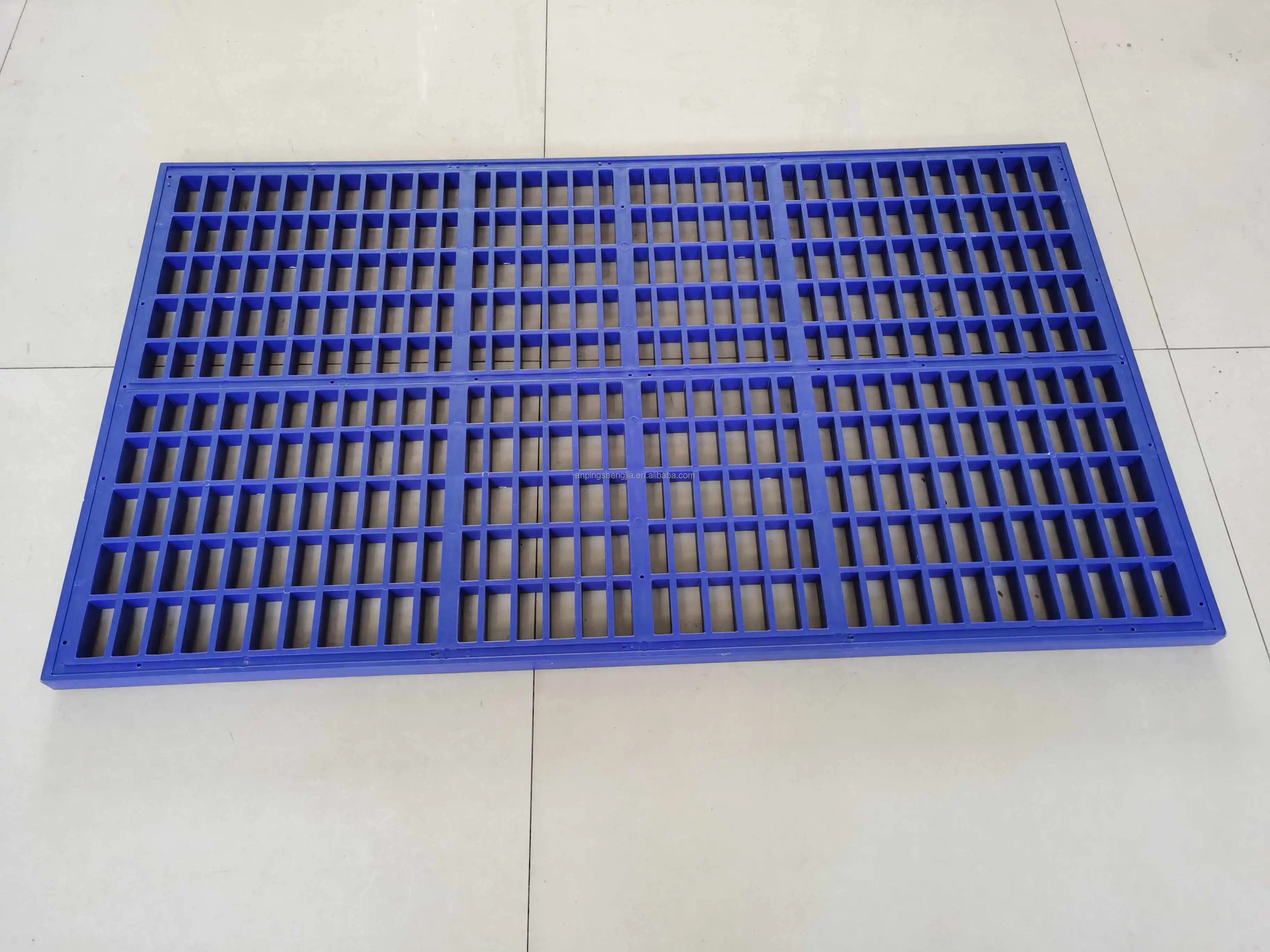

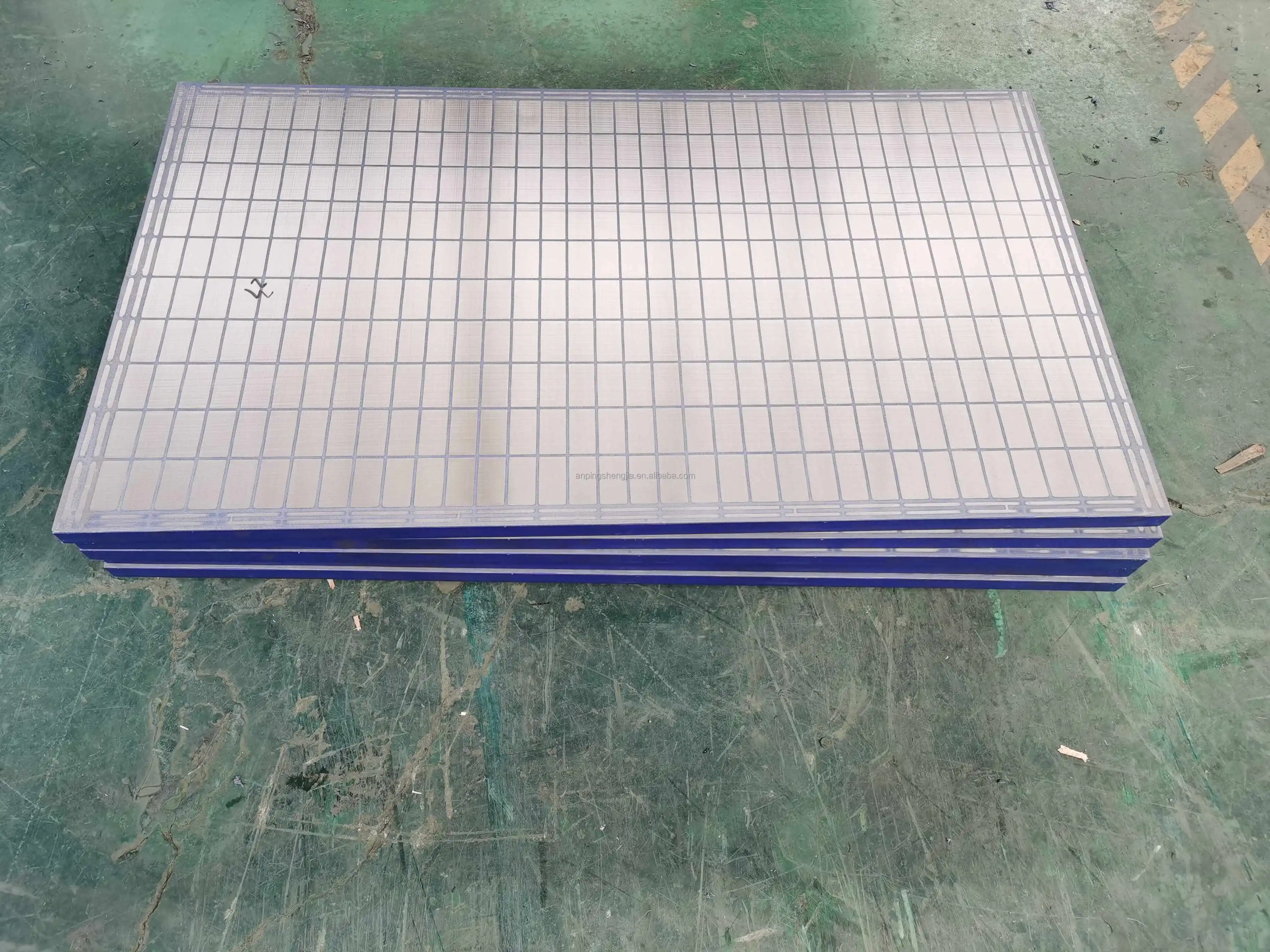

Products illustration:

Features:

1. Different layers with different density. To arrange these layers reasonably and exactly, the screening effect will become more and better.
2.High strength frame, multi-ribs and the mesh cloth with moderate tension , from one reliable combination , which can increase screen’s acceptable flow , the intensity and the lifetime
3.The wedge-shaped fastening device, can make the erection of screens more handily and quickly.

4.The mesh divided into many independent small units by grids of the backing plate ,can prevent rips or tears from spreading overmuch. Accessory prepared rubber stoppers can be used to repair damage. By doing so, the operator can cut down the stop time and reduce the cost.



Uses:

They are mostly applied to the shale shakers with wedge fastening equipment.



We possess the strong experience and the ripe technology,and will provide various specifications of steel frame screens to serve the clients' demands.



Specification:

Screen Model	Range of Mesh	Dimension (Length x Width)	Brand & Model Of Shaker	Weight(Kg)
SJ-1	16-325	585×1165mm	SWACO MON900SE	12
SJ-2	16-325	635×1253mm	BRANDT BL-50	13.5
SJ-3	16-325	913×650mm	BRANDT VSM-300	12.5
SJ-4	16-325	720×1220mm	KEMTRON KTL48 Series	17
SJ-5	16-325	712×1181mm	SF300	17

(ATT:Other model can produced as customer details dimension and requirement.)



Quality Control

Shengjia is an ISO9001:2000 certified manufacturer in regard oil shale shaker screen.

“ We regard quality as base for the development of company, we have built our quality control system to guarantee good quality products and satisfactory services are provided to our customer.”
- Quality Policy
