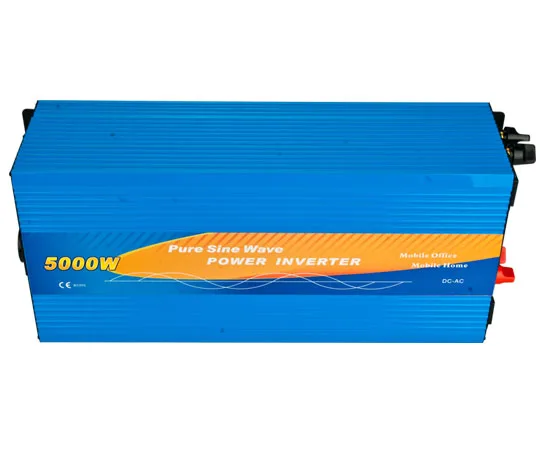

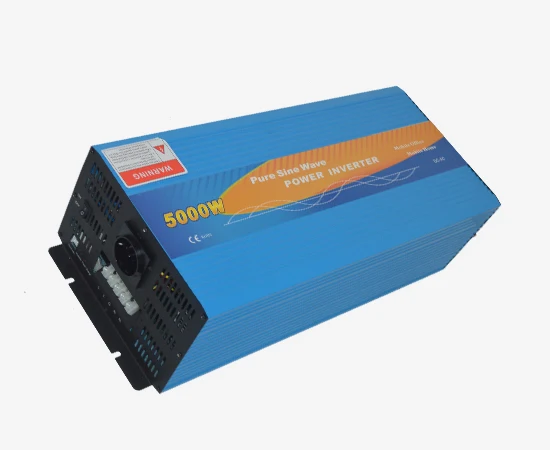

5000W 10000w Pure Sine Wave solar Power Inverter dc ac converter for solar energy system

MODEL

KS-5000P-112

KS-5000P-124

KS-5000P-148

KS-5000P-212

KS-5000P-224

KS-5000P-248

Output

Rated Power

5000W

Surge Power

7500W for 10 sec,10000W for 2sec.

AC Voltage

100 / 110 / 115 / 120VAC

220 / 230 / 240VAC

Frequency

60Hz±1%

50Hz±1%

Waveform

Pure sine wave (THD<4%) at rated input voltage

AC Regulation

±10%

Front Panel Indicator

Fault and operation status

Input

BAT. Voltage

12V

24V

48V

12V

24V

48V

Voltage Range

10.8~15.5VDC

21.6~ 31VDC

43.2~ 62VDC

10.8.~15.5VDC

21.6~ 31VDC

43.2~ 62VDC

No Load Current

≤1.1A

≤0.53A

≤0.27A

≤1.1A

≤0.53A

≤0.27A

Efficiency

88%

89%

90%

89%

90%

91%

Battery Type

Open & sealed Lead Acid

Battery Input Protection

Fuse

35A*20

20A*20

10A*20

35A*20

20A*20

10A*20

BAT. Low Alarm

10.8±0.2V

21.6±0.4V

43.2±0.8V

10.8±0.2V

21.6±0.4V

43.2±0.8V

BAT. Low Shutdown

10.2±0.2V

20.4±0.4V

40.8±0.8V

10.2±0.2V

20.4±0.4V

40.8±0.8V

BAT. Over Shutdown

15.5±0.2V

31±0.4V

62±0.8V

15.5±0.2V

31±0.4V

62±0.8V

BAT. Polarity

By external fuse open

Output protection

Over TEMP

≥45ºC or ≥40% rated power, cooling fan open;≥75ºC,Shut off.

Output Short

Protection type : Shut down o/p voltage, re-power on to recover

Overload

150% load for 10 sec,200% for 2sec.

Protection type : Shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

0 ~ +40°C @ 100% load ; 60°C@ 50% load

Working Humidity

20% ~ 90% RH non-condensing

Storage TEMP.

-30°C~ +70°C/ -22 ~ +158 °F, 10 ~ 95% RH

USB port

5V,500mA---Powers and charges USB-enabled devices(48V unavilable)

Remote Control

Control your Inverter at a distance with Remote Control Switch.

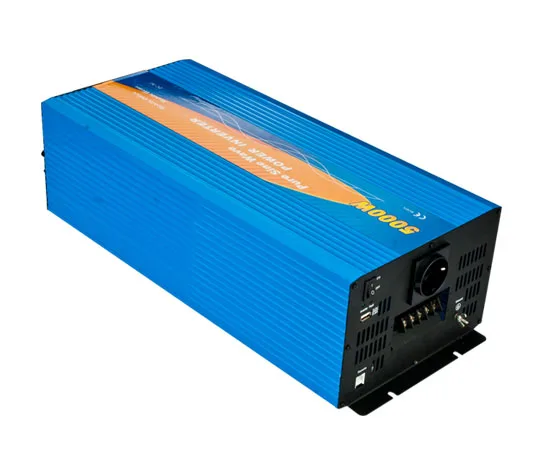

Hardwire Terminal Block

The AC output side of this inverter has a direct connect AC terminal block that outputs the full 5000 watts of AC power for permanent installation into an electrical system.

GND

Ground Chassis: Properly grounds the Inverter to vehicle grounding system or to earth ground.

Mechanical

Dimension

480*220*150mm (L*W*H)

Packing

PCS/CTN

1PCS/CTN

Measurement

67*34*24cm

Gross weight

15KGS

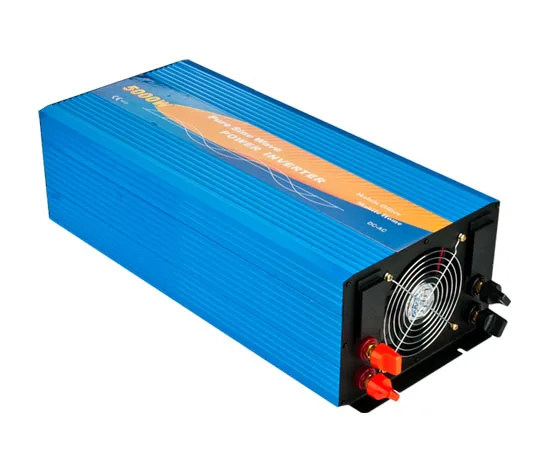

Cooling: Load and TEMP controlled

Load<40% or inner temperature less than 30°C,fan don’t run

40%≤Load<60%,the fan’s rotational speed is 40%

60%≤Load<80%,the fan’s rotational speed is 60%

80%≤Load<100%,the fan’s rotational speed is 80%

100%≤Load, the fan’s rotational speed is 100%

Once Inner temperature is more than 45°C, the fan’s rotational speed is 100%.

Buzzer/LED

alarm

Low Battery Alarm

Buzzer sound 2times and Red light blink 2times every 8sec.

Low Battery Shutdown

Buzzer sound 3times and Red light blink 3times every 8sec.

Over Voltage Shutdown

Buzzer sound 4times and Red light blink 4times every 8sec.

Over TEMP Shutdown

Buzzer sound 5times and Red light blink 5times every 8sec.

Short Circuit/Overload Shutdown

Red light blink constantly

Accessories

2x Positive & 2x Negative Terminal to Terminal Connection Cable

1x Instruction/Specification Booklet

20x Replaceable fuse

Applications

Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.
