19 2 BD, 19 2 BE clicking profile knife

Product Overview

Description

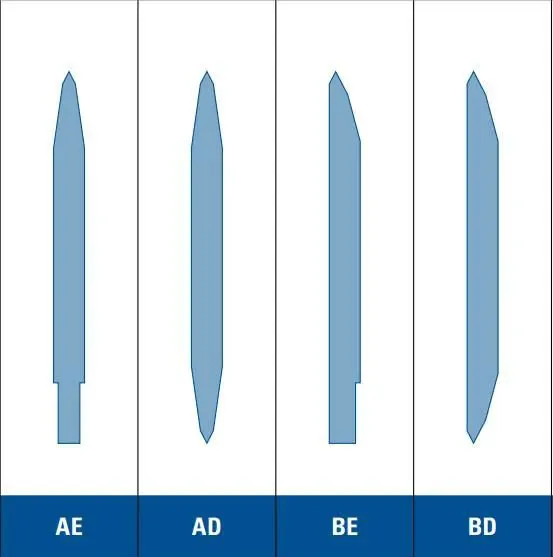

♦ Specification

AE	AD	BE	BD	TE
19×2.0	19×2.0	19×2.0	19×2.0	-----
19×2.5	-----	19×2.5	19×2.5	-----
32×2.0	-----	32×2.0	32×2.0	32×2.0
-----	-----	-----	-----	-----
32×2.5	-----	32×2.5	-----	32×2.5
-----	-----	32×3.0	-----	32×3.0
-----	-----	50×2.5	-----	50×2.5



BE is the basic type profile for cutting single-layer leather or the similair materials.



BD (double edge profile) for lether cutting







♦ Hardness

Thickness	Body Hardness	Edge Hardness
2.0mm	HRC 38	HRC 50~51
2.2mm	HRC 35	HRC 50~51
2.5mm	HRC 35	HRC 50~51
3.0mm	HRC 34	HRC 50~51





♦ Bending angle

Thickness	2.0mm	2.2mm	2.5mm	3.0mm
Bending angle	120o	100o	100o	100o





♦ Packing

Thickness	2.0mm	2.2mm	2.5mm	3.0mm
Packing	80m/coils	80m/coils	75m/coils	60m/coils





♦ Application

 Usually used in shoes making, leather, artificial leather, textiles, rubber, plastics, fabrics and ect.





♦ Fast Delivery

Good goods is always in great demands, a very big export for it every month. Enough stock will give you the strong supports on delivery, you will get the goods quickly to start the sale earilier!

Usually about 7~10 days goods will be prepared well can deliver to sea port.





♦ Cutting Profile

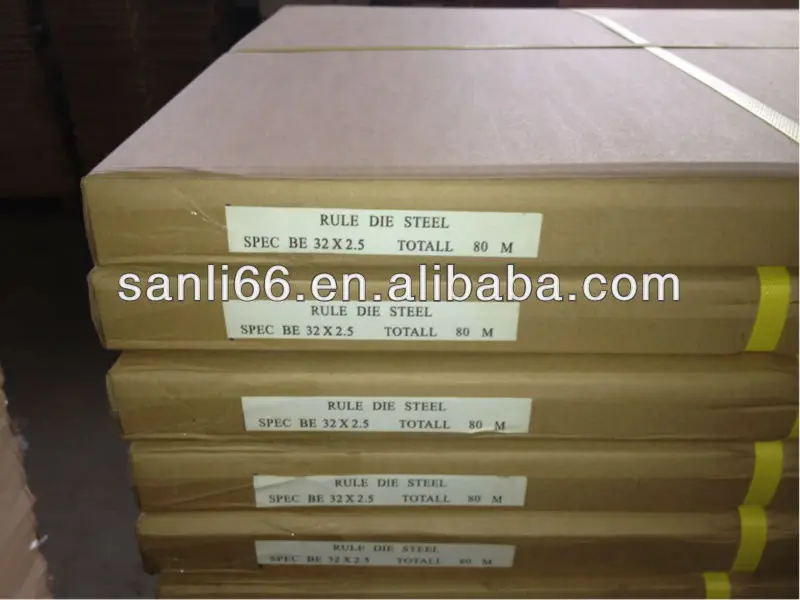

                                              BE 32 X 2.5MM,  80M/coil
