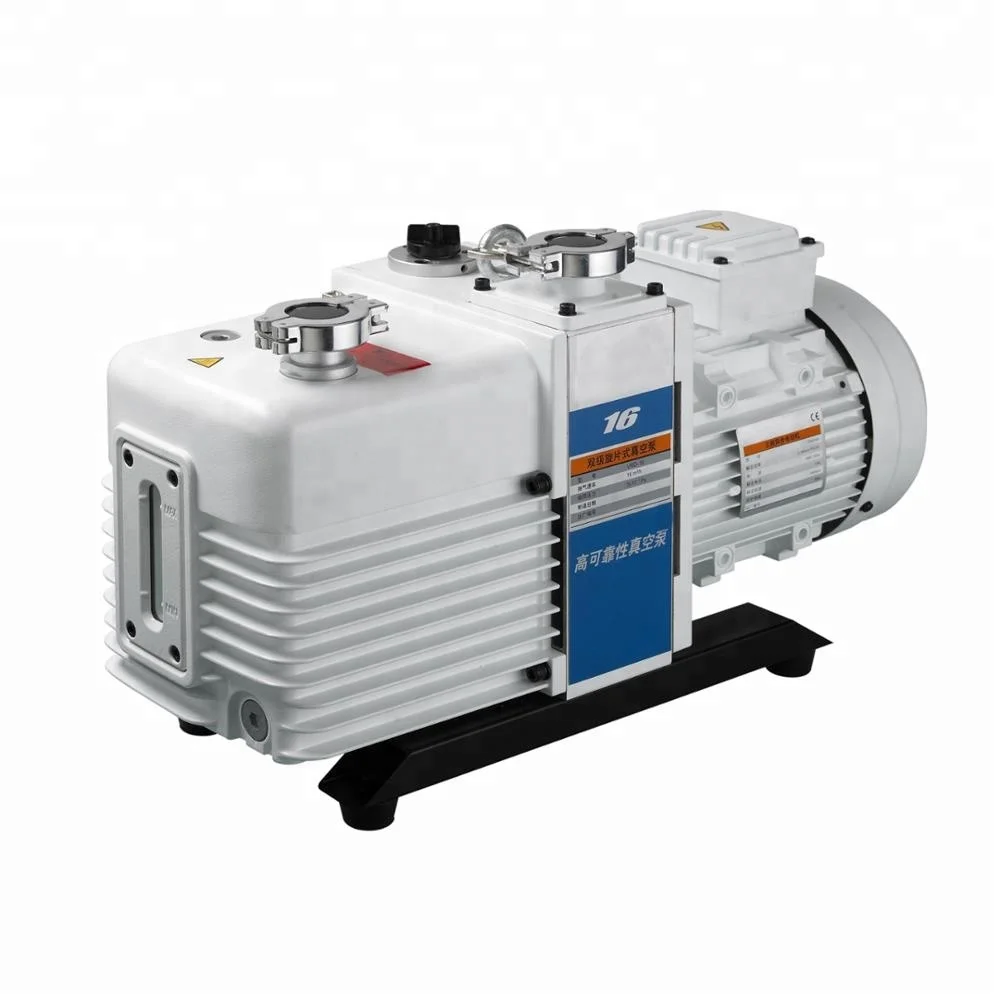

NADE VRD 16 2 stage Rotary Vane Oil Vacuum Pump
- Category: >>>
- Supplier: Zhejiang Nade Scientific Instrument Co. Ltd.
Share on (735163086):
Product Overview
Description
We have different volume of VRD series vacuum pump, pls click here for more information.
Usages:
VRD series vacuum pump are designed and manufactured to meet the requirements of various scientific and industrial applications such as analytic instruments, laboratories and product line for refrigeration, electronics, light, semiconductor, etc.
1. Semiconductor industry
2. Scientific instruments
3. Mechanical equipments
4. Chemical industry
5. Vacuum metallurgy
6. Medical instrument
7. Vacuum packaging

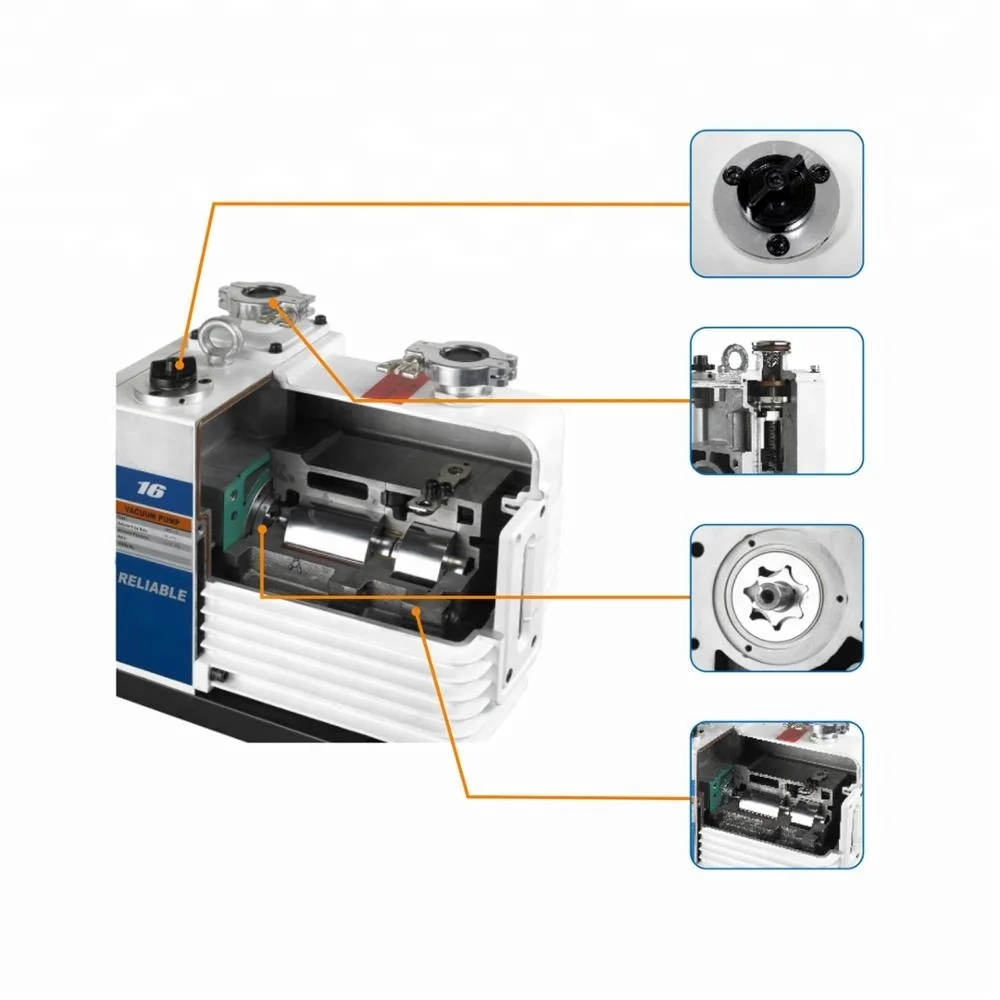

Features:
- Adjustable gas ballast design
- Automatic anti-suck back valve
- Internal forced oil cycling system
- Integrated cylinder structure
How is the performance of VRD ?
1. Automatic anti-suck back valve, protect your system from oil and oil steam when power suddenly goes off.
2. Internal forced oil cycling system, fully lubricates the pump and make the lifetime longer and vacuum better.
3. Adjustable gas ballast for different needs of steam emission.
4. High reliable integrated cylinder structure, suits production lines better.
5. Different voltage types for different countries and regions.
Specifications:
Model | Technical Name | Parameters | ||
VRD-16 | Displacement speed | 50Hz | 16 m³/h | |
4.4 L/s | ||||
60Hz | 19.2 m³/h | |||
5.2 L/s | ||||
Ultimate vacuum (Pa) | Without gas ballast | Partial Pressure | 4x10-2 | |
Total pressure | 4x10-1 | |||
with gas ballast | Total pressure | 8x10-1 | ||
Power supply | single/3-ph | |||
Motor power | 0.75 KW/0.55 KW(single/3-ph) | |||
Inlet and outlet port DN(mm) | KF25 | |||
Oil capacity | 0.9-1.5 L | |||
Motor speed | 50Hz | 1440 rpm | ||
60Hz | 1720 rpm | |||
Ambient temperature | 5-40°C | |||
Noise level(dB) | ≤58 | |||
Weight | 30kg | |||
Our Services
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.
Packaging & Shipping
Our Packaging Details:
Our Shipping
Company Information
FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
