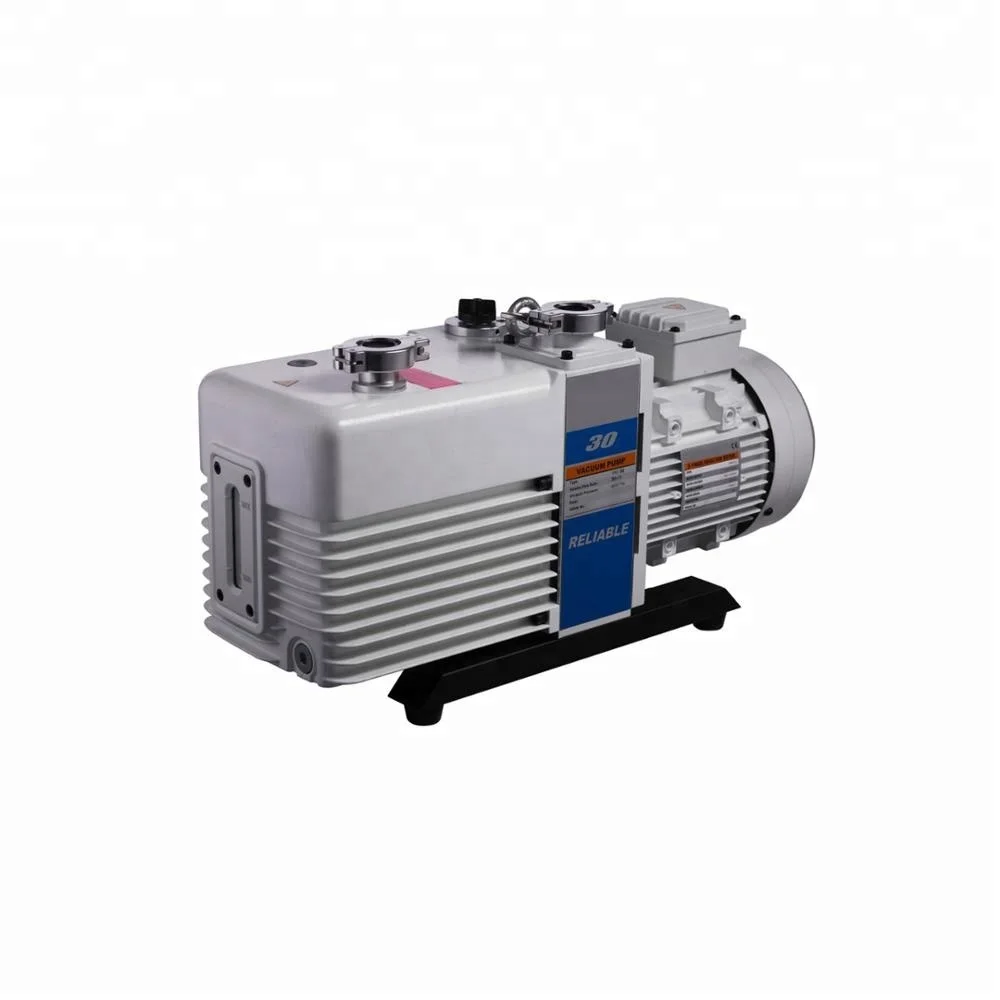

NADE VRD 48 Rotary Vane Oil Vacuum Pump

Product Overview

Description



1. Semiconductor industry

2. Scientific instruments

3. Mechanical equipments

4. Chemical industry

5. Vacuum metallurgy

6. Medical instrument

7. Vacuum packaging

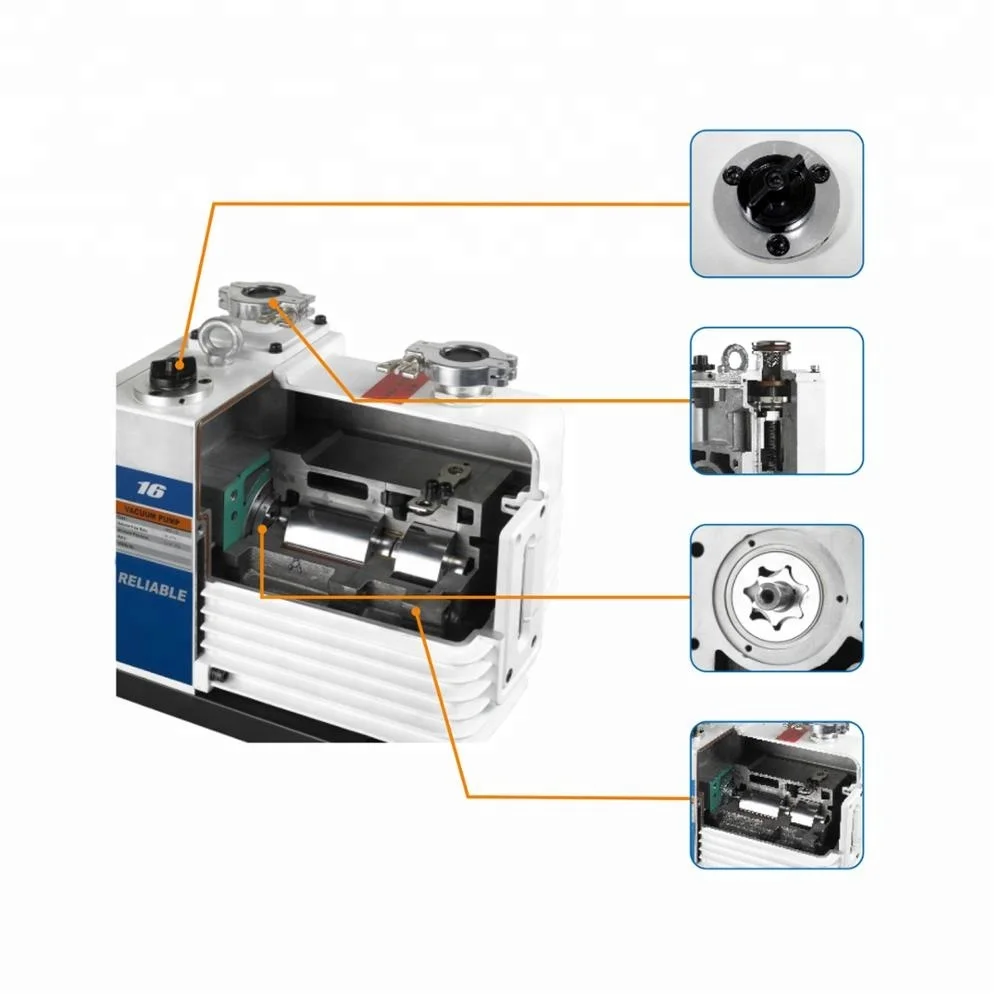

- Automatic anti-suck back valve

- Internal forced oil cycling system

- Integrated cylinder structure





How is the performance of VRD ?



1. Automatic anti-suck back valve, protect your system from oil and oil steam when power suddenly goes off.



2. Internal forced oil cycling system, fully lubricates the pump and make the lifetime longer and vacuum better.



3. Adjustable gas ballast for different needs of steam emission.



4. High reliable integrated cylinder structure, suits production lines better.



5. Different voltage types for different countries and regions.



6. CE Certificated.







Model	Technical Name			Parameters
VRD-48	Displacement speed		50Hz	48 m³/h
				13.3 L/s
			60Hz	57.6 m³/h
				16 L/s
	Ultimate vacuum	Without gas ballast	Partial Pressure	4x10-2
			Total pressure	4x10-1
		with gas ballast	Total pressure	8x10-1
	Power supply			3-ph
	Motor power			1.5 KW
	Inlet and outlet port DN(mm)			KF40
	Oil capacity			3.3-4.5 L
	Motor speed		50Hz	1440 rpm
			60Hz	1720 rpm
	Ambient temperature			5-40°C
	Noise level(dB)			≤62
	Weight			62kg
