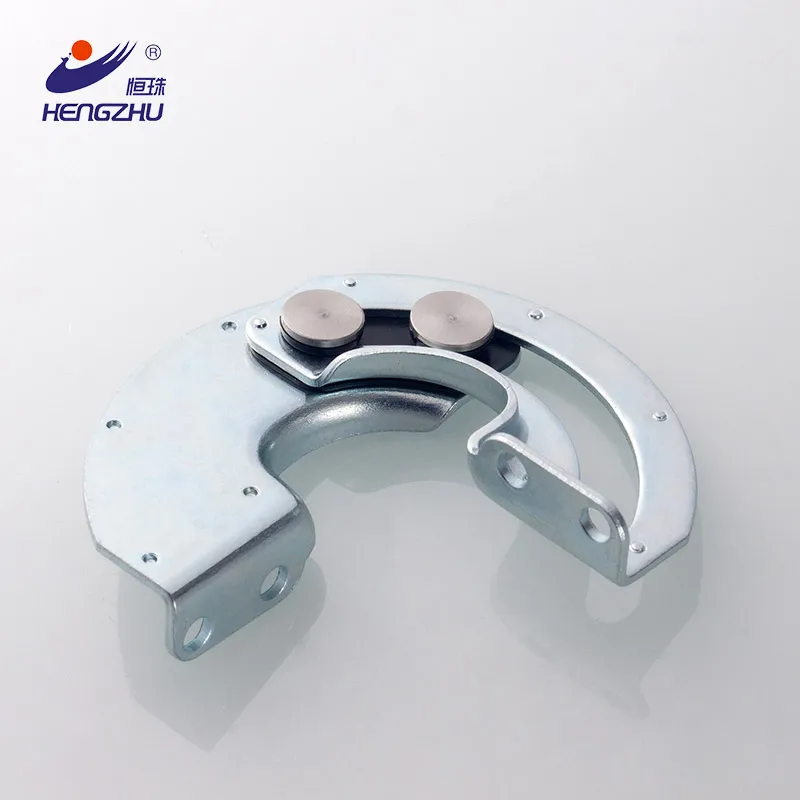

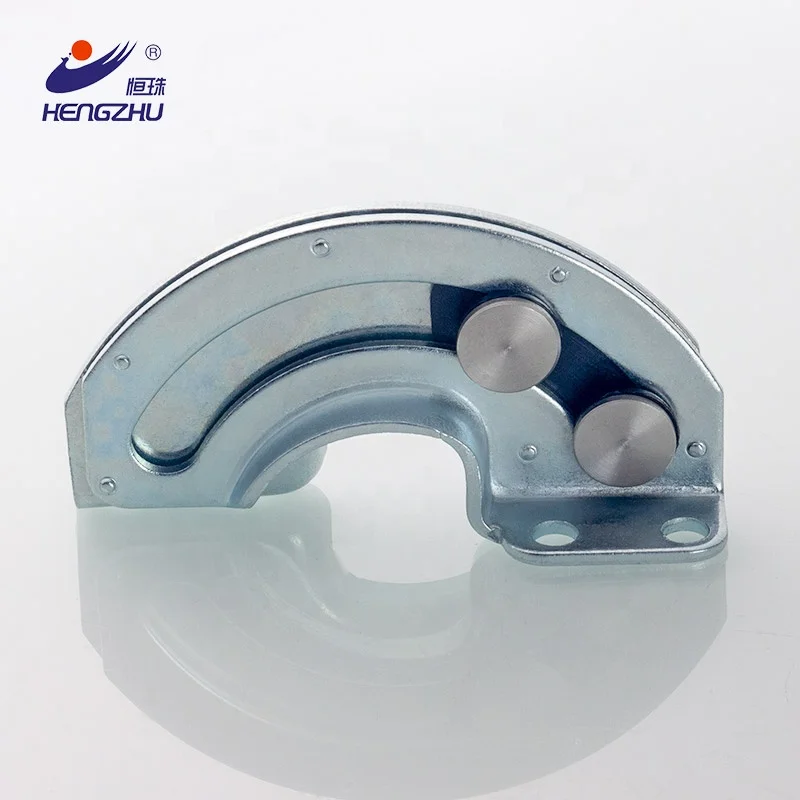

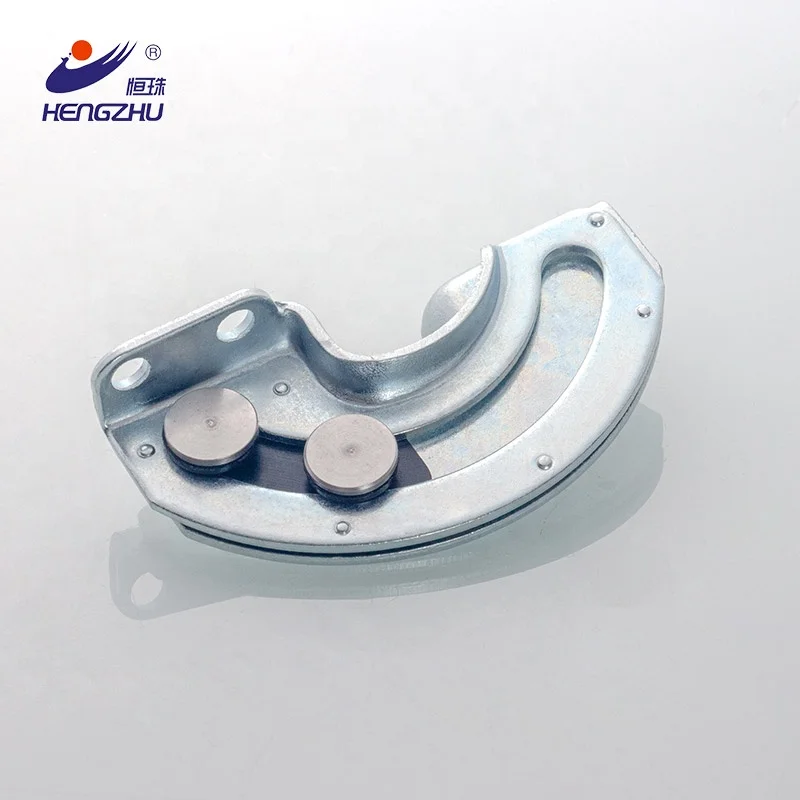

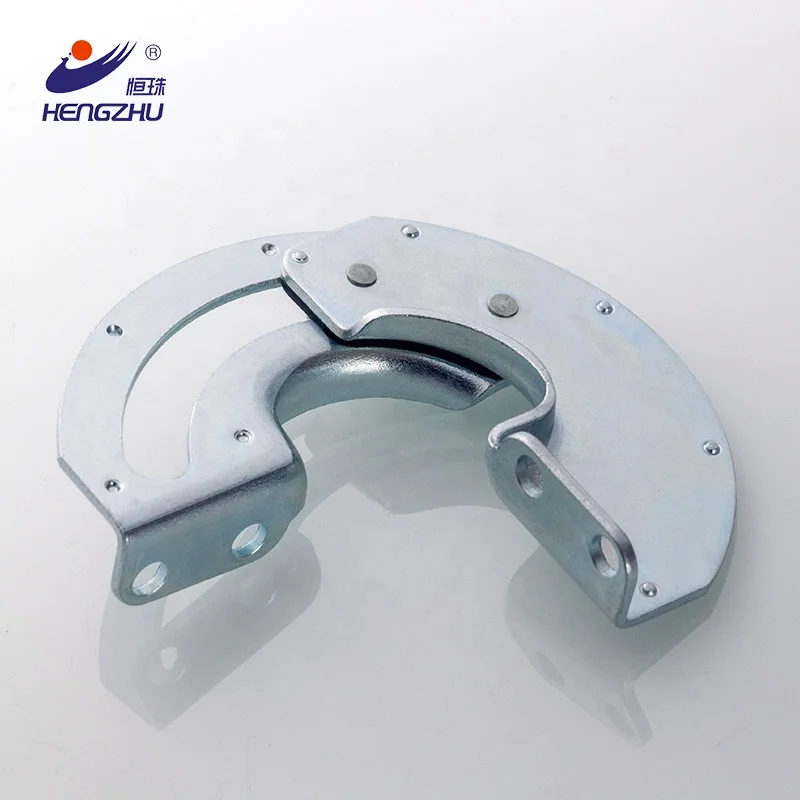

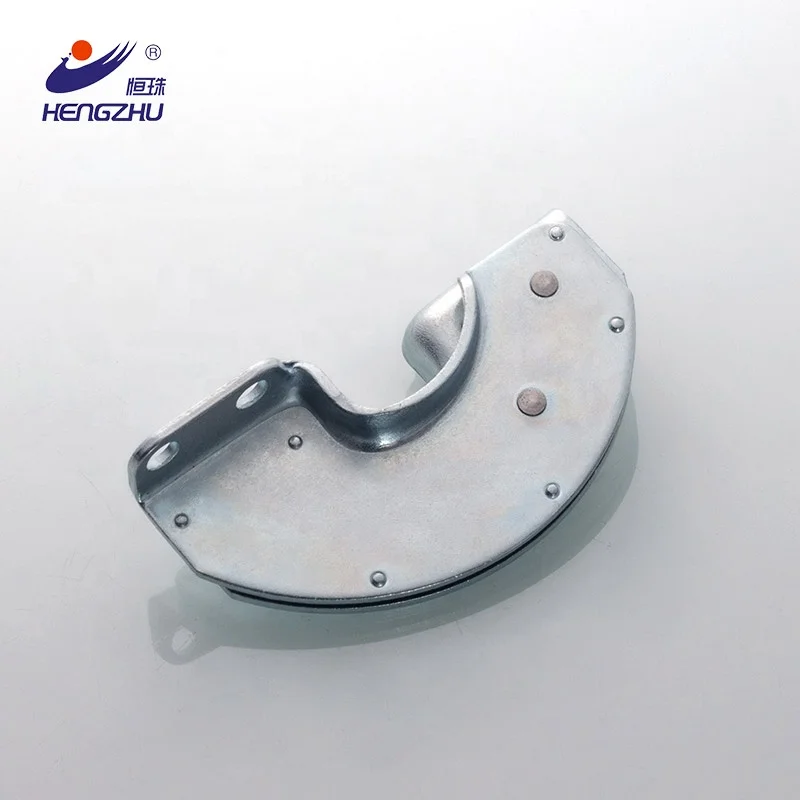

Hengzhu industrial cabinet hinge HL119 conceal door furniture hinges
Product Description

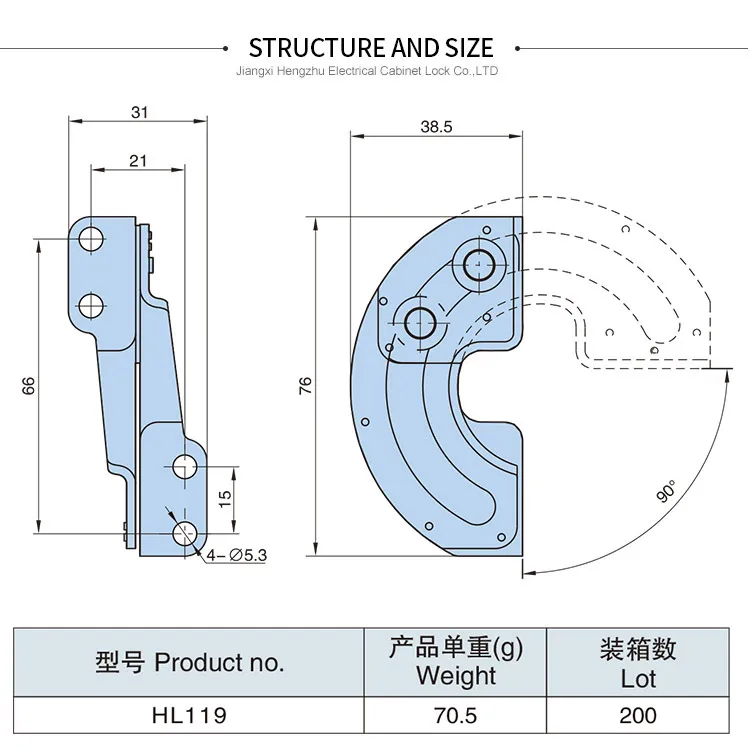

Product model
HL119
Certification
ISO9001,ISO14001,OHSAS18001
Material
A3
Finish
white zinc plating
Performance
The maximum radial static load:625N The average radial limit load:420N The maximum axial static load:205N The average axial limit load:204N Maximum holding torque:18.2N.m
Usage
Railway, machinery and equipment, industrial,electrical appliances
1.Q:Are you a factory or trading company? How can I visit your factory?
A: We are a factory have more than 30 years experience. Our factory is located in Yichun City, Jiangxi Province, China. You can come to our factory by High-Speed train or by airplane and get off on Yichun Station, our driver will pick you up there.
2.Q:Are you able to produce custom parts?
A:Yes, We have professional R &D team to support custom design products, We will also use 3D printer to make the prototype quickly.
3.Q:What kinds of test report you could offer for us?
A:We have our own testing lab to do varieties of tests: Salt spray test report, tensile test report, waterproof test report, torque force test, life cycle, material certificate, etc.
4.Q:Could I see 3D-effect of the lock?
A:Yes, 3D model drawing & CAD drawing are available upon request.
5.Q:How does your factory do regarding quality control?
A:Quality is First, We always pay attention to quality control from the beginning to the end. Our factory has gained ISO9001 certificate.
