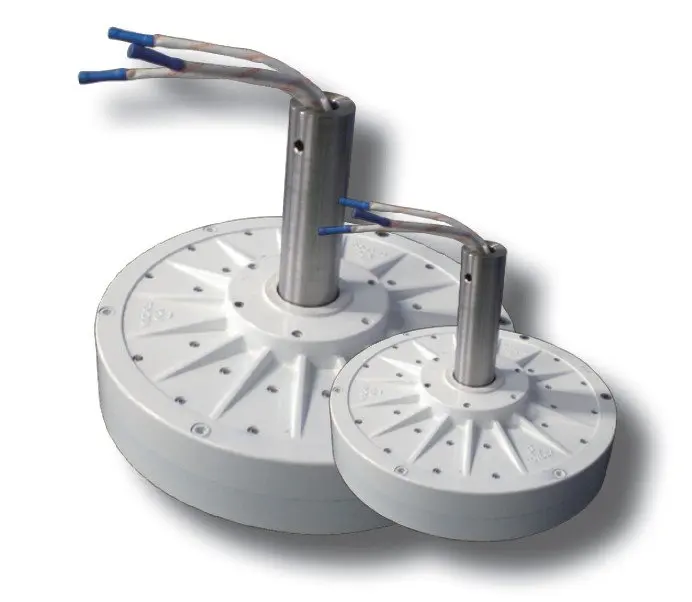

low rpm vertical permanent magnetic wind turbine generator 600w

Product Overview

Description

low rpm vertical permanent magnetic wind turbine generator 600w
1. Size: 0.3kw-10kw
2. Liftime: >20 years







TOYODA is now the world leading manufacturer for the small scale wind turbine permanent manget generators. We offer top quality, high performance, low RPM and long lasting permanent magnet generators / alternators (PMG/PMA) for vertical wind turbines. These come in a wide range of powers from 0.3kw up to 10kw and are design with wind turbines in mind but can also be adapted for small wind-solar hyubrid schemes as well.

Some Details of the Product:



Model	TYD-250	TYD-350A	TYD-350B	TYD-450B	TYD-600
Internal structure	Axial type;outer rotor; iron-coreless; three-phrase AC	Axial type;outer rotor; iron-coreless; three-phrase AC	Axial type;outer rotor; iron-coreless; three-phrase AC	Axial type;outer rotor; iron-coreless; three-phrase AC	Axial type;outer rotor; iron-coreless; three-phrase AC
dimension	250mm*85mm	350mm*107mm	350mm*117mm	450mm*148mm	600mm*188mm
magnetic material	rare-earth magnet	rare-earth magnet	rare-earth magnet	rare-earth magnet	rare-earth magnet
Rated PowerW)	300	1000	2000	5000	10k
Rated current(A)	8	13	14	17	34
