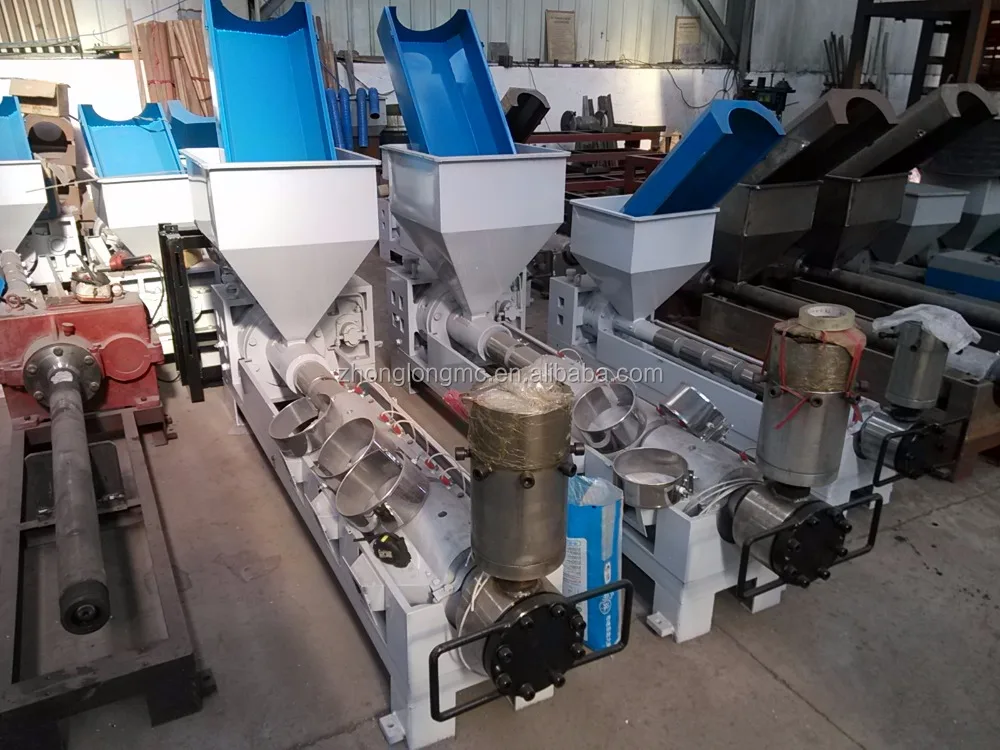

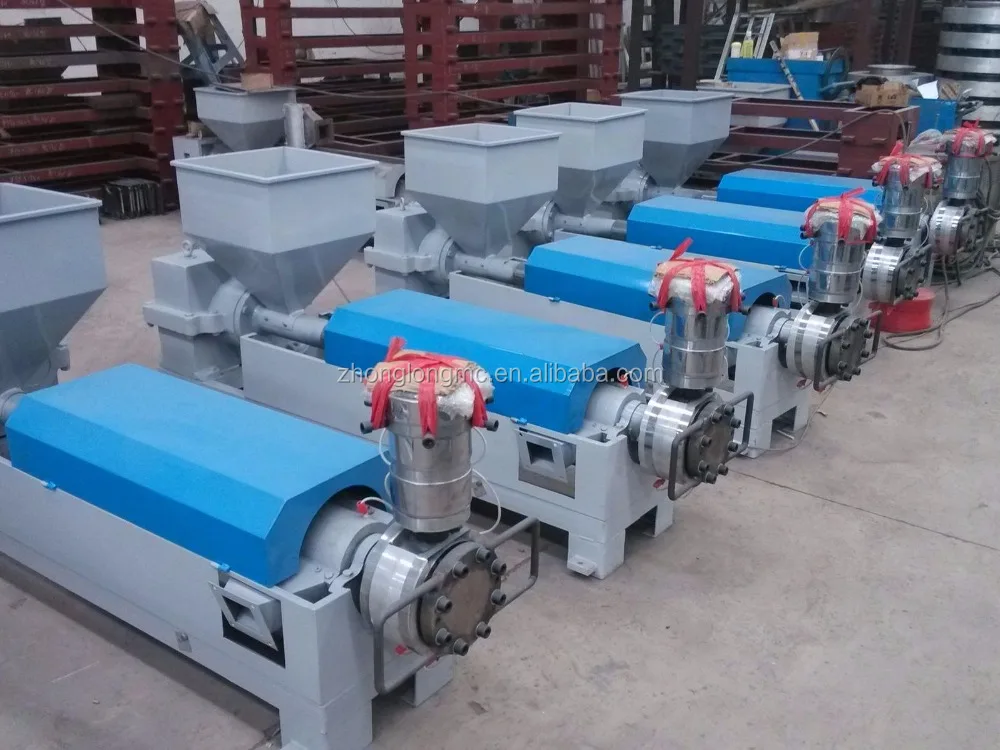

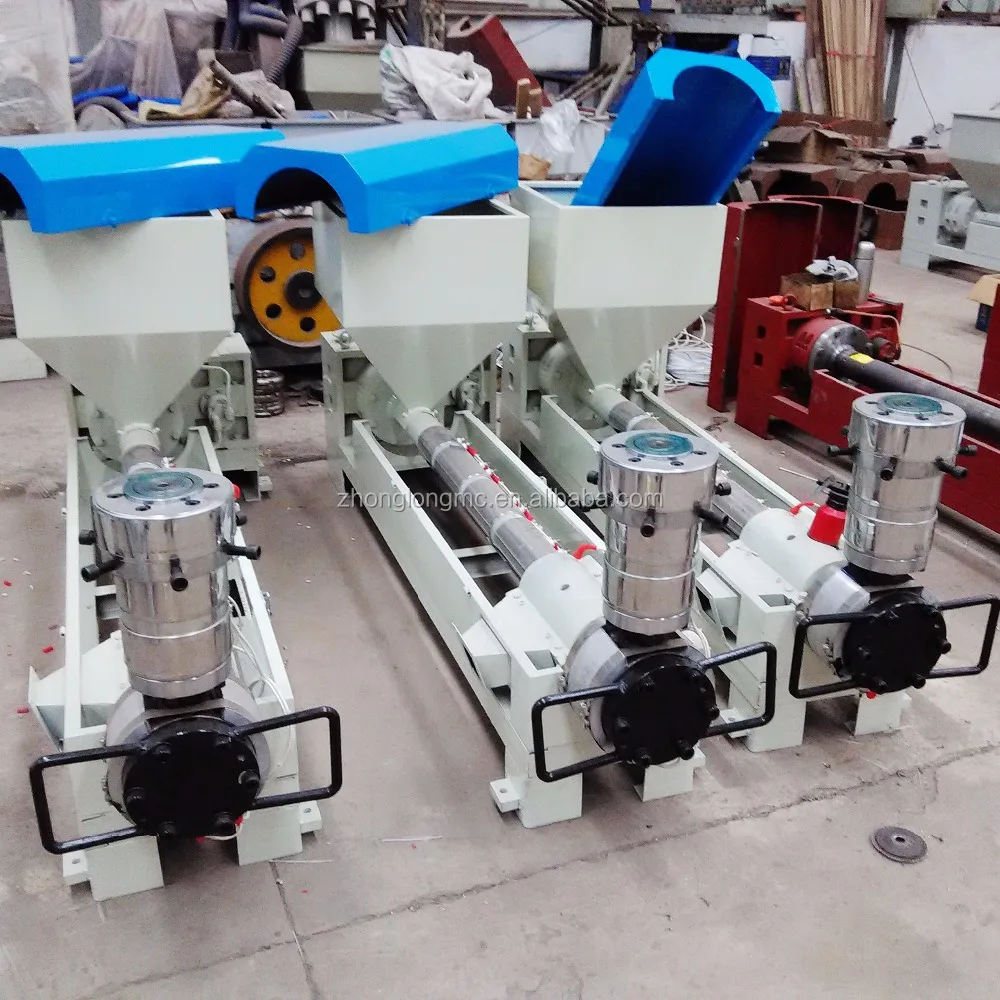

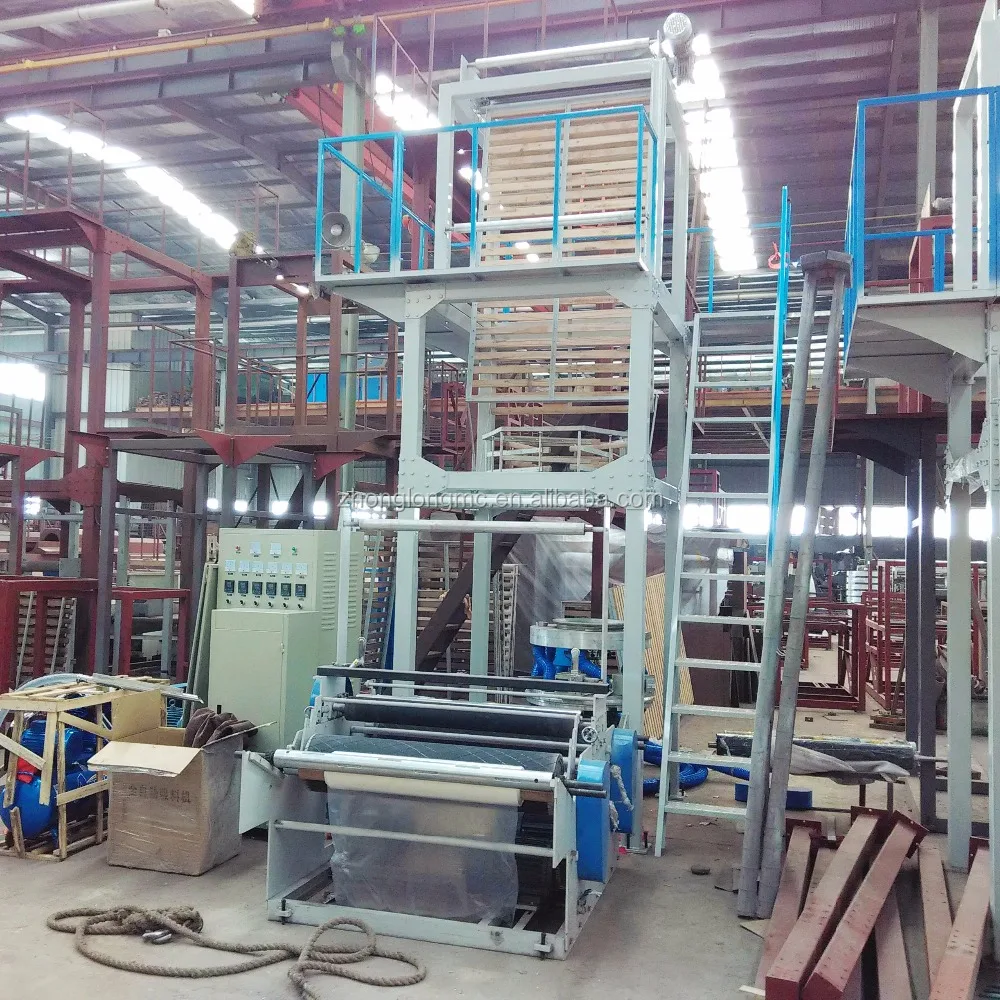

SJ 35 45 50 55 60 65 75 80 100 PE film blowing machine

Product Overview

Description

PE plastic film blowing machine, film machine, PE film extruder, HDPE LDPE LLDPE film blowing machine



USAGE

It is the plastic film blowing machine for blowing PE (polyethylene) film; Like LDPE, HDPE, LLDPE film etc.

PE film is widely used for packing liquid, industrial products, garments and textile; for making plastic bags, like T-shirt bag, flat bags, garbage bags etc.



CHARACTERISTIC
1. Frequency inverters control main motor and traction motor.
2. Material of screw and barrel: 38CrMoAl-A after nitrogen treatment, Supplied from Zhoushan city.
3. Gear box: HARD teeth gear surface, casting alloy piston, high precise grinding.
4. Die material: mold steel high hardness material, hard chrome- plating, mirror surface channel.
5. Double digital display automatic temperature controller
6. Machine passed CE certification, and our factory passed ISO certification, quality guaranteed.
7. For more machine functions, we have rotary die head, double stations rewinder, corona treatment, auto feeding, and auto.film roll changer rewinder for option. Etc.



Paramters

Model	SJ-50	SJ-55	SJ-60	SJ-65	SJ-75	SJ-100
Width of film	600mm	800mm	1000mm	1200mm	1500mm	2000mm
Output	35kg	35-50kg	55-65kg	55-70kg	70-80kg	200-220kg
Motor power	11kw	15kw	18.5kw	22kw	30kw	55kw
Screw Diameter	50mm	55mm	60mm	65mm	75mm	100mm
L/D ratio of screw	28:1	28:1	28:1	28:1	28:1	28:1
Speed of screw	10-100r/min	10-100r/min	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Film thickness	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Specification of die head	60-120mm	100-170mm	100-170mm	120-220mm	150-300mm	500mm
Weight of machine	2000kg	2500kg	3200kg	4000kg	6000kg	7500kg
Overall Dimensions[L*W*H]	4.5*1.8*3.5m	5.5*2.0*3.8m	6.0*2.2*4.2m	6.0*2.4*4.3m	7.0*2.7*5.8m	8.0*3.2*8.2m
