Feelworld Hot Sell BMPCC 3.5" LCD EVF HDMI Electronic Viewfinder for HDV Camera
- Category: Viewfinders >>>
- Supplier: Shenzhen Feelworld Technology Co. Ltd.
Share on (736054185):
Product Overview
Description
Feelworld Hot Sell BMPCC 3.5" LCD EVF HDMI Electronic Viewfinder for HDV Camera
Specification
Display Spec.
| Model | E-350 |
| Screen Size | 3.5" |
| Resolution | 800×480 pixels |
| Dot pitch | 0.0315(W)×0.0945(H) mm |
| Aspect Ratio | 15:9 |
| Brightness | 315cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input
| 1 X HDMI | HDMI |
Output
| 1 X HDMI | HDMI |
Audio
| Audio Out | Stereo Headphone |
HDMI Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
General
| Input Voltage | DC6~14V |
| Power Consumption | ≤3W |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~65°C |
| Install Way | 1/4"-20 Thread Socket |
| Unit Size | 111.2L×88.3H×117.8D mm |
| Unit Weight | 400g |
Product Description

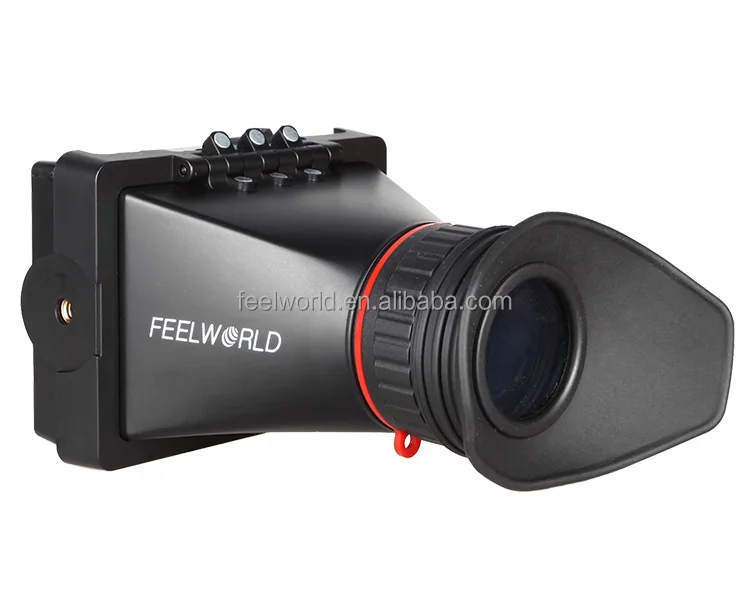

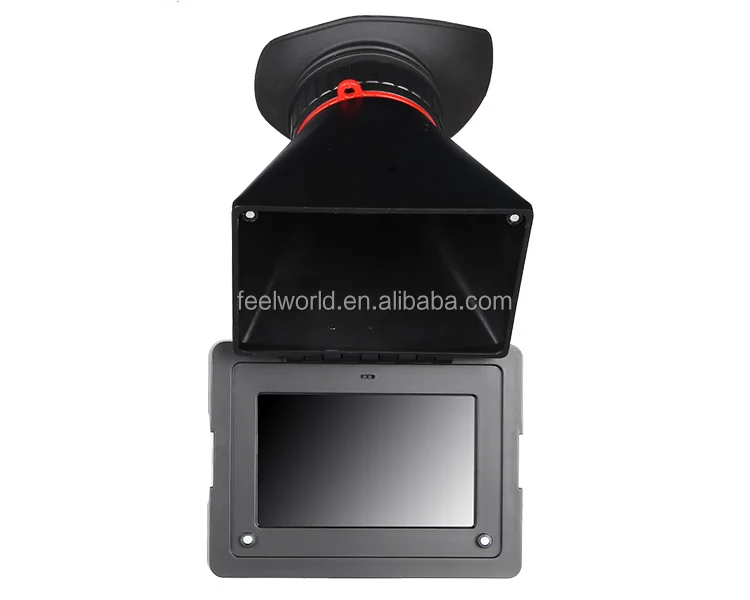

E-350

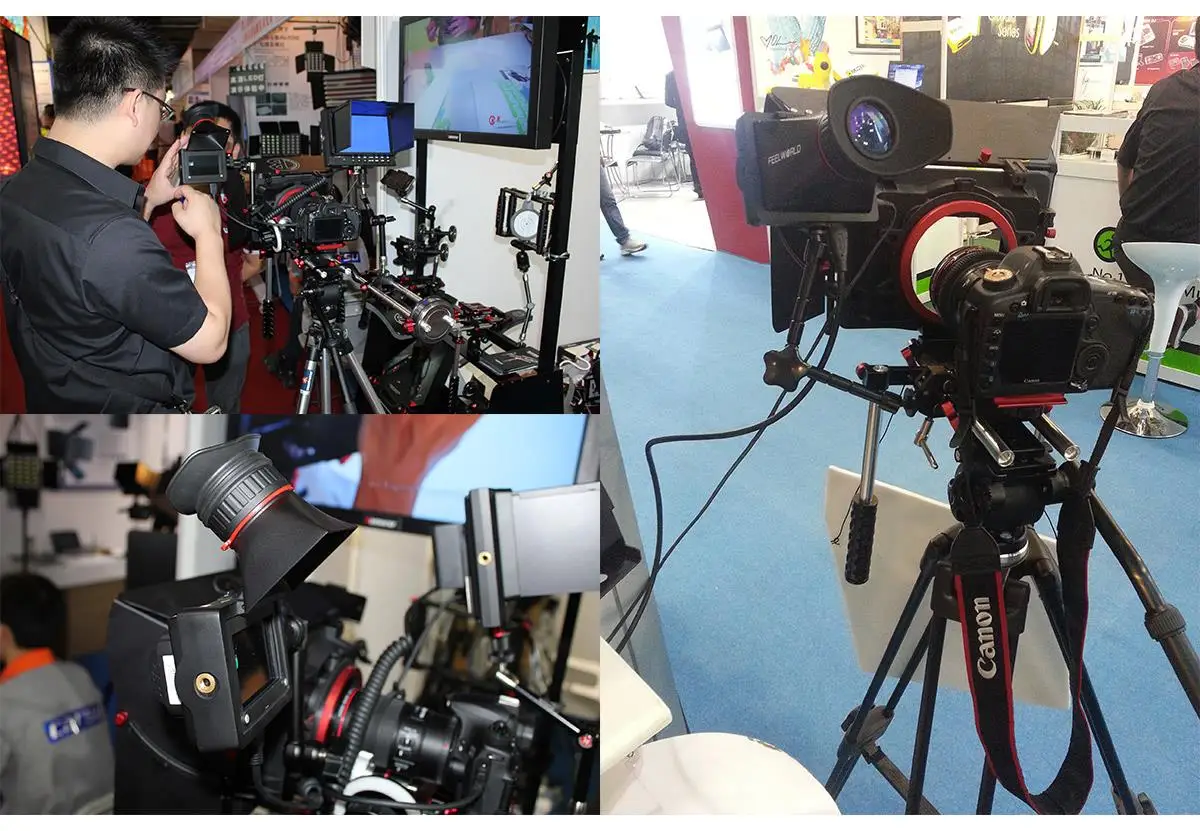

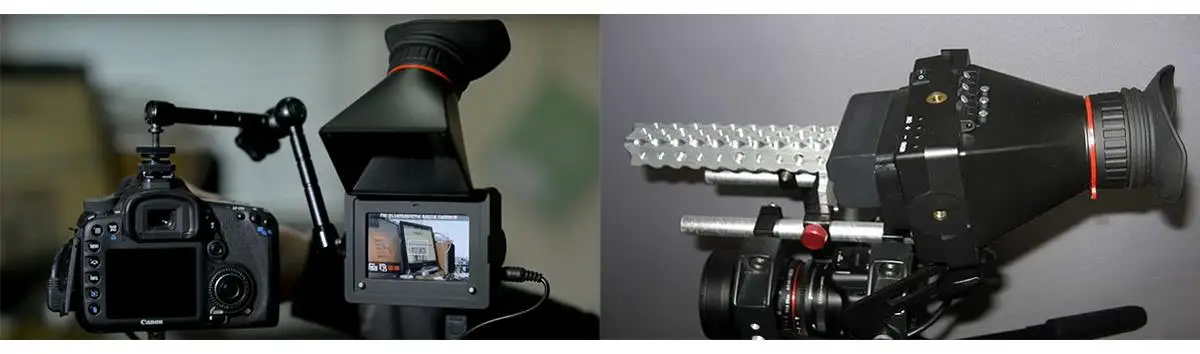

Using the EVF Flip-Up, you can operate any camera that has an HDMI port, with the correct form factor for vedio with the camera "in-line" to the rod systerm and your eye in the Z-Finder offset. In addition to enhance the stability for better resolution, the EVF Flip-Up allows for a comfortable eye position that enables low-mode shooting. You can shorten your camera package, detach your EVF from the rig, and store it in a dolly or crane for car shots.

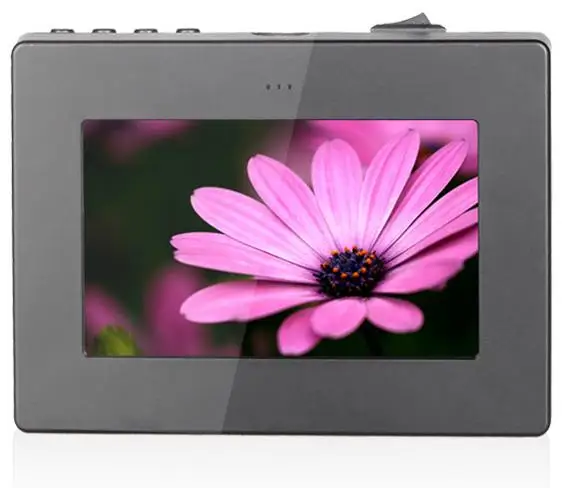

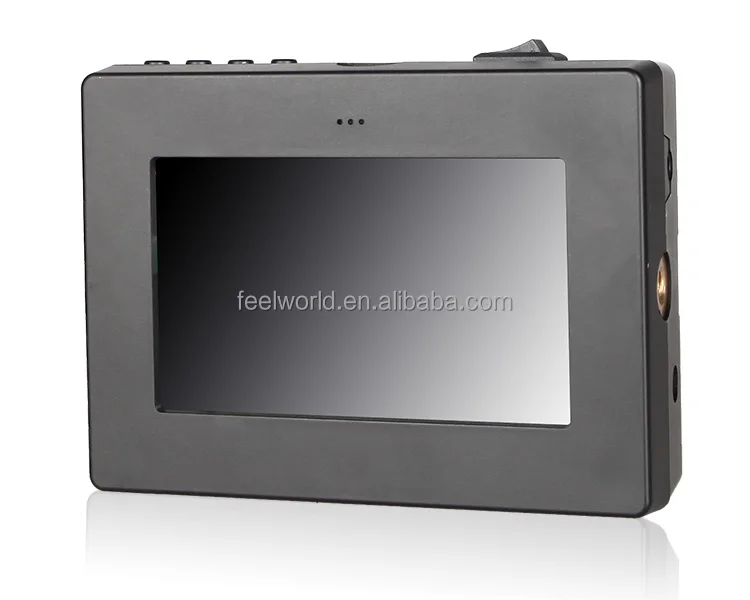

3.5" HD LCD Display
The FEELWORLD EVF350's high resolution display provides excellent picture quality and color reproduction for exact video monitoring.

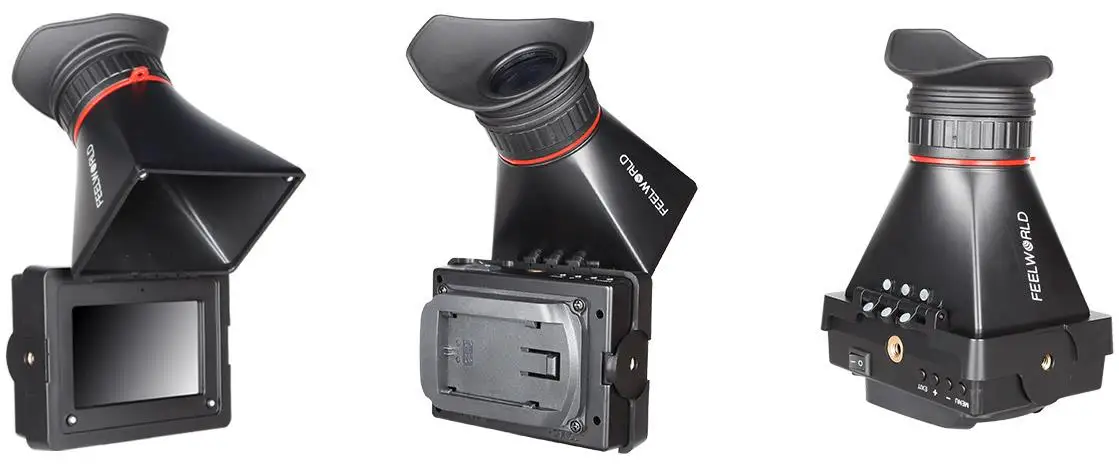

Detail Display

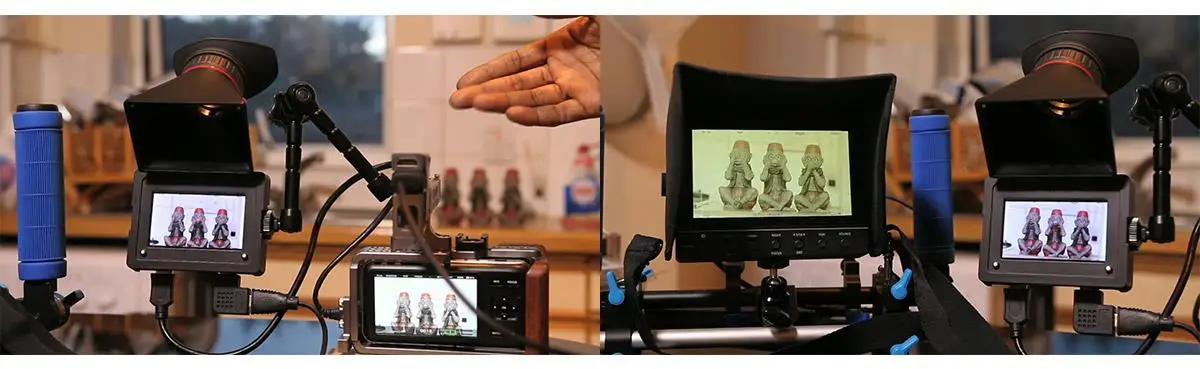

Daisy-Chain Live Displays

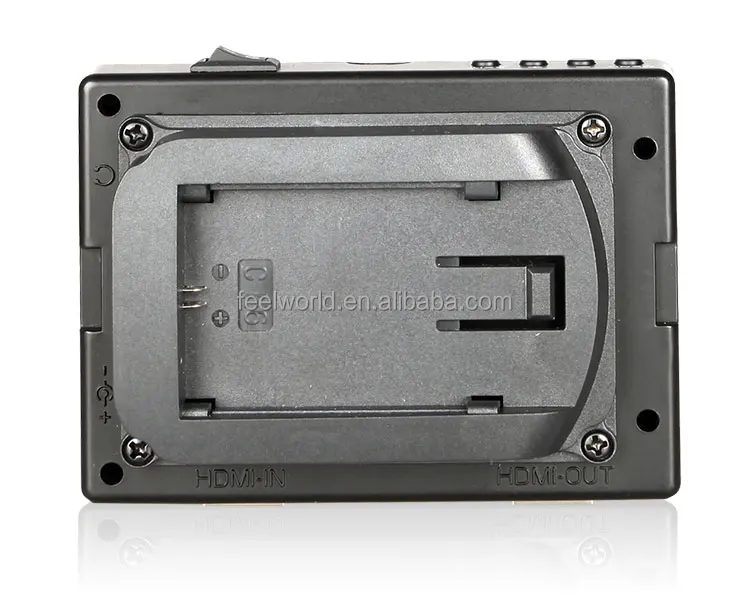

E-350 has both HDMI in and out plug-ins, allowing it not only display live signals, but also send them out to other monitors simultaneously. It’s able to display live picture on multiple displays at once while still maintain the original video quality.
Features
1. Wide view angle, HD, bright, colorful display
2. HDMI input and loop-through output
3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Custom Color Temperature
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Custom Color Temperature
4. Monitoring via 3.5mm stereo headphone jack

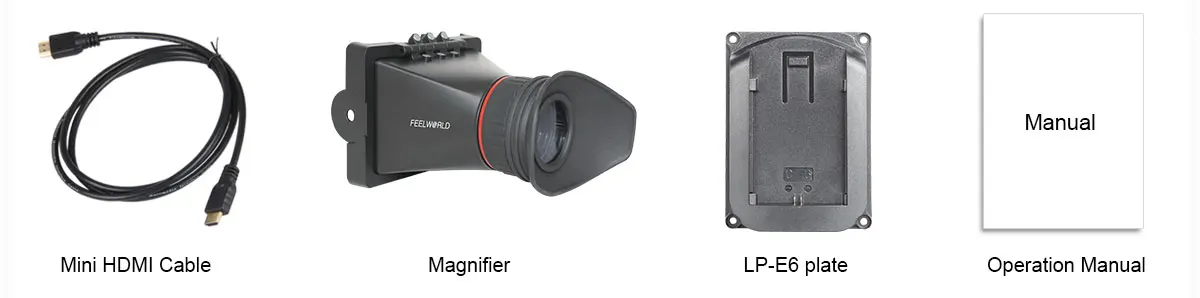

Accessories
