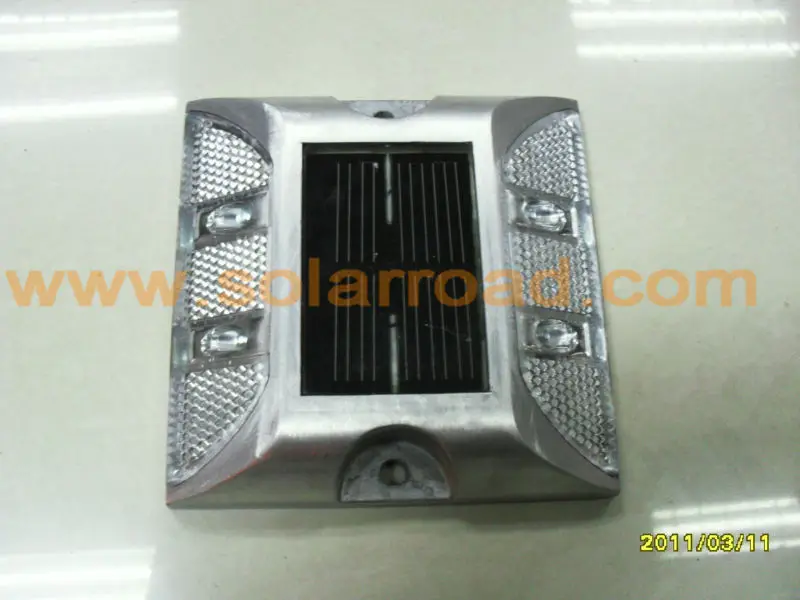

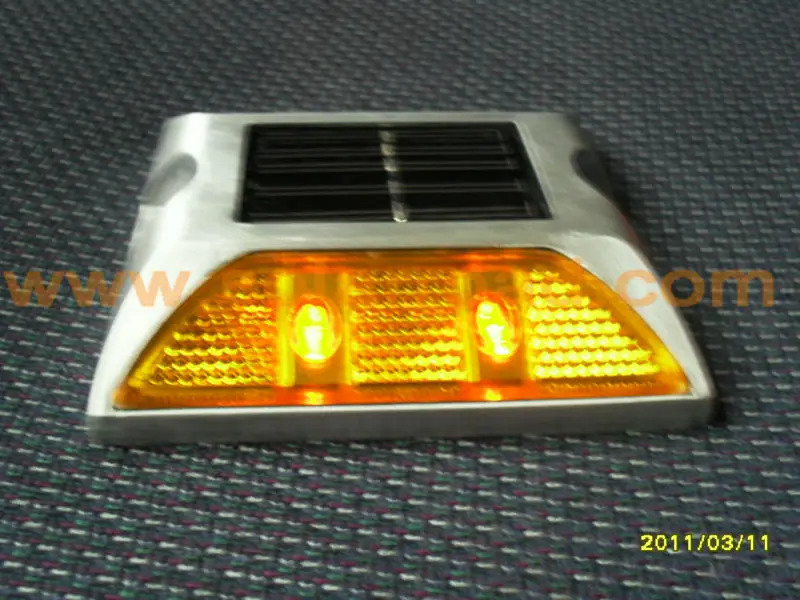

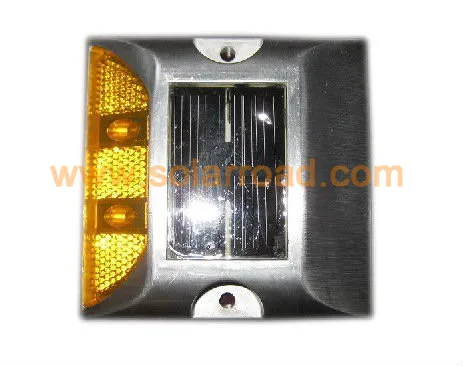

Die Cast Aluminum Solar LED Road Markers

Product Overview

Description

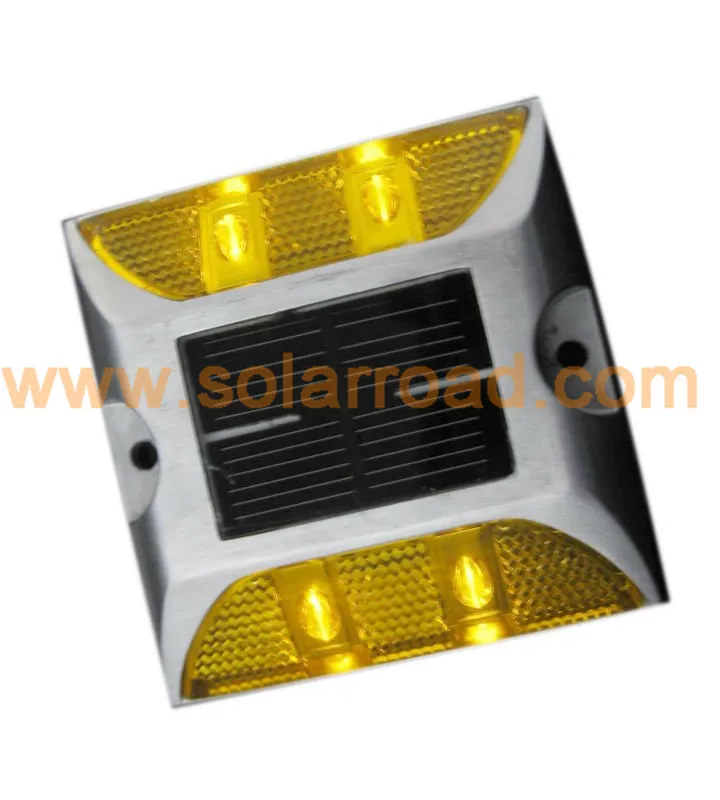

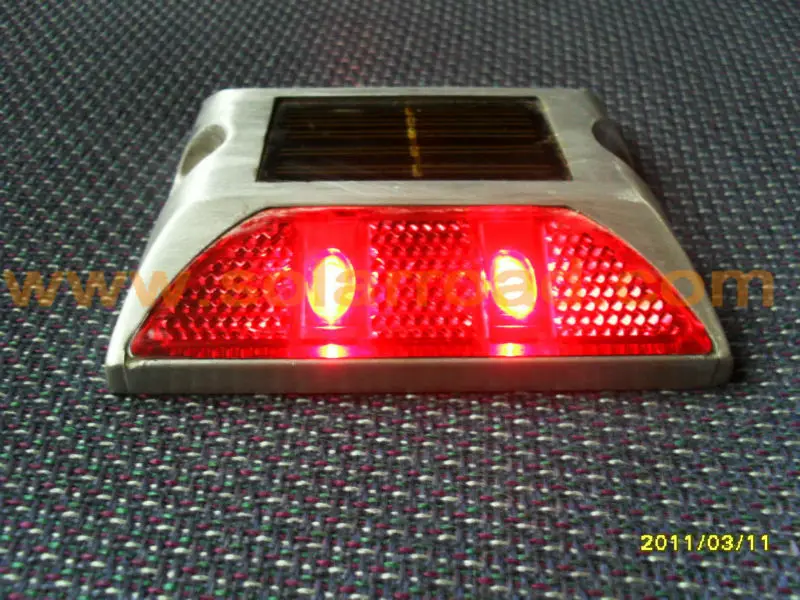

Die Cast Aluminum Solar LED Road Markers



SPECITICATIONS



Dimension:             105*105*22mm

Weight:                    350g

Housing material:         Solar cell&I.C(integrated circuit)

                                    Covered with U.V coated polycabonate(super-intensity)

Out case:                     Aluminum alloy

Reflector:                     Corner cube,Lexan 143

Refector color:         Yellow / Red / White / Blue / Green

LED:                         2 pcs per side

LED color:                Yellow / Red / White / Blue / Green

LED output:              5000 mcd

LED output frequency:    Steady or flashing

LED visibility:             Up to 1000 meters

Activation:                  Photo sensor

Storage device:          NI-MH battery

Capacitor cavity:         1.2V 800mAh

Charge condition:       Sunny day -2hr,/Rainy day-8hr.

Life span:                    Up to 10 years for capacitor type,

                                        5 years for NI-MH battery type

Lighting time:          12-16 hour for steady model after charged fully

Waterproof:             IP68

Operating temperature:      -25 to +80C

Manufacturer’s warranty:    One year

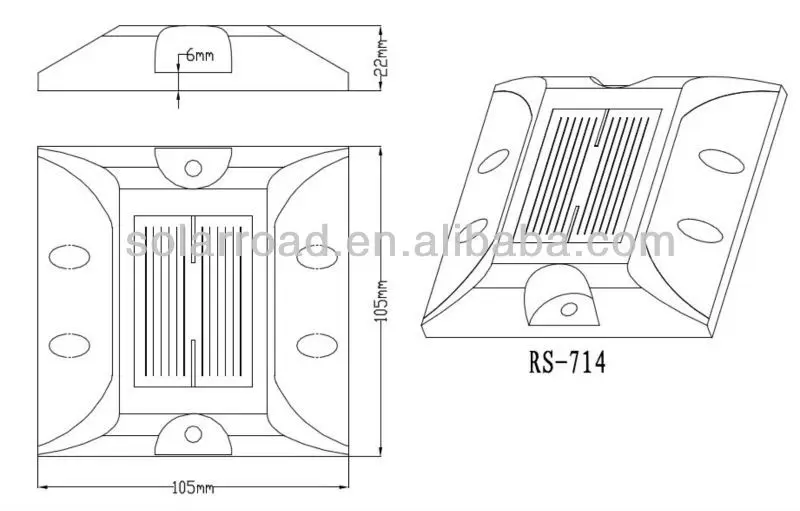

CAD PLAN

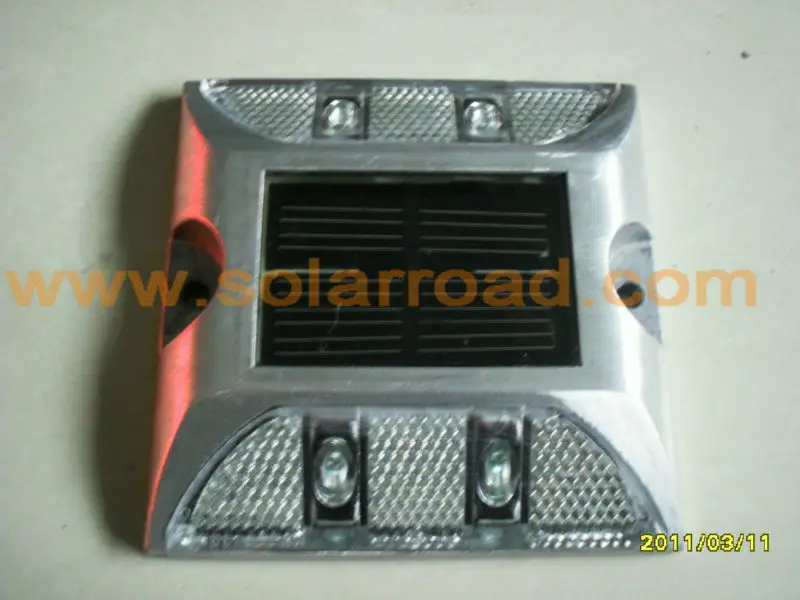

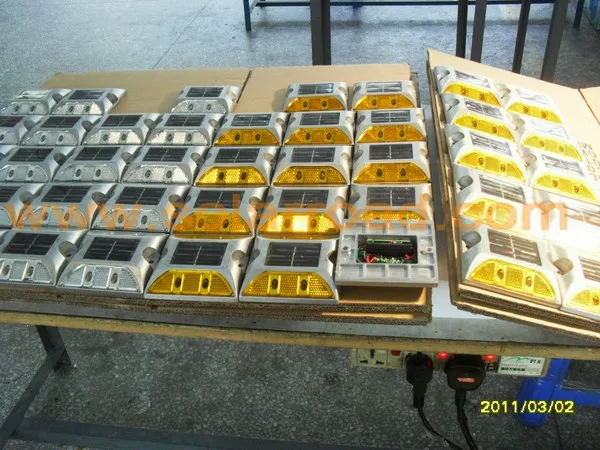

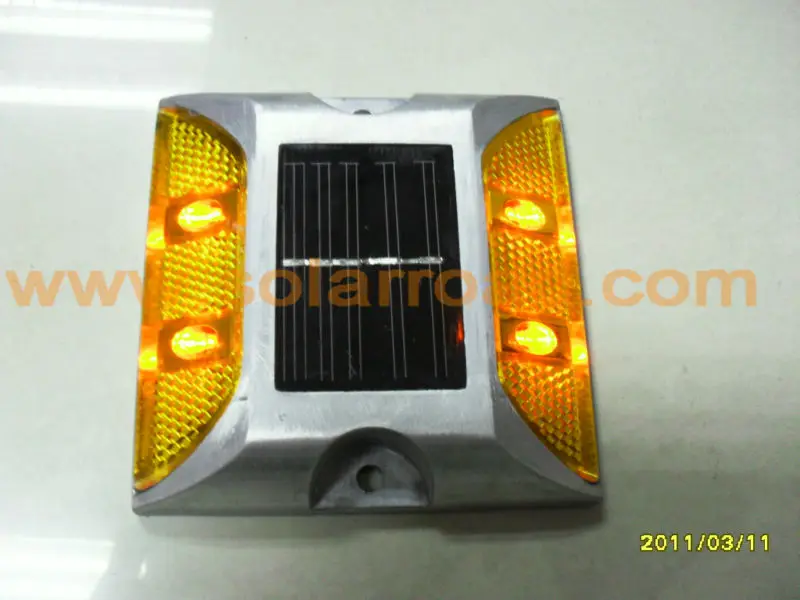

FACTORY PICTURES

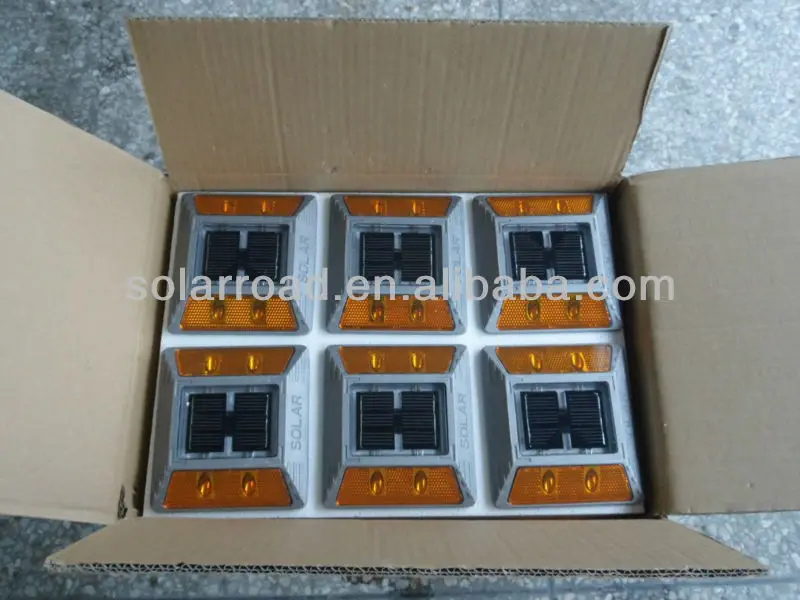

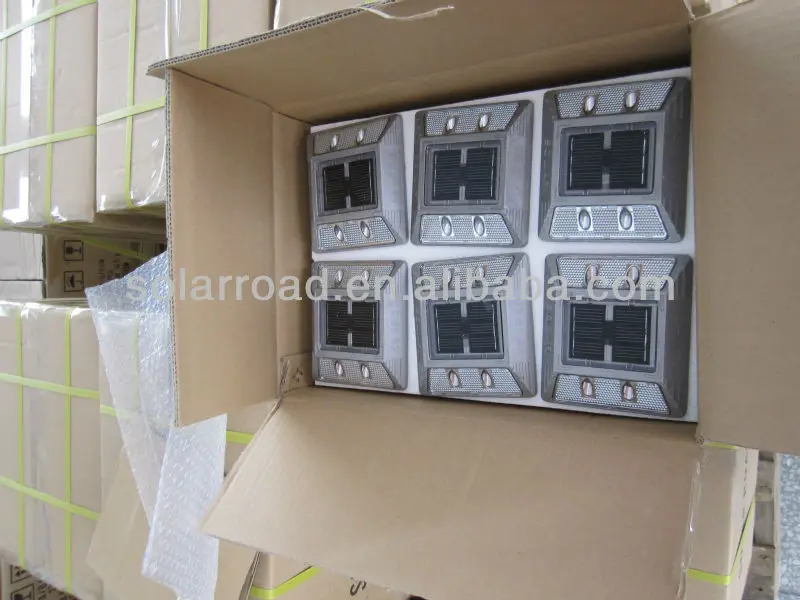

PACKING LIST



G.W.: 18kgs/carton

Carton size: 34*28*28cm

Quantity: 48pcs/carton







FEATURES



Solar powered high intensity LEDs for superior performance in luminosity.

Super strong polycarbonate cover and aluminium shell for impact durability.

Maintenance free design. Automatic on/off light sensor activation.

Simple installation. Same procedure as with existing conventional markers.

Stud-free mounting for off-ground installation, eg. guard rails and barriers.

Operational life time is 3 to 5 times longer than conventional markers.

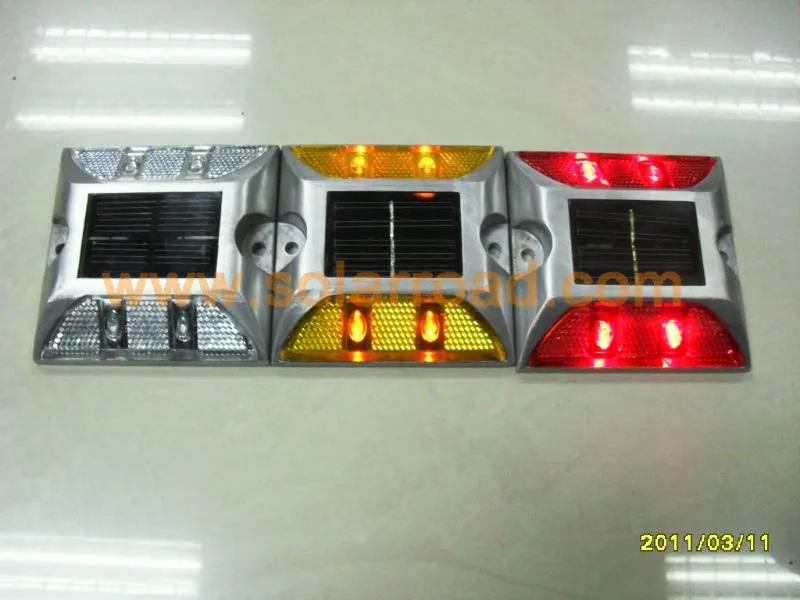

Double sided, single sided, 5 colours, steady or flashing modes.

Easy to install with virtually no maintenance.



APPLICATIONS

Solar powered markers, bricks and other products can and should be used for:

Wet Roads,Foggy Conditions,Dark Rural Country Roads

Dangerous blind corners and sharp-curves, black spots and poorly lit areas...

Areas with whimsical and unpredictable weather conditions (coastal roads, foggy areas, wet and rainy regions, etc.)...

Joint intersections, on and off ramps, center lines and dividers, entrance warnings, carpool lanes, bridges, crosswalks...

Guidance lines, traffic islands, roundabouts, aprons, mountain roads...

Taxiways at airports, bike and pedestrian lanes, aboard ships and watercrafts...

Entertainment areas, parking lots, hotel entrances, gas stations and many more!

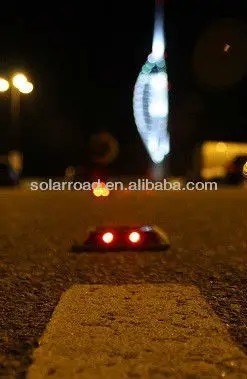

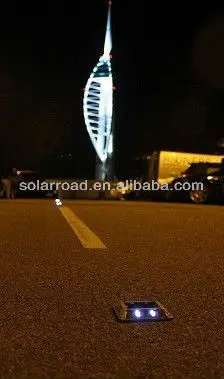

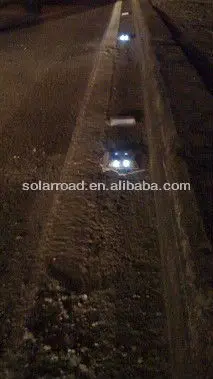

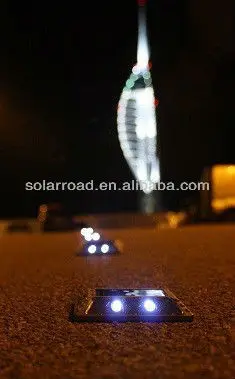

REAL SCENE PICTURES







Postscript: Because of the product revision, part of the picture does not match with the product
