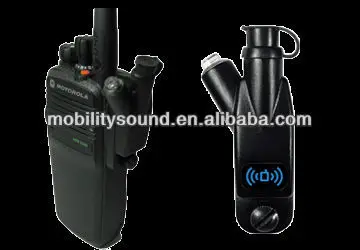

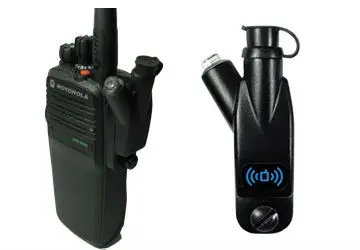

Wireless audio Dongle adapter for MOTOTRBO two way radios

Product Overview

Description

Bluetooth Dongle for MOTOTRBO radio series

supports :APX 7000, XPR6300, XPR6500, XPR6550, XIR8200, MTP850S, MTP850FUG, DP3400, DP3600, DGP4150, DGP61



Applications:
Police, Guard
Fire Fighter
Radio Man
Factory Worker, Restaurant



Low-Power High-Performance

  BlueTooth Dongle for Radio

  The BT-Dongle is a small form factor BT Dongle solution intended for a broad range of Original Equipment
Manufacturer (OEM) products, where fast and easy system integration and minimal development risk is required.
  The BT-Dongle is good quality and sensitivity allows continuous operation in nearly all Bluetooth application
environments. Its high performance and low cost for Bluetooth headset application.
  The dongle is optimized for applications requiring high performance, low power, and low cost; suitable for a wide
range of OEM configurations including every radio models.
  No extra power needed.



Specification
Fully Qualified Bluetooth v2.0+EDR Chip set
Chip Audio Line Input : 350mV rms (max.)
Audio Output : 20 mV rms
Transmitted Power : 1 dBm (typ.)
Receiver Sensitivity : -82 dBm (typ.)
One Key Definition
PTT function built-in
IP54, Power class 2,10 meters
Display : One Color LED
Support HSP, HFP.
DC Input : 5 ~ 10 Vdc (std.)
DC Current : 18 mA (avg.)
DC Current : 50 mA (transient)
