Rubber Stopper Washing Machine CE GMP approved /EU cGMP Standard

Product Overview

Description

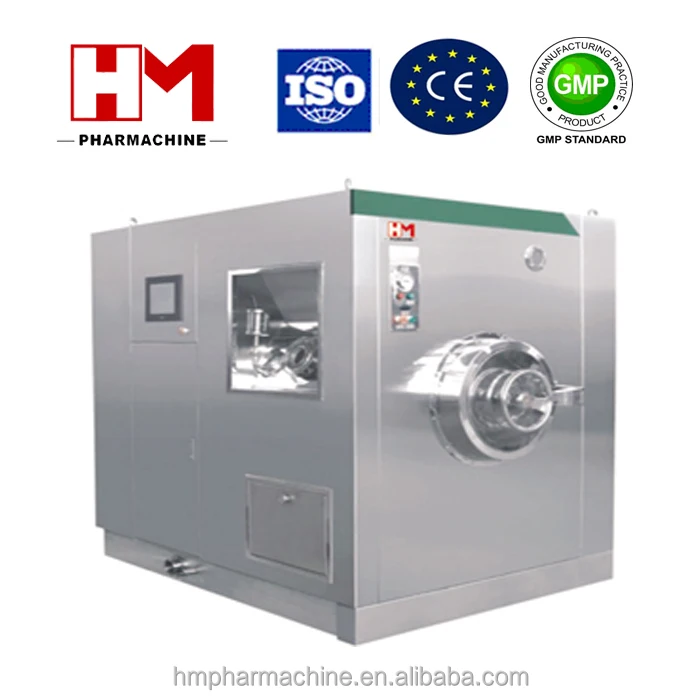

HM SC series Rubber Stopper Washing Machine

Usage: wash, siliconization, sterilization and dry rubber stopper

Suitable: rubber stopper for vial, infusion and oral

Working principle: vacuum feed stopper into vessel, water spray, low speed roll and wash, siliconize, steam sterilize, dry stopper, then set interlock free to discharge

Range: sterilization temperature 121 ℃; vacuum ≤-0.09 Mpa

Model: HM SC-U 10/20/30/40/50/60/80/100/120/150/180/200

Capacity: (Φ 20×8.5 stopper )10,000/ 20,000/ 30,000/ 40,000/ 50,000/ 60,000/80,000/ 100,000/ 120,000/ 150,000/180,000/200,000pcs/batch

16.5 /33/49.5/66/82.5/99/132/165/198/247.5/297/330kgs/batch

Vessel : 100/250/280/400/450/600/800/950/1100/1400/1650/1800 L

Cycle time: 3-5 hours/batch, including 40-50 minutes for sterilization
