SAE J1401 brake hose for auto spare part
- Category: >>>
- Supplier: Qingdao Guosong Machinery Parts Co. Ltd.
Share on (736800194):
Product Overview
Description

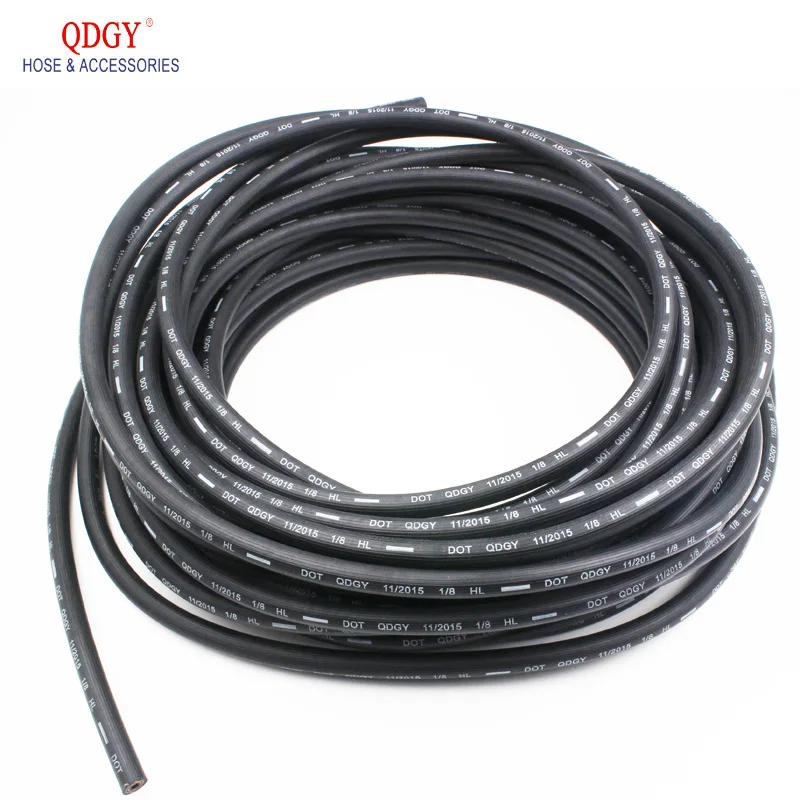

SAE J1401 brake hose for auto spare part
Hose Discription
--- Product Description --- contact with us
BRAKE HOSE application & function:
BRAKE HOSE: used in auto / car / motor / motorcycle / vehicle / truck / braking system, to transfer the braking medium in the automobile brake, the braking force is guaranteed to be transmitted to the automobile brake shoe or brake clamp to generate braking force, so that the brake is effective at any time.
Rubber Brake Hose Specifications:
| Inner Diameter | Outer Diameter | Outer layer | Double braid | Inner layer |
| 1/8" (3.2mm) | 0.413" (10.5mm) | EPDM | PVA | EPDM |
| 3/16" (4.8mm) | 0.492" (12.5mm) |
Rubber Brake Hose Advantages:
- Built to DOT and SAE automotive industry quality and safety standards.

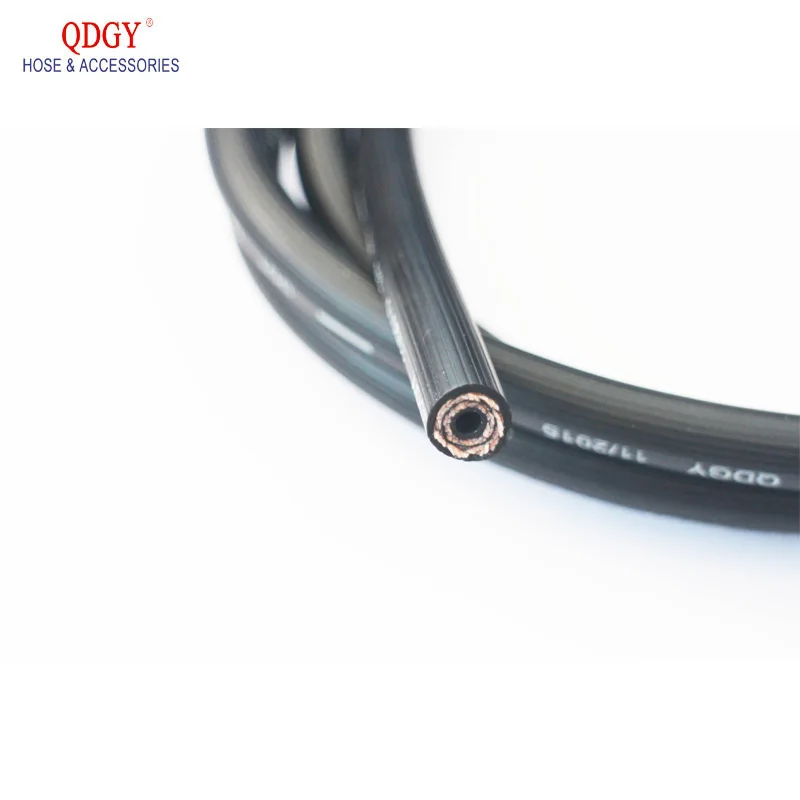

Hoses constructed of EPDM rubber and PVA braid, offering high dynamic strength and chemical & thermal resistance
Brake Hoses with banjo end fittings are packaged with new copper washers to assure proper sealing.
Brake Hoses tested up to 4,000 PSI without rupture based on burst test
Application:
For use in braking system of the vehicle.

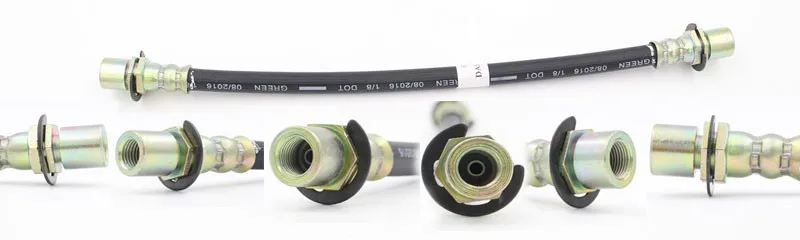

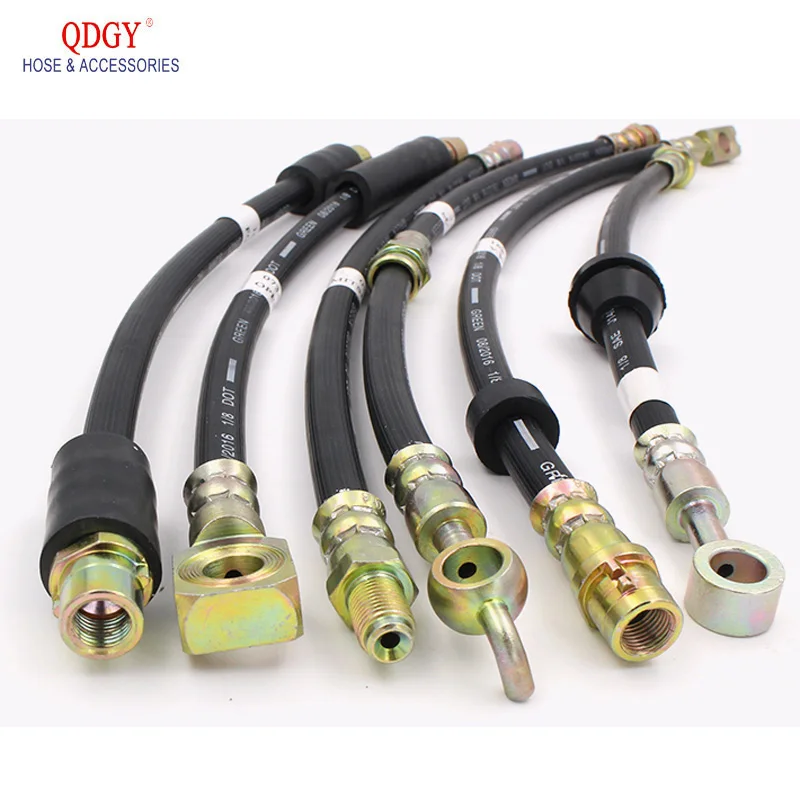

Brake Hose Assembly :
| Fitting1 | Hose length | Fitting2 | Accessories |
| Female M10X1 | 426mm | Female M10X1 | Have |
Brake Line details:
| Fitting1 | Hose length | Fitting2 | Accessories |
| Female M10X1 | 426mm | Female M10X1 | Have |
More than 18 years production and export experience, more than thandrads of OEM number accumulative tatal, some of them can be shared as following, the more, please to contact with us.
| 893611707 | 171611701L | 29603-87301 | 8D0 611 707B | 34321159890 | 52007587 | 4E0 611 775F | 1H0 611 775 | 1J0 611 701 |
| 893 611 707 | 3430 1 165 190 | 90049-22047 | 443 611 775 A | 34321159881 | 52008663 | 861 611 707C | 1J0 611 775 | 4E0 611 775F |
| 8DO 611 707B | 3430 1 165 249 | 90049-22052 | 8A0 611 775 | 34321159889 | 52008662 | 443 611 775A | 1J0 611 775 | 861 611 707C |
| 4AO 611 775 | 3430 1 166 248 | 90049-22083 | 437 611 775 | 3432 1159 717 | 52128092AB | 433 611 775A | 8D0 611 707B | 433 611 775A |
| 8DO 611 775B | 3432 1 159 524 | 90049-22168 | 437 611 775 | 3432 1108 135 | 52128093AB | 171 611 701L | 443 611 775 A | 171 611 701L |
| 8DO 611 775C | 3432 1 159 717 | 1H0611775 | 437 611 775 | 3432 1108 134 | 52128094 | 171 611 775 | 8A0 611 775 | 171 611 775 |
| 8DO 611 775D | 3432 1 159 881 | 5363756 | 431 611 775 A | 3432 1154 327 | 52128095 | 893 611 775A | 437 611 775 | 893 611 775A |
| 4A0 611 775B | 3432 1 159 891 | 5363908 | 431 611 775 A | 3432 1159 889 | 5362842 | 171611701L | 437 611 775 | 171611701L |
| 4F0 611 775 | 3432 6 766 966 | 52002848 | 171 611 775 | 3432 1159 891 | 52004152 | 535611701 | 437 611 775 | 535611701 |
| 443 611 775F | 3432 1 162 477 | 52002849 | 171 611 701L | 3432 1159 524 | 52007562 | 8E0611775C | 431 611 775 A | 8E0611775C |
| 8D0 611 775B | 3432 6 767 390 | 52006472 | 437 611 775 | 3432 1164 312 | WOA1460 | 893611775A | 431 611 775 A | 893611775A |
| 4A0 611 707 | 34301165190 | 52006473 | 861 611 707C | 3432 1108 134 | WO637424 | 6X0611775 | 431 611 775 A | 6X0611775 |
| 4A0 611 707 | 34321159524 | 52008674 | 861 611 707C | 123 428 02 35 | WOA1373 | 861611707C | 171 611 775 | 861611707C |
| 4A0 611 775 | 34321159717 | 52008675 | 893 611 707 | 3432 1 159 878 | 861 611 707C | 8D0611707B | 171 611 701L | 7MO 611 701D |
| 1J0 611 775 | 34321159891 | 52007586 | 1J0 611 701 | 34321159878 | 861 611 707C | 8D0611707B | 437 611 775 | 901 428 0435 |
Packaging & Shipping
Packaging: contact with us
QDGY common package: PVC bag in carton box with QDGY logo
Welcomed special package request,single packing,tasteful degined package are ok.Only little cost of special package
HIGH PRESSURE HOSE REEL Packaging:
Brake hose assembly package:
- 10-50pcs in one plastic bag
- Single package by plastic bag
- Single package by plastic bag with sticker and label
- Single package by paper box
- PVC box with label
- Final package is 5 layer carton then in pallet
Lead time: contact with us
For fitting: common fitting within 30 days;special fitting within 40 days.
For brake hose: wihithin 20 days.
For brake hose assembly: within 40 days.
Please noted: Exact lead time is based on details order ,please contact with us for the details information.
Shipping: contact with us
Qingdao port(Chingtao port) is only about 30 minitues from our factory.
Qingdao airport is only about 40 minitues .
Conveniently by air or by ocean with cheaper freight fee.
Related Products
Relate Product : contact with us
Technical Details
Technical Specification: contact with us
Test Items | Test Condition | Standard | Test Results |
ID | Normal | 3.2mm | 3.15~3.45mm |
OD | Normal | 10.5mm | 10.30~10.70mm |
Expansion | 1000psi | 0.33cc/ft max. | 0.14~0.16cc/ft |
1500psi | 0.42cc/ft max. | 0.20~0.22cc/ft | |
2900psi | 0.61cc/ft max. | 0.41~0.43cc/ft | |
Burst | 4000psi×2min;pressure rated 25,000±10,000psi/min | >7000psi No seepage | >10,500psi |
Whip | 235~250psi | >35h | >70h |
Tensile | tensile speed:218±3mm/min | >1446N | 2400N |
Cold Bend | -45°C ~-48°C× 72h, 3-5s,bending180° | No cracking | No cracking |
Ozone | 100pphm×70h×40°C, 7X | No cracking | No cracking |
Impulse | 146°C 1±0.1min at 1600psi+70 | >7000psi No crack | >7500psi |
Compatibility | 120°C × 70h | >7000psi No seepage | >8800psi |
Salt Spray | 5%NaCl, 24h,water cleanout in 35°C | No red rust | No red rust |
Water Aging | Water in 85±2°C,after 70h~72h 4000psi × 2min;pressure rated 25,000±10,000psi/min | >7000psi; >35h; >1446N | >10250psi;>60h; >2200N |
Technical Data of brake hose
Part No. | GSG111 brake hose | |
ID X OD | 3.2X10.5mm | |
Flex test time | 35 hours | |
Burst pressure | >75 Mpa | |
Flax whip test | >35 hours | |
Tensile power | >2200N | |
Low expansion | 6.9Mpa | <1.08cm3/m |
10.3Mpa | <1.38cm3/m | |
Low temp | -50 C | |
High temp | >135 C | |
Ozone | 50+8ppm;40 c+3 c 72H 7T no cracks | |
MOQ | negotiable | |
About delivery of brake hose
1.If you choose the brake hose assembly with normal fittings ,it is about 45 days according to your quantity.
2.If you choose the brake hose assembly with innormal fittings,it is about 60 days according to your quantity.
If any interes in QDGY brake hose,welcome your inquiry.
