Brass Wire Mesh cloth / copper mesh

Product Overview

Description

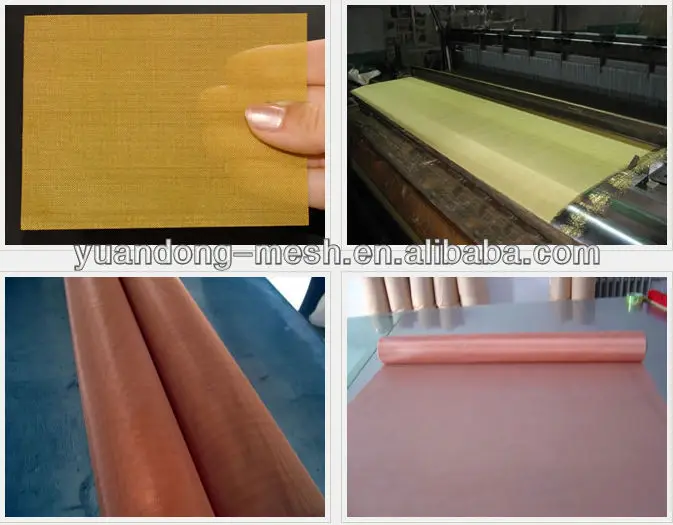

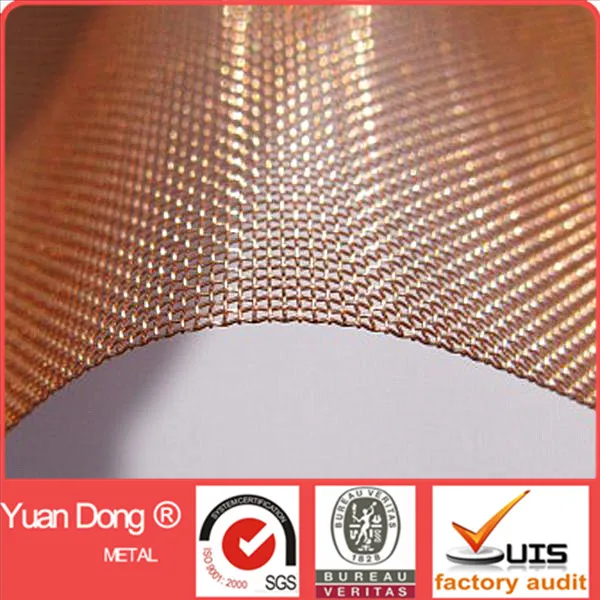

Brass Wire Mesh cloth / copper mesh



Brass wire meshis made of brass wire, used in rubber, filter and electric instruments. We can offer brass wire mesh woven with different methods.

Weaving method: plain weaving, twilled weaving, dutch weaving.

Besides brass wire mesh, we also produce and supply phosphor/copper wire mesh.

Specifications
Brass Wire Mesh
1.mesh size:6mesh-200mesh
2.width: 1m,1.2m,1.5m
3.length:15m,20m,30m



As the Good quality products of our company enjoy high reputation all over the world and have rich exported experiences to the United States, Germany, Japan, Korea and many other countries and regions. We can make the products with our customer special specifications.



Specification of Brass Wire Mesh

Brass Wire Mesh
Mesh/Inch	SWG ( wire gauge)	Aperture (mm)
8meshx8mesh	24	2.616
10meshx10mesh	24	1.98
12meshx12mesh	26	1.66
14meshx14mesh	26	1.357
16meshx16mesh	30	1.27
18meshx18mesh	30	1.096
20meshx20mesh	32	0.88
30meshx30mesh	34	0.613
40meshx40mesh	38	0.485
50meshx50mesh	39	0.378
60meshx60mesh	40	0.301
70meshx70mesh	41	0.251
80meshx80mesh	42	0.216
90meshx90mesh	43	0.191
100meshx100mesh	43	0.164
120meshx120mesh	45	0.140
140meshx140mesh	45	0.110
160meshx160mesh	46	0.087
Width: 0.6m-1.3m
