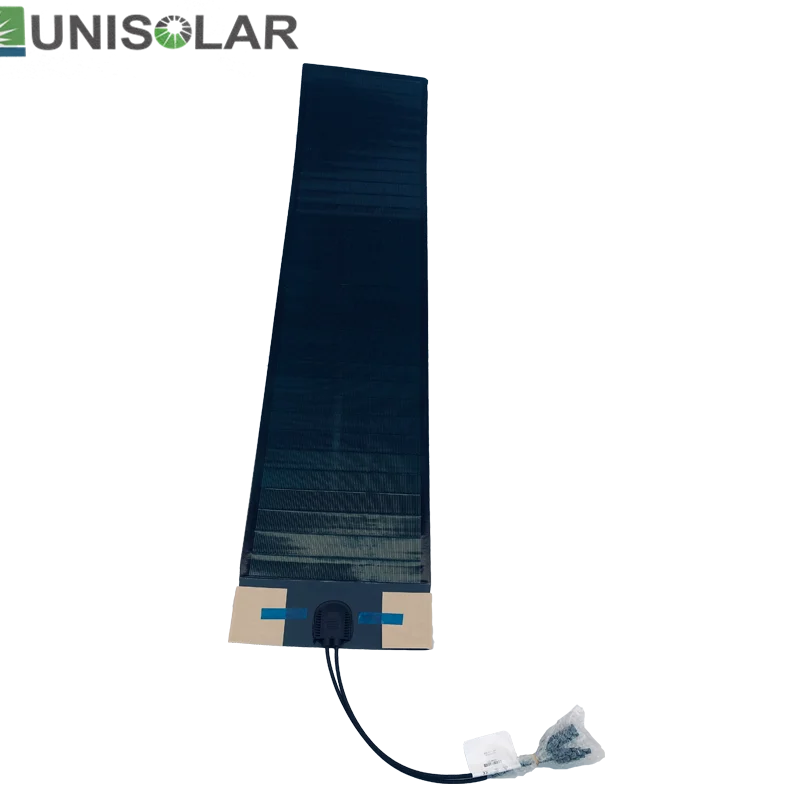

70W Flexible Laminated Solar Panel Peel and stick installation, triple junction amorphous silicon solar cell
- Category: >>>
- Supplier: Jinan Lin Quan Import And Export Co. Ltd.
Share on (736822358):
Product Overview
Description
Product Description
MiaSolé unique solar cells and modules are the key to the world’s most powerful lightweight flexible thin-film CIGS solar modules. These modules are ideal for a wide variety of applications not suitable for fragile, heavy, rigid silicon modules.
How do we do it?
We begin with high–grade stainless steel foil and use an advanced semiconductor deposition process, PVD, to produce the most controlled, stable, and powerful flexible stainless steel CIGS cell in the world. Once the cell structure is deposited on the foil, special transparent conductive oxides are applied, and a specialized plastic-cell interconnect meshwire system is laminated to the cell, which is in turn protected by special water barrier plastics. The transparent water barrier is key to the longevity of MiaSolé FLEX modules. The special plastic back sheet has an internal aluminum film to prevent water transmission from eroding the powerful stainless steel CIGS cells.
MiaSolé is the producer of powerful, lightweight, shatterproof and flexible solar cells. The innovative
solar cell is based on the highest efficiency thin–film technology available today, and its flexible cell
architecture makes it ideal for a wide variety of solutions ranging from off-grid transportation solutions to commercial roofing solar panels to flexible mobile devices.
Why flexible Solar:
Flexible lightweight shatterproof solar cells and modules can go where rigid breakable glass modules can’t. This makes it possible to add solar energy generation to curved surfaces, vehicles, structures such as carports and storage facilities, floating reservoir covers, landfill membrane covers, low load capacity roofs, as well as mobile devices and many other applications.
solar cell is based on the highest efficiency thin–film technology available today, and its flexible cell
architecture makes it ideal for a wide variety of solutions ranging from off-grid transportation solutions to commercial roofing solar panels to flexible mobile devices.
Why flexible Solar:
Flexible lightweight shatterproof solar cells and modules can go where rigid breakable glass modules can’t. This makes it possible to add solar energy generation to curved surfaces, vehicles, structures such as carports and storage facilities, floating reservoir covers, landfill membrane covers, low load capacity roofs, as well as mobile devices and many other applications.
How do we do it?
We begin with high–grade stainless steel foil and use an advanced semiconductor deposition process, PVD, to produce the most controlled, stable, and powerful flexible stainless steel CIGS cell in the world. Once the cell structure is deposited on the foil, special transparent conductive oxides are applied, and a specialized plastic-cell interconnect meshwire system is laminated to the cell, which is in turn protected by special water barrier plastics. The transparent water barrier is key to the longevity of MiaSolé FLEX modules. The special plastic back sheet has an internal aluminum film to prevent water transmission from eroding the powerful stainless steel CIGS cells.
Specification
Model Selection | 03NS-70 | 03NS-75 | 03NS-80 | |||
Capacity rating | Pmax | 70W | 75W | 80W | ||
Tolerance of Pmax | % | +5 / -0% | +5 / -0% | +5 / -0% | ||
Module aperture area efficiency | % | 14.2% | 15.3% | 16.3% | ||
Maximum Power Voltage | Vmpp | 18.3V | 18.8V | 19.3V | ||
Maximum Power Current | Impp | 3.85A | 4.00A | 4.15A | ||
Open circuit voltage | Voc | 23.5V | 23.7V | 24.0V | ||
Short circuit current | Isc | 4.70A | 4.70A | 4.70A | ||
Maximum Series Fuse Rating | A | 10A | ||||
Maximum System Voltage | (IEC/UL) | 1000/1000 | ||||
Features
1.Lightweight: Less than 2.4 kg/m2 (<0.5 lb/ft2 ). Because FLEX–02 modules are so much lighter than heavy rigid silicon panels mounted with racks, they are the best solution for building structures with low dead load and environmental load limitations (suchas snow). The modules are also ideal for other structures, such as autos, trucks, and RVs, that are not constructed to support the weight of traditional solar panels.
2. Powerful: MiaSolé FLEX modules are the highest efficiency flexible thin-film CIGS modules in production today, providing the highest power density per kilogram in a commercially available solar module. Our aperture efficiencies are as high as 17%,providing over four times the power generation per kilogram of silicon. In the future, efficiencies of up to 20% are expected.
2. Powerful: MiaSolé FLEX modules are the highest efficiency flexible thin-film CIGS modules in production today, providing the highest power density per kilogram in a commercially available solar module. Our aperture efficiencies are as high as 17%,providing over four times the power generation per kilogram of silicon. In the future, efficiencies of up to 20% are expected.
3. Easy to Install: MiaSolé FLEX modules use peel-and-stick application. This eliminates penetrations into the structure, reducing the chance of leaks. Peel-and-stick application also allows for installation on surfaces such as autos, trucks, and RVs where racks would not be feasible, and lowers the balance-of-systems (BOS) costs and complexity when mounting FLEX modules on rooftops.

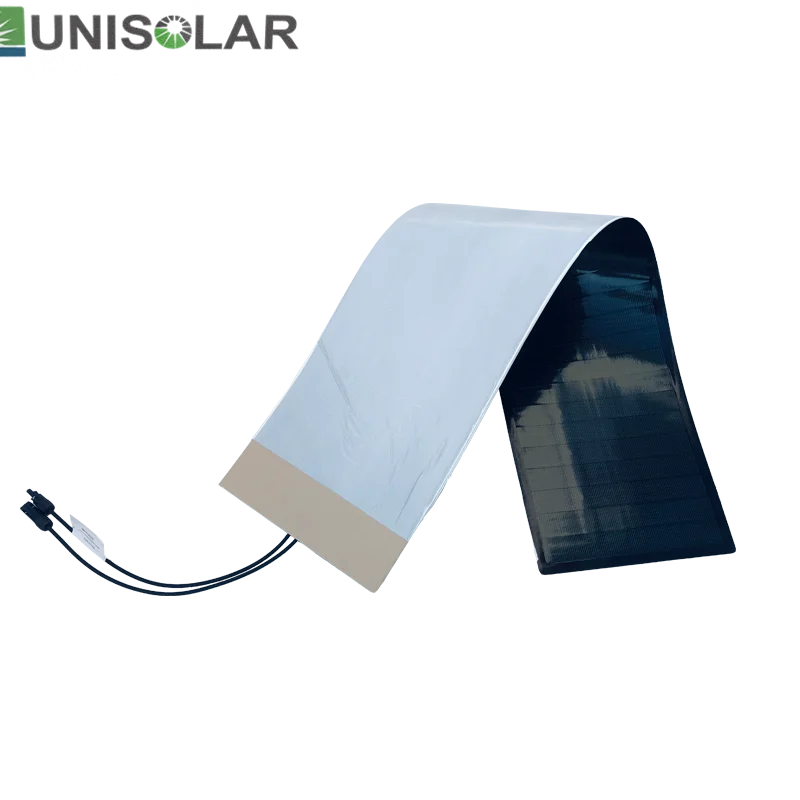

4. Flexible: MiaSolé FLEX modules conform to curved surfaces, enabling solar power generation on surfaces not suited to traditional rigid silicon panels.
5. Shatterproof: FLEX modules are shatterproof, and won't break if struck by debris.
6. Resistant to Natural Disasters: MiaSolé modules are thin (2.5mm) and adhere directly to surfaces, providing excellent wind and seismic resistance.
7. Reliable: MiaSolé modules' unique redundant interconnect design enables industry-leading reliability.
4. Flexible: MiaSolé FLEX modules conform to curved surfaces, enabling solar power generation on surfaces not suited to traditional rigid silicon panels.
5. Shatterproof: FLEX modules are shatterproof, and won't break if struck by debris.
6. Resistant to Natural Disasters: MiaSolé modules are thin (2.5mm) and adhere directly to surfaces, providing excellent wind and seismic resistance.
7. Reliable: MiaSolé modules' unique redundant interconnect design enables industry-leading reliability.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Application
Title goes here.
Membrane Roof Systems
Metal Roofing Systems
Geomembrane Covers for Water Reservoirs and Landfills
Carport
Marine/boat/ship.....
Company Profie
ABOUT US:
UNISOLAR is registered brand of Jinan Linquan Import and Export Co., Ltd.
Following official authorization from Hanergy from year 2015, UNISOLAR is focusing on overseas marketing for high efficiency Miasole Flexible Solar Panels.
UNISOLAR is registered brand of Jinan Linquan Import and Export Co., Ltd.
Following official authorization from Hanergy from year 2015, UNISOLAR is focusing on overseas marketing for high efficiency Miasole Flexible Solar Panels.
Production base situated in Zibo, Shandong, CHINA, UNISOLAR has become the leading exporter for powerful, lightweight, shatterproof and flexible solar cells. The innovative solar cell is based on the highest efficiency thin–film technology available today, and its flexible cell architecture makes it ideal for a wide variety of solutions ranging from off-grid transportation solutions to commercial roofing solar panels to flexible mobile devices.
