G1/4 4 20mA 0utput pressure transmitter/sensor

Product Overview

Description

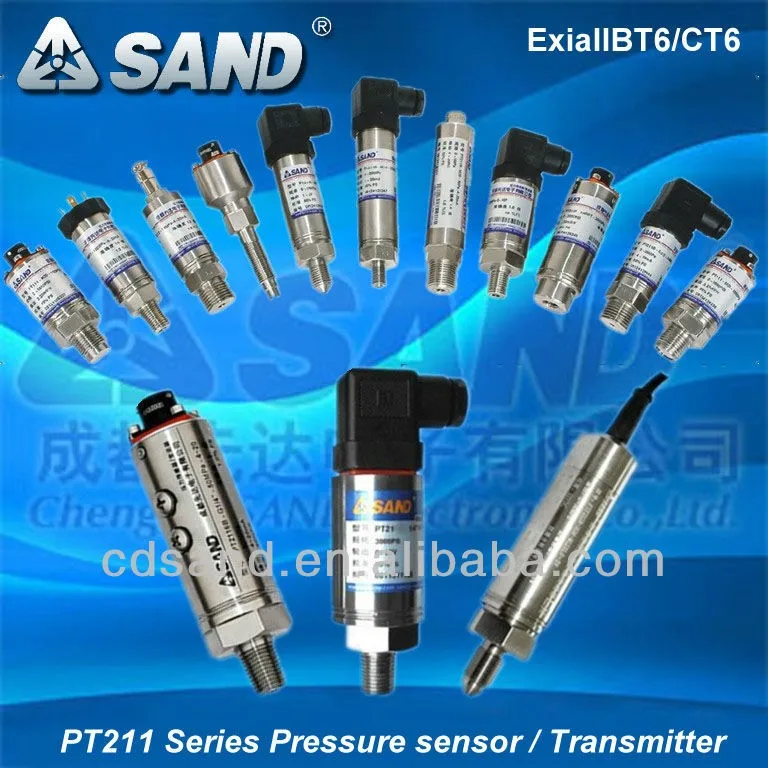

PT211 Series SAND Pressure Sensor

Product Introduction



PT211 Series pressure transducer(Sensor) and transmitter are for pressure measurement and control under normal temperature. They are widely used for compressor, hydraulic system, construction machine, ship building, non-woven fabrics, refrigeration plant, and water supply system. According to its application and stability, SAND pressure transducer (Transmitter) can be divided into three types:

     PT211B-----Common pressure transducer and transmitter

     PTF211B------------ Explosion proof pressure transmitters

     PT211A-------------- Intelligent Auto-zero pressure transmitters

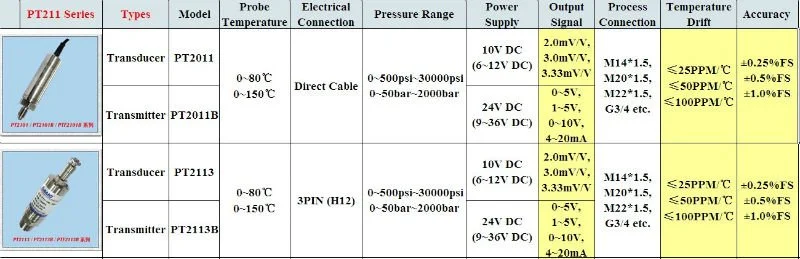

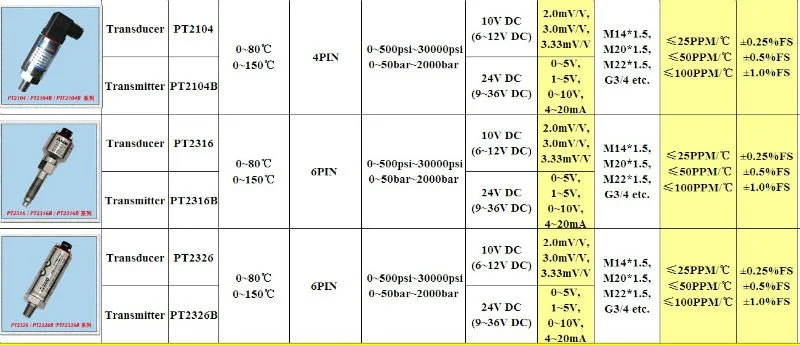

PT211 Series Performance Parameters





Items	Pressure sensor	Pressure transmitter
Pressure range	0~500psi~30000psi, 0~50bar~2000bar
Accuracy	±0.25%FS, ±0.5%FS, ±1.0%FS,
Repeatability	±0.2%FS, ±0.4%FS, ±0.8%FS,
Power	10V DC(6~12V DC)	24V DC(9~36V DC)
Output signal	2.0mV/V, 3.0mV/V,3.33mV/V,	0~5V,1~5V,0~10V,4~20mA
Probe temperature	80~150℃
Temperature drift	≤25PPM/℃,≤50PPM/℃,≤100PPM/℃
Process connection	· M14*1.5,M20*1.5,M22*1.5,G1/4’’ etc., other size can customize

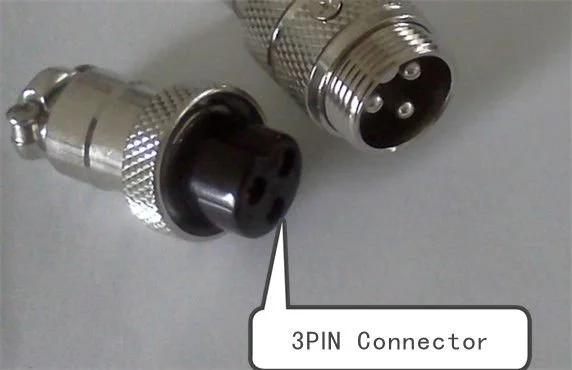

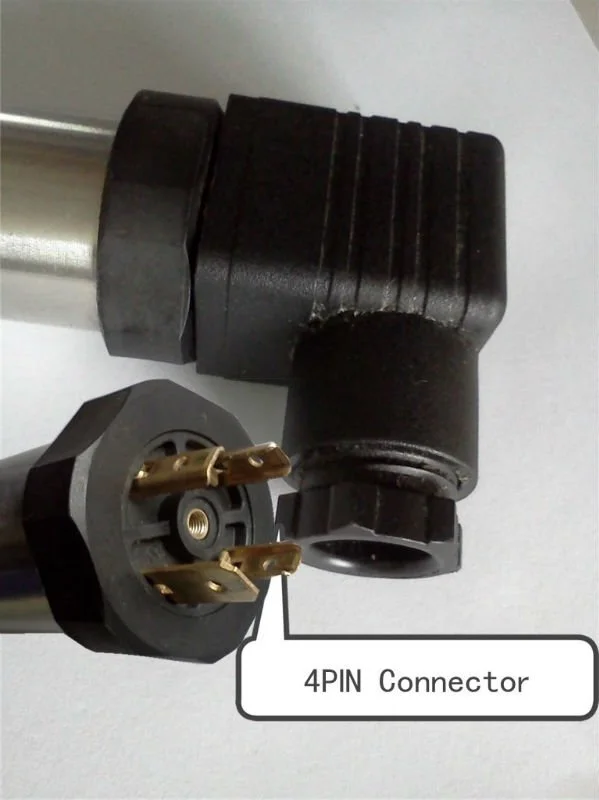

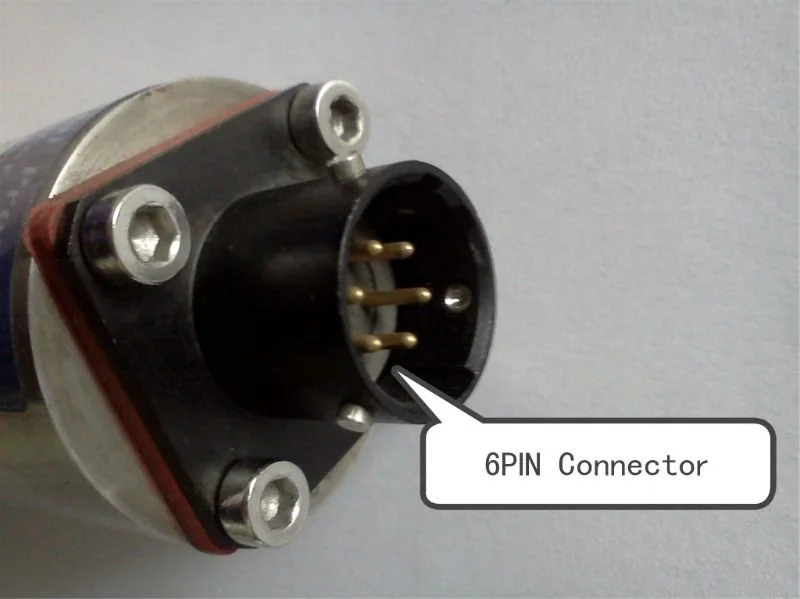

Electrical connection	3PIN(H12), 4PIN, 5PIN(XS12),6PIN(SD02106)

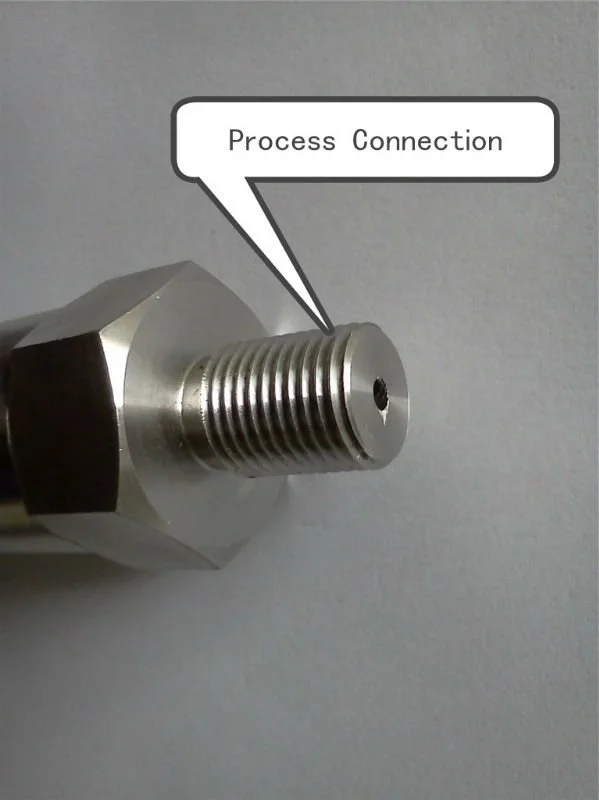

PT211 Detailed Pictures of process connection and electrical connection











 Order Format





 Example: PT211-5000psi-M18-3.0m V/V

 Note:   Product design Model "PT211".
            Function code null stands for melt transducer(sensor).
            Coating code null stands for without coating .

            Pressure range: 0 ~ 5000psi.
            Thread size : M18*1.5 .

            Pressure output signal: 3.0 m V/V

Please feel free to contact us for your any issues anytime.(*^__^*)
