E1 to Ethernet protocol converter,
- Category: >>>
- Supplier: Beijing Human Information Technology Co. Ltd.
Share on (737268803):
Product Overview
Description
E1 to Ethernet protocol converter realizes Ethernet transmission over E1 at the bandwidth of 2048Kbps. Plug and play, without any setting or debugging work.
Technical Parameters
E1 interface | Bandwidth: 2048Kbps |
Line code: HDB3 | |
Electric characteristic: comply with ITU-TG.703 standard | |
Jitter index: comply with ITU-T G.823 standard | |
Interface impedance: 75Ω balance and 120Ω unbalance | |
Connector: BNC for 75Ω and RJ45 for 120Ω | |
Ethernet interface | One Ethernet interface |
Auto adapt 10/100M, full/half duplex | |
Connector: RJ45 | |
Indicator light | POWER: power indicator light |
LINK: Ethernet connection indicator | |
FDX: Ethernet full/half duplex indicator | |
10M: Ethernet working in 10M status | |
100M: Ethernet working in 100M status | |
LOS: lose E1 signal | |
AIS: alarm for remote failure | |
Power supply | Voltage: AC220V±20%AC220V with power adaptor |
Power consumption: <5W | |
Environment | Operating temperature: 0°C~50°C |

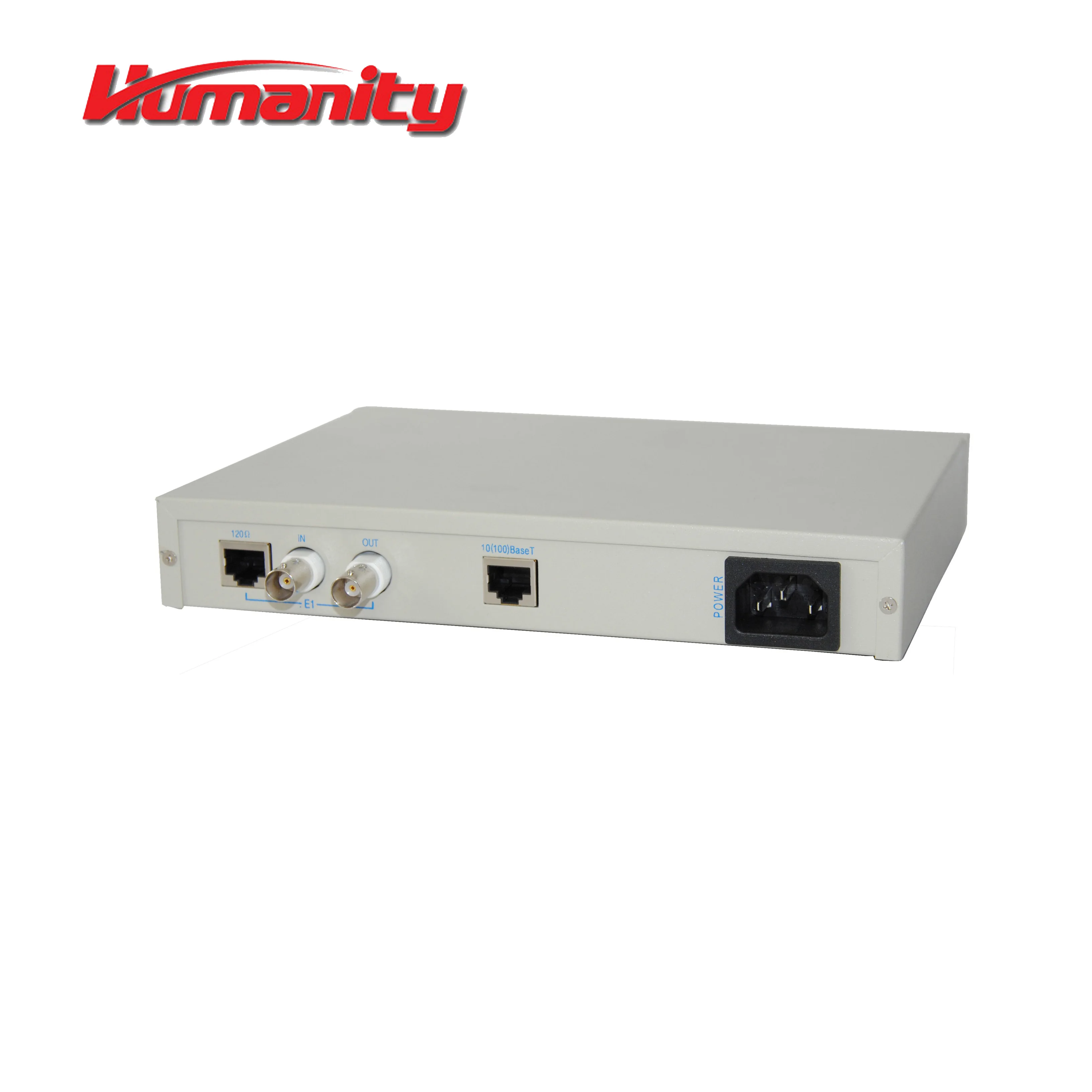

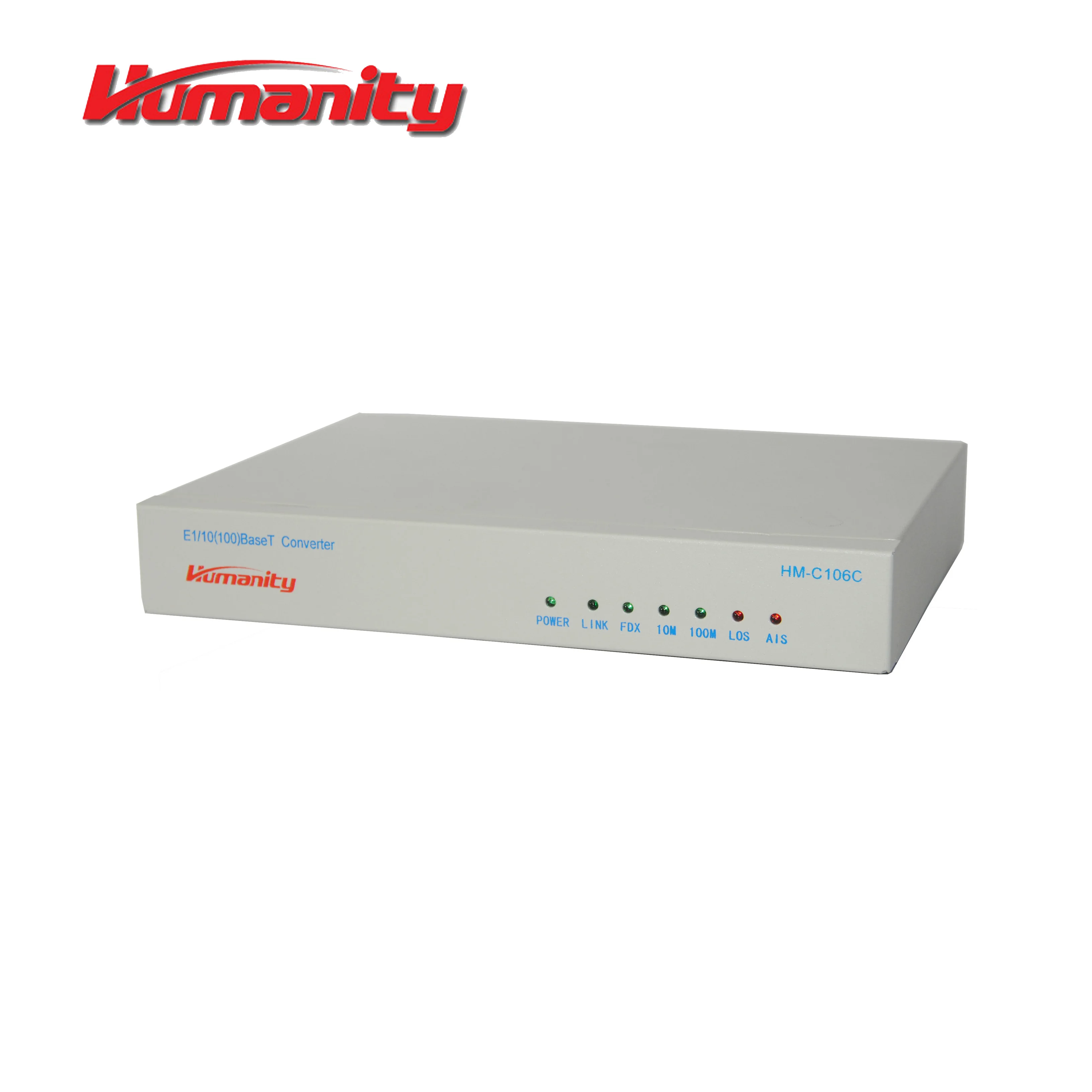

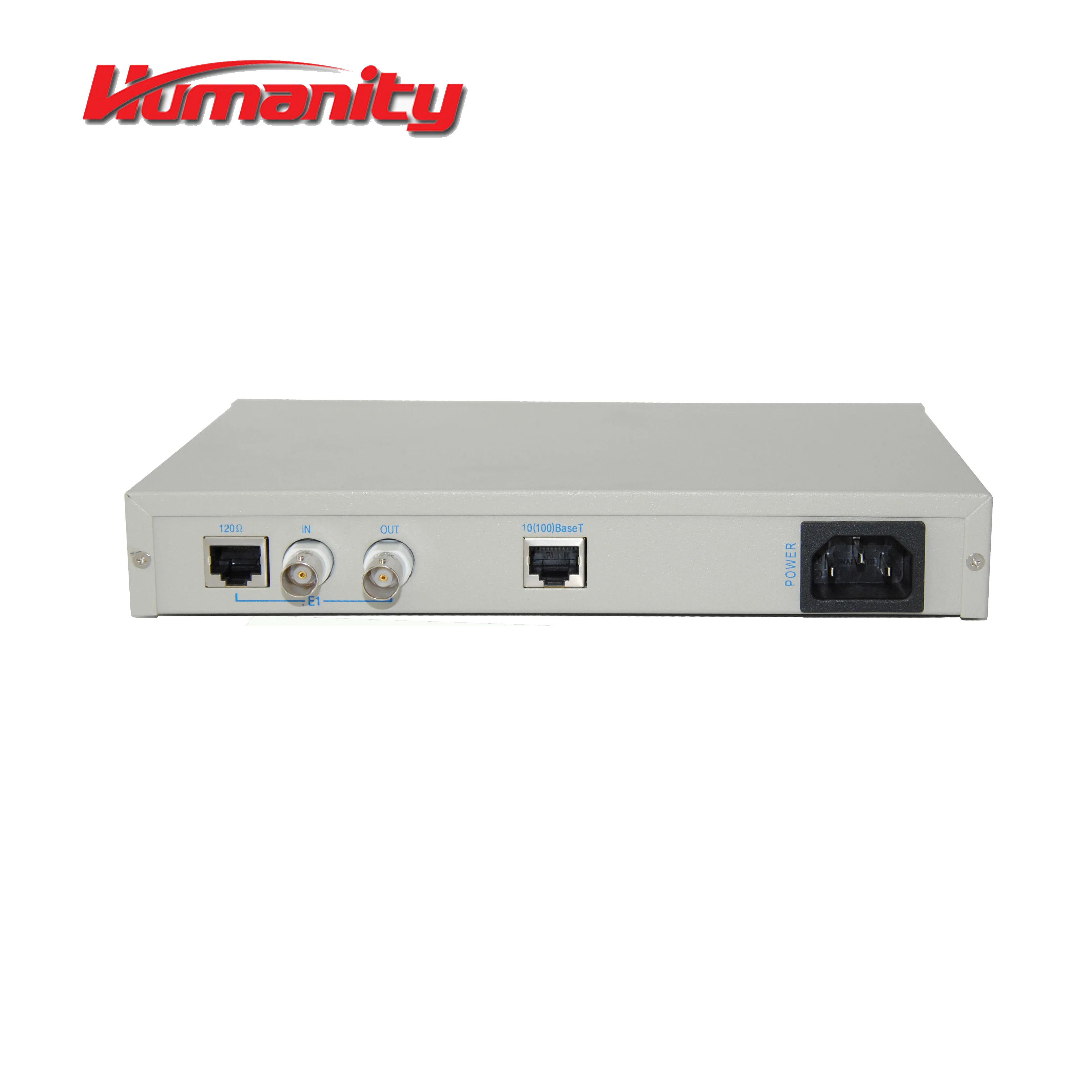

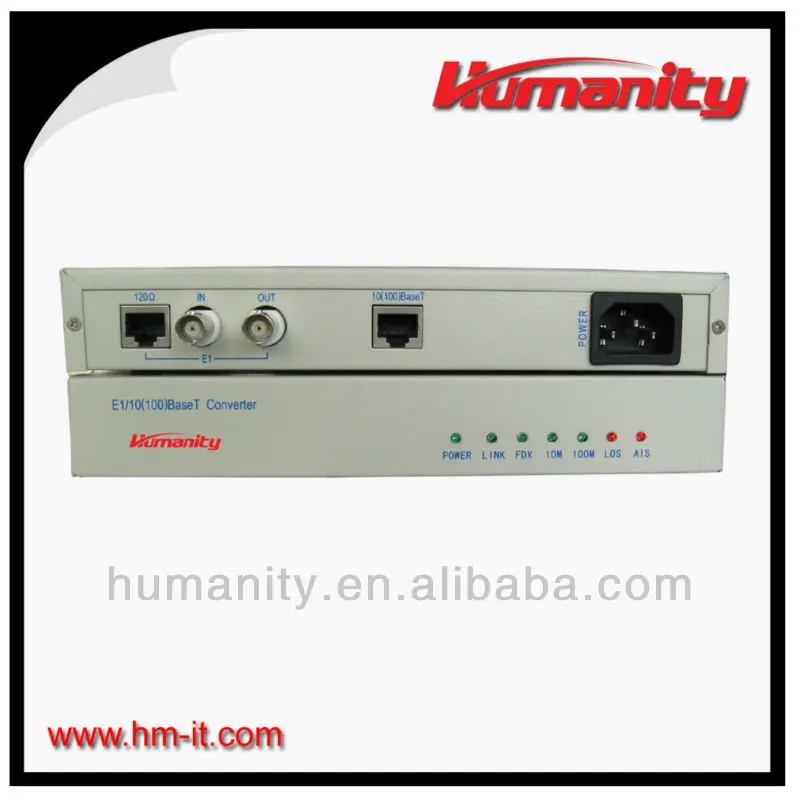

Stand alone device (Model: HM-106C)

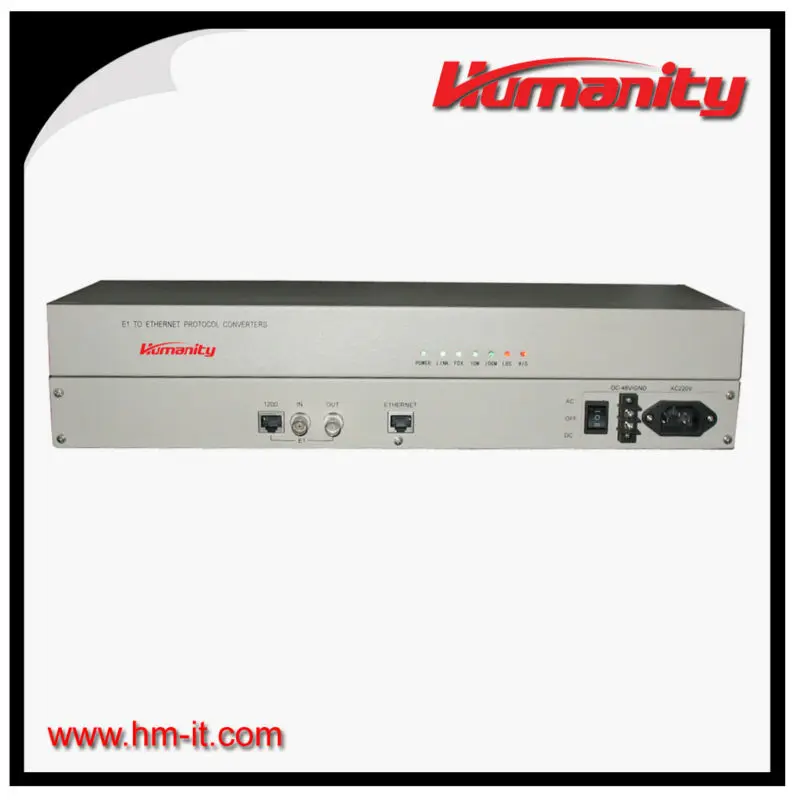

1U 19'' E1 to Ethernet Converter (Model: HM-C106CU)
