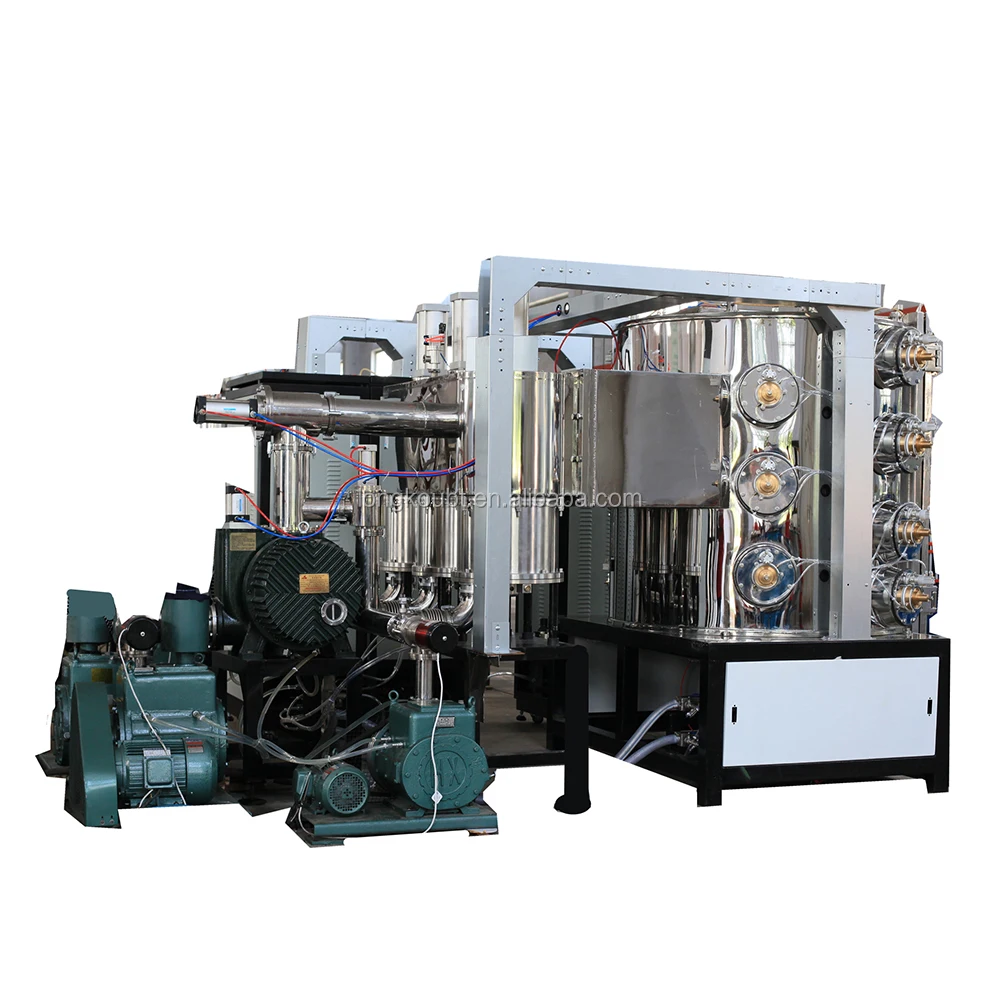

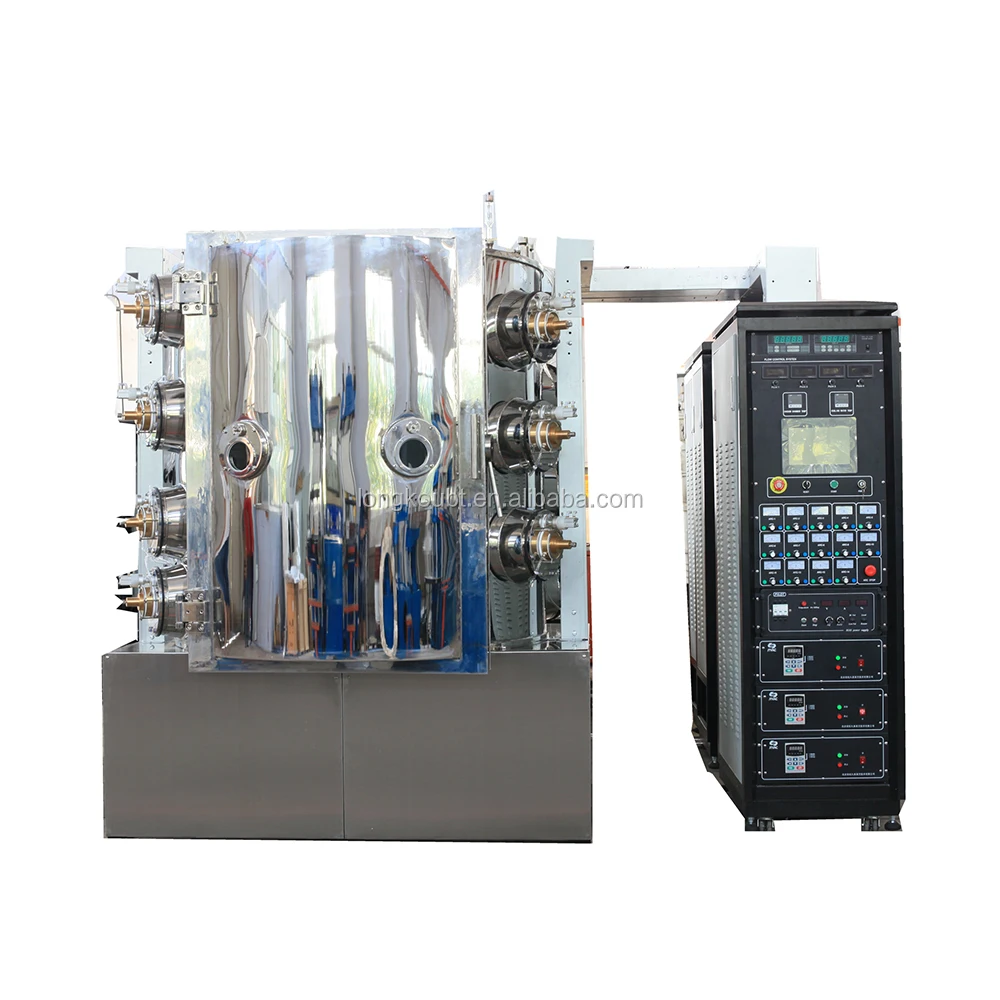

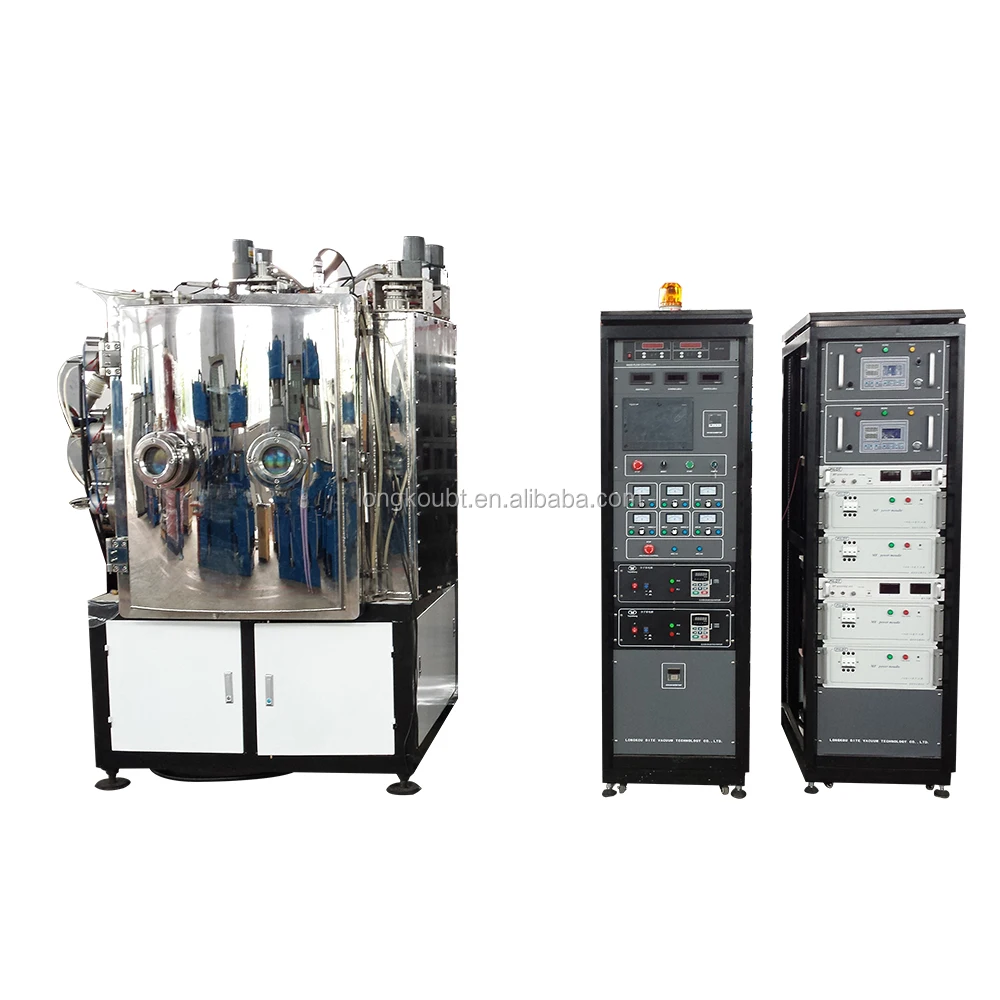

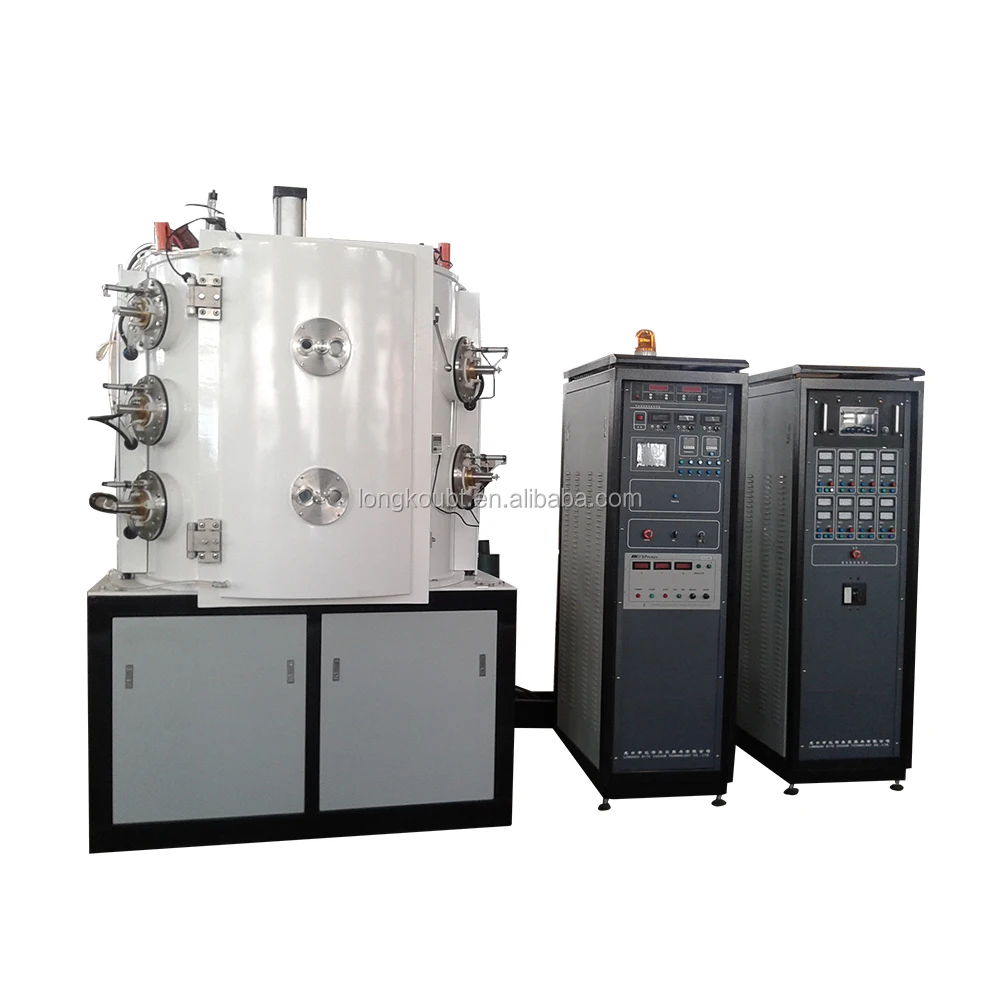

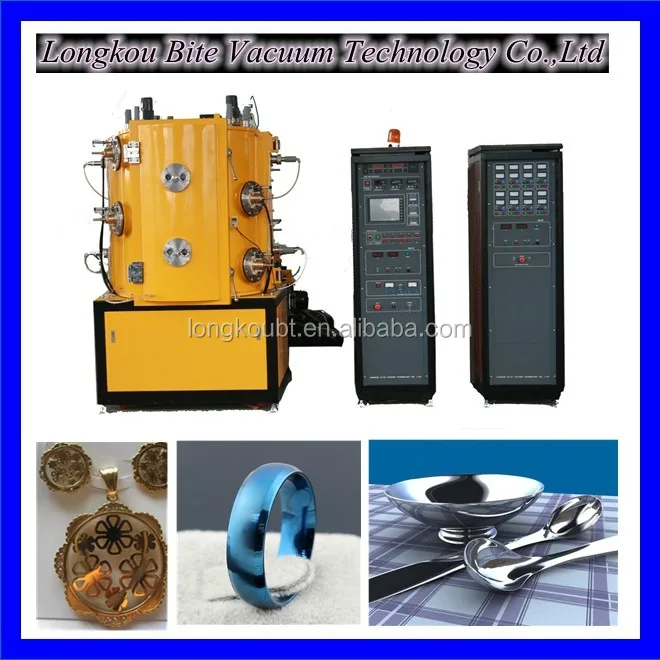

TiN,TiC,CrN,TiCN,TiAlN film coating machine/Titanium nitride plasma ion coating equipment (PVD vacuum technology)
- Category: >>>
- Supplier: Longkou Bite Vacuum Technology Co. Ltd.
Share on (737578312):
Product Overview
Description
Plasma Ion Coating Equipment
Description
1.The system is equipment with touch screen and PLC control.
2.It becomes a key equipment in the decoration industry widely used for plating various,such as Tin,Tic,CrN,Ti,Cr,Cu,Au and Ag etc

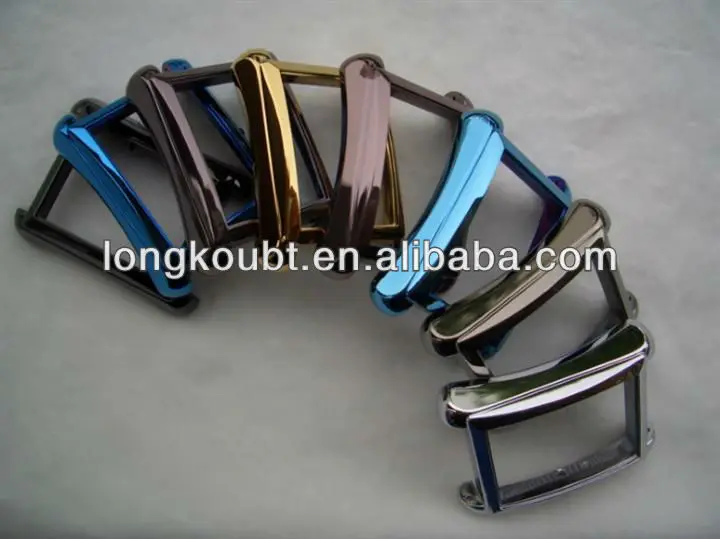

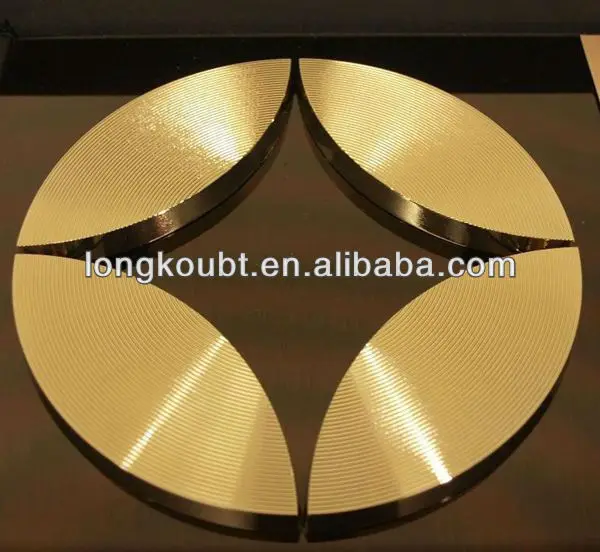

3.Used to process the surface of metal and non-metal ,lock,watch part,hinge,hardware etc.
4.Less material, high efficiency
Our products have acquired the TUV certification
parameters | Model No. | Quantity | |
The structure of the vacuum chamber | Vertical front door , Double or cooling tank cooling |
|
|
dimension of vacuum chamber | 700×1000 |
| 1 |
pumping speed | 1×105Pa~3×10-3Pa≤15min |
|
|
limit vacuum | ≤8×10-4Pa |
|
|
system form a complete set | Maintaining the pump | 2X-15 | 1 |
Mechanical pump | 2X-70 | 1 | |
Diffusion pump | KT-400 | 1 | |
workpiece system | Rotation of the planet forms(8 roating shaft, since the amount) |
| 8 |
heating methods | Edge installation of stainless steel heating tube |
| 4 |
ion bombardment | 20KW inverter bias | PLS-20KW | 1 |
Arc target | 40-200A adjustable | TIG-250 | 3 |
magnetron target amount | one plane target or Cylindrical target |
| 2 |
Magnetron power | 20KW IF power | MF-20KW | 1 |
working methods | PLC semi-auto control or PC+PLC auto control |
|
|
working gas | Ar N2 O2 |
|
|
total power | 30KW |
|
|
compress air | 0.4~0.8MPa |
|
|
water-cooling system | hydraulic pressure/water temperature:≤25°C/≥0.25MPa(user provide for himself) |
|
|
