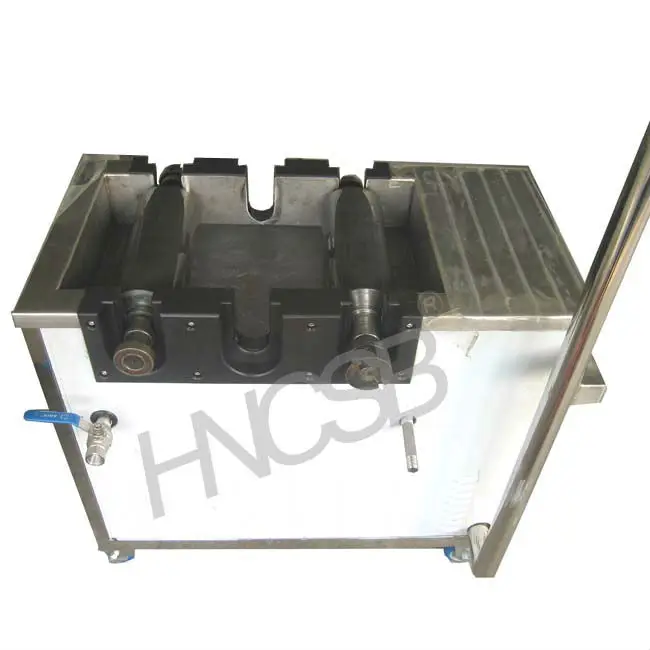

Anilox Roller Cleaning Machine, CLEAN 3 Rollers

Product Overview

Description

1.Product Name:Anilox Roller Cleaning Machine

- Motor rotation

- Clean Three Anilox Rolls at the same time, with good efficiency

- Overflow protection



2.Features:
Tank made of 316L stainless steel, with good resistance to Acid, alkali corrosion
Customized size tank, suit customer special needs
Stable performance



3.Specifications:

ITEM	Anilox Cleaning Machine
Overall Dimensions	L*W*H 750x480x690mm
Tank Dimensions	L*W*D 500x290x150mm
Qty of Anilox Rolls	MAX 3 pcs
Motor Rotation	have
Heater	have
Tank Material	2MM Thick 316L stainless steel
Shell Material	1MM thick stainless steel
Drain	have
Power Supply	110-240V, 50/60Hz





TECHNICAL DETAILS

suitable for Flexo Anilox Printing Length                                                (for reference)	Model No.	Clean	Ultrasonic Power	Heating	Tank Dimension(mm)	Tank Material	Shell Material	Frequency
250mm printing length	HNW-300	2 anilox	300 W	400 W	300X190X180	2mm 316 S/S	0.8mm 304 S/S	40Khz
320mm printing length	HNW-600	2 anilox	600 W	600 W	380X320X180	2mm 316 S/S	0.8mm 304 S/S	40Khz
380mm printing length	HNW-600	2 anilox	600 W	600 W	440X320X180	2mm 316 S/S	0.8mm 304 S/S	40Khz
450mm printing length	HNW-600	2 anilox	600 W	600 W	508X320X180	2mm 316 S/S	0.8mm 304 S/S	40Khz
480mm printing length	HNW-600	2 anilox	600 W	600 W	540X320X180	2mm 316 S/S	0.8mm 304 S/S	40Khz
680mm printing length	HNW-900	1 anilox	900 W	800 W	730X180X150	2mm 316 S/S	0.8mm 304 S/S	40Khz
770mm printing length	HNW-1200	1 anilox	1200 W	1200 W	820X280X200	2mm 316 S/S	0.8mm 304 S/S	40Khz
960mm printing length	HNW-1200	1 anilox	1200 W	1200 W	1060X220X180	2mm 316 S/S	0.8mm 304 S/S	40Khz
1100mm printing length	HNW-1200	1 anilox	1200 W	1200 W	1200X200X180	2mm 316 S/S	0.8mm 304 S/S	40Khz
1120mm printing length	HNW-1200	1 anilox	1200 W	1200 W	1220X200X180	2mm 316 S/S	0.8mm 304 S/S	40Khz
1360mm printing length	HNW-1500	1 anilox	1500 W	2000 W	1450x450x250	2mm 316 S/S	0.8mm 304 S/S	40Khz
1400mm printing length	HNW-1500	1 anilox	1500 W	2000 W	1500X320X180	2mm 316 S/S	0.8mm 304 S/S	40Khz
1700mm printing length	HNW-1800	1 anilox	1800 W	2000 W	1800X400X200
