Biogas plant generator from Weifang

Product Overview

Description



1.  Biogas plant generator feature
  1) the running cost of biogas plant generator is lower.

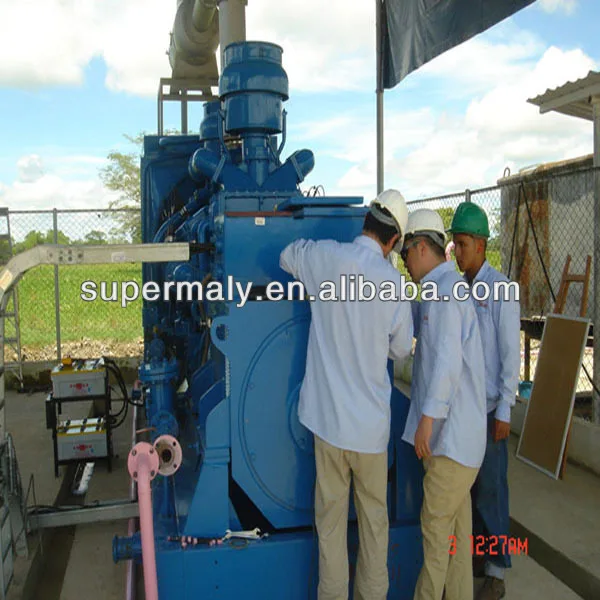

  2) Our engineer will install the biogas plant generator on your site.

  3) We supply you spare parts during the whole service life.

  4) We are manufacturer with 2 factories and after-sale service guaranteed.





2. Biogas plant generator specification

Gas gen-set			Gas-Engine	Alternator	Overall Size                     (mm)	Net Weight (kg)
Model	Rated Power             (kW/kVA)	Rated Current (A)	Model	Model
SPT10GF	10/12.5	18	SP2100DZ	164C	1600X650X1250	470
SPT20GF	20/25	36	SP4100DZ	184EF	2000X730X1320	620
SPT30GF	30/37.5	54	SP4105DZ	184H	2100X730X1320	760
SPT40GF	40/50	72	SP6105DZ	224D	2480X800X1320	1200
SPT50GF	50/62.5	90	SP6105DZ	224E	2500X800X1320	1250
SPT70GF	70/87.5	126	SP6135DZ	224G	2550X1010X1430	2410
SPT90GF	90/112.5	162	SP6135ADZ	274D	2550X1010X1470	2530
SPT120GF	120/150	216	SP6140ADZ	274F	2700X1010X1470	2600
SPT160GF	160/200	288	SP12V135DZ	274H	3060X1350X1790	3200
SPT200GF	200/250	360	SP12V138DZ	4C	3060X1350X1790	3300
SPT400GF	400/500	720	SP12V190DZ	1FC	4600X2040X2210	10700
SPT500GF	500/625	900	SP12V190ZDZ	1FC	4820X2040X2780	12000
SPT700GF	700/875	1260	SPG12V190ZLDZ	1FC	5120X2040X2250	11800
SPT800GF	800/1000	1440	SPA12V190ZLDZ	1FC	6190*2110*2800	12000
SPT1000GF	1000/1250	1800	SPAD12V192ZLZ2	1FC	6710*2950*3000	32000

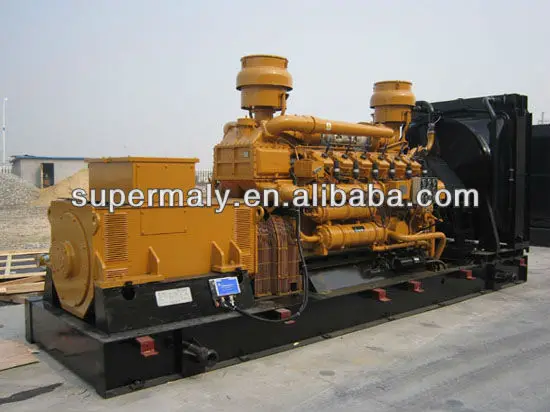

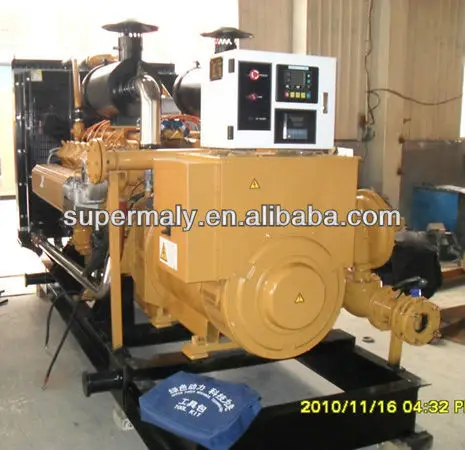

3.biogas plant generator photos





1) Control system:

  a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current

  b) Operation display:

     i) Unit voltage, tri-phase load current and frequency display

     ii) Water temperature, oil pressure display

     iii) Fuel level, fuel temperature display

     iv) Audible and visual alarm lamps and buzzers

 2) Starting system: DC alternator is used to start engine

3) Short circuit protection: MCCB air switch

4) Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C

5) Filter system: oil filter and air filter

6) Accessories: exhaust elbow, bellow, muffler

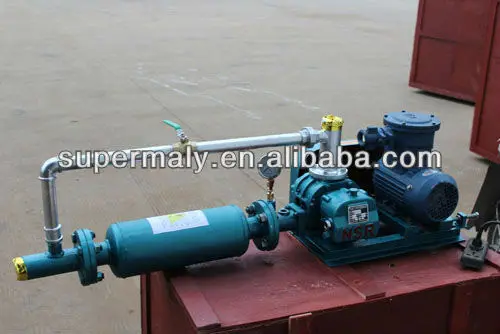

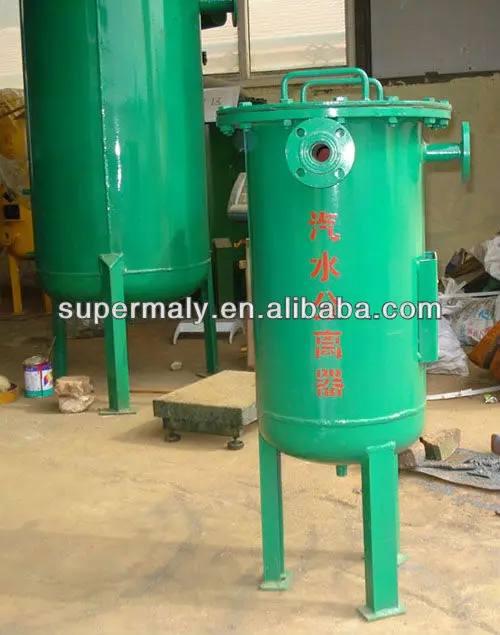

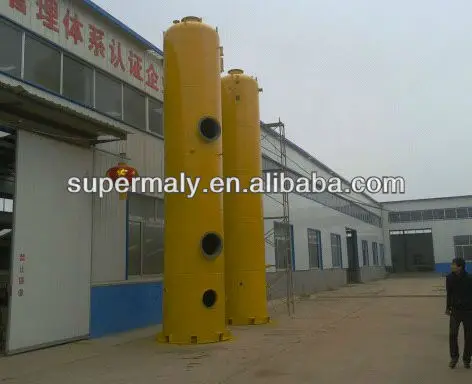

 Biogas treatment equipment

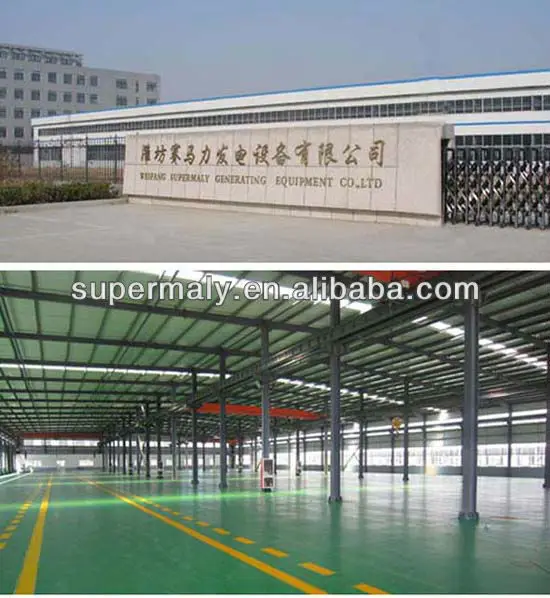

Our factory
